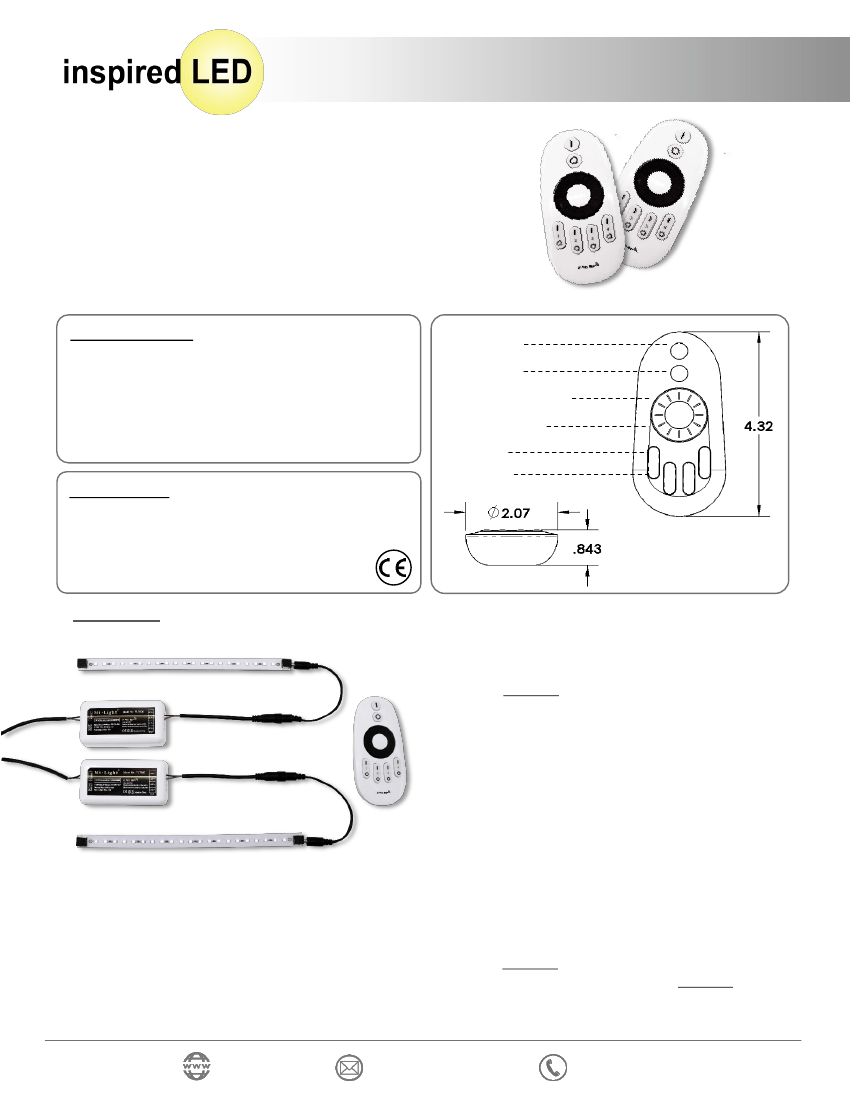

Multi-Zone Wireless Remote
The
Multi- Zone Wireless Remote
combines with
Multi-Zone Dimmable Receivers (sold separately) to
create a convenient solution for dimming multiple
Inspired LED plug & play systems with ease.
Compatible with 12V or 24V LED strips and power
supplies, this product allows up to four different
light zones to be controlled independently or in sync.
Product Features:
Compatible with multi-zone dimmable receiver
modules (sold
separately)
Control up to 4 independent zones, plus master
control for versatile system design
Quick on/off functions with 0-100% dimming, smart
memory function retains most recent settings
SKU #3763
For use with SKU #3762
Master ON
Master OFF
Scroll → to Brighten
Scroll ← to Dim
Zone ON
Zone OFF
I
I
O I I O
O O
I
O
Specifications:
Max Load for dimmable receiver- 6 AMPS
Compatible with 12V or 24V DC plug-in power supplies
Remote requires AAA batteries (included)
RF range up to 30 meters
*Dimensions shown in inches
Instructions:
Pair Remotes to Receiver Modules
(sold separately)-
1. Install all LED lights according to their instructions.
2. Connect lights to side of receiver marked “LED”.
3. Plug 12/24V DC power into side of receiver marked “power”.
4. Within 3 seconds of connecting power, press desired zone ON
button (up). Lights fade on & off 3 times to indicate success.
To Use Remote Controls-
1. Ensure LED lights have been properly installed and all desired
zones have been paired to remote(s).
2. To control all zones at once, press the Master ON button at
the top of remote. Or, to control a single zone, press desired
Zone button ON (up).
3. Scroll black wheel left and right to dim or brighten the most
recently selected zone or zones.
4. To turn off a single Zone, press the Zone OFF button (down).
5. To turn off all zones at once, press the Master OFF button.
Remove Remotes from Receiver Modules-
1. Remove and reconnect 12/24V DC power to receiver module.
2. Within 3 seconds of connecting power, rapidly press the
currently synced Zone button ON (up) five times in a row.
3. Lights will fade on & off 10 times to indicate successful
desynchronization.
Troubleshooting-
1. For best installation results, use two people: one person
to plug in power, one to press control buttons
2. If lights turn on but do not dim, ensure power supply is
plugged into side of receiver marked “power”, and LEDs
into “LED”. Reversal will prevent dimming.
3. Faint red light behind central button indicates power, if
no light is visible when using remote, replace batteries.
inspiredled.com
orders@inspiredled.com
(480) 941-4286
