Double-level spring-cage terminal block - STTB 2,5-PT100 MD - 3035564
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Double-level spring-cage terminal block, with temperature sensor, Cross section: 0.08 mm² - 4 mm²,
AWG: 28 - 12, Connection type: Spring-cage connection, Width: 7.4 mm, Color: gray, Mounting type: NS
35/7,5, NS 35/15
Why buy this product
For more versions and versions for soldering in components yourself, visit phoenixcontact.net/products
Compact design for maximum space savings
Double-level diode and LED terminal blocks perform a wide range of switching tasks
Connect the levels using FBS ...-PV bridges
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 STK
50 STK
85369010
Poland
Technical data
Environmental Product Compliance
China RoHS
No hazardous substances above threshold values
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
2
4
2.5 mm²
gray
PA
V0
6 kV
09/08/2016 Page 1 / 14
https://www.phoenixcontact.com/us/products/3035564
Double-level spring-cage terminal block - STTB 2,5-PT100 MD - 3035564
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec.; UL 746 B)
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
3
III
I
IEC 60947-7-1
22 A
26 A (with 4 mm² conductor cross section)
500 V
No
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
7.4 mm
67.5 mm
47.5 mm
55 mm
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Spring-cage connection
0.08 mm²
4 mm²
0.08 mm²
2.5 mm²
28
09/08/2016 Page 2 / 14
https://www.phoenixcontact.com/us/products/3035564
Double-level spring-cage terminal block - STTB 2,5-PT100 MD - 3035564
Technical data
Connection data
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
12
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Stripping length
Internal cylindrical gage
8 mm ... 10 mm
A3
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Drawings
Circuit diagram
ϑ
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141127
27141127
27141127
27141127
27141127
27141127
27141120
27141120
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
30211811
09/08/2016 Page 3 / 14
https://www.phoenixcontact.com/us/products/3035564
Double-level spring-cage terminal block - STTB 2,5-PT100 MD - 3035564
Classifications
UNSPSC
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
EAC / EAC
Ex Approvals
Approval details
EAC 7500651.22.01.00246
EAC EAC-Zulassung
Accessories
Accessories
DIN rail
DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35 mm, length:
2000 mm
09/08/2016 Page 4 / 14
https://www.phoenixcontact.com/us/products/3035564
Double-level spring-cage terminal block - STTB 2,5-PT100 MD - 3035564
Accessories

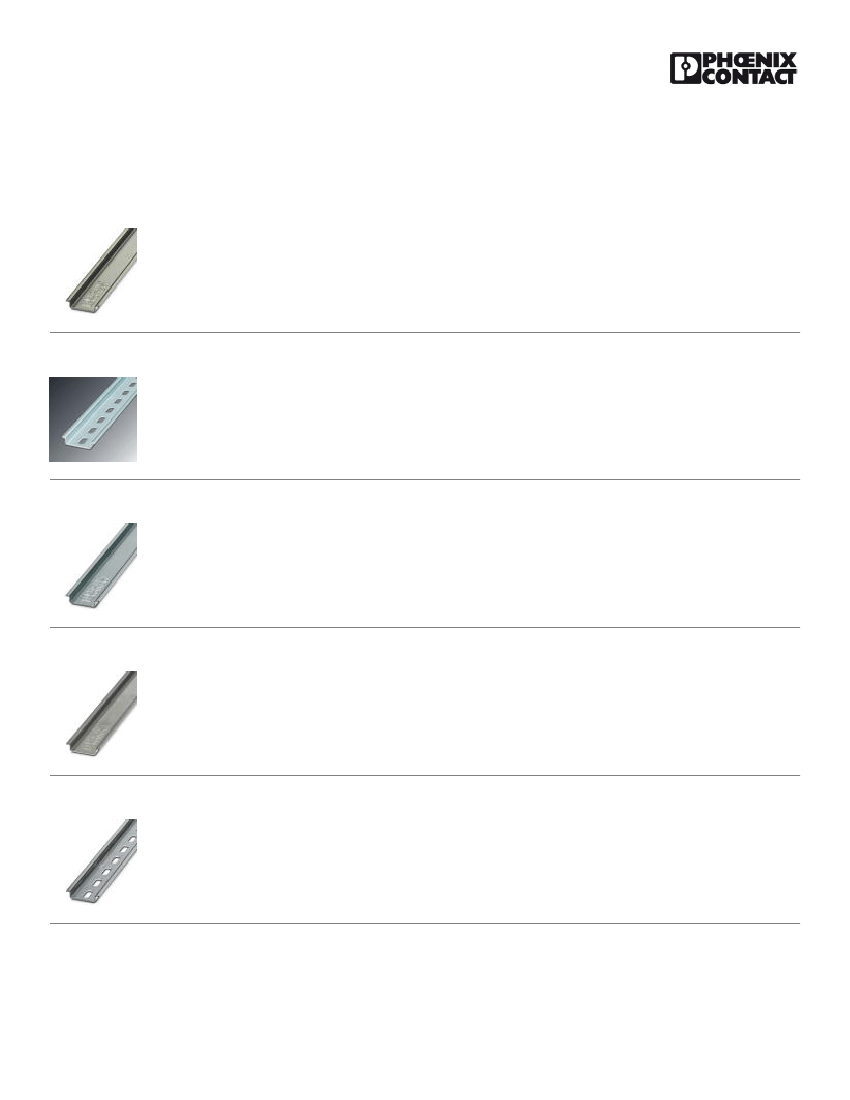

DIN rail, unperforated - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail perforated - NS 35/ 7,5 WH PERF 2000MM - 1204119
DIN rail 35 mm (NS 35)
DIN rail - NS 35/ 7,5 WH UNPERF 2000MM - 1204122
DIN rail 35 mm (NS 35)
DIN rail, unperforated - NS 35/ 7,5 AL UNPERF 2000MM - 0801704
DIN rail, unperforated, Width: 35 mm, Height: 7.5 mm, Length: 2000 mm, Color: silver
DIN rail perforated - NS 35/ 7,5 ZN PERF 2000MM - 1206421
DIN rail, material: Galvanized, perforated, height 7.5 mm, width 35 mm, length: 2 m
09/08/2016 Page 5 / 14
