Printed-circuit board connector - SMSTB 2,5/15-ST-5,08 - 1826416
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 15, Pitch: 5.08 mm,
Connection method: Screw connection, Color: green, Contact surface: Tin

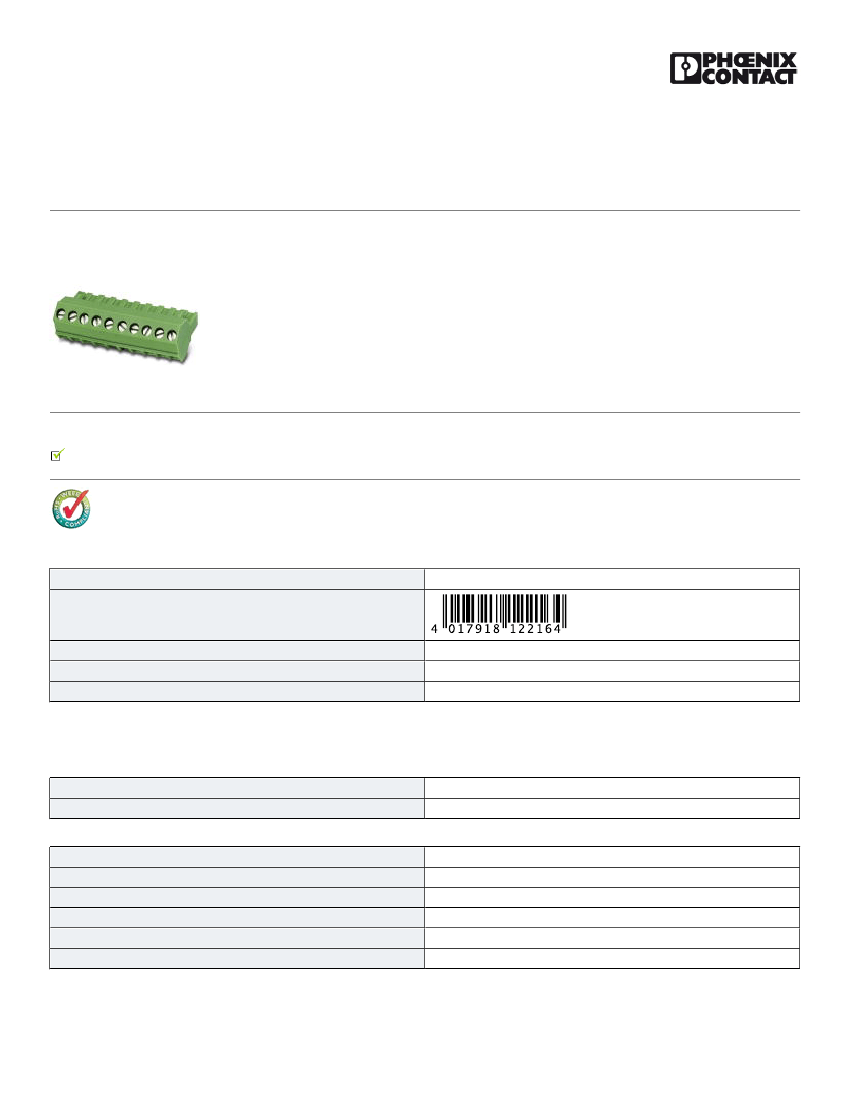

The figure shows a 10-position
version of the product
Product Features
With angled connection direction to the conductor axis
Key commercial data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
28.93 GRM
85366990
Germany
1 pc
Technical data
Dimensions
Pitch
Dimension a
5.08 mm
71.12 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
SMSTB 2,5/..-ST
I
4 kV
4 kV
4 kV
250 V
08/25/2014 Page 1 / 5
https://www.phoenixcontact.com/us/products/1826416
Printed-circuit board connector - SMSTB 2,5/15-ST-5,08 - 1826416
Technical data
General
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
320 V
630 V
EN-VDE
12 A
2.5 mm²
12 A (with 2.5 mm² conductor cross section)
PA
V0
A3
7 mm
15
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1.5 mm²
sleeve, max.
Minimum AWG according to UL/CUL
30
08/25/2014 Page 2 / 5
https://www.phoenixcontact.com/us/products/1826416
Printed-circuit board connector - SMSTB 2,5/15-ST-5,08 - 1826416
Technical data
Connection data
Maximum AWG according to UL/CUL
12
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440309
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002638
EC002638
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / GOST / GOST / CSA / cULus Recognized
Ex Approvals
Approvals submitted
08/25/2014 Page 3 / 5
https://www.phoenixcontact.com/us/products/1826416
Printed-circuit board connector - SMSTB 2,5/15-ST-5,08 - 1826416
Approvals
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
28-12
15 A
300 V
D
28-12
10 A
300 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-12
15 A
300 V
D
30-12
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-12
15 A
300 V
D
30-12
10 A
300 V
GOST
GOST
CSA
mm²/AWG/kcmil
B
28-12
D
28-12
08/25/2014 Page 4 / 5
https://www.phoenixcontact.com/us/products/1826416
Printed-circuit board connector - SMSTB 2,5/15-ST-5,08 - 1826416
Approvals
Nominal current IN
Nominal voltage UN
B
15 A
300 V
D
10 A
300 V
cULus Recognized

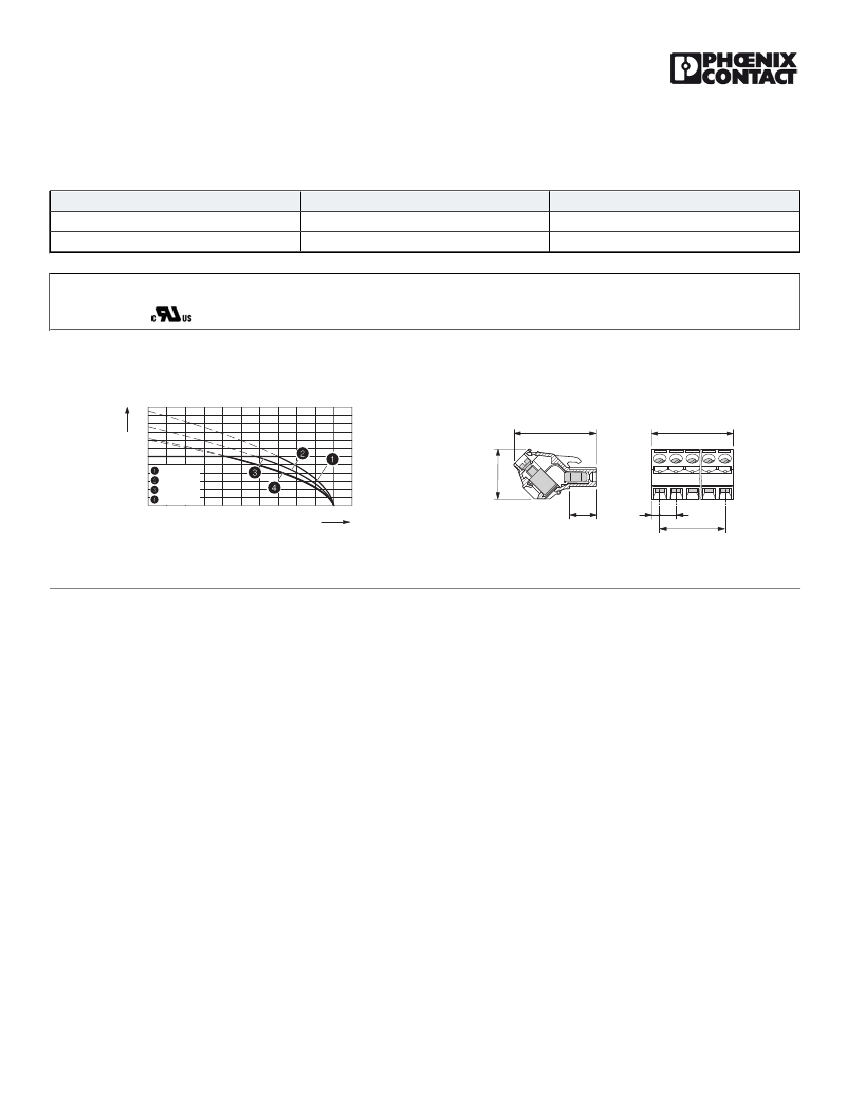

Drawings
Diagram
Current carrying capacity [A]
Dimensioned drawing
24
20
16
12
8
4
0
0
= 2-pos.
= 5-pos.
= 12-pos.
= 24-pos.
20
40
60
80
100
15,5
25,6
a+5,08
8,3
2,54
5,08
a
Ambient temperature [°C]
Type: SMSTB 2,5/...-ST(-5,08) with SMSTBA 2,5/...-G(-5,08)
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
08/25/2014 Page 5 / 5
