Certificate TH97/10561QM
Certificate TW00/17276EM
STBK06I - STBK5G4
V
BR
: 6.8 - 440 Volts
P
PK
: 1500 Watts

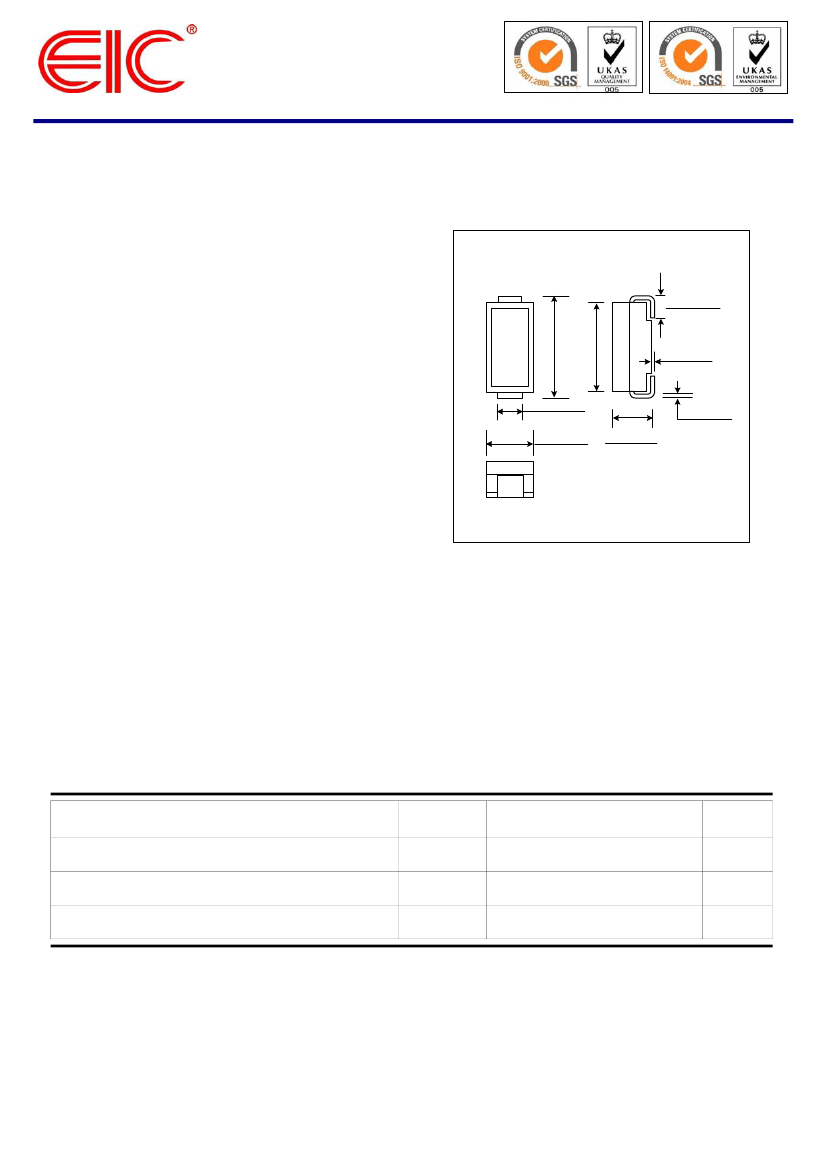

FEATURES :
* 1500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less
then 1.0 ps from 0 volt to V
BR(min.)
* Typical I
R
less then 1µA above 10V
* Pb / RoHS Free
SURFACE MOUNT
BIDIRECTIONAL TRANSIENT
VOLTAGE SUPPRESSOR
SMC (DO-214AB)
0.060(1.52)
0.030(0.76)
0.320(8.13)
0.305(7.75)
0.280(7.11)
0.260(6.60)
0.008(0.203)
0.004(0.102)
0.121(3.07)
0.115(2.92)
0.245(6.22)
0.220(5.59)
0.103(2.62)
0.079(2.00)
0.012(0.305)
0.006(0.152)
MECHANICAL DATA
* Case : SMC Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead Formed for Surface Mount
* Polarity : Color band denotes cathode end except Bipolar.
* Mounting position : Any
* Weight : 0.21 grams
Dimensions in inches and (millimeter)
DEVICES FOR UNIPOLAR APPLICATIONS
For Uni-directional altered the third letter of type from "B" to be "U".
Electrical characteristics apply in both directions
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified.
Rating
Peak Power Dissipation at Ta = 25 °C, Tp=1ms (Note1)
Steady State Power Dissipation at T
L
= 75
°C
Operating and Storage Temperature Range
Note :
Symbol
P
PK
P
D
T
J
, T
STG
Value
Minimum 1500
5.0
- 55 to + 150
Unit
W
W
°C
(1) Non-repetitive Current pulse, per Fig. 2 and derated above Ta = 25
°
C per Fig. 1
Page 1 of 4
Rev. 06 : May 2, 2006
Certificate TH97/10561QM
Certificate TW00/17276EM
ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified
Breakdown Voltage @ It
( Note 1 )
Working Peak
Reverse
Voltage
V
RWM
(V)
50.2
53.0
55.1
58.1
60.7
64.1
66.4
70.1
73.7
77.8
81.0
85.5
89.2
94.0
97.2
102
105
111
121
128
130
136
138
145
146
154
162
171
175
185
202
214
243
256
284
300
324
342
356
376
Maximum
Reverse Leakage
@ V
RWM
I
R
(µA)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Maximum
Reverse
Current
I
RSM
(A)
16.9
17.7
15.3
16.3
13.9
14.6
12.7
13.3
11.4
12.0
10.4
11.0
9.5
9.9
8.7
9.1
8.0
8.4
7.0
7.2
6.5
6.8
6.2
6.4
5.8
6.1
5.2
5.5
4.3
4.6
4.2
4.4
3.5
3.6
3.0
3.1
2.6
2.7
2.4
2.5
Maximum
Clamping
Voltage @ I
RSM
V
RSM
(V)
89.0
85.0
98.0
92.0
108
103
118
113
131
125
144
137
158
152
173
165
187
179
215
207
230
219
244
234
258
246
287
274
344
328
360
344
430
414
504
482
574
548
631
602
Maximum
Temperature
Co-efficient
of V
BR
(% / °C)
0.104
0.104
0.104
0.104
0.105
0.105
0.105
0.105
0.106
0.106
0.106
0.106
0.107
0.107
0.107
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.110
0.110
0.110
0.110
0.110
0.110
0.110
0.110
0.110
0.110
Type No.
V
BR
(V)
Min.
STBK062
STBK562
STBK068
STBK568
STBK075
STBK575
STBK082
STBK582
STBK091
STBK591
STBK0B0
STBK5B0
STBK0B1
STBK5B1
STBK0B2
STBK5B2
STBK0B3
STBK5B3
STBK0B5
STBK5B5
STBK0B6
STBK5B6
STBK0B7
STBK5B7
STBK0B8
STBK5B8
STBK0D0
STBK5D0
STBK0D2
STBK5D2
STBK0D5
STBK5D5
STBK0E0
STBK5E0
STBK0E5
STBK5E5
STBK0G0
STBK5G0
STBK0G4
STBK5G4
Notes:
55.8
58.9
61.2
64.6
67.5
71.3
73.8
77.9
81.9
86.5
90.0
95.0
99.0
105
108
114
117
124
135
143
144
152
153
162
162
171
180
190
198
209
225
237
270
285
315
332
360
380
396
418
Max.
68.2
65.1
74.8
71.4
82.5
78.8
90.2
86.1
100
95.5
110
105
121
116
132
126
143
137
165
158
176
168
187
179
198
189
220
210
242
231
275
263
330
315
385
368
440
420
484
462
It
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
(1) V
BR
measured after It applied for 300 µs., It = square wave pulse or equivalent.
(2) "STB" will be omitted in marking on the diode.
Page 3 of 4
Rev. 06 : May 2, 2006
Certificate TH97/10561QM
Certificate TW00/17276EM

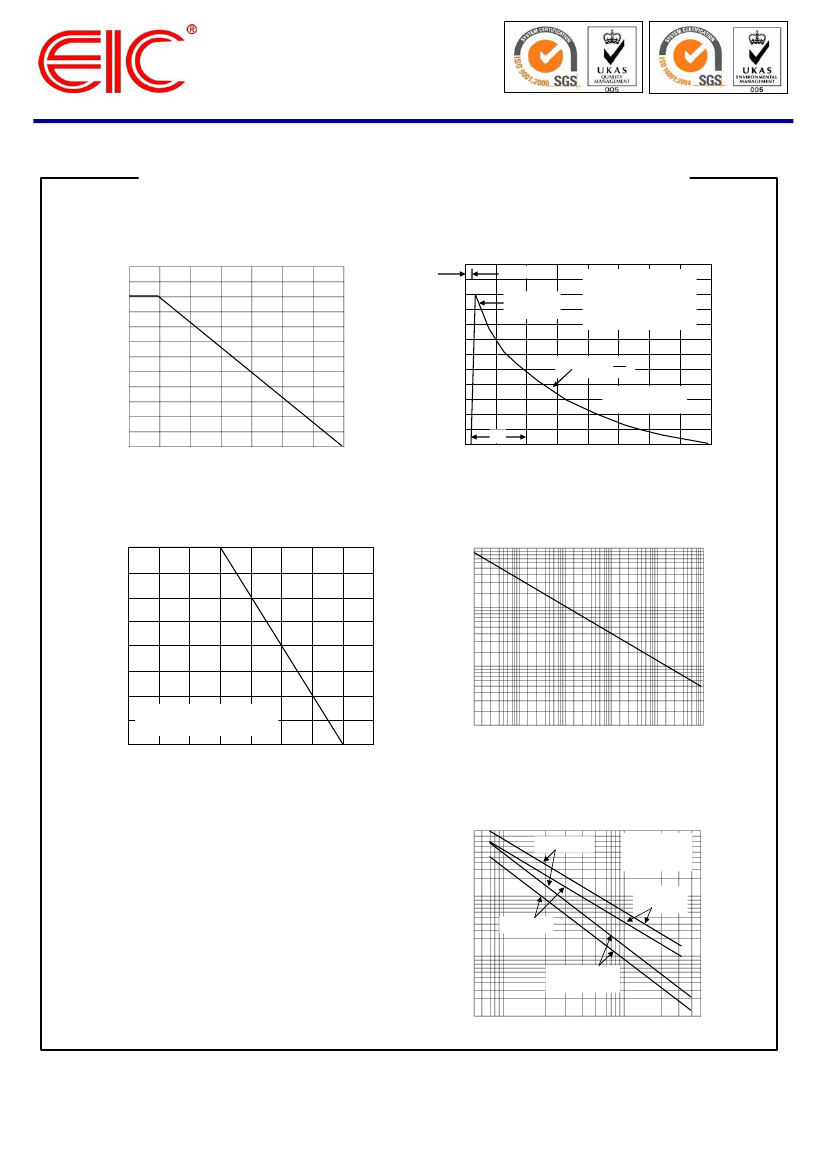

RATING AND CHARACTERISTIC CURVES ( STBK06I - STBK5G4 )
FIG.1 - PULSE DERATING CURVE
120
FIG.2 - PULSE WAVEFORM
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
PEAK PULSE CURRENT - % I
RMS
Tr = 10μs
100
Peak Value
I
RSM
100
80
T
J
=25
°C
Pulse Width (tp) is defined
as that point where the peak
current decays to 50%
of I
RSM
60
50
Half Value - I
RSM
2
10X1000 Waveform
as defined by R.E.A.
40
20
0
0
25
50
75
100
125
150
175
tp
0
0
1.0
2.0
3.0
4.0
Ta, AMBIENT TEMPERATURE, (
°
C)
T, TIME(ms)
FIG.3 - STEADY STATE POWER DERATING
P
D
, STEADY STATE POWER DISSIPATION
(WATTS)
5.00
100
FIG.4 - PULSE RATING CURVE
3.75
Pp,PEAK POWER (kW)
Single Phase Half Wave
60 Hz Resistive or Inductive load
10
2.50
1.0
1.25
0.1
0.1μs
125
150
175
200
1.0μs
10μs
100μs
1.0ms
10ms
0
0
25
50
75
100
tp, PULSE WIDTH
T
L
, LEAD TEMPERATURE (
°
C)
FIG.5 - TOTAL CAPACITANCE
10000
Unidirectional
Total Capacitance, C
T
(pF)
Ta = 25°C
f = 1.0 MHz
Visg = 50m Vp-p
1000
Bidirectional
Measured at
Zero Bias
100
Measured at
Stand-Off Voltage
10
5
10
20
50
100
200
500
Page 4 of 4
Rev. 06 : May 2, 2006
