FAN2502 / FAN2503 — 150 mA CMOS LDO Regulator
May 2013
FAN2502 / FAN2503
150 mA CMOS LDO Regulator
Features
•
•
•
•
•
•
•
Ultra-Low Power Consumption
150 mV Dropout Voltage at 150 mA
25
μA
Ground Current at 150 mA
Enable / Shutdown Control
SOT23-5 package
Thermal Limiting
300 mA Peak Current
Description

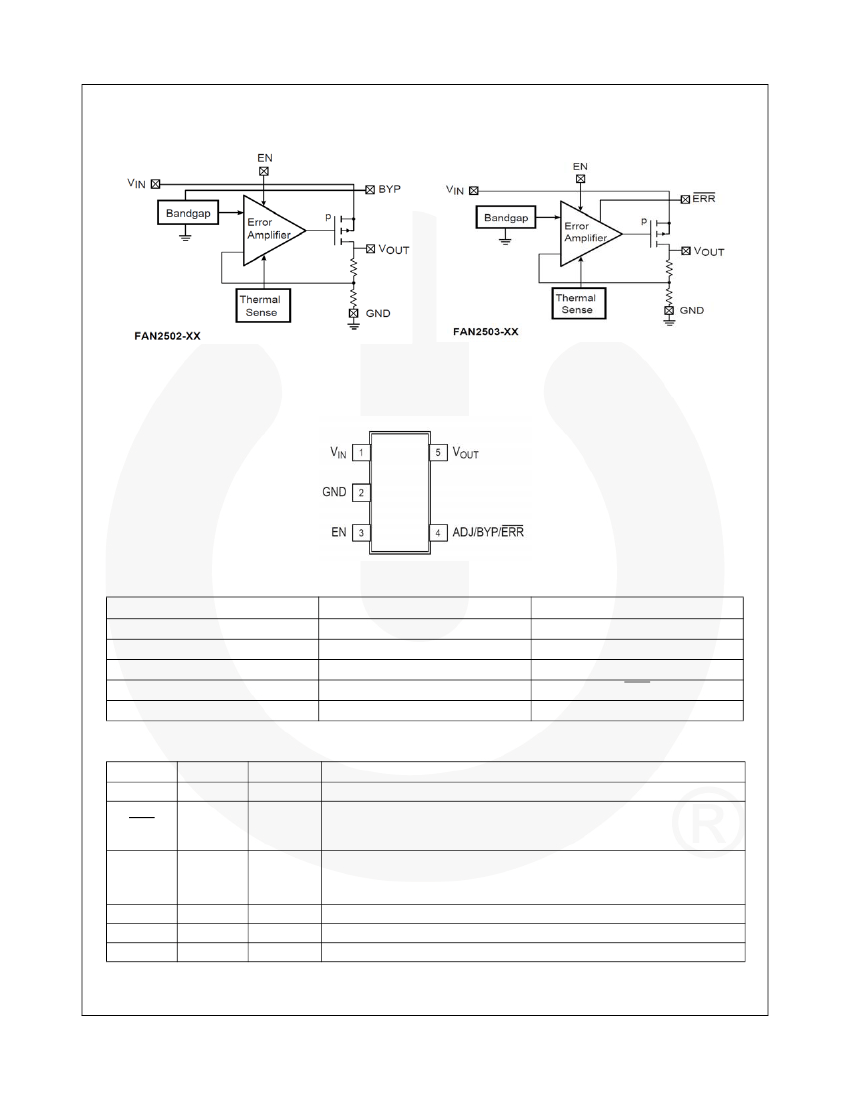

The FAN2502 / 03 family of micropower low-dropout volt-
age regulators utilize CMOS technology to offer a new
level of cost-effective performance in mobile handsets,
laptop and notebook portable computers, and other por-
table devices. Features include extremely low power con-
