FDR6580
April 1999
ADVANCE INFORMATION
FDR6580
N-Chennal 2.5V Specified PowerTrench
TM
MOSFET

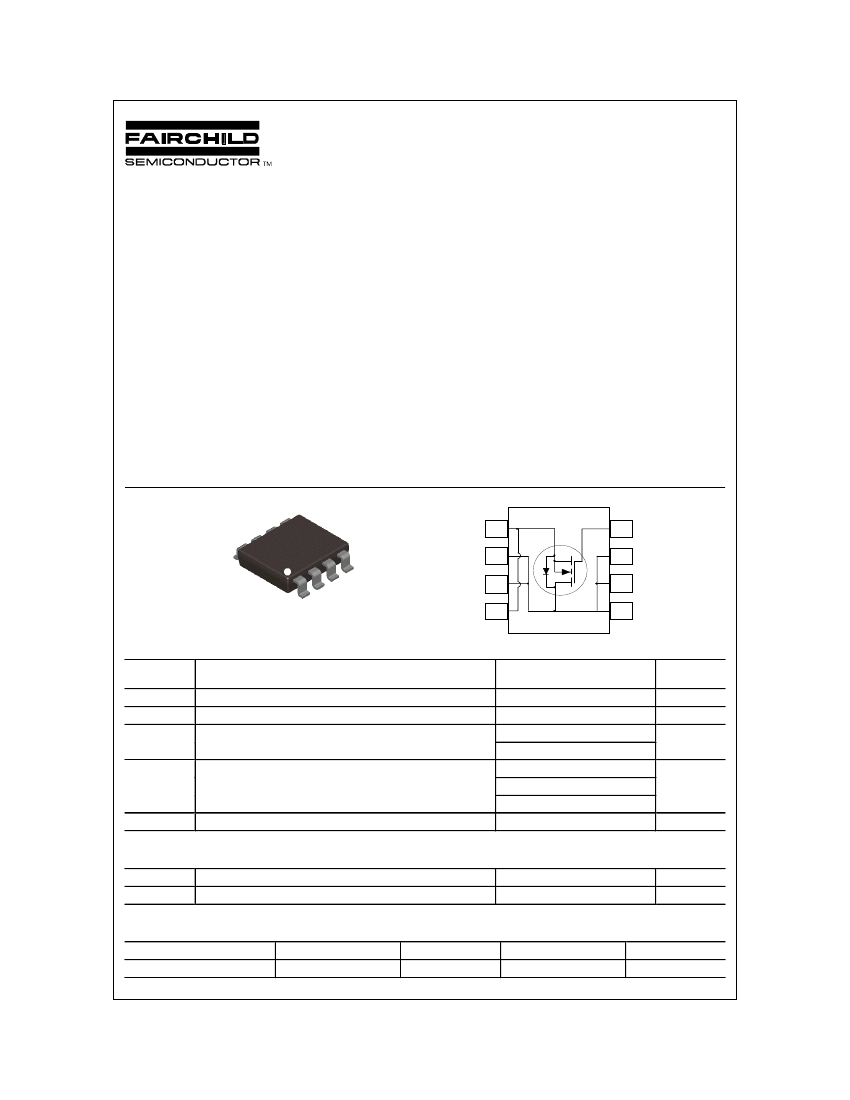

General Description
This N-Channel 2.5V specified MOSFET is produced using
Fairchild Semiconductor's advanced PowerTrench process
that has been especially tailored to minimize the on-state
resistance and yet maintain low gate charge for superior
switching performance.
Features
11 A, 20 V. R
DS(ON)
= 0.009
Ω
@ V
GS
= 4.5 V
R
DS(ON)
= 0.013
Ω
@ V
GS
= 2.5 V.
Low gate charge.
High performance trench technology for extremely
low R
DS(ON)
.
Small footprint (38% smaller than a standard SO-8); low
profile package (1 mm thick); power handling capability
similar to SO-8.
Applications
Load switch
Motor driving
Power Management
D
S
D
S
5
6
D
G
4
3
2
1
7
8
SuperSOT -8
TM
D
D
Absolute Maximum Ratings
Symbol
V
DSS
V
GSS
I
D
P
D
Drain-Source Voltage
Gate-Source Voltage
Drain Current
- Continuous
- Pulsed
T
A
= 25°C unless otherwise noted
Parameter
Ratings
20
(Note 1a)
Units
V
V
A
W
±
8
11
50
1.8
1.0
0.9
-55 to +150
Power Dissipation for Single Operation
(Note 1a)
(Note 1b)
(Note 1c)
T
J
, T
stg
Operating and Storage Junction Temperature Range
°
C
Thermal Characteristics
R
θ
JA
R
θ
JC
Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Case
(Note 1a)
(Note 1)
70
20
°
C/W
°
C/W
Package Outlines and Ordering Information
Device Marking
.6580
Device
FDR6580
Reel Size
13’’
Tape Width
12mm
Quantity
3000 units
1999
Fairchild Semiconductor Corporation
FDR6580, Rev. A
FDR6580
Electrical Characteristics
Symbol
Parameter
T
A
=25
o
C unless otherwise noted
Test Conditions
Min
Typ
Max
Units
OFF CHARACTERISTICS
BV
DSS
I
DSS
I
GSSF
I
GSSR
Drain-Source Breakdown Voltage
Zero Gate Voltage Drain Current
Gate-Body Leakage, Forward
Gate-Body Leakage, Reverse
(Note 2)
V
GS
= 0 V, I
D
= 250
µA
V
DS
= 16 V, V
GS
= 0 V
V
GS
= 8 V, V
DS
= 0 V
V
GS
= -8 V, V
DS
= 0 V
20
1
10
-10
V
µA
µA
µA
ON CHARACTERISTICS
V
GS(TH)
R
DS(ON)
I
D(ON)
Static Drain-Source
On-Resistance
Gate Threshold Voltage
V
DS
= V
GS
, I
D
= 250
µA
V
GS
= 4.5 V, I
D
= 11 A
V
GS
= 2.5 V, I
D
= 9.3 A
V
GS
= 4.5 V, V
DS
= 5 V
0.4
1.5
0.009
0.013
V
Ω
A
On-State Drain Current
25
DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS
I
S
V
SD
Maximum Continuous Drain-Source Diode Forward Current
Drain-Source Diode Forward
Voltage
V
GS
= 0 V, I
S
= 1.5 A
(Note 2)
1.5
1.2
A
V
Notes:
1.
R
θJA
is the sum of the junction-to-case and case-to-ambient resistance where the case thermal reference is defined as the solder mounting surface of
the drain pins. R
θJC
is guaranteed by design while R
θCA
is determined by the user's board design.
a) 70° C/W when mounted on a
1.0 in
2
pad of 2 oz. copper.
b) 125° C/W when mounted on
a 0.026 in
2
pad of 2oz. copper.
c) 135° C/W when mounted
on a minimum pad.
Scale 1 : 1 on letter size paper
2.
Pulse Test: Pulse Width
≤
300
µs,
Duty Cycle
≤
2.0%
FDR6580, Rev. A
SuperSOT
TM
-8 Tape and Reel Data and Package Dimensions

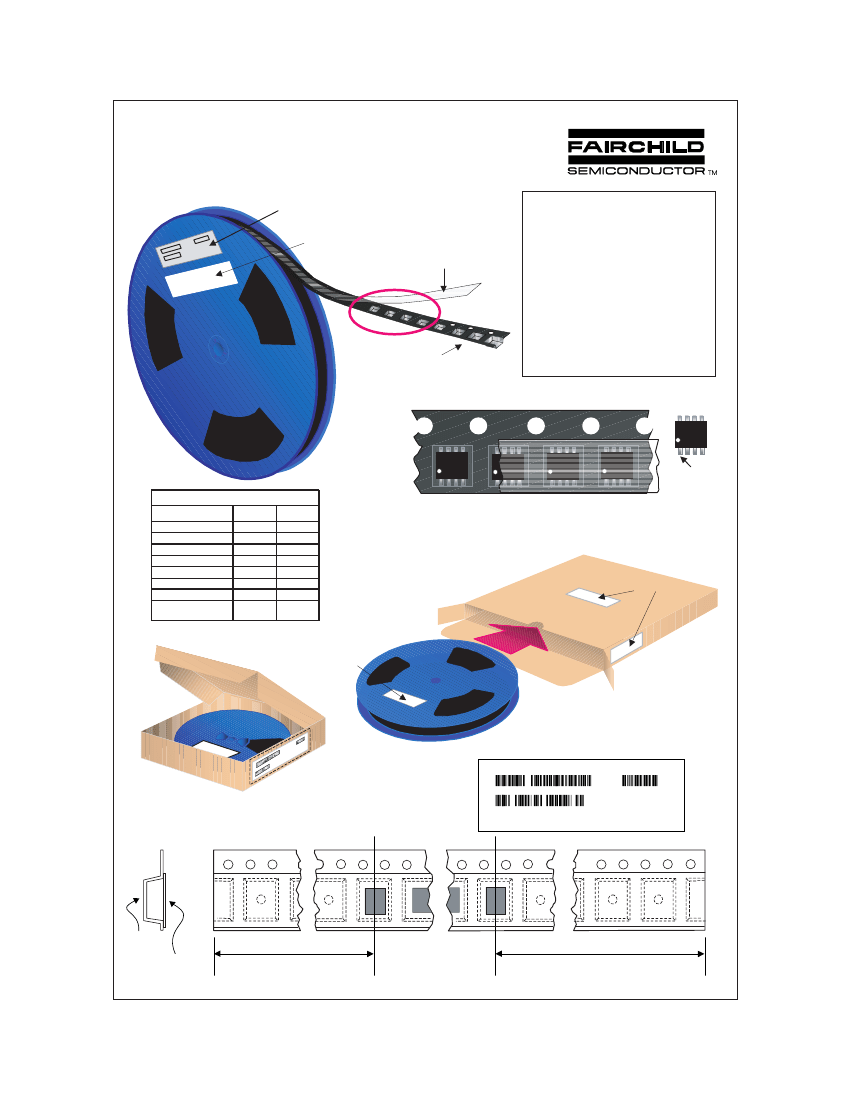

SSOT-8 Packaging
Configuration:
Figure 1.0
Customized Label
Packaging Description:
SSOT-8 parts are shipped in tape. The carrier tape is
made from a di ssipat ive (carbo n filled) po ly carbon ate
resin. The cover tape is a multilayer film (Heat Activated
Adhesive in nature) primarily composed of polyester film ,
adhesive layer, sealant, and anti-static sprayed agent.
These reeled parts in standard option are shipped w ith
3,000 units per 13" or 330cm diameter reel. The reels are
dark blue in color and is made of polystyrene plastic (anti-
static coated). Other option comes in 500 unit s per 7" or
177cm diameter reel. This and some other options are
further described in the Packagin g Information table.
These full reels are in di vidu ally barcod e labeled and
placed inside a standard intermediate box (ill ustrated in
figure 1.0) made of recyclable corrugated brow n paper.
One box contains two reels maximum. And t hese boxes
are placed ins ide a barcode labeled shipp ing bo x whic h
comes in di fferent sizes depend in g on t he nu mber of parts
shippe d.
F63TNR Label
Anti static Cover Tape
Static Dissi pat ive
Emboss ed Carrier Tape
F852
831N
F852
831N
F852
831N
F852
831N
F852
831N
Pin 1
SSOT-8 Packaging Information
Packaging Option
Packaging type
Qty per Reel/Tube/Bag
Reel Size
Box Dimension (mm)
Max qty per Box
Weight per unit (gm)
Weight per Reel (kg)
Note/Comments
Standard
(no f l ow c ode )
D84Z
TNR
500
7" Dia
184x187x47
1,000
0.0416
0.0980
TNR
3,000
13" D ia
343x64x343
6,000
0.0416
0.5615
SSOT-8 Unit Orientation
343mm x 342mm x 64mm
Intermediate box for Standar d
and L99Z Opti ons
F63TNR Label
F63TNR
Label
F63TNR Label sa mpl e
184mm x 187mm x 47mm
Pizza Box fo r D84Z Option
F63TNR
Label
LOT: CBVK741B019
FSID: FDR835N
QTY: 3000
SPEC:
SSOT-8 Tape Leader and Trailer
Configuration:
Figur e 2.0
D/C1: D9842
D/C2:
QTY1:
QTY2:
SPEC REV:
CPN:
N/F: F
(F63TNR)3
Carrier Tape
Cover Tape
Components
Traile r Tape
300mm mi nimum or
38 empty pockets
Lead er Tape
500mm mi nimum or
62 empty poc kets
August 1999, Rev. C
SuperSOT
TM
-8 Tape and Reel Data and Package Dimensions, continued

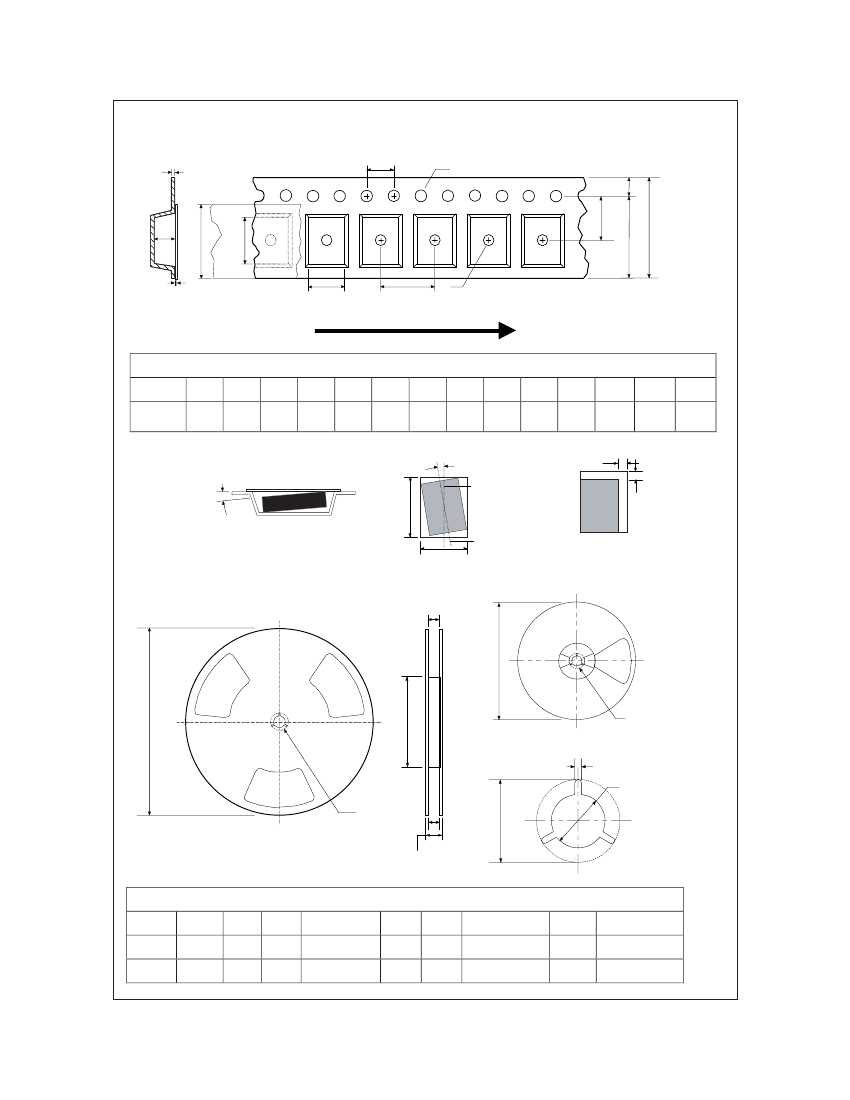

SSOT-8 Embossed Carrier Tape
Configuration:
Figur e 3.0
T
E1
P0
D0
F
K0
Wc
B0
E2
W
Tc
A0
P1
D1
User Direction of Feed
Dimensions are in millimeter
Pkg type
SSOT-8
(12mm)
A0
4.47
+/-0.10
B0
5.00
+/-0.10
W
12.0
+/-0.3
D0
1.55
+/-0.05
D1
1.50
+/-0.10
E1
1.75
+/-0.10
E2
10.25
mi n
F
5.50
+/-0.05
P1
8.0
+/-0.1
P0
4.0
+/-0.1
K0
1.37
+/-0.10
T
0.280
+/-0.150
Wc
9.5
+/-0.025
Tc
0.06
+/-0.02
Notes : A0, B0, and K0 dimensions are deter mined with r espec t to t he EIA/Jedec RS-481
rotationa l and lateral movement requi remen ts (see sketches A, B, and C).
20 deg maximum
Typical
component
cavity
center line
0.5mm
maximum
B0
20 deg maximum component rotation
0.5mm
maximum
Sketch A (Si de or Front Sectional View)
Component Rotation
A0
Sketch B (Top View)
Typical
component
center line
Sketch C (Top View)
Component lateral movement
SSOT-8 Reel Configuration:
Figur e 4.0
Component Rotation
W1 Measured at Hub
Dim A
Max
Dim A
max
Dim N
See detail AA
7" Diameter Option
B Min
Dim C
See detail AA
W3
Dim D
min
13" Diameter Option
W2 max Measured at Hub
DETAIL AA
Dimensions are in inches and millimeters
Tape Size
12mm
Reel
Option
7" Dia
Dim A
7.00
177.8
13.00
330
Dim B
0.059
1.5
0.059
1.5
Dim C
512 +0.020/-0.008
13 +0.5/-0.2
512 +0.020/-0.008
13 +0.5/-0.2
Dim D
0.795
20.2
0.795
20.2
Dim N
5.906
150
7.00
178
Dim W1
0.488 +0.078/-0.000
12.4 +2/0
0.488 +0.078/-0.000
12.4 +2/0
Dim W2
0.724
18.4
0.724
18.4
Dim W3 (LSL-USL)
0.469 – 0.606
11.9 – 15.4
0.469 – 0.606
11.9 – 15.4
12mm
13" Dia
©
1998 Fairchild Semiconductor Corporation
July 1999, Rev. C
SuperSOT
TM
-8 Tape and Reel Data and Package Dimensions, continued

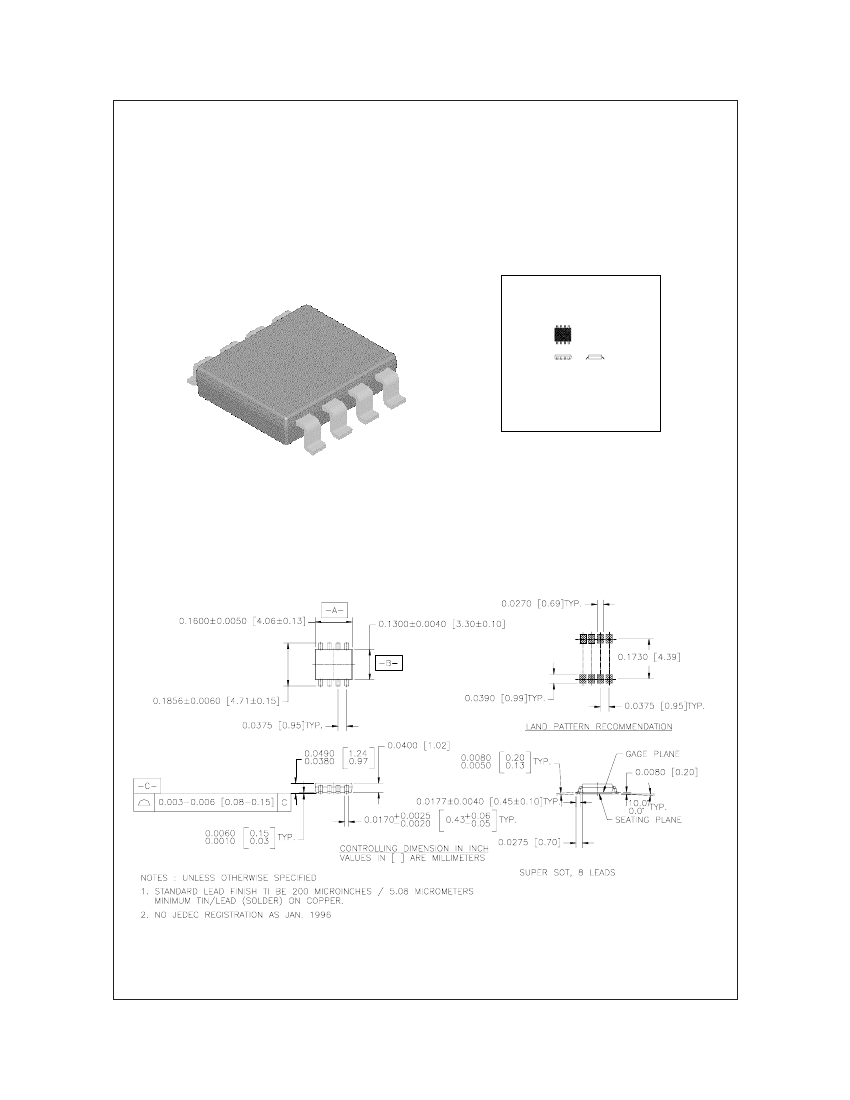

SuperSOT™-8 (FS PKG Code 34, 35)
1:1
Scale 1:1 on letter size paper
Di mensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 0.0416
September 1998, Rev. A
