PTC thermistors for
overcurrent protection
Leaded disks, coated, 12 V
Series/Type:
Date:
B599*5
February 2018
© EPCOS AG 2018. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Overcurrent protection
Leaded disks, coated, 12 V
C945 ... C995
Applications
Overcurrent protection
Short circuit protection
Features
Lead-free terminals
Marking: Type, manufacturer's logo,
reference temperature in
°C
and date code
YYWW (no date code for types with
w
max
= 4 mm)
Low resistance
For rated currents of up to 1.5 A
High thermal stability
UL approval to UL 1434 (file number
E69802)
VDE approval for selected types
(license number 104843)
IECQ certificate for selected types
(file number 101-QA-2)
Qualification based on AEC-Q200, Rev. D
(except: B59995C*)
RoHS-compatible
Options
Thermistors with diameter w
≤11.0
mm are
also available on tape (to IEC 60286-2)
Delivery mode
Cardboard strips (standard)
Cardboard tape reeled or in Ammo pack on
request
General technical data
Max. operating voltage
Rated voltage
Switching cycles
Reference temperature
Tolerance of R
R
Operating temperature range
Operating temperature range
(T
A
= 60
°C)
Dimensional drawing
Dimensions (mm)
Type
C945
C955
C965
C975
C985
C995
w
max
17.5
13.5
11.0
9.0
6.5
4.0
h
max
21.0
17.0
14.5
12.5
10.0
7.5
∅d
0.6
0.6
0.6
0.6
0.6
0.5
(typ.)
(V = 0)
(V = V
max
)
V
max
V
R
N
T
ref
∆R
R
T
op
T
op
20
12
100
160
±25
40/+125
40/+85
V DC or V AC
V DC or V AC
°C
%
°C
°C
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 11
Overcurrent protection
Leaded disks, coated, 12 V
C945 ... C995
Electrical specifications and ordering codes
Type I
R
I
S
I
Smax
I
r
(V = V
max
) (typ.)
(V = V
max
)
A
mA
170
120
105
85
65
40
I
r
R
R
(typ.)
(V = V
R
)
mA
Ω
270
190
165
135
100
65
0.45
0.8
1.2
1.8
4.6
13
R
min
Approvals
Ordering code
mA
mA
Ω
0.3
0.5
0.7
1.1
2.7
7.8
X
X
X
X
X
X
IECQ
B59945C0160A070
B59955C0160A070
B59965C0160A070
B59975C0160A070
B59985C0160A070
B59995C0160A070
C945 1500 3050 8.0
C955 950 1900 5.5
C965 700 1450 4.3
C975 550 1100 3.0
C985 300 600 1.0
C995 150 300 0.7
Reliability data
Test
Electrical endurance,
cycling
Electrical endurance,
constant
Damp heat
X
X
Standard
IEC 60738-1
IEC 60738-1
IEC 60738-1
Rapid change
of temperature
IEC 60738-1
Vibration
IEC 60738-1
Shock
Climatic sequence
IEC 60738-1
IEC 60738-1
Test conditions
Room temperature, I
Smax
; V
max
Number of cycles: 100
Storage at V
max
and T
op,max
(@ V
max
)
Test duration: 1000 h
Temperature of air: 40
°C
Relative humidity of air: 93%
Duration: 56 days
Test according to IEC 60068-2-78
T
1
= T
op,min
(0 V), T
2
= T
op,max
(0 V)
Number of cycles: 5
Test duration: 30 min
Test according to IEC 60068-2-14, test Na
Frequency range: 10 to 55 Hz
Displacement amplitude: 0.75 mm
Test duration: 3
×
2 h
Test according to IEC 60068-2-6, test Fc
Acceleration: 500 m/s
2
Pulse duration: 11 ms; 6
×
3 pulses
Dry heat: T = T
op,max
(0 V)
Test duration: 16 h
Damp heat first cycle
Cold: T = T
op,min
(0 V)
Test duration: 2 h
Damp heat 5 cycles
Tests performed according to
IEC 60068-2-30
∆R
25
/R
25
< 25%
< 25%
< 10%
< 10%
< 5%
< 5%
< 10%
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 11
Overcurrent protection
Leaded disks, coated, 12 V
C945 ... C995

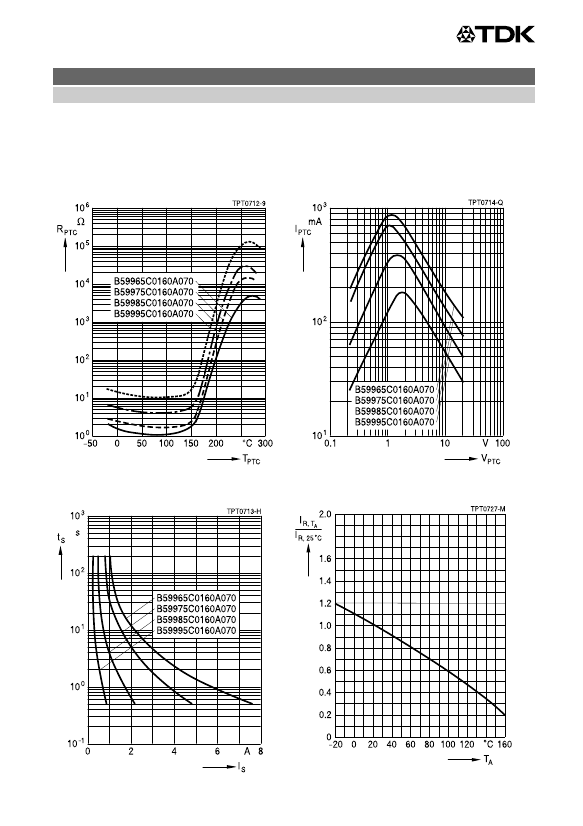

Characteristics (typical)
PTC resistance R
PTC
versus
PTC temperature T
PTC
(measured at low signal voltage)
PTC current I
PTC
versus PTC voltage V
PTC
(measured at 25
°C
in still air)
Switching time t
S
versus switching current I
S
(measured at 25
°C
in still air)
Rated current I
R
versus ambient temperature T
A
(measured in still air)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 11
Overcurrent protection
Leaded disks, coated, 12 V
C945 ... C995

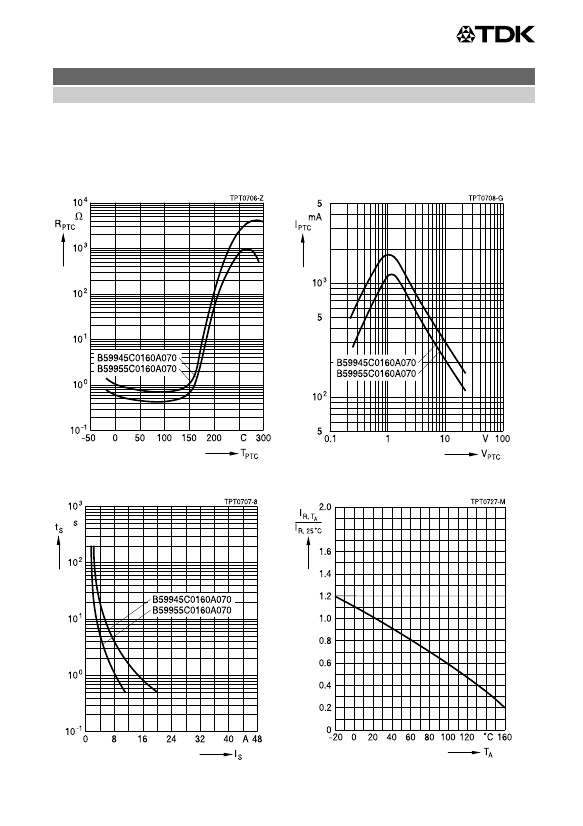

Characteristics (typical)
PTC resistance R
PTC
versus
PTC temperature T
PTC
(measured at low signal voltage)
PTC current I
PTC
versus PTC voltage V
PTC
(measured at 25
°C
in still air)
Switching time t
S
versus switching current I
S
(measured at 25
°C
in still air)
Rated current I
R
versus ambient temperature T
A
(measured in still air)
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 11
