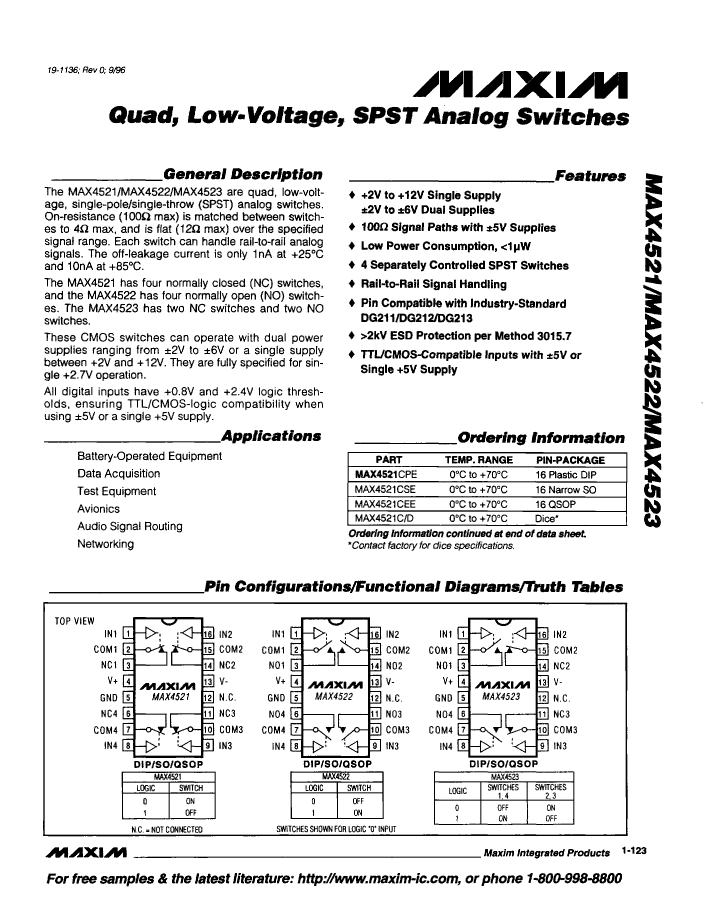

SPST, 4 Func, 1 Channel, CMOS, CDIP16, 0.300 INCH, CERDIP-16

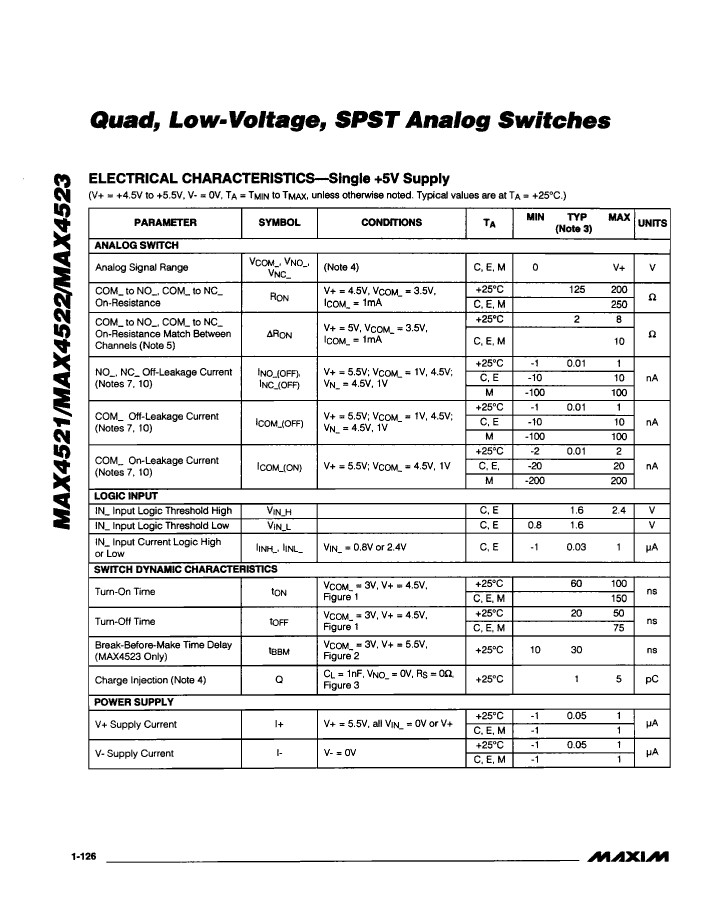

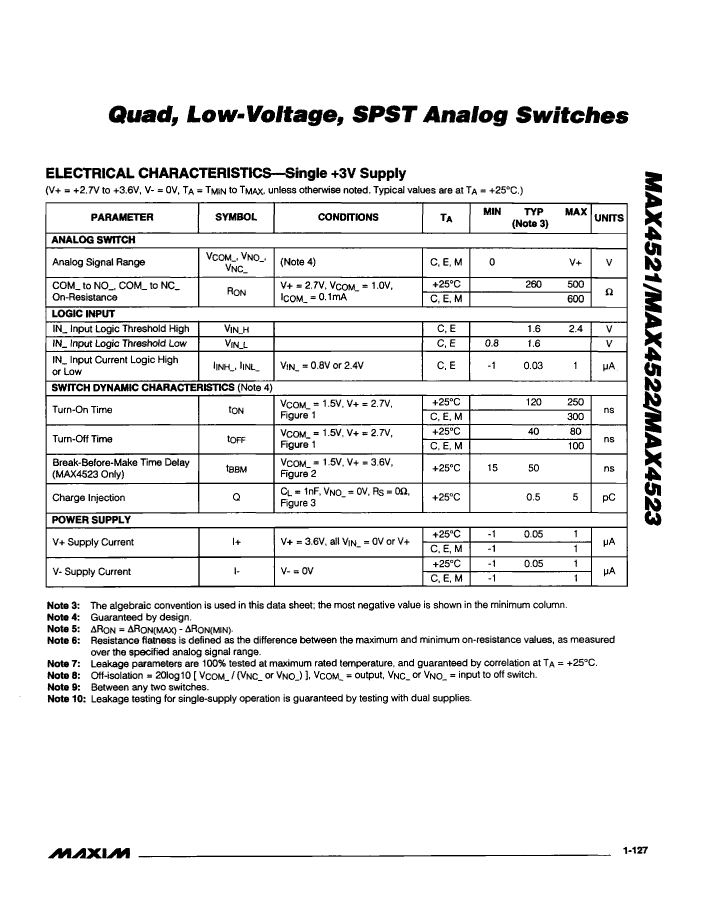

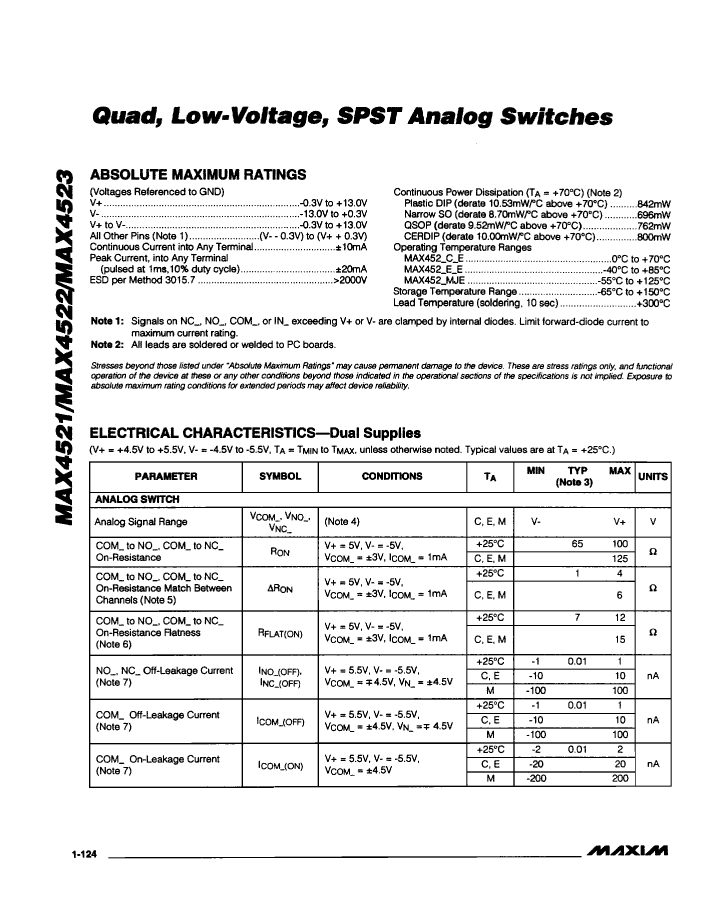

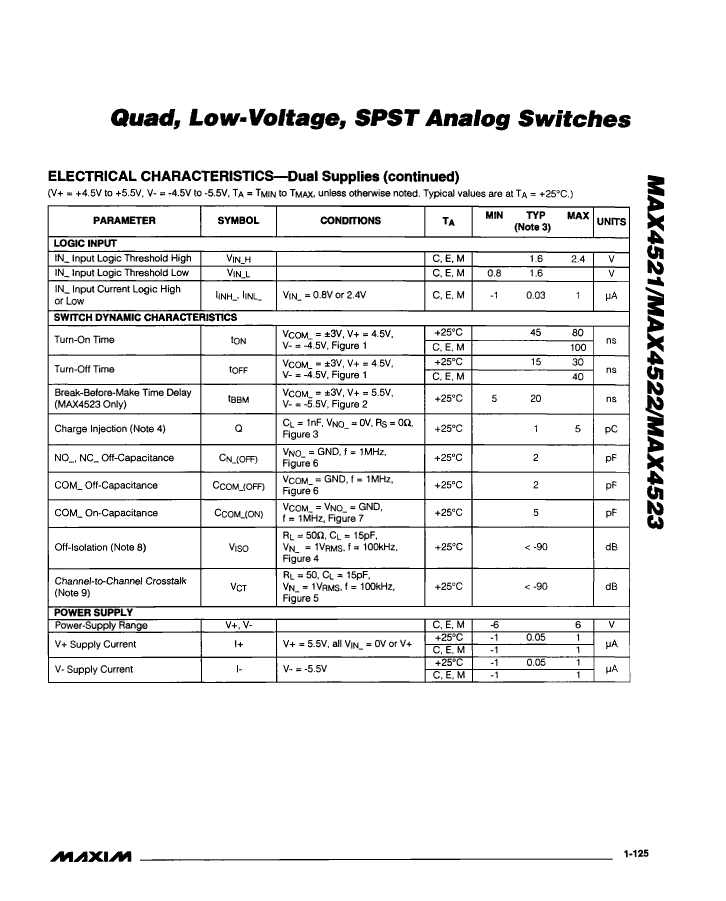

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Maxim |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 16 |
| Reach Compliance Code | compliant |
| Is Samacsys | N |
| Analog Integrated Circuits - Other Types | SPST |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| Nominal Negative Supply Voltage (Vsup) | -5 V |
| Number of channels | 1 |
| Number of functions | 4 |
| Number of terminals | 16 |
| Nominal off-state isolation | 90 dB |
| On-state resistance matching specifications | 1 Ω |
| Maximum on-state resistance (Ron) | 100 Ω |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| Maximum disconnect time | 30 ns |
| Maximum connection time | 80 ns |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| Base Number Matches | 1 |
| MAX4521MJE/883B | MAX4523MJE/883B | MAX4522MJE/883B | |
|---|---|---|---|
| Description | SPST, 4 Func, 1 Channel, CMOS, CDIP16, 0.300 INCH, CERDIP-16 | SPST, 4 Func, 1 Channel, CMOS, CDIP16, 0.300 INCH, CERDIP-16 | SPST, 4 Func, 1 Channel, CMOS, CDIP16, 0.300 INCH, CERDIP-16 |
| Is it lead-free? | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Maxim | Maxim | Maxim |
| Parts packaging code | DIP | DIP | DIP |
| package instruction | DIP, | DIP, | DIP, |
| Contacts | 16 | 16 | 16 |
| Reach Compliance Code | compliant | compliant | compliant |
| Analog Integrated Circuits - Other Types | SPST | SPST | SPST |
| JESD-30 code | R-GDIP-T16 | R-GDIP-T16 | R-GDIP-T16 |
| JESD-609 code | e0 | e0 | e0 |
| Nominal Negative Supply Voltage (Vsup) | -5 V | -5 V | -5 V |
| Number of channels | 1 | 1 | 1 |
| Number of functions | 4 | 4 | 4 |
| Number of terminals | 16 | 16 | 16 |
| Nominal off-state isolation | 90 dB | 90 dB | 90 dB |
| On-state resistance matching specifications | 1 Ω | 1 Ω | 1 Ω |
| Maximum on-state resistance (Ron) | 100 Ω | 100 Ω | 100 Ω |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 5.08 mm | 5.08 mm |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO |
| Maximum disconnect time | 30 ns | 30 ns | 30 ns |
| Maximum connection time | 80 ns | 80 ns | 80 ns |
| technology | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 7.62 mm | 7.62 mm | 7.62 mm |
| Is Samacsys | N | N | - |
| Base Number Matches | 1 | 1 | - |
