0321-0-15-80-08-14-10-0 datasheet, PDF

Datasheet> All Categories > The connector> 0321-0-15-80-08-14-10-0

0321-0-15-80-08-14-10-0: DescriptionCONN PIN RCPT; CategoryThe connector; File Size756KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

0321-0-15-80-08-14-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0321-0-15-80-08-14-10-0	-	-	View	Buy Now

0321-0-15-80-08-14-10-0 Overview

CONN PIN RCPT

0321-0-15-80-08-14-10-0 Parametric

Parameter Name	Attribute value
Solder tail type	No tail
Termination	welding
Length - total	0.165"（4.19mm）
Acceptable pin diameter	0.084" ~ 0.102"（2.13mm ~ 2.59mm）
Pin hole diameter	-
Mounting hole diameter	0.144"（3.66mm）
Flange diameter	0.156"（3.96mm）
Solder tail diameter	-
socket depth	0.165"（4.19mm）
Contact material	copper beryllium
Contact plating	gold
Contact plating thickness	10.0µin（0.25µm）
characteristic	-
Operating temperature	-55°C ~ 125°C
Board thickness	-
insertion force	-

Preview

Download Datasheet

View All

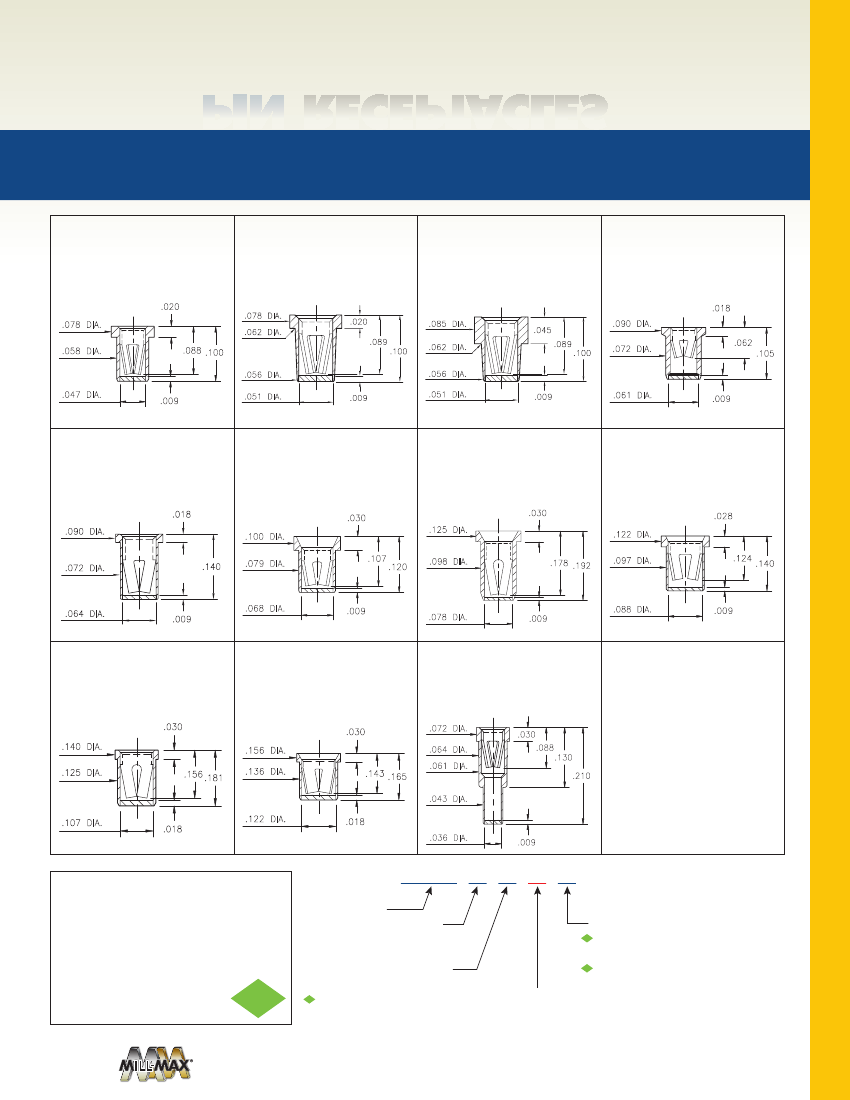

RECEPTACLES

PIN RECEPTACLES

WITH ORGANIC FIBRE PLUG

SOLDER BARRIER

(SEE SPECIFIC CONTACT RANGE ON PAGES 254 - 262)

0337

0337-0-XX-XX-15-XX-10-0

.020

.078 DIA.

.058 DIA.

Solder mount in Ø .066” ± .003” PTH

#15

Contact for Ø .020” - .032” pins

Also available on 8mm wide carrier tape:

See page 194.15 for Tape & Reel details

4280

4280-0-XX-XX-16-XX-10-0

Solder mount in Ø .067” ± .003” PTH

#16

Contact for Ø .022” - .034” pins

Also available on 8mm wide carrier tape:

See page 194.15 for Tape & Reel details

.078 DIA.

.062 DIA.

5280

5280-0-XX-XX-16-XX-40-0

Solder mount in Ø .067” ± .003” PTH

#16

Contact for Ø .022” - .034” pins

Also available on 16mm wide carrier tape:

See page 194.16 for Tape & Reel details

0332

0332-0-XX-XX-18-XX-10-0

.018

Solder mount in Ø .079” ± .003” PTH

#18

Contact for Ø .037” - .043” pins

Also available on 16mm wide carrier tape:

See page 194.16 for Tape & Reel details

.020

.089

.100

.085 DIA.

.062 DIA.

.056 DIA.

.045

.089

.100

.090 DIA.

.072 DIA.

.062

.105

.088 .100

.056 DIA.

.047 DIA.

.009

.051 DIA.

.009

.051 DIA.

.009

.061 DIA.

.009

0479

0479-0-XX-XX-34-XX-10-0

0375

Solder mount in Ø .077” ± .003” PTH

#34

Contact for Ø .032” - .046” pins

Also available on 16mm wide carrier tape:

See page 194.16 for Tape & Reel details

.018

.090 DIA.

0375-0-XX-XX-02-XX-10-0

0353

Solder mount in Ø .087” ± .003” PTH

#02

Contact for Ø .040” - .050” pins

Also available on 12mm wide carrier tape:

See page 194.16 for Tape & Reel details

.030

.100 DIA.

0353-0-XX-XX-03-XX-10-0

0384

Solder mount in Ø .106” ± .003” PTH

#03

Contact for Ø .040” - .060” pins

Also available on 12mm wide carrier tape:

See page 194.16 for Tape & Reel details

.030

.125 DIA.

0384-0-XX-XX-23-XX-10-0

Solder mount in Ø .105” ± .003” PTH

#23

Contact for Ø .045” - .065” pins

Also available on 12mm wide carrier tape:

See page 194.16 for Tape & Reel details

.028

.122 DIA.

.072 DIA.

.140

.079 DIA.

.107

.120

.098 DIA.

.178 .192

.097 DIA.

.124

.140

.064 DIA.

.068 DIA.

.009

.078 DIA.

.009

.088 DIA.

.009

0376

0376-0-XX-XX-07-XX-10-0

.030

.140 DIA.

.125 DIA.

Solder mount in Ø .133” ± .003” PTH

#07

Contact for Ø .065” - .082” pins

Also available on 16mm wide carrier tape:

See page 194.17 for Tape & Reel details

0321

0321-0-XX-XX-08-XX-10-0

.030

.156 DIA.

Solder mount in Ø .144” ± .003” PTH

#08

Contact for Ø .084” - .102” pins

Also available on 16mm wide carrier tape:

See page 194.17 for Tape & Reel details

3435

3435-0-XX-XX-47-XX-04-0

.072 DIA.

.064 DIA.

.030

.088

Solder mount in Ø .046” ± .003” PTH

#47

Contact for Ø .025”-.037” & .025”o pins

Also available on 24mm wide carrier tape:

See page 194.17 for Tape & Reel details

.156 .181

.136 DIA.

.143 .165

.061 DIA.

.130

.210

.043 DIA.

.107 DIA.

.018

.122 DIA.

.018

.036 DIA.

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Solder Barrier:

Organic Fibre Plug

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

RoHS - 2

ORDER CODE: XXXX - 0 - XX - XX -

- XX - XX - 0

BASIC PART #

SPECIFY CONTACT FINISH:

SPECIFY PACKAGING:

μ”

GOLD OVER NICKEL (RoHS)

Discrete Receptacles

100

μ”

TIN/LEAD OVER NICKEL

Supplied on 13” Reels

200

μ”

TIN OVER NICKEL (RoHS)

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

CONTACT:

#02, #07, #08, #15, #16, #18, #23, #34 or #47

CONTACT (DATA ON PAGES 254 - 262)

2011/65/EU

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 197 | PIN RECEPTACLES
