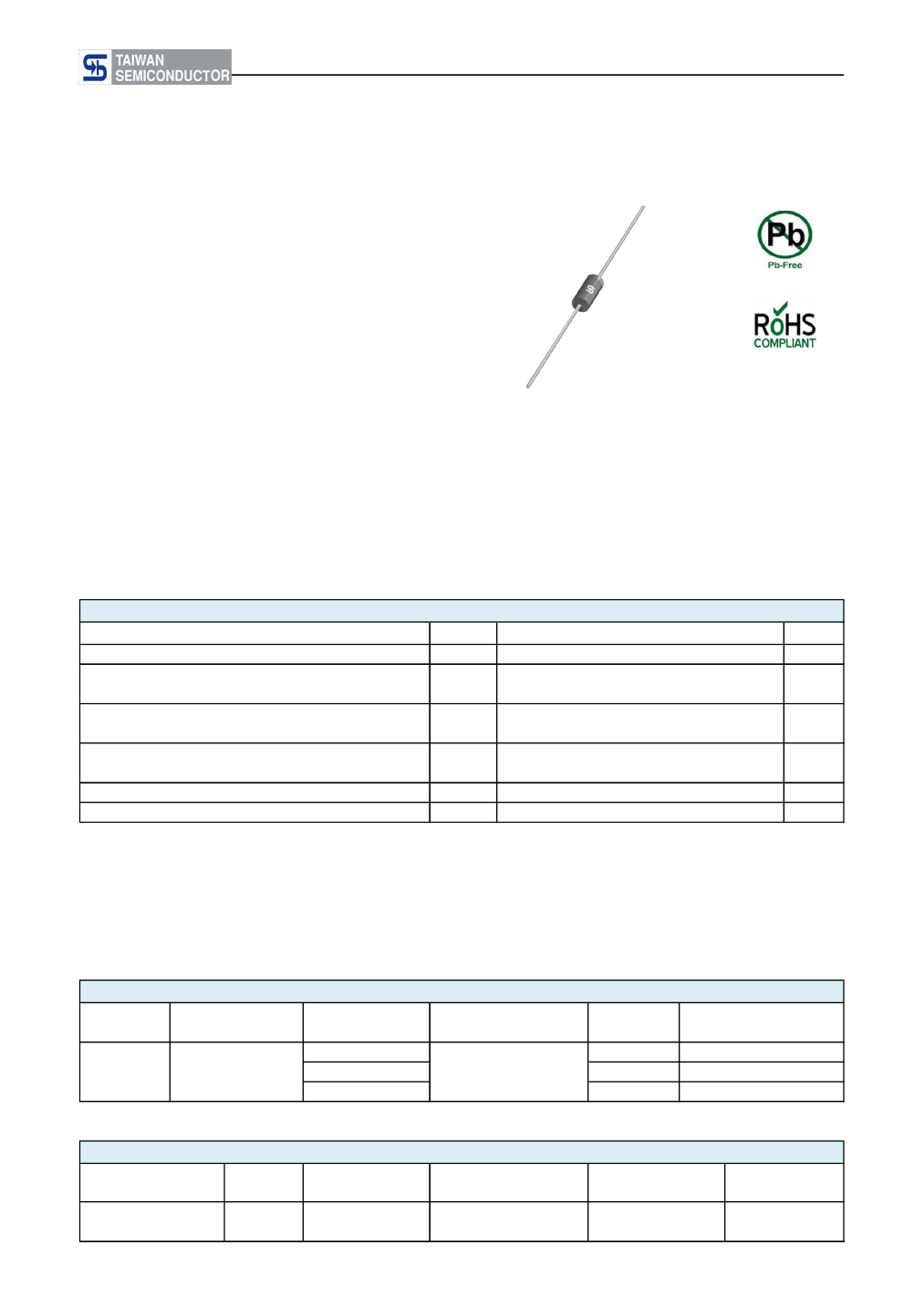

1.5KE SERIES
Taiwan Semiconductor
CREAT BY ART
1500W, 6.8V - 440V Transient Voltage Suppressor
FEATURES
- Excellent clamping capability
- Low dynamic impedance
- 1500W surge capability at 10 / 1000
μs
waveform
- Fast response time: Typically less than
1.0ps from 0 volt to V
BR
for unidirectional
and 5.0ns for bidirectional
- Typical I
R
less than 1μA above 10V
- UL recognized file # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
DO-201
MECHANICAL DATA
Case:
DO-201
Molding compound: UL flammability classification rating 94V-0
Part No. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Pure tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Weight:
0.94g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Peak power dissipation at T
A
=25°C, Tp=1ms (Note 1)
Steady state power dissipation at T
L
=75°C
lead lengths .375", 9.5mm (Note 2)
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum Instantaneous Forward Voltage at 50 A for
Unidirectional Only (Note 3)
Operating junction temperature range
Storage temperature range
SYMBOL
P
PK
P
D
I
FSM
V
F
T
J
T
STG
VALUE
1500
5
200
3.5 / 5.0
- 55 to +175
- 55 to +175
UNIT
W
W
A
V
°C
°C
Note 1: Non-repetitive current pulse per fig. 3 and derated above T
A
=25°C per fig. 2
Note 2: Mounted on copper pad area of 0.6" x 0.6" (16mm x 16mm)
Note 3: V
F
=3.5V for devices of V
BR
≦200V
and V
F
=5.0V max. for devices V
BR
>200V
Devices for Bipolar Applications
1. For bidirectional use C or CA suffix for types 1.5KE6.8 - types 1.5KE440
2. Electrical characteristics apply in both directions
ORDERING INFORMATION
PART NO.
1.5KExxxx
(Note 1)
PART NO.
SUFFIX
H
PACKING CODE
A0
R0
B0
G
PACKING CODE
SUFFIX
PACKAGE
DO-201
DO-201
DO-201
PACKING
500 / Ammo box
1,250 / 13" Paper reel
500 / Bulk packing
Note 1: "xxxx" defines voltage from 6.8V (1.5KE6.8) to 440V (1.5KE440)
EXAMPLE
EXAMPLE
PART NO.
1.5KE100AHR0G
PART NO.
1.5KE100A
PART NO.
SUFFIX
H
PACKING CODE
R0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
Version: N1602
1.5KE SERIES
Taiwan Semiconductor
CREAT BY ART
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

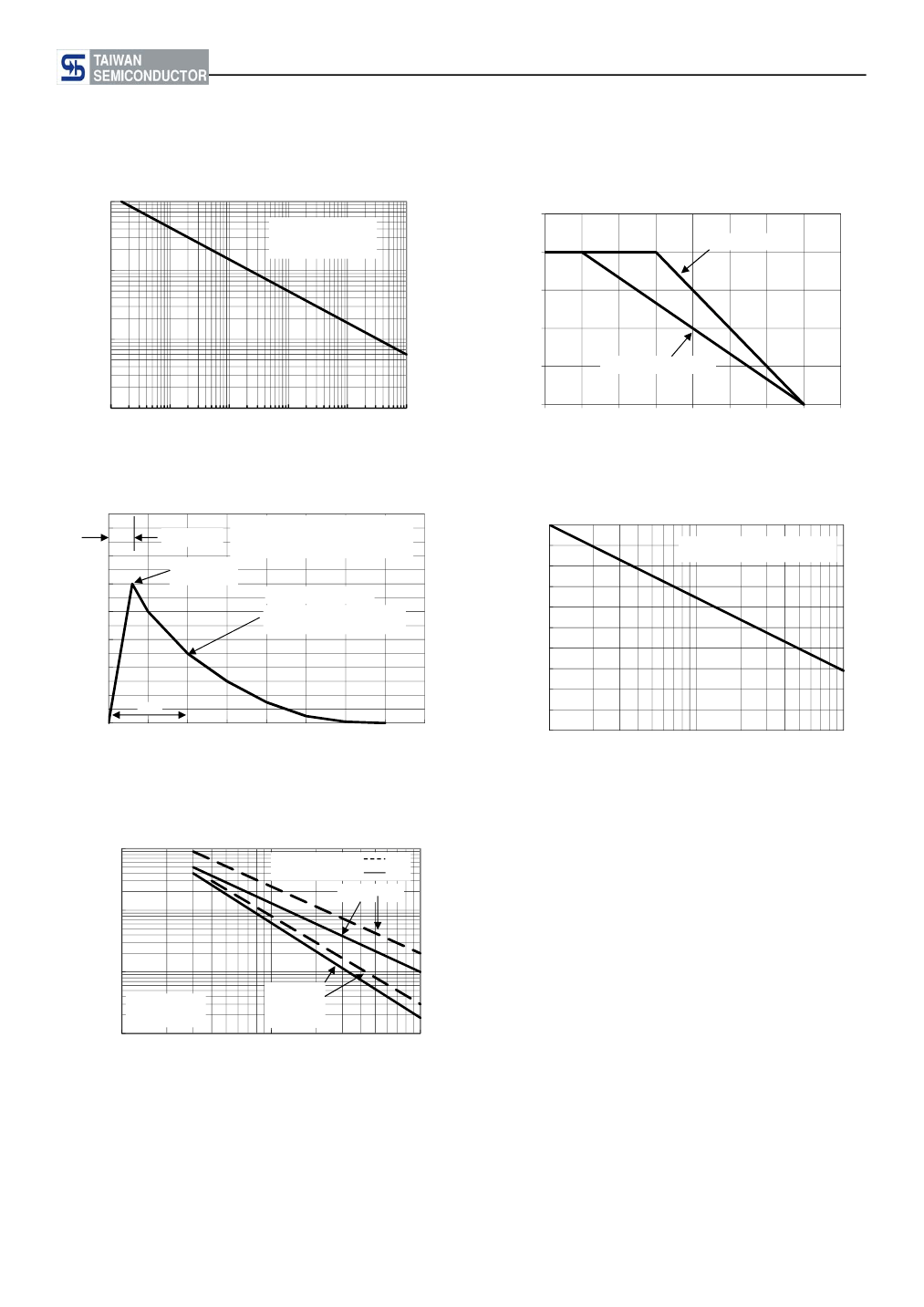

FIG. 1 PEAK PULSE POWER RATING CURVE
100
PEAK PULSE POWER(P
PP
) OR CURRENT (I
PP
)
A
DERATING IN PERCENTAGE (%)
FIG.2 PULSE DERATING CURVE
125
P
PPM
, PEAK PULSE POWER, kW
Non-repetitive
pulse waveform
shown in fig.3
10
100
75
50
25
0
0
25
50
75
100
Without heat sink
With heat sink
1
0.1
0.1
1
10
100
1000
10000
tp, PULSE WIDTH, (μs)
125
150
175
200
T
A
, AMBIENT TEMPERATURE (
°
C)
FIG. 3 CLAMPING POWER PULSE WAVEFORM
IFSM, PEAK FORWARD SURGE CURRENT (A)
140
PEAK PULSE CURRENT (%)
120
100
80
60
40
20
0
0
td
0.5
1
1.5
2
t, TIME ms
2.5
3
3.5
4
Pulse width(td) is defined
as the point where the peak
current decays to 50% of I
PPM
200
180
160
140
120
100
80
60
40
20
0
1
FIG. 4 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT UNIDIRECTIONAL ONLY
8.3ms single half sine wave
tr=10μs
Peak value
I
PPM
Half value-I
PPM
/2
10/1000μs, waveform
as defined by R.E.A.
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 5 TYPICAL JUNCTION CAPACITANCE
10000
CJ, JUNCTION CAPACITANCE (pF)
A
UNIDIRECTIONAL
BIDIRECTIONA
VR=0
1000
100
f=1.0MHz
Vsig=50mVp-p
10
1
10
V(
BR
), BREAKDOWN VOLTAGE (V)
100
V
R
-rated
stand-off
voltage
Version: N1602
1.5KE SERIES
Taiwan Semiconductor
CREAT BY ART
JEDEC
TYPE
NUMBER
1N6290
1N6290A
1N6291
1N6291A
1N6292
1N6292A
1N6293
1N6293A
1N6294
1N6294A
1N6295
1N6295A
1N6296
1N6296A
1N6297
1N6297A
1N6298
1N6298A
1N6299
1N6299A
1N6300
1N6300A
1N6301
1N6301A
1N6302
1N6302A
1N6303
1N6303A
GENERAL
PART
NUMBER
1.5KE62
1.5KE62A
1.5KE68
1.5KE68A
1.5KE75
1.5KE75A
1.5KE82
1.5KE82A
1.5KE91
1.5KE91A
1.5KE100
1.5KE100A
1.5KE110
1.5KE110A
1.5KE120
1.5KE120A
1.5KE130
1.5KE130A
1.5KE150
1.5KE150A
1.5KE160
1.5KE160A
1.5KE170
1.5KE170A
1.5KE180
1.5KE180A
1.5KE200
1.5KE200A
1.5KE220
1.5KE220A
1.5KE250
1.5KE250A
1.5KE300
1.5KE300A
1.5KE350
1.5KE350A
1.5KE400
1.5KE400A
1.5KE440
1.5KE440A
Notes:
1. V
BR
measure after I
T
applied for 300
μs,
I
T
=square wave pulse or equivalent.
2. Surge current waveform per figure. 3 and derate per figure. 2.
3. For bipolar types having V
WM
of 10 volts and under, the I
R
limit is doubled.
4. All terms and symbols are consistent with ANSI/IEEE C62.35.
Version: N1602
Nominal
Voltage
V
62
62
68
68
75
75
82
82
91
91
100
100
110
110
120
120
130
130
150
150
160
160
170
170
180
180
200
200
220
220
250
250
300
300
350
350
400
400
440
440
Breakdown Voltage
V
BR
(V)
(Note 1)
Min
55.8
58.9
61.2
64.6
67.5
71.3
73.8
77.9
81.9
86.5
90
95
99
105
108
114
117
124
135
143
144
152
153
162
162
171
180
190
198
209
225
237
270
285
315
333
360
380
396
418
Max
68.2
65.1
74.8
71.4
82.5
78.8
90.2
86.1
100
95.5
110
105
121
116
132
126
143
137
165
158
176
168
187
179
198
189
220
210
242
231
275
263
330
315
385
368
440
420
484
462
Test
Current
I
T
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Stand-Off
Voltage
V
WM
(V)
50.2
53.0
55.1
58.1
60.7
64.1
66.4
70.1
73.7
77.8
81.0
85.5
89.2
94.0
97.2
102
105
111
121
128
130
136
138
145
146
154
162
171
175
185
202
214
243
256
284
300
324
342
356
376
Maximum
@ V
WM
I
R
(μA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Current I
PPM
(A) (Note 2)
17
18
16
17
14
15
13
13.9
12
12.6
10.9
11.4
9.9
10.3
9.1
9.5
8.4
8.7
7.3
7.6
6.8
7.1
6.4
6.7
6.1
6.4
5.4
5.7
4.5
4.8
4.3
4.5
3.6
3.8
3.1
3.2
2.7
2.8
2.4
2.5
Maximum
@ I
PPM
Vc(V)
89.0
85.0
98.0
92.0
108
103
118
113
131
125
144
137
158
152
173
165
187
179
215
207
230
219
244
234
258
246
287
274
344
328
360
344
430
414
504
482
574
548
631
602
Maximum
Coefficient
of V
BR
(%/°C)
0.104
0.104
0.104
0.104
0.105
0.105
0.105
0.105
0.106
0.106
0.106
0.106
0.107
0.107
0.107
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.108
0.110
0.110
0.110
0.110
0.110
0.110
0.110
0.110
0.110
0.110
0.110
0.110
Reverse Leakage Peak Pulse Clamping Voltage Temperature
