142-0002-216

Description
RF Connector,
CategoryThe connector    The connector
File Size283KB,1 Pages
ManufacturerCinch Connectivity Solutions
Download Datasheet Parametric View All

142-0002-216 Overview

RF Connector,

142-0002-216 Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
Connector typeRF CONNECTOR
Manufacturer's serial number142-0002
Base Number Matches1

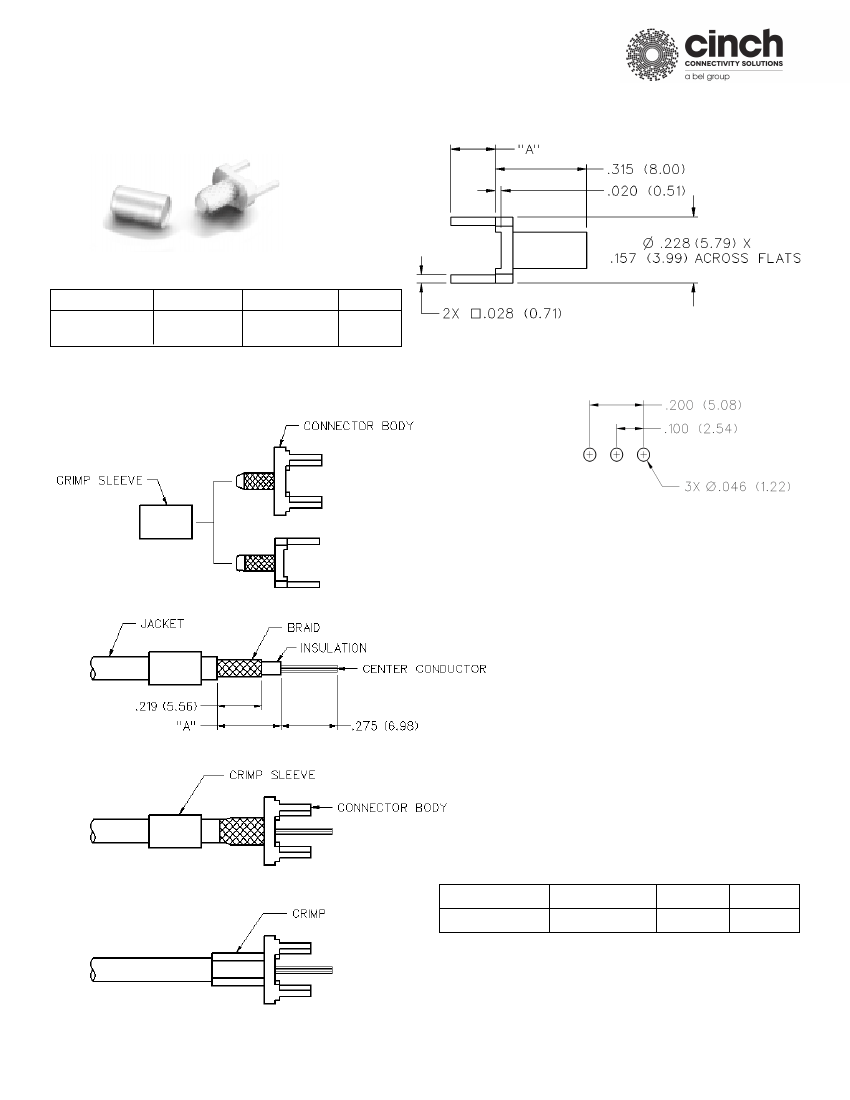

Shielded Cable Termination
Flexible Cable - Straight Crimp Type
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
CABLE TYPE
RG-178/U,
196
GOLD PLATED NICKEL PLATED
142-0002-211
142-0002-216
"A"
.155 (3.94)
1. Identify connector parts. (2 piece parts)
2. Strip cable to dimensions shown. Do not
nick braid or center conductor. A wire strip-
per of correct size is recommended for this
step. Twist stranded center conductor into
tight bundle and tin. Slide crimp sleeve
onto cable as shown.
3. Flare braid and slide cable into body mak-
ing certain that the cable insulation is flush
with bottom of connector.
4. Arrange braid uniformly around crimp
stem. Slide crimp sleeve over braid and
crimp securely using recommended crimp
tool.
CABLE GROUP
RG-178/u, 196
PART NUMBER
142-0002-201/206
“A”
.312 (7.92)
CRIMP HEX
.105 (2.67)
Cinch Connectivity Solutions
299 Johnson Avenue SW, Waseca, MN 56093 USA • 800.247.8256 • +1 507 833 8822 • cinchconnectivity.com
