HDR-15-48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> HDR-15-48

HDR-15-48: DescriptionAC/DC CONVERTER 48V 15W; CategoryPower/power management The power supply circuit; File Size725KB，4 Pages; ManufacturerMEAN WELL; Websitehttp://www.meanwell.com; Environmental Compliance

Download Datasheet Parametric Compare View All

HDR-15-48 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HDR-15-48	-	-	View	Buy Now

HDR-15-48 Overview

AC/DC CONVERTER 48V 15W

HDR-15-48 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MEAN WELL
package instruction	XMA,
Reach Compliance Code	compliant
Other features	Also Operate with 120-370VDC
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Certification	UL, EAC, IEC
control mode	VOLTAGE-MODE
Efficiency (main output)	87%
Maximum input voltage	264 V
Minimum input voltage	85 V
Nominal input voltage	115 V
JESD-30 code	R-XXMA-X5
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Maximum output voltage	55.2 V
Minimum output voltage	43.2 V
Nominal output voltage	48 V
Package body material	UNSPECIFIED
encapsulated code	XMA
Package shape	RECTANGLE
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Protect	OVER LOAD; OVER VOLTAGE
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	15.4 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

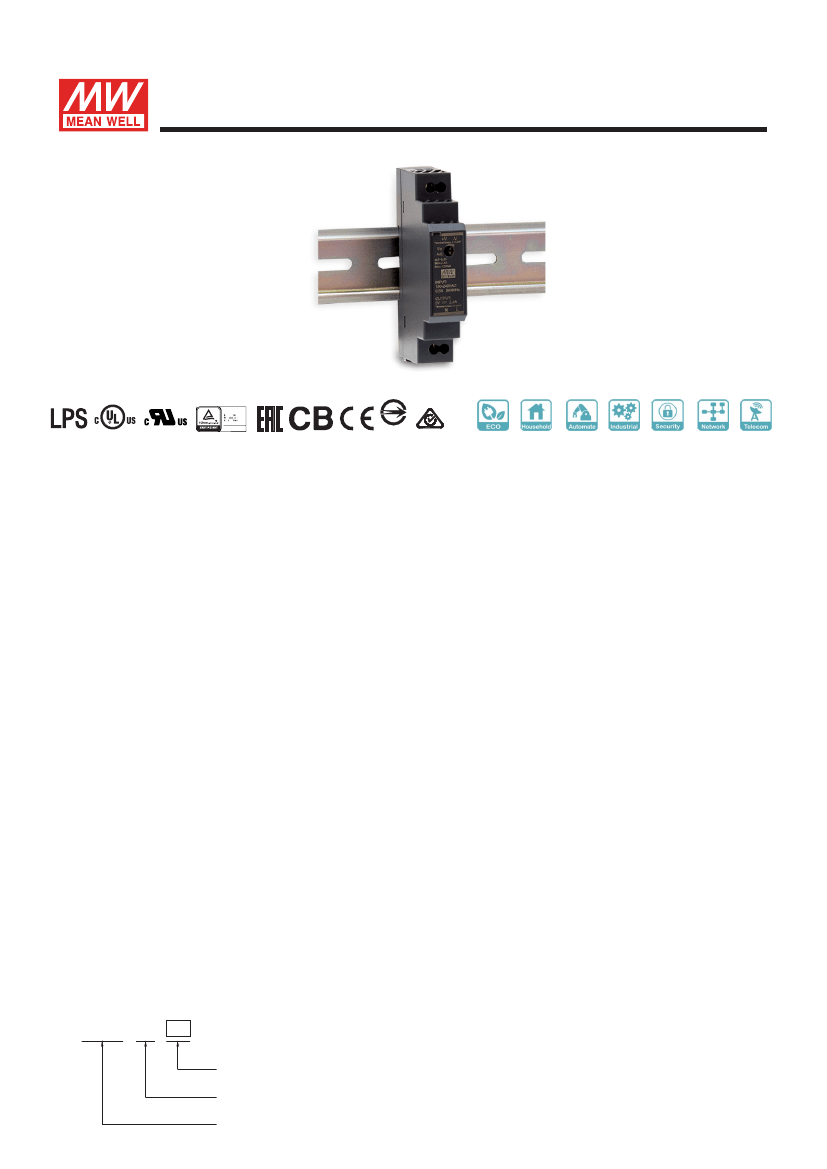

15W Ultra Slim Step Shape DIN Rail

HDR-15

series

Bauar t gepruft

Sicherheit

egel ma ge

o s

be wac

www. tuv.com

ID 2000000000

UL508

UL60950-1

EN61558

IEC60950-1





Features

Ultra slim design with 17.5mm(

o

‧



‧



‧

ass

LPS (Limited power source)

‧



‧

 

/

‧

ooling

by free air convection (working temperature:-30~+70°C)

‧

DIN rail TS-35/7.5 or 15 mountable

‧

Ⅲ

‧

ED

indicator for power on

‧



■



■



‧



‧

 

‧



‧



‧







o





℃

℃







■



    







File Name:HDR-15-SPEC 2018-01-12

HDR-15-48 Related Products

	HDR-15-48	HDR-15-15	HDR-15-12	HDR-15-24	HDR-15-5
Description	AC/DC CONVERTER 48V 15W	AC/DC CONVERTER 15V 15W	AC/DC CONVERTER 12V 15W	AC/DC CONVERTER 24V 15W	AC/DC CONVERTER 5V 12W
type	-	closed	closed	-	closed
Number of outputs	-	1	1	-	1
Voltage - input	-	85 ~ 264 VAC，120 ~ 370 VDC	85 ~ 264 VAC，120 ~ 370 VDC	-	85 ~ 264 VAC，120 ~ 370 VDC
Voltage - Output 1	-	15V	12V	-	5V
Current - Output (maximum)	-	1A	1.25A	-	2.4A
Power (W)	-	15W	15W	-	12W
application	-	Hazardous Locations, ITE (Commercial)	Hazardous Locations, ITE (Commercial)	-	Hazardous Locations, ITE (Commercial)
Voltage - Isolation	-	4kV	4kV	-	4kV
efficiency	-	85.5%	85%	-	80%
Operating temperature	-	-30°C ~ 70°C (with derating)	-30°C ~ 70°C (with derating)	-	-30°C ~ 70°C (with derating)
characteristic	-	Adjustable output, universal input	Adjustable output, universal input	-	Adjustable output, universal input
Installation type	-	DIN rail	DIN rail	-	DIN rail
size/dimensions	-	2.15" long x 0.69" wide x 3.54" high (54.5mm x 17.5mm x 90.0mm)	2.15" long x 0.69" wide x 3.54" high (54.5mm x 17.5mm x 90.0mm)	-	2.15" long x 0.69" wide x 3.54" high (54.5mm x 17.5mm x 90.0mm)
Minimum load required	-	none	none	-	none
Approval	-	CB，CE，cULus，cURus，TUV	CB，CE，cULus，cURus，TUV	-	CB，CE，cULus，cURus，TUV
