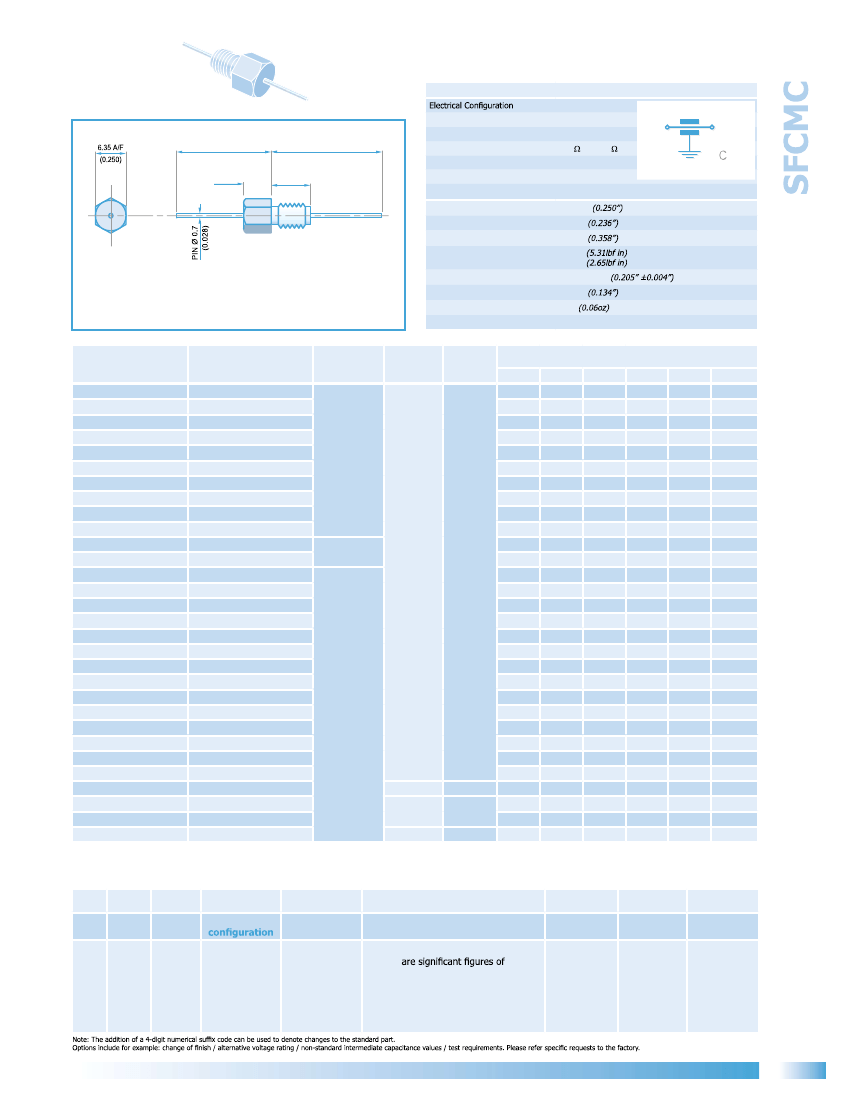

SFCMC
Electrical Details
C Filter
Capacitance Measurement
Current Rating
15.0 ± 1.0
(0.591 ± 0.039)
5.0
(0.197)
17.0 ± 1.0
(0.669 ± 0.039)
6.5
(0.256)
C0G/NP0 & X7R
@ 1000hr Point
10A
10G
or 1000 F
-55ºC to +125ºC
Not Applicaple
Insulation Resistance (IR)
Temperature Rating
Ferrite Inductance (Typical)
Mechanical Details
Head Diameter
Nut A/F
Washer Diameter
Mounting Torque
Mounting Hole Diameter
Max. Panel Thickness
Weight (Typical)
Finish
6.35mm
6.0mm
9.1mm
0.6Nm
0.3Nm
5.2mm ± 0.1
3.4mm
1.8g
Silver plate on copper undercoat
max. if using nut
max. into tapped hole
M5 x 0.8 - 6g Thread
6.35mm Hexagonal Head
Product Code
Capacitance
(±20%) UOS
Dielectric
Rated
Voltage
(Vdc)
DWV
(Vdc)
Typical No-Load Insertion Loss (dB)
0.01MHz
0.1MHz
1MHz
10MHz
100MHz
1GHz
*SFCMC5000100ZC
SFCMC5000150ZC
SFCMC5000220ZC
SFCMC5000330ZC
*SFCMC5000470ZC
*SFCMC5000680MC
*SFCMC5000101MC
SFCMC5000151MC
*SFCMC5000221MC
*SFCMC5000331MC
*SFCMC5000471MX
SFCMC5000681MX
*SFCMC5000102MX
SFCMC5000152MX
*SFCMC5000222MX
SFCMC5000332MX
*SFCMC5000472MX
SFCMC5000682MX
*SFCMC5000103MX
*SFCMC5000153MX
*SFCMC5000223MX
SFCMC5000333MX
*SFCMC5000473MX
SFCMC5000683MX
SFCMC5000104MX
SFCMC5000154MX
*SFCMC2000224MX
SFCMC1000334MX
*SFCMC1000474MX
SFCMC0500684MX
10pF -20% / +80%
15pF -20% / +80%
22pF -20% / +80%
33pF -20% / +80%
47pF -20% / +80%
68pF
100pF
150pF
220pF
330pF
470pF
680pF
1.0nF
1.5nF
2.2nF
3.3nF
4.7nF
6.8nF
10nF
15nF
22nF
33nF
47nF
68nF
100nF
150nF
220nF
330nF
470nF
680nF
200
100
50
500
250
125
1
2
X7R
1
2
4
7
10
13
16
19
1
2
4
7
10
13
16
19
22
25
29
33
35
38
†X7R
500#
750
1
2
4
7
10
13
16
19
22
25
29
33
35
39
41
45
49
52
55
58
C0G/NP0
1
2
4
7
10
13
16
19
23
26
30
33
36
39
41
44
46
48
50
54
57
60
62
66
68
70
4
7
10
12
15
18
22
25
29
33
35
36
41
45
50
52
55
57
60
62
65
68
70
>70
>70
>70
>70
>70
>70
>70
# Also rated for operation at 115Vac 400Hz. Self heating will occur - evaluation in situ recommended. * Recommended values. † Also available in C0G/NP0.
Ordering Information - SFCMC range
SF
Type
Syfer
Filter
C
Case
style
6.35mm
A/F
M
Thread
M5
C
Electrical
C
= C Filter
500
Voltage (dc)
050
= 50V
100
= 100V
200
= 200V
500
= 500V
0101
Capacitance in picofarads (pF)
First digit is 0. Second and third digits
capacitance code.
The fourth digit is number of
zeros following
Example:
0101
= 100pF
0332
= 3300pF
M
Tolerance
M
= ±20%
Z
= -20+80%
C
Dielectric
C
= C0G/NP0
X
= X7R
0
Nuts &
Washers
0
= Without
1
= With
www.knowlescapacitors.com
57

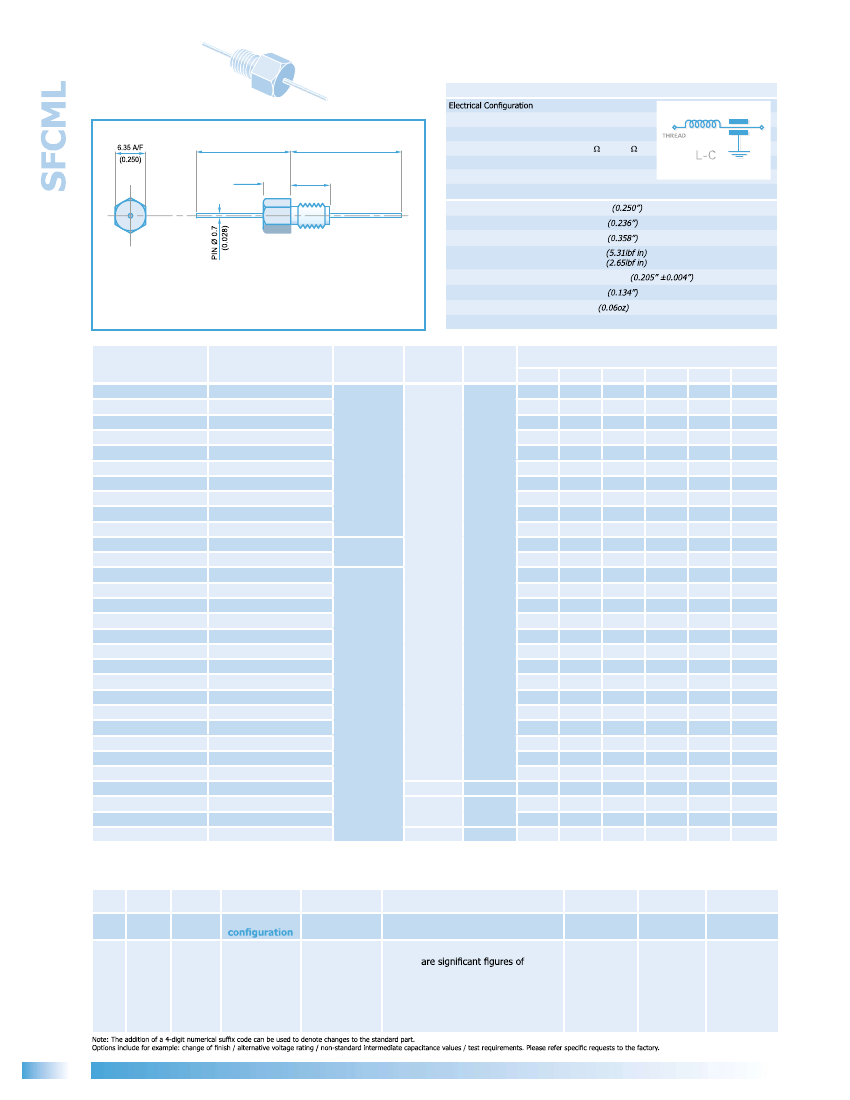

SFCML
Electrical Details
L-C Filter
Capacitance Measurement
Current Rating
15.0 ± 1.0
(0.591 ± 0.039)
5.0
(0.197)
17.0 ± 1.0
(0.669 ± 0.039)
6.5
(0.256)
C0G/NP0 & X7R
@ 1000hr Point
10A
10G
or 1000 F
-55ºC to +125ºC
500nH
Insulation Resistance (IR)
Temperature Rating
Ferrite Inductance (Typical)
Mechanical Details
Head Diameter
Nut A/F
Washer Diameter
Mounting Torque
Mounting Hole Diameter
Max. Panel Thickness
Weight (Typical)
Finish
6.35mm
6.0mm
9.1mm
0.6Nm
0.3Nm
5.2mm ± 0.1
3.4mm
1.8g
Silver plate on copper undercoat
max. if using nut
max. into tapped hole
M5 x 0.8 - 6g Thread
6.35mm Hexagonal Head
Product Code
*SFCML5000100ZC
SFCML5000150ZC
SFCML5000220ZC
SFCML5000330ZC
*SFCML5000470ZC
*SFCML5000680MC
*SFCML5000101MC
SFCML5000151MC
*SFCML5000221MC
*SFCML5000331MC
*SFCML5000471MX
SFCML5000681MX
*SFCML5000102MX
SFCML5000152MX
*SFCML5000222MX
SFCML5000332MX
*SFCML5000472MX
SFCML5000682MX
*SFCML5000103MX
*SFCML5000153MX
*SFCML5000223MX
SFCML5000333MX
*SFCML5000473MX
SFCML5000683MX
*SFCML5000104MX
SFCML5000154MX
*SFCML2000224MX
SFCML1000334MX
*SFCML1000474MX
SFCML0500684MX
Capacitance
(±20%) UOS
10pF -20% / +80%
15pF -20% / +80%
22pF -20% / +80%
33pF -20% / +80%
47pF -20% / +80%
68pF
100pF
150pF
220pF
330pF
470pF
680pF
1.0nF
1.5nF
2.2nF
3.3nF
4.7nF
6.8nF
10nF
15nF
22nF
33nF
47nF
68nF
100nF
150nF
220nF
330nF
470nF
680nF
Dielectric
Rated
Voltage
(Vdc)
DWV
(Vdc)
Typical No-Load Insertion Loss (dB)
0.01MHz
0.1MHz
1MHz
10MHz
100MHz
1GHz
-
-
-
-
C0G/NP0
-
-
-
-
-
-
†X7R
500#
750
-
-
-
-
-
-
-
-
-
-
X7R
-
-
-
-
-
-
200
100
50
500
250
125
-
-
1
2
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1
2
4
7
10
13
16
19
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1
2
4
7
10
13
17
20
22
25
29
33
35
38
-
-
-
-
-
-
-
-
-
1
2
3
6
9
12
15
18
21
23
27
30
34
37
40
44
47
49
53
56
58
-
-
-
1
2
4
7
10
12
16
19
22
25
29
31
35
39
41
43
46
48
50
51
55
60
62
66
68
>70
>70
6
9
12
15
19
20
24
27
30
34
38
41
44
48
51
54
57
60
63
66
68
70
>70
>70
>70
>70
>70
>70
>70
>70
# Also rated for operation at 115Vac 400Hz. Self-heating will occur - evaluation in situ recommended. * Recommended values. † Also available in C0G/NP0.
Ordering Information - SFCML range
SF
Type
Syfer
Filter
C
Case
style
6.35mm
A/F
M
Thread
M5
L
Electrical
L
= L-C Filter
500
Voltage (dc)
050
= 50Vdc
100
= 100Vdc
200
= 200Vdc
500
= 500Vdc
0101
Capacitance in picofarads (pF)
First digit is 0. Second and third digits
capacitance code.
The fourth digit is number of
zeros following
Example:
0101
= 100pF
0332
= 3300pF
M
Tolerance
M
= ±20%
Z
= -20+80%
C
Dielectric
C
= C0G/NP0
X
= X7R
0
Nuts &
Washers
0
= Without
1
= With
58
www.knowlescapacitors.com
