142-0007-801 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 142-0007-801

142-0007-801: DescriptionRF Connector,; CategoryThe connector The connector; File Size307KB，1 Pages; ManufacturerCinch Connectivity Solutions; Environmental Compliance

Download Datasheet Parametric View All

142-0007-801 Overview

RF Connector,

142-0007-801 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	RF CONNECTOR
Manufacturer's serial number	142-0007-801
Base Number Matches	1

Preview

Download Datasheet

View All

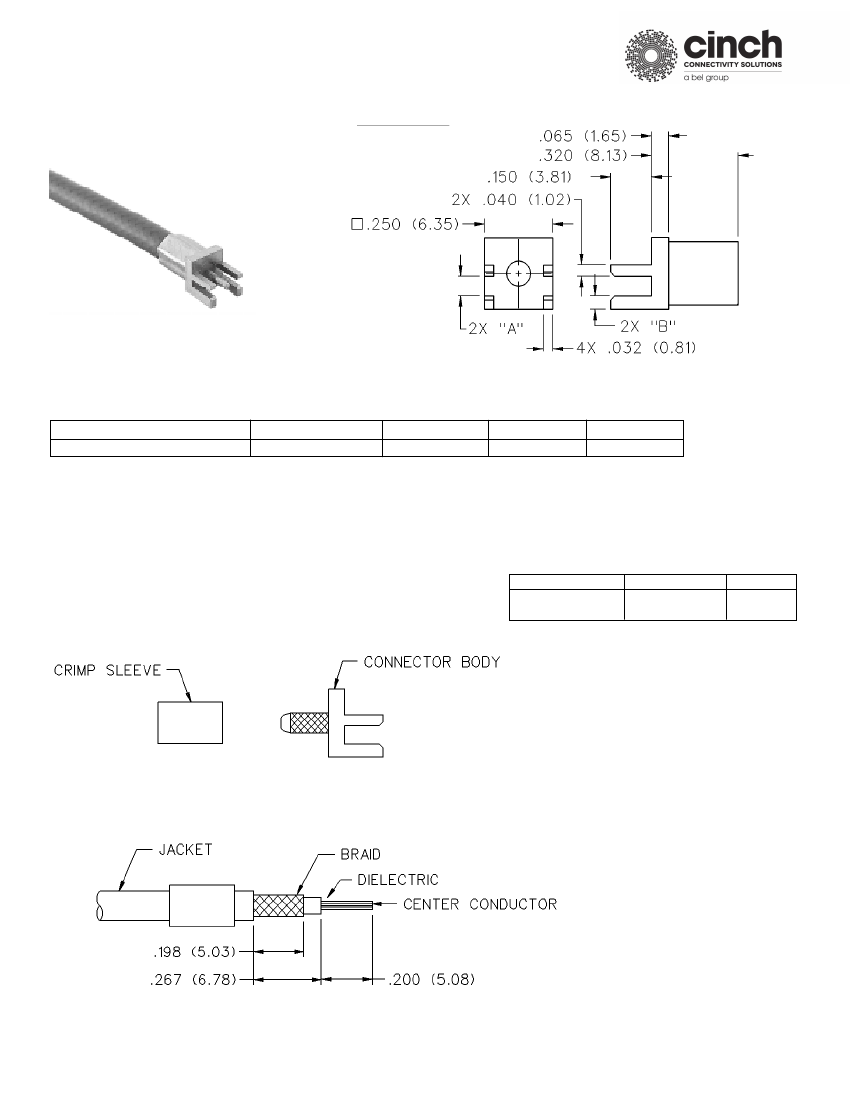

Shielded Cable Termination

Flexible Cable - Straight Crimp Type

End Launch

INCHES (MILLIMETERS)

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST

CABLE TYPE

RG58/U, 141, 303

BOARD THICKNESS

0.062 (1.57)

GOLD PLATED

142-0007-801

“A”

0.068 (1.73)

“B”

0.037 (1.65)

CABLE GROUP

RG-58/u,

141, 303

PART NUMBER

142-0007-801

CRIMP HEX

.213 (5.41)

1. Identify connector parts. (2 piece

parts)

2. Strip cable to dimensions shown. Do

not nick braid or center conductor. A

wire stripper of correct size is recom-

mended for this step. Twist stranded

center conductor into tight bundle and

tin. Slide crimp sleeve onto cable as

shown.

3. Flare braid and slide cable into body

making certain that the cable insula-

tion is flush with bottom of connector

body.

4. Arrange braid uniformly around crimp

stem. Slide crimp sleeve over braid

and crimp securely using recom-

mended crimp tool.

Cinch Connectivity Solutions

299 Johnson Avenue SW, Waseca, MN 56093 USA • 800.247.8256 • +1 507 833 8822 • cinchconnectivity.com
