Material
Plating
Wire Size
Wire Type
High Conductivity
Seamless Copper Tube
Electro-Tin
PANDUIT
4/0 STR/FLEX
Stranded Copper: Class B & C
Compact, Class G, H, I, K, M,
Locomotive
2-5/16 in.
1/2 in.
Yes, for applications up to 35kv.
Consult cable manufacturer for
voltage stress relief instructions
with applications greater than
2000 volts.
90 C
Yes
PURPLE
1.19±.04
4/0 STR/FLEX
LCCX4/0-12F
Wire inspection
window
Wire Strip Length
Stud Size
UL Listed Wire
Connector
.63±.04
1.75±.02
.53±.02 DIA
(2) PLS
3.00±.04
UL Temperature
Rating
C.S.A Certified
Wire Connector
Panduit Color Code
on Barrel
.16±.01
90°±5°
3.18
REF
2.24±.04
PURPLE DIE P54 (15)
PANDUIT
Panduit Die Index No. P54
on Barrel
Alternate Industry
Die Index No. ( )
on Barrel
(15)
.65±.01
CERTIFIED
LISTED
Wire Connector
.81±.01
4.06 REF
Beveled wire
entry
Color coded
barrel markings
CORP.
00
REV
TINLEY PARK, ILLINOIS
6/03
DATE
SAC SAC
BY
CHK
RELEASED
DESCRIPTION
10850
ECN
LCCX4/0-12F-X

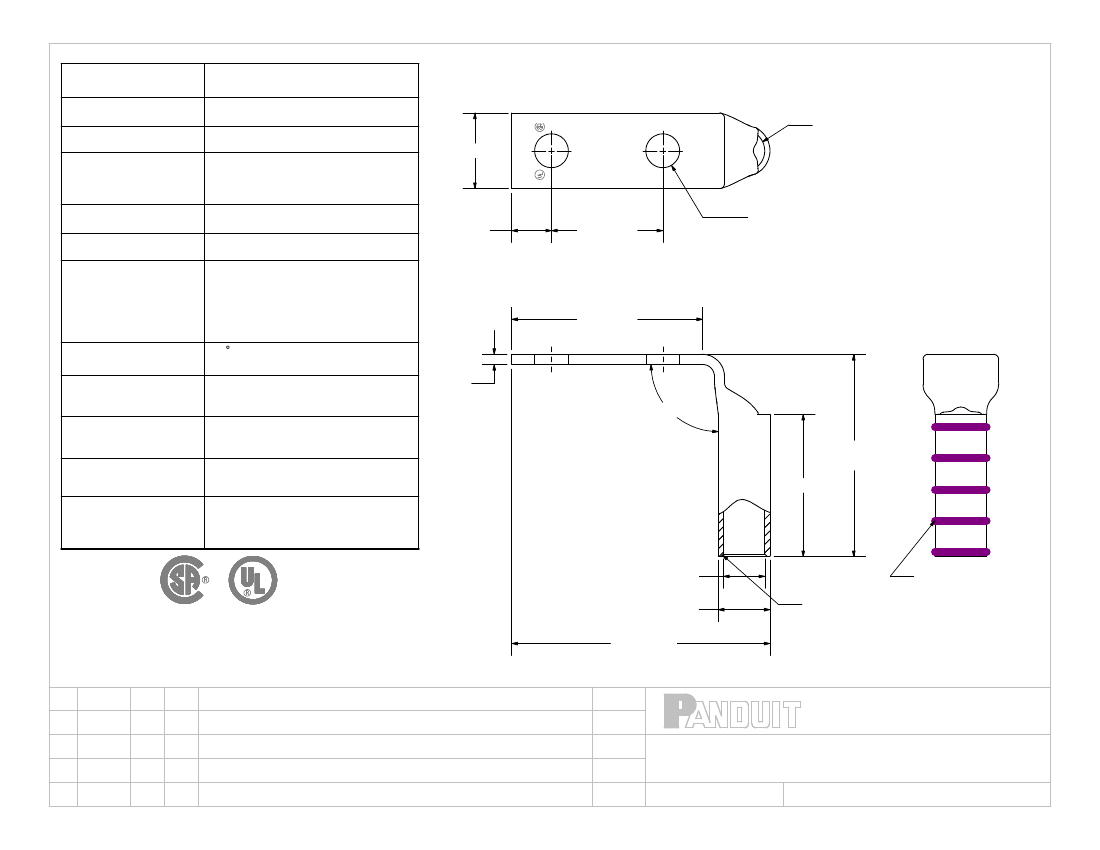

Copper Lug - Two-Hole, Long Flex Barrel with Window, 90° Angle Tongue
SCALE
N/A
DRAWING NO / CAD FILE
LCCX4_0-12F-CUST
