142-1721-046 datasheet, PDF - EEWORLD Datasheet

142-1721-046: DescriptionRF SMA Connector, Female, Board Mount, Receptacle; CategoryThe connector The connector; File Size726KB，3 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

142-1721-046 Overview

RF SMA Connector, Female, Board Mount, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PTFE FLUOROCARBON/PFA
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Base Number Matches	1

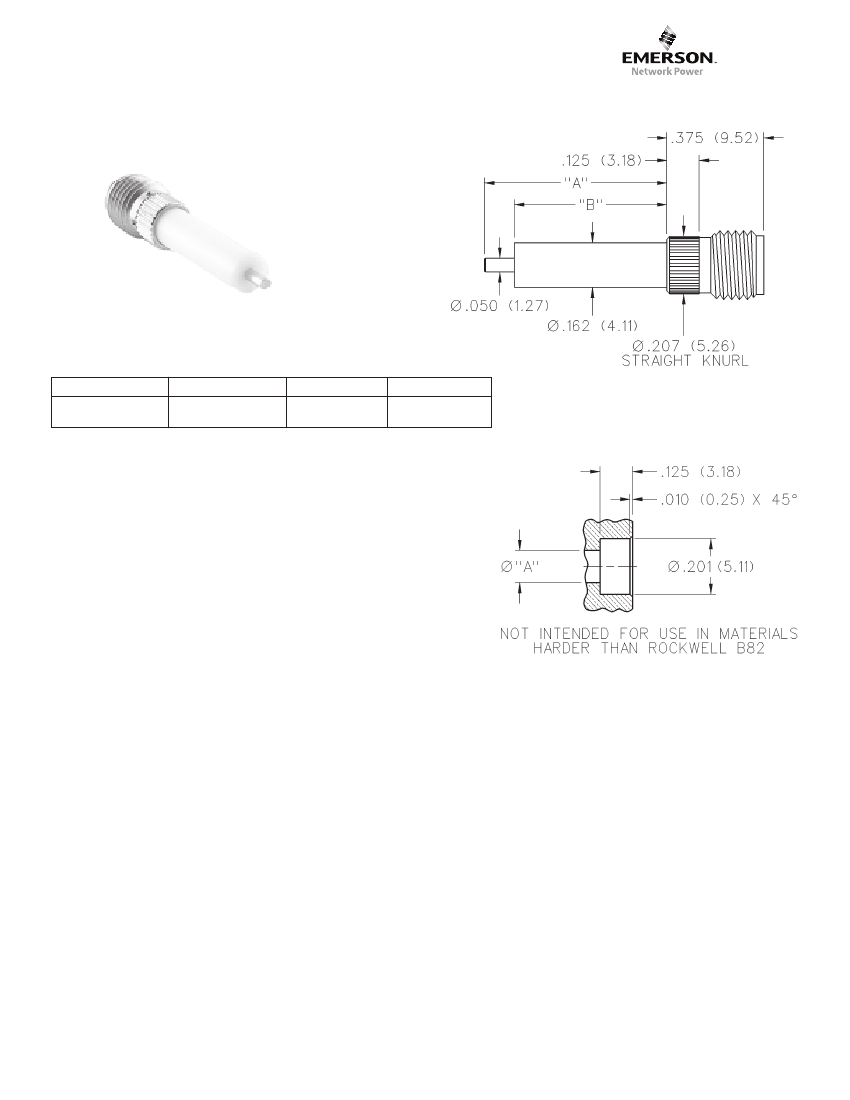

50 Ohm SMA

Jack Receptacle -

Knurl Mount* Extended Dielectric

INCHES (MILLIMETERS)

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST

“A”

.240 (6.10)

“B”

.180 (4.57)

GOLD PLATED

142-1721-041

NICKEL PLATED

142-1721-046

* Not intended for use in materials harder than Rockwell B82

Assembly tooling available - contact factory.

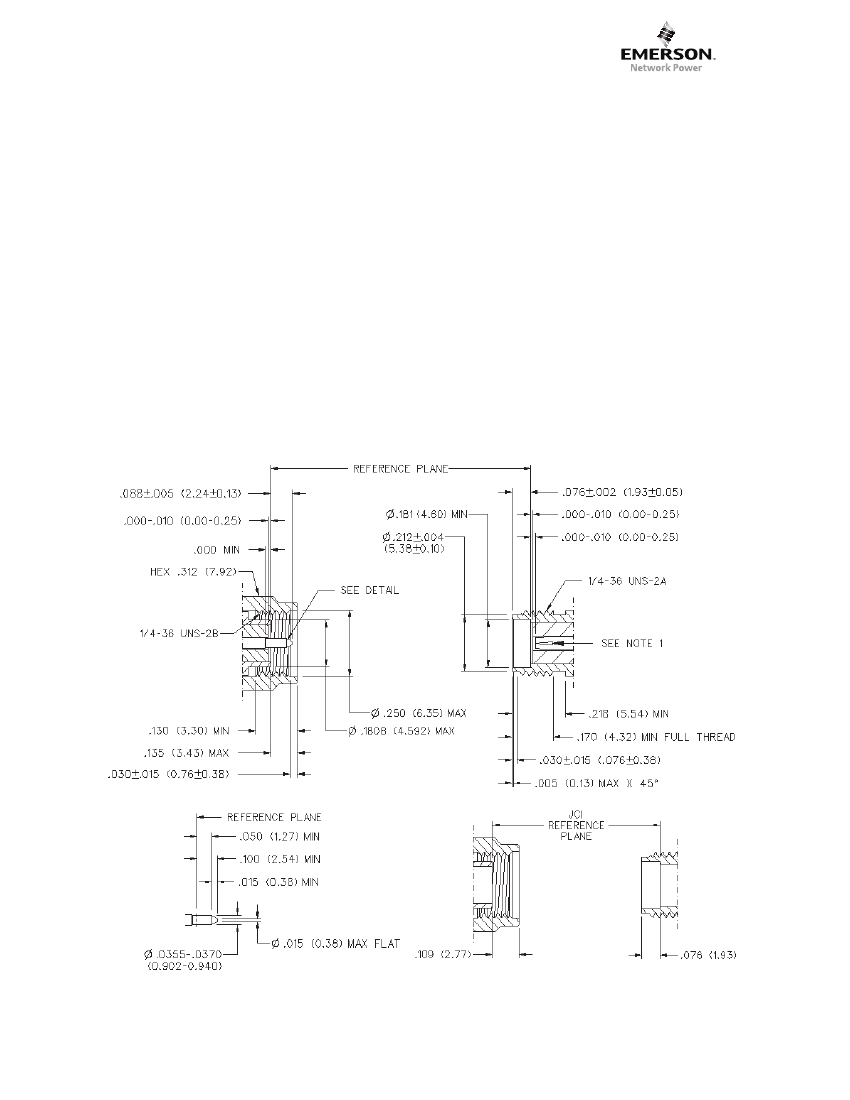

Mounting hole layout

Emerson Network Power Connectivity Solutions

299 Johnson Avenue SW, Waseca, MN 56093 • 800 -247- 8256 • +1 (507) 833-8822 • www.EmersonConnectivity.com

	142-1721-046	142-1721-041
Description	RF SMA Connector, Female, Board Mount, Receptacle	RF SMA Connector, Female, Board Mount, Receptacle
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Body/casing type	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)
Contact completed and terminated	GOLD (30)	GOLD (30)
Contact point gender	FEMALE	FEMALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PTFE FLUOROCARBON/PFA	PTFE FLUOROCARBON/PFA
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	SMA	SMA
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Maximum operating frequency	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Base Number Matches	1	1
