B82141A1273K009 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> B82141A1273K009

B82141A1273K009: DescriptionGeneral Purpose Inductor, 27uH, 10%, 1 Element, Ferrite-Core, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components inductor; File Size590KB，11 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B82141A1273K009 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B82141A1273K009	-	-	View	Buy Now

B82141A1273K009 Overview

General Purpose Inductor, 27uH, 10%, 1 Element, Ferrite-Core, AXIAL LEADED, ROHS COMPLIANT

B82141A1273K009 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Is Samacsys	N
structure	Tubular
core material	FERRITE
DC Resistance	1 Ω
Nominal inductance(L)	27 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.6 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	3 mm
Package length	6.8 mm
Package form	Axial
method of packing	Ammo Pack
Minimum quality factor (at nominal inductance)	55
Maximum rated current	0.315 A
self resonant frequency	11 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	NO
special characteristics	Q IS MEASURED AT: 2.52 MHZ
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.1 MHz
Tolerance	10%
Base Number Matches	1

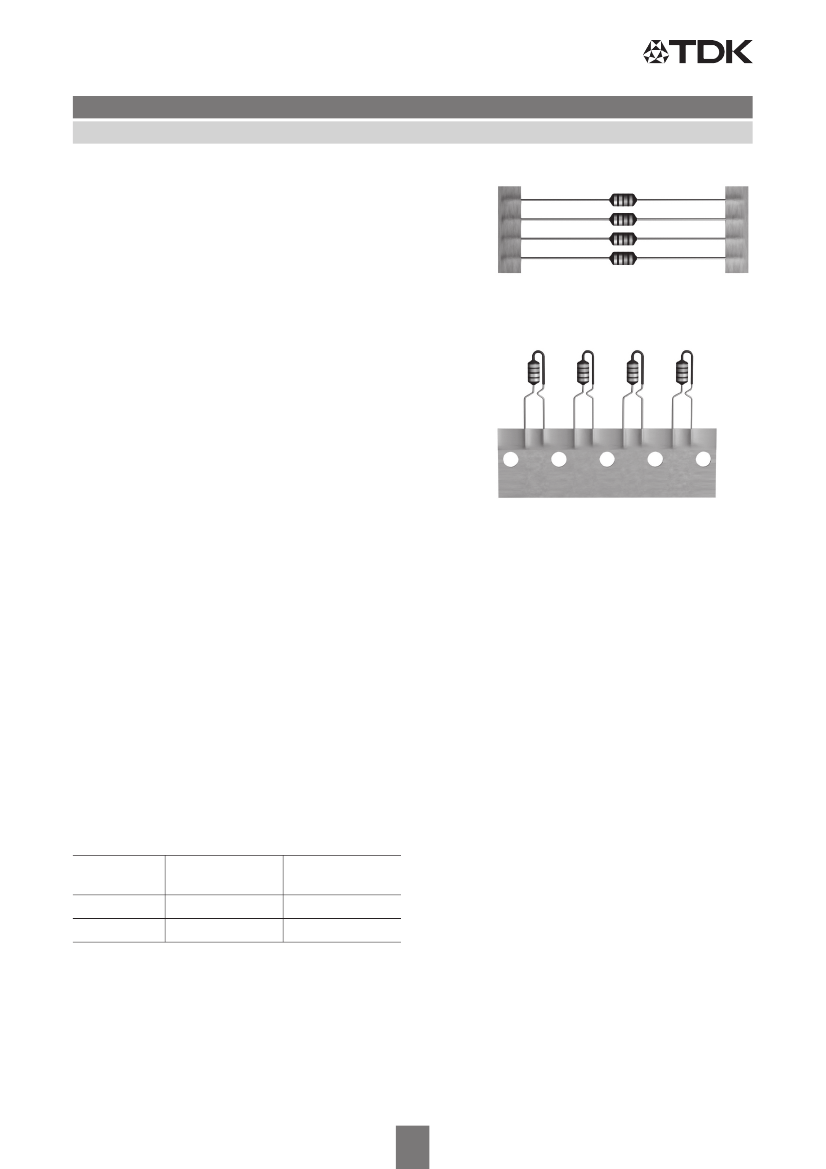

Preview

Download Datasheet

View All

Leaded Inductors

Series/Type:

B82141A, B82141B

The following products presented in this data sheet are being withdrawn.

Ordering Code

B82141B1824J009

B82141B1824J000

B82141B1823J009

Substitute Product

B78148S1824J009

B78148S1824J000

B78148S1823J009

Date of Withdrawal

2016-02-26

Deadline Last

Orders

2016-08-31

Last Shipments

2017-02-28

B82141A1273K009 Related Products

	B82141A1273K009	B82141A1684J009	B82141B1124J000	B82141B1223K009	B82141B1564J009
Description	General Purpose Inductor, 27uH, 10%, 1 Element, Ferrite-Core, AXIAL LEADED, ROHS COMPLIANT	General Purpose Inductor, 680uH, 5%, 1 Element, Ferrite-Core, AXIAL LEADED, ROHS COMPLIANT	General Purpose Inductor, 120uH, 5%, 1 Element, Ferrite-Core, RADIAL LEADED, ROHS COMPLIANT	General Purpose Inductor, 22uH, 10%, 1 Element, Ferrite-Core, RADIAL LEADED, ROHS COMPLIANT	General Purpose Inductor, 560uH, 5%, 1 Element, Ferrite-Core, RADIAL LEADED, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation
Reach Compliance Code	not_compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N	N
structure	Tubular	Tubular	Bobbin Core	Bobbin Core	Bobbin Core
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	1 Ω	22 Ω	3.8 Ω	0.9 Ω	16.5 Ω
Nominal inductance(L)	27 µH	680 µH	120 µH	22 µH	560 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Lead diameter	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package diameter	3 mm	3 mm	3 mm	3 mm	3 mm
Package length	6.8 mm	6.8 mm	6.8 mm	6.8 mm	6.8 mm
Package form	Axial	Axial	Axial	Axial	Axial
method of packing	Ammo Pack	Ammo Pack	TR	Ammo Pack	Ammo Pack
Minimum quality factor (at nominal inductance)	55	60	60	55	60
Maximum rated current	0.315 A	0.065 A	0.16 A	0.335 A	0.075 A
self resonant frequency	11 MHz	2 MHz	5 MHz	12 MHz	2.2 MHz
Shape/Size Description	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE
shield	NO	NO	NO	NO	NO
special characteristics	Q IS MEASURED AT: 2.52 MHZ	Q IS MEASURED AT: 0.796 MHZ	Q MEASURED AT 0.796MHZ	Q MEASURED AT 2.52MHZ	Q MEASURED AT 0.796MHZ
surface mount	NO	NO	NO	NO	NO
Terminal location	AXIAL	AXIAL	RADIAL	RADIAL	RADIAL
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	10%	5%	5%	10%	5%
Base Number Matches	1	1	1	1	1
JESD-609 code	-	-	e3	e3	e3
Manufacturer's serial number	-	-	B82141B	B82141B	B82141B
series	-	-	B82141B	B82141B	B82141B
Terminal surface	-	-	Tin (Sn)	Tin (Sn)	Tin (Sn)
