B82144A2106J009 datasheet, PDF

B82144A2106J009: DescriptionGeneral Purpose Inductor, 10000uH, 5%, 1 Element, Ferrite-Core, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components inductor; File Size589KB，10 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B82144A2106J009 Overview

General Purpose Inductor, 10000uH, 5%, 1 Element, Ferrite-Core, AXIAL LEADED, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
package instruction	AXIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
structure	Axial
core material	Ferrite
DC Resistance	42 Ω
Nominal inductance(L)	10000 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Lead diameter	0.8 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	5.2 mm
Package length	12 mm
Package form	Axial
method of packing	Ammo Pack
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.06 A
self resonant frequency	0.35 MHz
Shape/Size Description	TUBULAR PACKAGE
special characteristics	Q IS MEASURED AT 0.0796 MHZ
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.01 MHz
Tolerance	5%
Base Number Matches	1

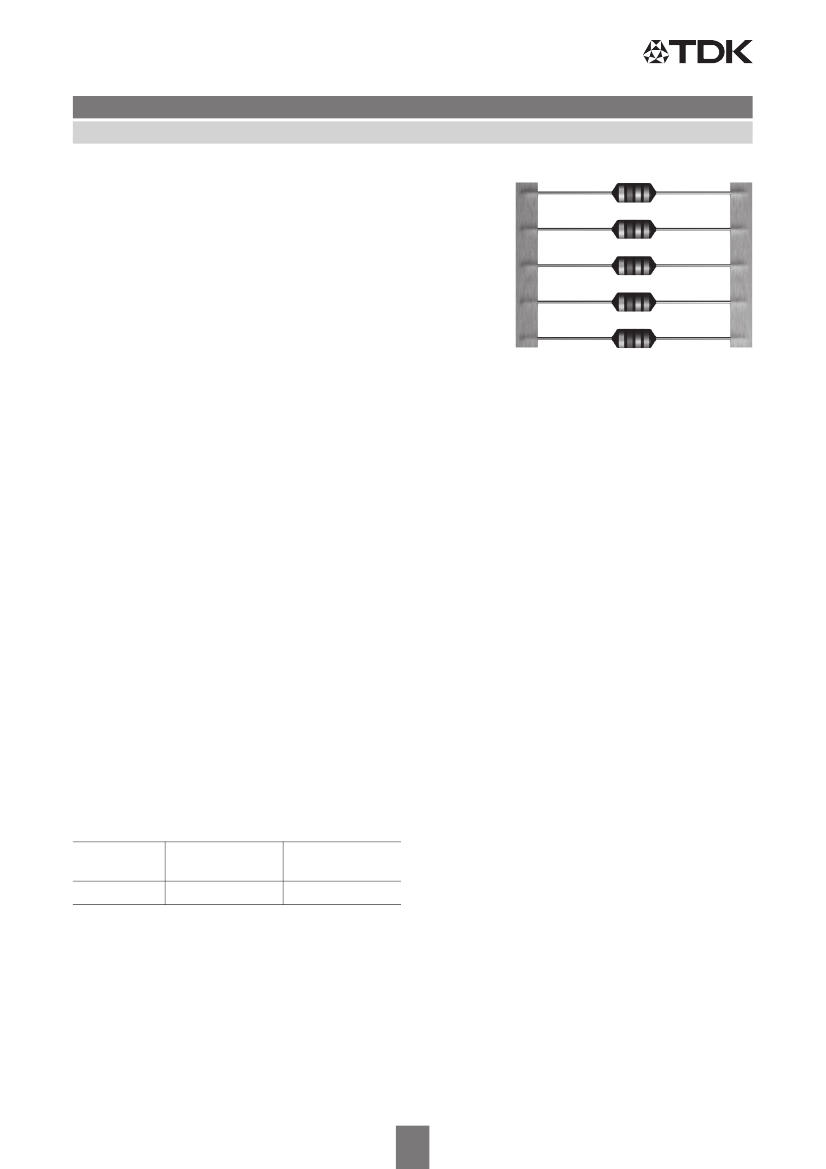

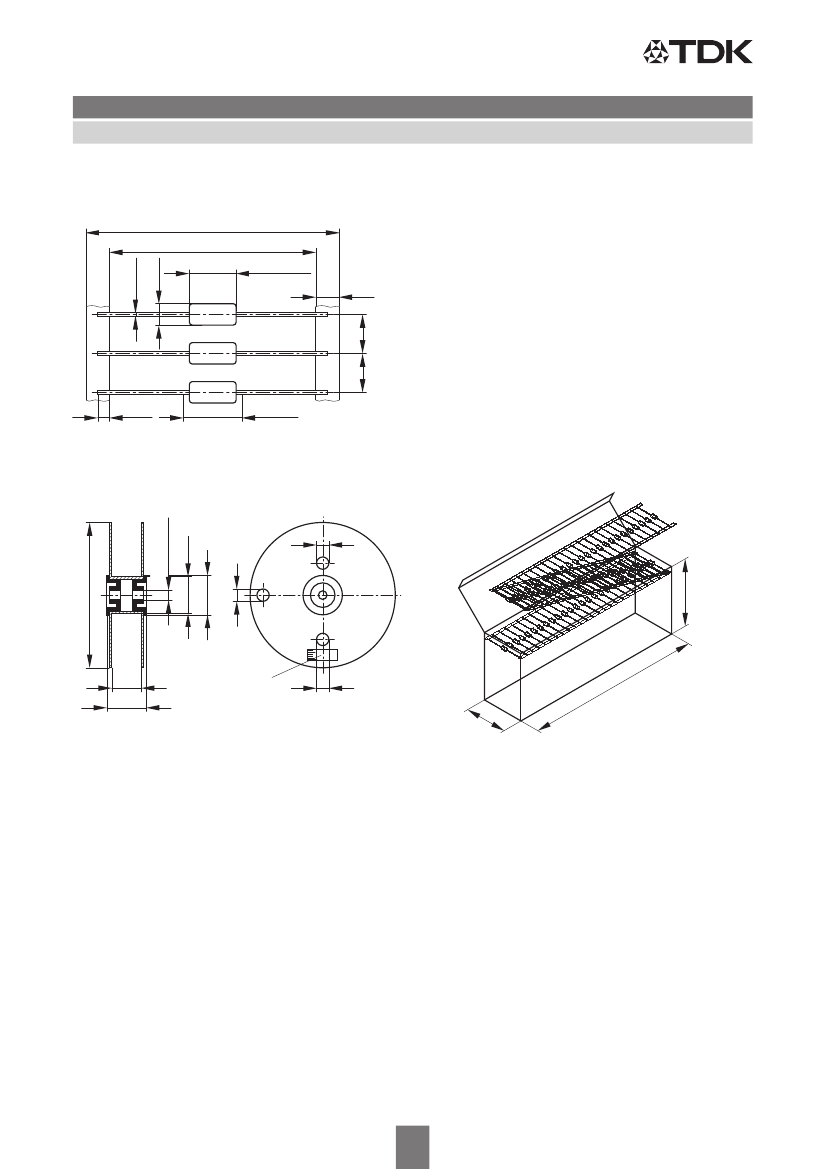

Leaded Inductors

Series/Type:

B82144A

The following products presented in this data sheet are being withdrawn.

Ordering Code

B82144A2984A000

B82144A2535A300

B82144A2305A500

Substitute Product

Date of Withdrawal

2016-02-26

Deadline Last

Orders

2016-08-31

Last Shipments

2017-02-28

	B82144A2106J009	B82144A2335J009
Description	General Purpose Inductor, 10000uH, 5%, 1 Element, Ferrite-Core, AXIAL LEADED, ROHS COMPLIANT	General Purpose Inductor, 3300uH, 5%, 1 Element, Ferrite-Core, AXIAL LEADED, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to
Maker	TDK Corporation	TDK Corporation
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Is Samacsys	N	N
structure	Axial	Axial
core material	Ferrite	Ferrite
DC Resistance	42 Ω	12 Ω
Nominal inductance(L)	10000 µH	3300 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3
Lead diameter	0.8 mm	0.8 mm
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package diameter	5.2 mm	5.2 mm
Package length	12 mm	12 mm
Package form	Axial	Axial
method of packing	Ammo Pack	Ammo Pack
Minimum quality factor (at nominal inductance)	50	60
Maximum rated current	0.06 A	0.11 A
self resonant frequency	0.35 MHz	0.6 MHz
Shape/Size Description	TUBULAR PACKAGE	TUBULAR PACKAGE
special characteristics	Q IS MEASURED AT 0.0796 MHZ	Q IS MEASUED AT 0.252MHZ
surface mount	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)
Terminal location	AXIAL	AXIAL
Terminal shape	WIRE	WIRE
Test frequency	0.01 MHz	0.1 MHz
Tolerance	5%	5%
Base Number Matches	1	1
