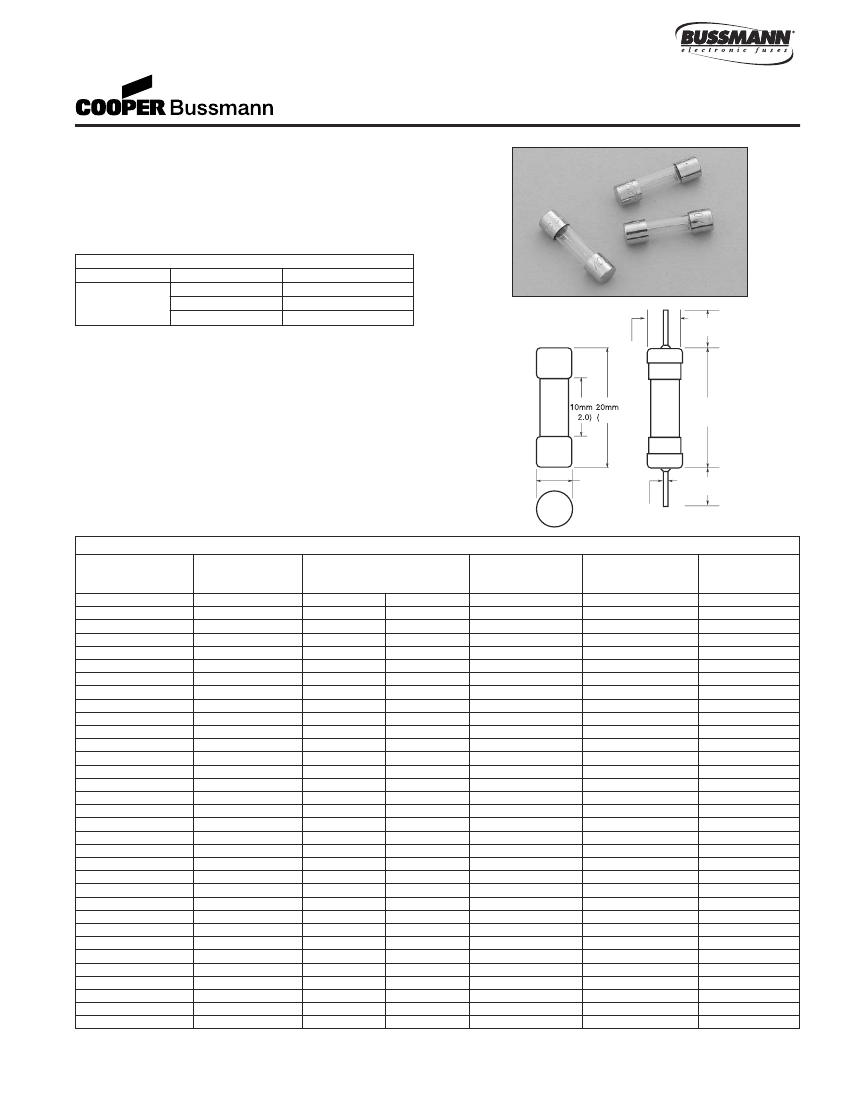

5mm x 20mm Fuses
GMC Series Medium Time Delay, Glass Tube
Description
• Medium time delay, low breaking capacity
• 5mm x 20mm physical size
• Glass tube, nickel-plated brass endcap construction
• Optional axial leads are .032" x 1.5" copper tinned
• Designed to UL/CSA 248-14
ELECTRICAL CHARACTERISTICS
Rated Current % of Amp Rating
Opening Time
100%
None
63mA - 10A
135%
60 minutes maximum
200%
2 minutes maximum
Dimensions
mm
⁄
(inches)
5.54mm
(±.20)
Agency Information
• UL Listed, Guide JDYX, File E19180, 63mA-6.3A
• UL Recognized Card: (7A-8A) Guide JDYX2,
File E19180
• CSA Certified, Class 1422-01, File E65063, 63mA-6.3A
Ordering
• Specify product code, option code and packaging code
38.10mm
0m
(±.38)
±
.3
(±
±
0.5)
21.10mm
0m
(±.81)
81
5.2mm
(+0.1/-0.2)
.81 (REF)
38.10mm
0m
(±.38)
38
SPECIFICATIONS
Product Code
GMC-63mA
GMC-80mA
GMC-100mA
GMC-125mA
GMC-150mA
GMC-160mA
GMC-200mA
GMC-250mA
GMC-300mA
GMC-315mA
GMC-400mA
GMC-500mA
GMC-600mA
GMC-630mA
GMC-700mA
GMC-750mA
GMC-800mA
GMC-1A
GMC-1.25A
GMC-1.5A
GMC-1.6A
GMC-2A
GMC-2.5A
GMC-3A
GMC-3.15A
GMC-3.5A
GMC-4A
GMC-5A
GMC-6A
GMC-6.3A
GMC-7A
GMC-8A
GMC-10A
*
**
†
‡
Voltage
Rating
AC
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
250V
125V
125V
125V
125V
125V
125V
125V
125V
AC Interrupting
Rating*
250V
125V
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
35A
10,000A
100A
10,000A
100A
10,000A
100A
10,000A
100A
10,000A
100A
10,000A
100A
10,000A
100A
10,000A
-
10,000A
-
10,000A
-
10,000A
-
10,000A
-
10,000A
-
200A
-
200A
-
200A
Typical DC Cold
Resistance
(ohms)**
10.350
-
4.775
3.400
2.555
2.295
1.395
0.965
0.838
0.685
0.615
0.335
0.282
0.246
0.213
0.213
0.180
0.156
0.098
0.076
0.067
0.043
0.035
0.026
0.025
0.022
0.019
0.014
0.013
0.012
0.012
0.009
0.007
Typical
Pre-Arc I
2
t
AC†
0.0027
0.0050
0.0094
0.014
0.022
0.022
0.032
0.046
0.081
0.081
0.18
0.41
0.60
0.66
0.85
0.85
0.85
1.8
3.4
5.4
5.8
8.9
13
19
23
25
36
58
88
110
150
200
300
Maximum
Voltage
Drop (mV)‡
1400
1400
1200
1000
800
730
650
490
580
480
510
370
360
360
340
320
290
250
200
190
160
130
130
130
130
130
120
120
120
120
120
110
110
Interrupting ratings: Interrupting ratings for 63mA - 6.3A were measured at 70% - 80% power factor on AC. The interrupting ratings for 7A - 10A were measured at 100% power factor on AC.
DC Cold Resistance (Measured at <10% of rated current)
Typical Pre-Arching I
2
t (I
2
t was measured at listed interrupting rating and rated voltage)
Maximum Voltage drop (Voltage drop was measured at 20°C ambient temperature at rated current)
5mm x 20mm Fuses
GMC Series Medium Time Delay, Glass Tube

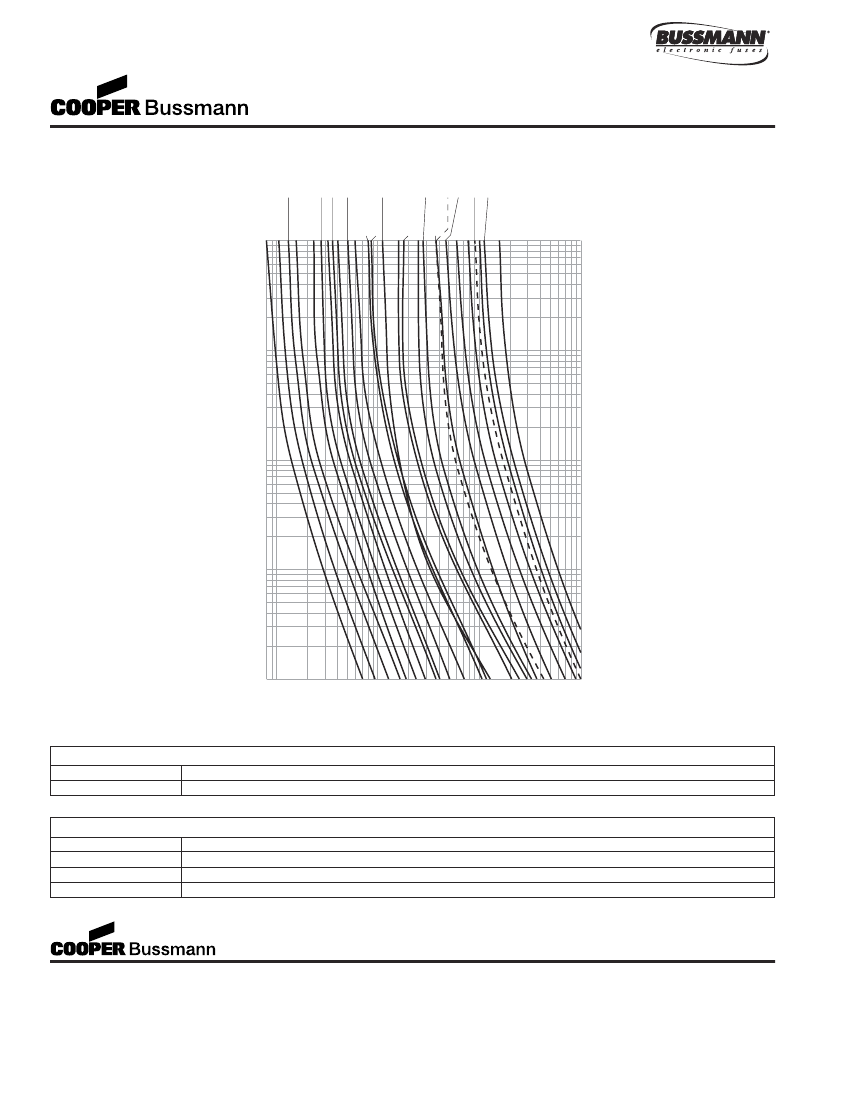

TIME CURRENT CURVE
100mA
125mA
150mA
200mA
250mA
315mA 300mA
400mA
500mA
750mA
800mA
1A
1.5A
1.6A
2A
2.5A
3A
3.5A
4A
5A
6A
6.3A
7A
8A
10A
1
10
62mA
80mA
100
AMPERE
RATING
10
TIME IN SECONDS
1
.1
.1
CURRENT IN AMPERES
OPTION CODE
Option Code
V
Description
Axial leads - copper tinned wire with nickel plated brass overcaps
PACKAGING CODE
Packaging Code
BK
BK1
TR2
Description
100 pieces of fuses packed into a cardboard carton
1,000 pieces of fuses packed into a poly bag
1,500 pieces of fuses packed into tape on a reel
OC-2596 5/03
© Cooper Electronic
Technologies 2003
Visit us on the Web at www.cooperET.com
3601 Quantum Boulevard Boynton Beach, Florida 33426-8638
Tel: +1-561-752-5000 Toll Free: +1-888-414-2645 Fax: +1-561-742-1178
