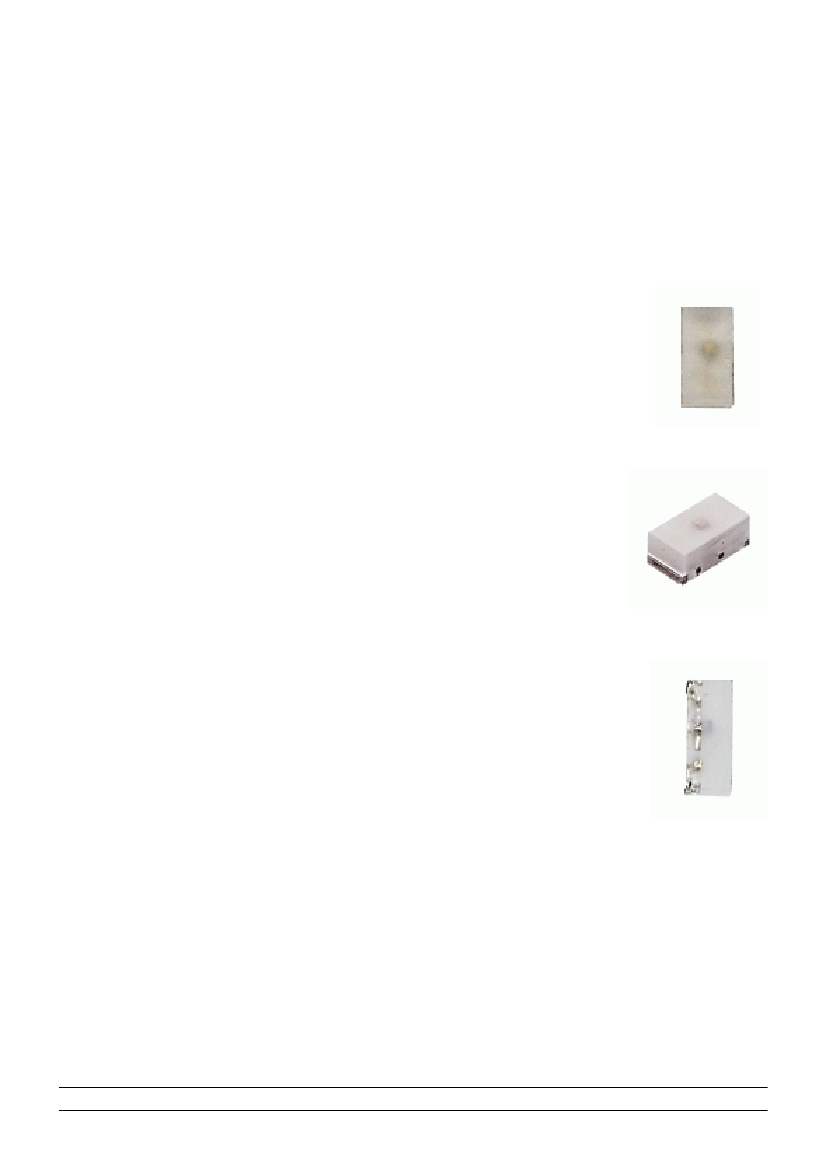

DOMINANT
Semiconductors
Innovating Illumination
TM
DATA SHEET:
SpiceLED
TM
AlInGaP S-Spice : SSx-CLD-I2
SpiceLED
TM
Like spice, its diminutive size is a stark contrast to its standout performance
in terms of brightness, durability and reliability. Despite being the smallest in
size yet the
SpiceLED™
packs a powerful performance and is a highly reliable
design device. Its versality enables its application in automotive applicances,
key-pad illumination, hand-held devices such as PDAs, notebooks, compact
back-lighting applications, consumer appliances, office equipment, audio and
video equipment.
Features:
>
>
>
>
>
>
High brightness surface mount LED.
Super wide viewing angle of 160°.
Equivalent to 0603 package outline. Copper lead-frame construction.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.
Environmental friendly; RoHS compliance.
Applications:
>
>
>
>
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
Consumer Appliances: LCD illumination as in PDAs, LCD TV.
Communication: indicator and backlight in mobilephone.
Display: full color display video notice board.
Industry: white goods (eg: Oven, microwave, etc.).
© 2005 SpiceLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
1
10/03/2006 V1.0
DOMINANT
TM
Semiconductors
Innovating Illumination
AlInGaP S-Spice : SSx-CLD-I2
Part Ordering
Number
SSS-CLD-HJ2-I2
• SSS-CLD-H1
• SSS-CLD-H2
• SSS-CLD-J1
• SSS-CLD-J2
SSO-CLD-JK2-I2
• SSO-CLD-J1
• SSO-CLD-J2
• SSO-CLD-K1
• SSO-CLD-K2
SSY-CLD-JK2-I2
• SSY-CLD-J1
• SSY-CLD-J2
• SSY-CLD-K1
• SSY-CLD-K2
Chip Technology
/ Color
AlInGaP
Super Red, 632 nm
Viewing
Angle˚
160
Luminous Intensity @
IF = 2mA IV (mcd)
2.80 - 7.20
2.80 - 3.55
3.55 - 4.50
4.50 - 5.60
5.60 - 7.20
AlInGaP
Orange, 605 nm
160
4.50 - 11.20
4.50 - 5.60
5.60 - 7.20
7.20 - 9.00
9.00 - 11.20
AlInGaP
Yellow, 587 nm
160
4.50 - 11.20
4.50 - 5.60
5.60 - 7.20
7.20 - 9.00
9.00 - 11.20
NOTE
1. All part number above comes in a quantity of 3000 units per reel.
2. Other luminious intensity groups are also available upon request
3. Luminous intensity is measured with an accuracy of ± 11%.
4. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
Wavelength Grouping
Color
SSS; Super Red
SSO; Orange
Group
Full
Full
W
X
Y
Z
Wavelength distribution (nm)
625 - 640
600 - 612
600 - 603
603 - 606
606 - 609
609 - 612
582 - 594
582 - 585
585 - 588
588 - 591
591 - 594
SSY; Yellow
Full
W
X
X
Y
Dominant wavelength is measured with an accuracy of ± 1nm .
2
10/03/2006 V1.0
DOMINANT
TM
Semiconductors
Innovating Illumination
AlInGaP S-Spice : SSx-CLD-I2
Electrical Characteristics at Ta=25˚C
Vf @ If = 2mA
Part Number
SSx-CLD
Vr @ Ir = 10uA
Max. (V)
2.4
Min. (V)
1.6
Typ. (V)
1.8
Min. (V)
5
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.1)
Reverse voltage; Ir
max
= 10µA
ESD threshold (HBM)
LED juction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
15
100
5
2000
110
-40 … +100
-40 … +100
40
Unit
mA
mA
V
V
˚C
˚C
˚C
mW
Material
Material
Lead-frame
Package
Note: product is Pb free
Cu Alloy With NiPdAu Plating
High Temperature Resistant Epoxy Resin
3
10/03/2006 V1.0
