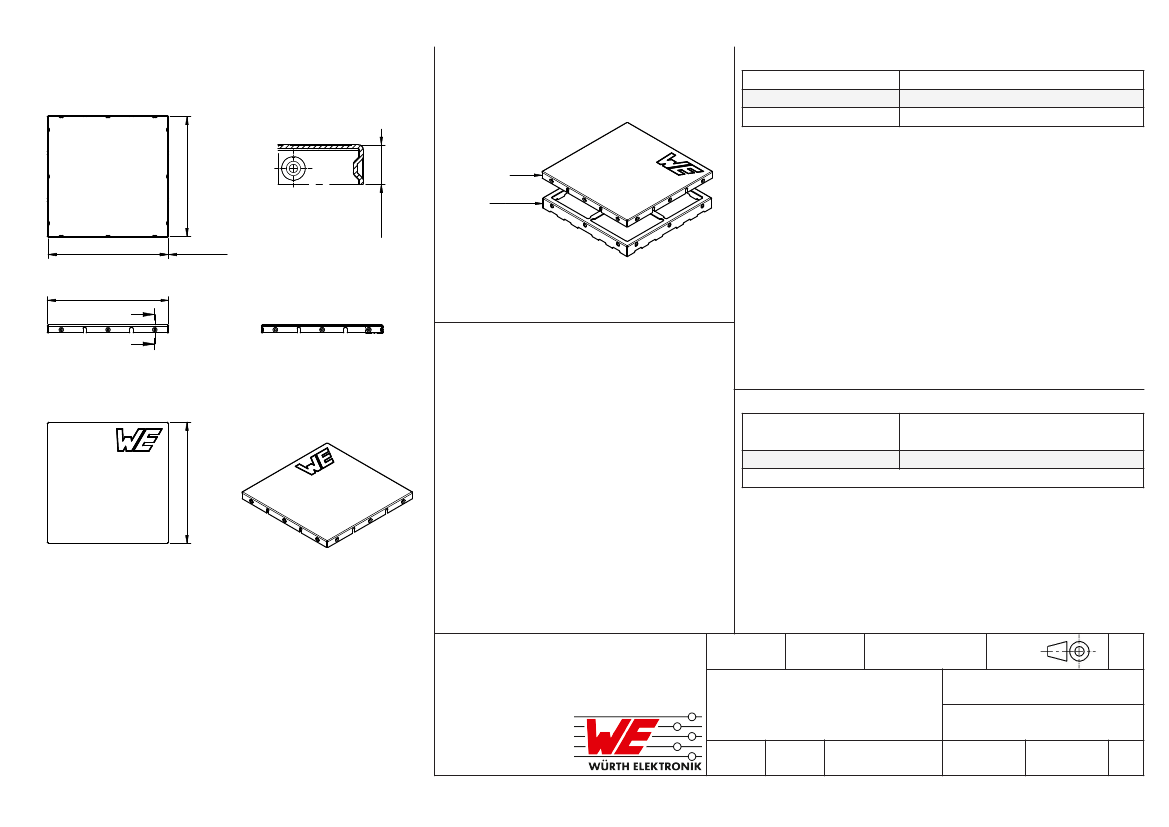

Dimensions: [mm]
Assembly with SMD Frame:
Material:
Base Material
Plating
Version
Tin plate
Tin
Top Cover
detail B
30,46 ±0,1
Top Cover
2,0 ±0,1
Frame
30,46 ±0,1
0,2 ±0,05
30,86 ±0,1
A
A
sectional drawing A-A
B
Scale - 1:1
General Information:
Storage Temperature (in original
packaging)
30,86 ±0,1
-20 °C up to +60 °C
-40 °C up to +125 °C
Operating Temperature
Test conditions of Electrical Properties: +20 °C, 33% RH if not specified differently
Scale - 1:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-SHC Shielding Cabinet
ORDER CODE
36003300S
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.001
Valid
2018-05-15
eiSos
1/3
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

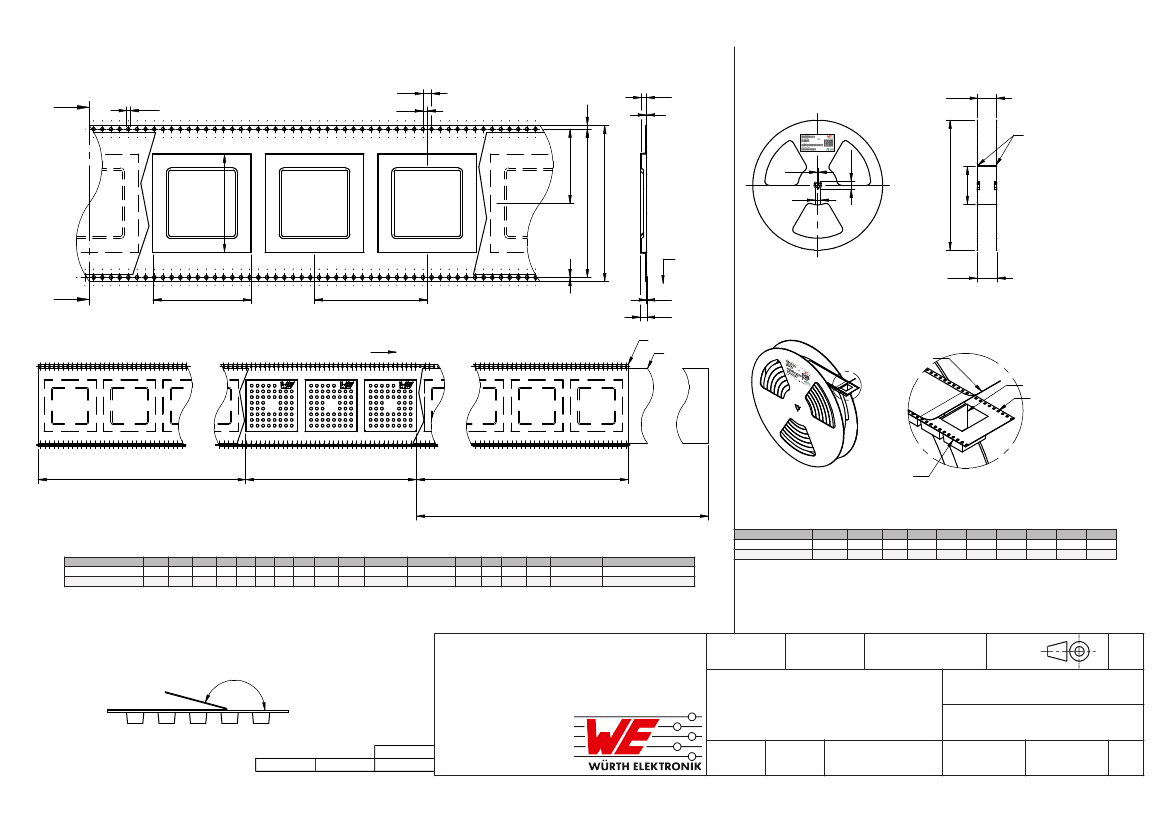

Packaging Specification - Tape and Reel: [mm]
P0
K0
T
W1
close to center
B
W3
A
E
D0
P2
F
D
B0
W
S
C
Top Cover
Tape
T1
T2
Carrier Tape
Cover Tape
d
W2
A
End
A0
P1
detail A
A
Cover Tape
Chip Cavity
Sprocket Hole
Feeding direction
Start
No Component
min.160mm
Components
No Component
min.100mm
Cover Tape
min. 400mm
Embossment
packaging is reffered to the international standard IEC 60286-2
tolerance
value
A0
B0
W
T
T1 T2 K0 P0 P1
P2
D0
typ.
typ.
±0,3 max. max. typ. typ. ±0,1 ±0,1 ±0,15 +0,1/ -0,0
31,16 31,16 44,00 0,35 0,10 4,20 4,00 4,00 40,00 2,00 1,50
D0 / 2
+0,05/ -0,0
0,75
d
E
S
F
Tape Type 3
±0,05 ±0,1 ±0,1 ±0,1
0,20 1,75 52,40 26,20 Polystyrene
VPE / packaging unit
pcs.
300
Tolerance
Tape width
44 mm
A
± 2,0
330,00
B
min.
1,50
C
min.
12,80
D
min.
20,20
N
N
min.
80,00
A
W1
+ 2,0
44,40
W2
max.
50,40
W3
min.
43,90
W3
max.
47,40
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
165° -180°
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WE-SHC Shielding Cabinet
ORDER CODE
36003300S
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
Pull-of force
Tape width
44 mm
0,1 N - 1,3 N
001.001
Valid
2018-05-15
eiSos
2/3
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
