L13ID: DescriptionT-3/4 SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm, ROHS COMPLIANT PACKAGE-2; Categoryphotoelectric; File Size141KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L13ID Overview

T-3/4 SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm, ROHS COMPLIANT PACKAGE-2

L13ID Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
Is Samacsys	N
Other features	HIGH RELIABILITY
color	HIGH EFFICIENCY RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED RED
Nominal luminous intensity	10.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8 mm
method of packing	BULK
peak wavelength	627 nm
shape	CYLINDRICAL
size	2 mm
surface mount	NO
T code	T-3/4
Terminal surface	NOT SPECIFIED
Terminal pitch	2.54 mm
perspective	70 deg
Base Number Matches	1

Preview

Download Datasheet

View All

2mm FLAT TOP LED LAMPS

L13HD

L13ID

BRIGHT RED

HIGH EFFICIENCY RED

L13GD GREEN

L13YD

YELLOW

Features

MOUNTS

LOW

Description

FLUSH WITH PANEL.

FOR AUDIO PANEL INDICATOR.

HOLE IN PANEL UP TO 3.5mm (.138").

The Bright Red source color devices are made with

Gallium Phosphide Red Light Emitting Diode.

The High Efficiency Red source color devices are made

with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

POWER CONSUMPTION.

SUITABLE

FITS 2mm

LONG

LIFE - SOLID STATE RELIABILITY.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: CDA0717

APPROVED : J. Lu

REV NO: V.1

CHECKED :

Digitally signed by YANGSHOUFEN

cn=YANGSHOUFEN, ou=KINGBRIHGT, o=42, c=US

Date: 2001.11.12 18:23:31 +08'00'

Reason: Document is certified

DATE: NOV/11/2001

DRAWN: R.X.Jin

PAGE: 1 OF 5

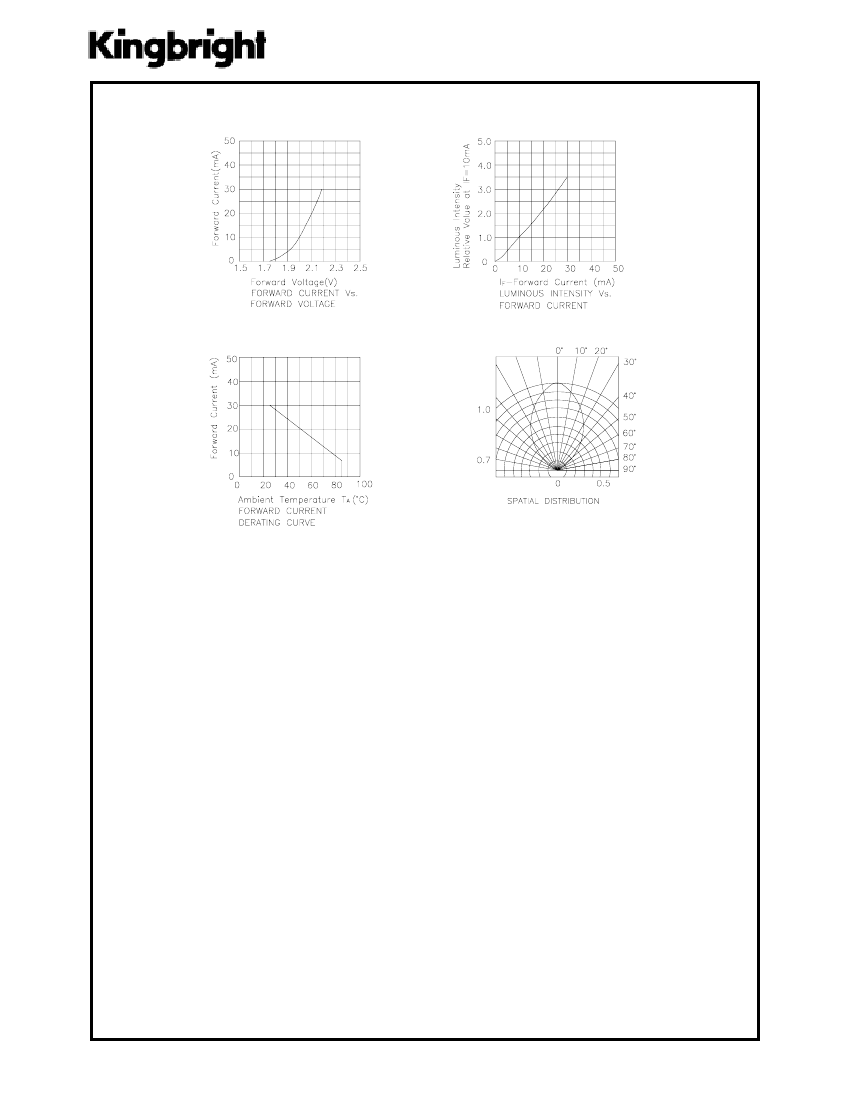

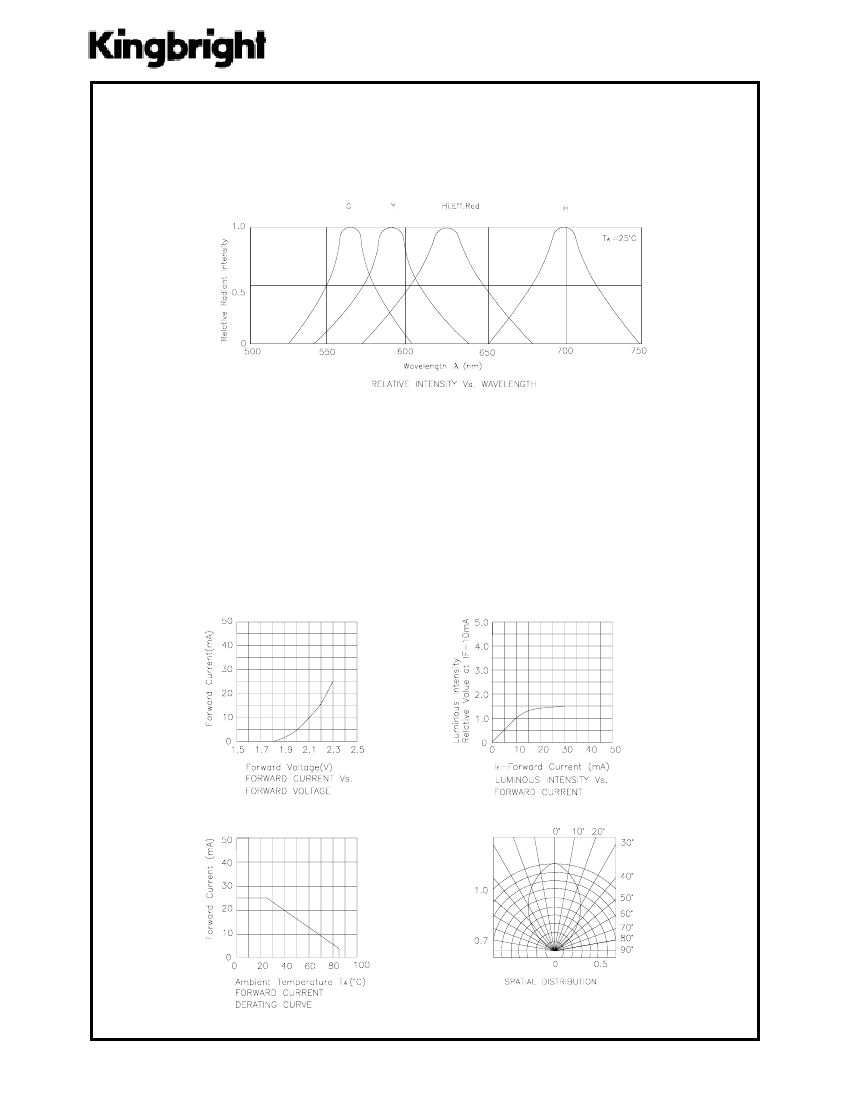

L13ID Related Products

	L13ID	L13HD
Description	T-3/4 SINGLE COLOR LED, HIGH EFFICIENCY RED, 2 mm, ROHS COMPLIANT PACKAGE-2	T-3/4 SINGLE COLOR LED, BRIGHT RED, 2 mm, ROHS COMPLIANT PACKAGE-2
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Kingbright	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown	unknown
Other features	HIGH RELIABILITY	HIGH RELIABILITY
color	HIGH EFFICIENCY RED	BRIGHT RED
Configuration	SINGLE	SINGLE
Maximum forward current	0.03 A	0.025 A
Lens type	DIFFUSED RED	DIFFUSED RED
Nominal luminous intensity	10.0 mcd	1.5 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	8 mm	8 mm
method of packing	BULK	BULK
peak wavelength	627 nm	700 nm
shape	CYLINDRICAL	CYLINDRICAL
size	2 mm	2 mm
surface mount	NO	NO
T code	T-3/4	T-3/4
Terminal surface	NOT SPECIFIED	NOT SPECIFIED
Terminal pitch	2.54 mm	2.54 mm
perspective	70 deg	70 deg
