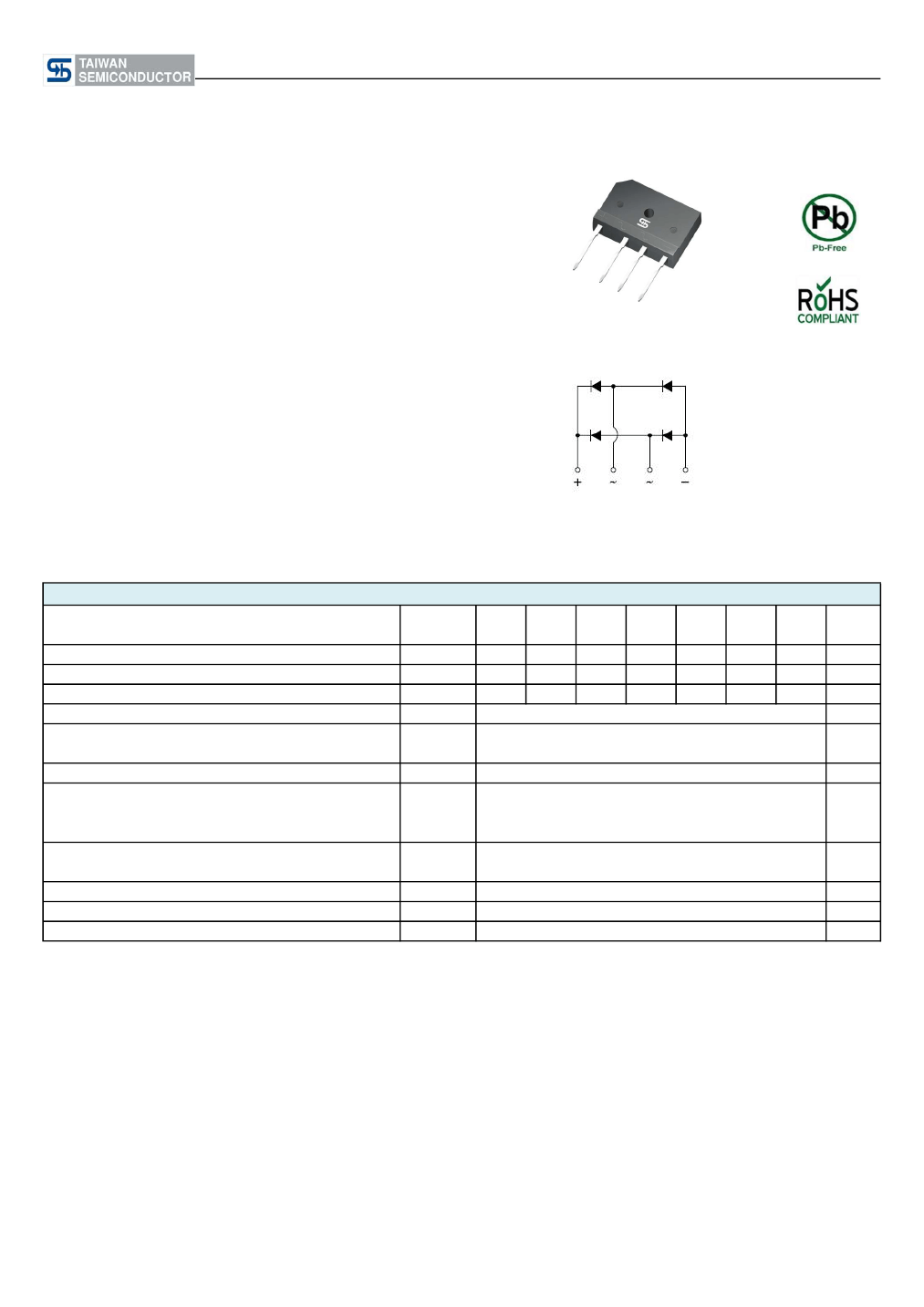

TS15P01G - TS15P07G
Taiwan Semiconductor
CREAT BY ART
15A, 50V - 1000V Glass Passivated Bridge Rectifiers
FEATURES
- Glass passivated junction
- Ideal for printed circuit board
- Typical I
R
less than 0.1μA
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
+
~
~ –
TS-6P
MECHANICAL DATA
Case:
TS-6P
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Polarity as marked on the body
Mounting torque:
8.17 in-lbs maximum
Weight:
7.15 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage (Note 1)
@ 7.5 A
@ 15 A
Maximum reverse current @ rated V
R
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
TS15P TS15P TS15P TS15P TS15P TS15P TS15P
01G
50
35
50
02G
100
70
100
03G
200
140
200
04G
400
280
400
15
240
239
1.0
1.1
10
500
0.8
- 55 to +150
- 55 to +150
05G
600
420
600
06G
800
560
800
07G
1000
700
1000
UNIT
V
V
V
A
A
A
2
s
V
I
R
R
θJC
T
J
T
STG
μA
°C/W
°C
°C
Document Number: DS_D1411003
Version: L15
TS15P01G - TS15P07G
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
TS15P0xG
(Note 1)
H
PACKING
CODE
C2
X0
D2
G
PACKING CODE
SUFFIX
(*)
PACKAGE
TS-6P
TS-6P
TS-6P
PACKING
15 / TUBE
Forming
15 / TUBE (Auto)
Note 1: "x" defines voltage from 50V (TS15P01G) to 1000V (TS15P07G)
*: Optional available
EXAMPLE
PREFERRED
PART NO.
TS15P07GHC2G
PART NO.
TS15P07G
PART NO.
SUFFIX
H
PACKING CODE
C2
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

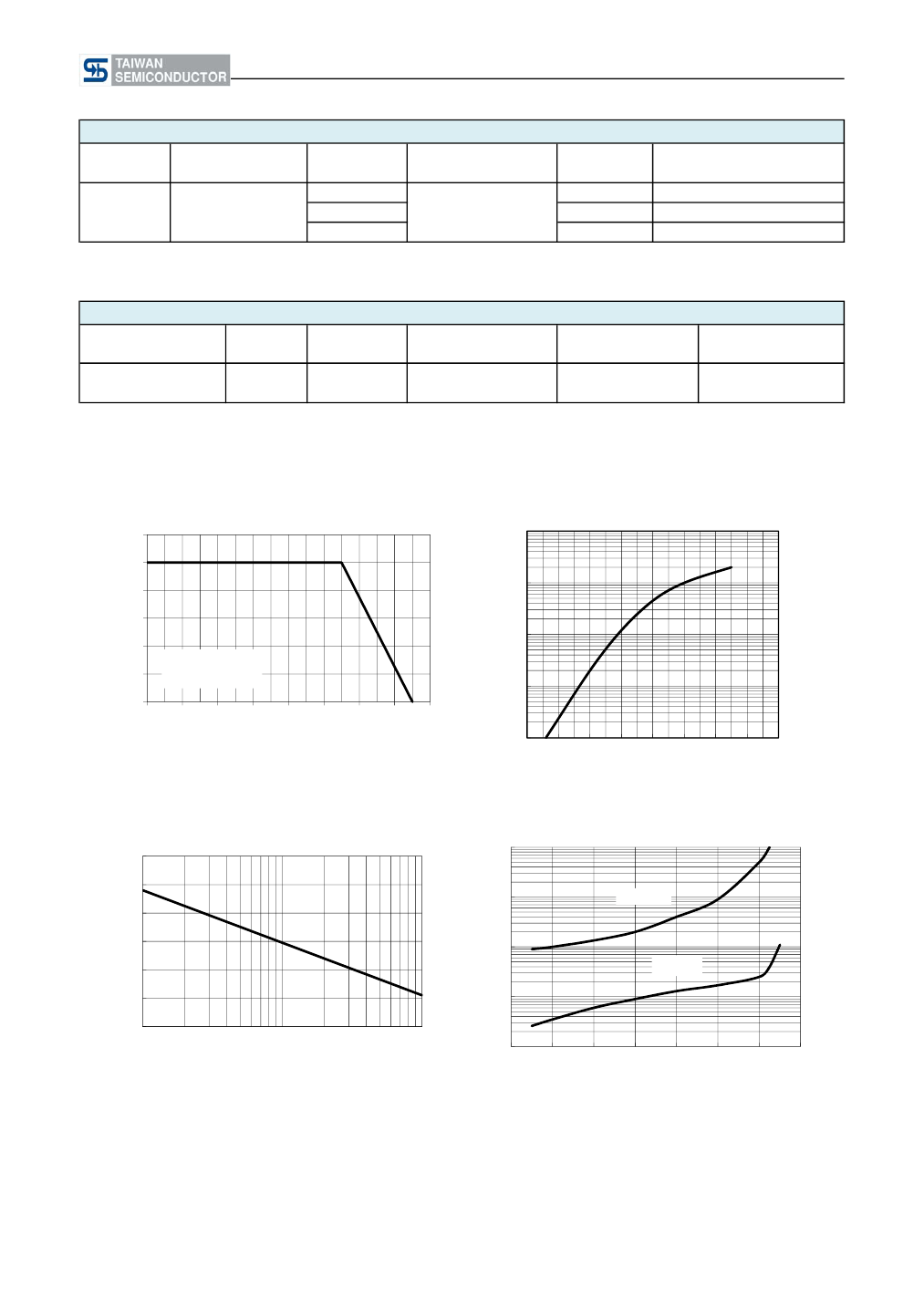

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM DERATING CURVE FOR OUTPUT
CURRENT
18
INSTANTANEOUS FORWARD
A
CURRENT (A)
15
12
9
6
3
0
0
20
40
60
80
100
120
140
160
CASE TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVE LOAD
WITH HEATSINK
FIG. 2 TYPICAL FORWARD CHARACTERISTICS
1000
AVERAGE FORWARD
A
CURRENT (A)
100
10
1
0.1
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
INSTANTANEOUS FORWARD VOLTAGE (A)
FIG. 3 MAXIMUM SURGE CURRENT
300
PEAK FORWARD SURGE
CURRENT (A)
250
200
150
100
50
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
100
INSTANTANEOUS REVERSE
A
CURRENT (μA)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
10
T
J
=125°C
1
T
J
=25°C
0.1
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (V)
Document Number: DS_D1411003
Version: L15
TS15P01G - TS15P07G
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
1000
JUNCTION CAPACITANCE (pF)
A
100
f=1.0MHz
Vsig=50mVp-p
10
0.1
1
10
100
REVERSE VOLTAGE (V)

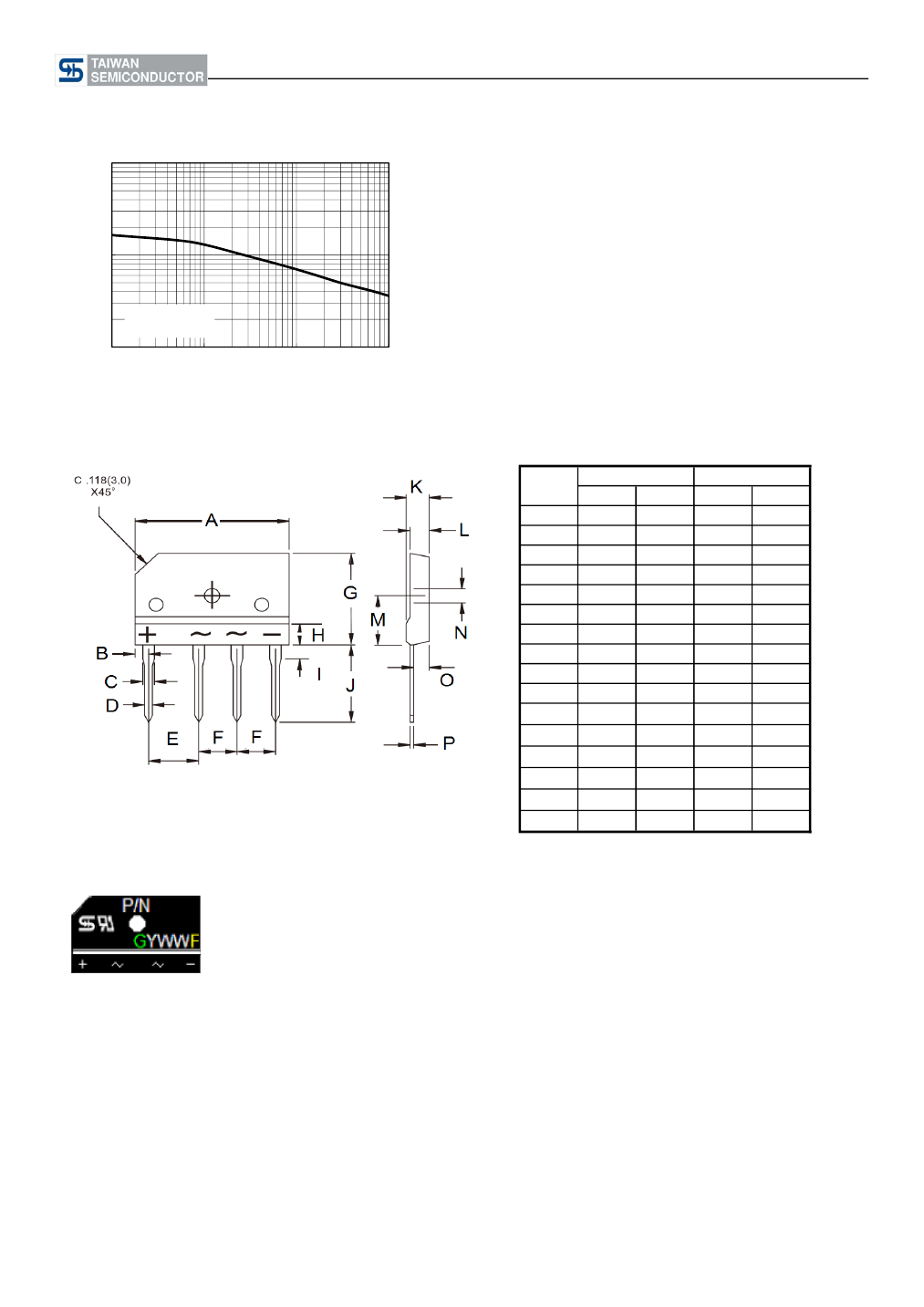

PACKAGE OUTLINE DIMENSIONS
TS-6P
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Unit (mm)
Min
29.70
2.30
2.00
0.90
9.80
7.30
19.70
-
3.80
17.00
4.40
3.40
10.80
3.10
2.50
0.65
Max
30.30
2.70
2.40
1.10
10.20
7.70
20.30
4.80
4.20
18.00
4.80
3.80
11.20
3.40
2.90
0.75
Unit (inch)
Min
1.169
0.091
0.079
0.035
0.386
0.287
0.776
-
0.150
0.669
0.173
0.134
0.425
0.122
0.098
0.026
Max
1.193
0.106
0.094
0.043
0.402
0.303
0.799
0.189
0.165
0.709
0.189
0.150
0.441
0.134
0.114
0.030
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1411003
Version: L15
TS15P01G - TS15P07G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1411003
Version: L15
