ThermoFuse Varistor
B72214***
NT14*
PPD VAR PD
2017-05-15
a
Rongguang Zhang
Dr. Wen Yang
Mac Gao
Levi Li
New issue
EPCOS AG 2017. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
ThermoFuse Varistor
B72214***
NT14*
Construction
Round varistor element, leaded
Coating: epoxy resin, flame-retardant to UL 94 V-0
Terminals: tinned copper wire, metal compound wire
Features
Wide operating voltage range 130
…
680 VRMS
Self-protected under abnormal overvoltage conditions
High-energy AdvanceD series E2
Applications
Inverters in solar power systems Houshold appliances
Power supply units
Inverters in solar power systems
Lighting applications
Communication and data systems
Transient voltage surge suppressors (TVSS)
Electronic metering
General technical data
Climatic category
Operating temperature
Storage temperature
Electric strength
Insulation resistance
Response time
to IEC 60068-1
40/85/56
-40…+85
-40... +85
≥2.5
≥100
< 25
°
C
°
C
kV
RMS
MΩ
ns
Nomenclature
NT
14
K
***
E2
S5
K4
=
=
=
=
=
=
=
Series designation
Rated disk diameter (mm)
Tolerance of V
V
at 1 mA:
±10%
Max. AC voltage
Energy absorption characteristics, AdvanceD series
Crimp design S5
2 pins version
PPD VAR PD
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 14
2017-05-15
ThermoFuse Varistor
B72214***
NT14*

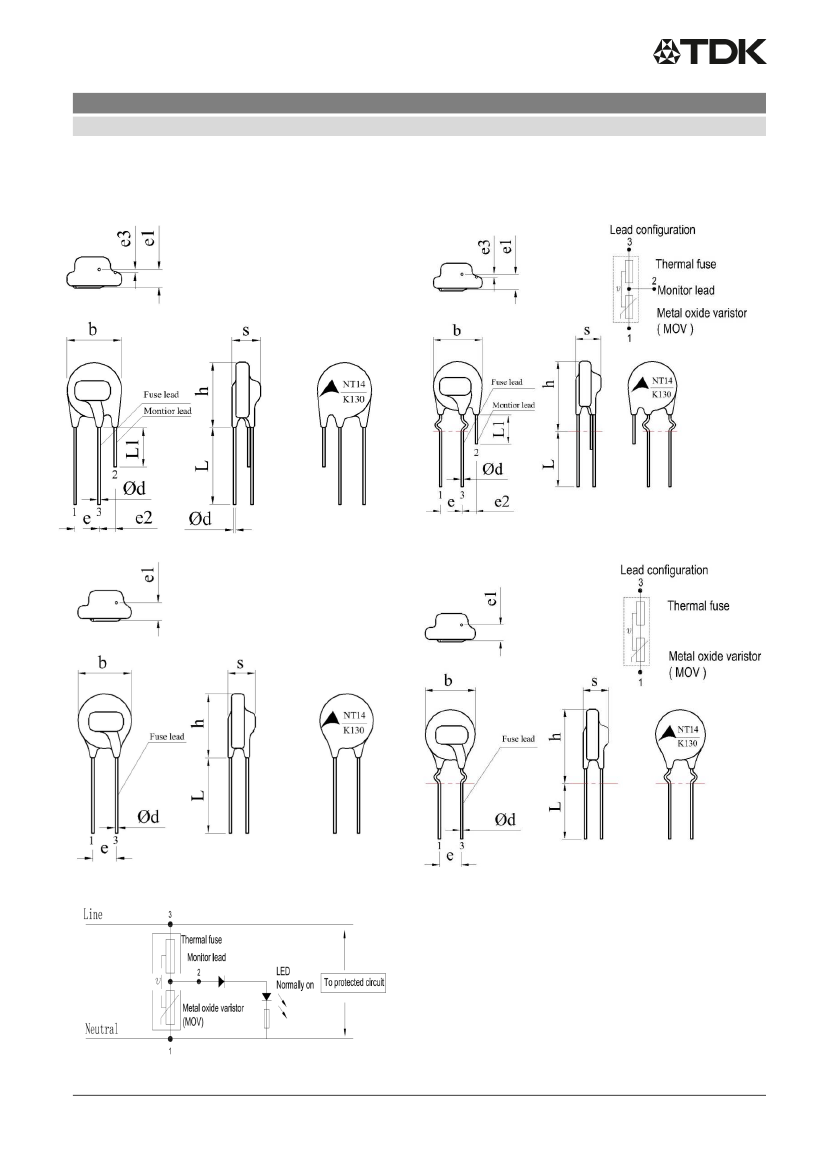

Dimensional drawing in mm
Straight leads
Crimp leads
*K4
*S5K4
Typical applications
