F750J337MCC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> F750J337MCC

F750J337MCC: DescriptionCAP TANT 330UF 6.3V 20% 2812; CategoryPassive components capacitor; File Size491KB，4 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

F750J337MCC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F750J337MCC	-	-	View	Buy Now

F750J337MCC Overview

CAP TANT 330UF 6.3V 20% 2812

F750J337MCC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	42 weeks
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	330 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	150 mΩ
high	2.5 mm
leakage current	0.0208 mA
length	7.1 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, 7 Inch
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	343 mA
size code	2813
surface mount	YES
Delta tangent	0.1
Terminal shape	WRAPAROUND
width	3.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

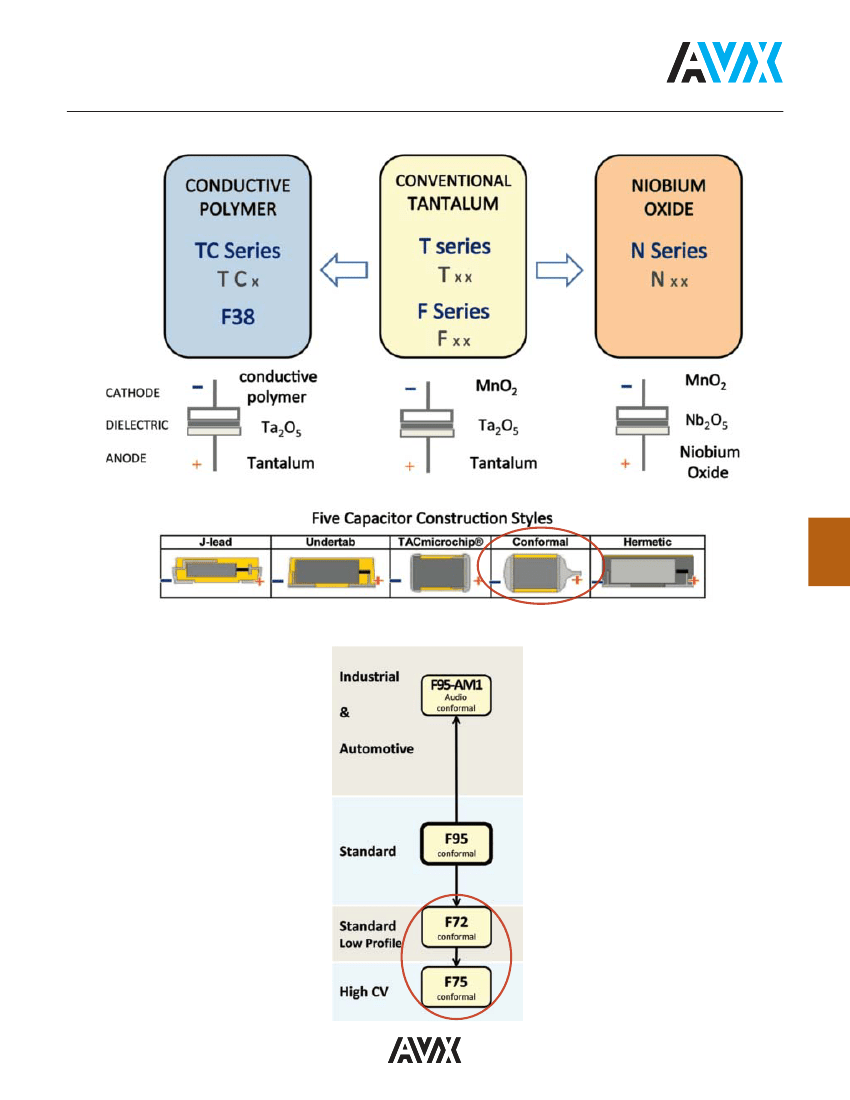

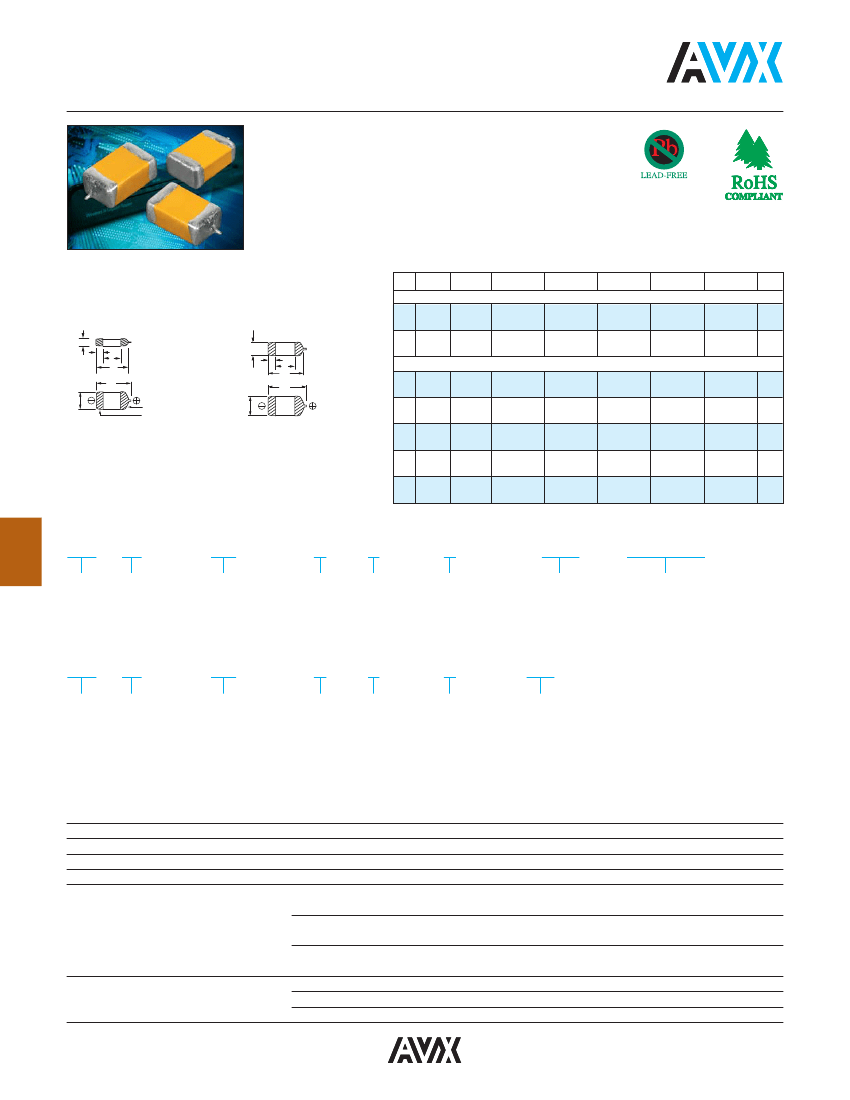

F72/F75 Series

Low Profile and HiCV Conformal Coated Chip

FEATURES

• Compliant to the RoHS2 directive 2011/65/EU

• SMD Conformal

• Small and low profile

APPLICATIONS

• Smartphone

• Mobile phone

• Wireless module

• Hearing aid

LEAD-FREE COMPATI-

BLE

COMPONENT

CASE DIMENSIONS:

millimeters (inches)

Code EIA Code EIA Metric

7.20±0.30

(0.283±0.012)

7.20±0.30

(0.283±0.012)

7.10±0.30

(0.280±0.012)

7.30±0.30

(0.287±0.012)

7.20±0.30

(0.283±0.012)

7.20±0.30

(0.283±0.012)

7.10±0.30

(0.280±0.012)

6.00±0.30

(0.236±0.012)

6.00±0.30

(0.236±0.012)

3.20±0.30

(0.126±0.012)

4.30±0.30

(0.136±0.012)

6.00±0.30

(0.236±0.012)

6.00±0.30

(0.236±0.012)

3.20±0.30

(0.126±0.012)

2.00 Max.

(0.079 Max)

1.20±0.30

(0.047±0.012)

2.50±0.30

(0.098±0.012)

2.80±0.30

(0.110±0.012)

2.80 Max.

(0.110 Max)

3.50±0.30

(0.138±0.012)

2.00 Max.

(0.079 Max)

1.30±0.40

(0.051±0.016)

1.30±0.40

(0.051±0.016)

1.30±0.30

(0.051±0.012)

1.30±0.40

(0.051±0.016)

1.30±0.40

(0.051±0.016)

1.30±0.40

(0.051±0.016)

1.30±0.30

(0.051±0.012)

F72 Case Dimensions

F72

F75

2824

7260-20

7260-15

3.80±0.60

6.20

(0.150±0.024) (0.244)

3.80±0.60

6.20

(0.150±0.024) (0.244)

3.60±0.60

6.00

(0.142±0.024) (0.236)

3.90±0.60

6.40

(0.153±0.024) (0.252)

3.80±0.60

6.20

(0.150±0.024) (0.244)

3.80±0.60

6.20

(0.150±0.024) (0.244)

3.60±0.60

6.00

(0.142±0.024) (0.236)

F75 Case Dimensions

2813

2914

2824

2813

7132-28

7343-31

7260-28

7260-38

7132-20

Solder electrode

HOW TO ORDER

F72

Type

*D dimension only for reference

Rated

Voltage

107

Capacitance

Code

pF code: 1st two digits

represent significant figures,

3rd digit represents multiplier

(number of zeros to follow)

Tolerance

K = ±10%

M = ±20%

Case

Size

See

table

above

Packaging

See Tape & Reel

Packaging Section

Specification

Suffix

AH1 = Low ESR

AQ2 or Q2

Single Face

Electrode

F75

Type

Rated

Voltage

157

Capacitance

Code

pF code: 1st two digits

represent significant figures,

3rd digit represents multiplier

(number of zeros to follow)

Tolerance

K = ±10%

M = ±20%

Case

Size

See

table

above

Packaging

See Tape & Reel

Packaging Section

AQ2

Single

Face

Electrode

TECHNICAL SPECIFICATIONS

Category Temperature Range:

Rated Temperature:

Capacitance Tolerance:

Dissipation Factor:

ESR 100kHz:

Leakage Current:

-55 to +125°C

+85°C

±20%, ±10% at 120Hz

Refer to next page

After 1 minute’s application of rated voltage, leakage current at 20°C

is not more than 0.01CV or 0.5μA, whichever is greater.

After 1 minute’s application of rated voltage, leakage current at 85°C

is not more than 0.1CV or 5μA, whichever is greater.

After 1 minute’s application of derated voltage, leakage current at 125°C

is not more than 0.125CV or 6.3μA, whichever is greater.

+15% Max. at +125°C

+10% Max. at +85°C

-10% Max. at -55°C

Capacitance Change By Temperature
