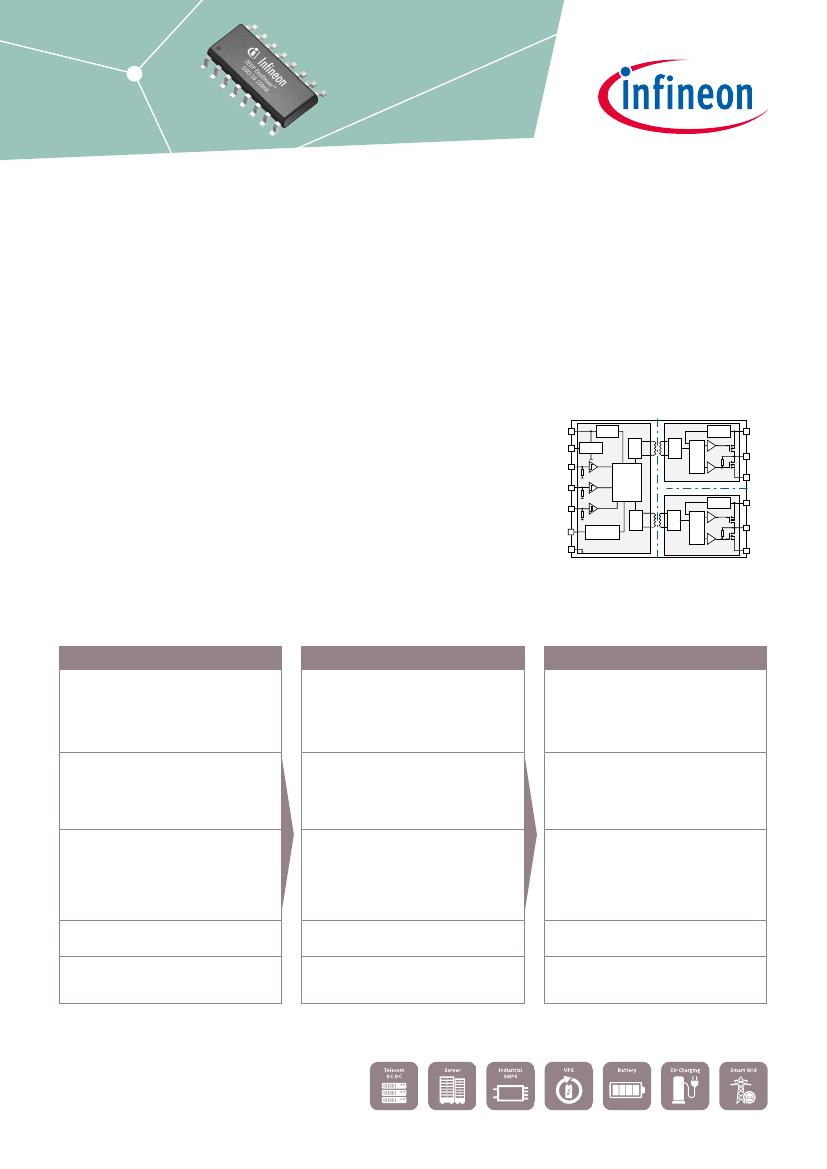

Product brief
EiceDRIVER™ 2EDF7275F and 2EDF7175F
Fast, robust, dual-channel, functional isolated MOSFET gate drivers
with accurate and stable timing
Overview
The EiceDRIVER™ 2EDF7275F is the perfect fit for robust and stable operation for primary
side control of high- and low-side MOSFETs in noisy high-power switching environments.
The strong 4 A/8 A source/sink dual-channel gate drivers provide a fast turn on/off
when driving high- and medium-voltage MOSFETs such as CoolMOS™ or OptiMOS™.
Both output channels are individually isolated and can be flexibly deployed as floating
gate drivers with very high 150 V/ns CMTI (Common Mode Noise Immunity). The VDDi
input supply supports a wide voltage range SLDO mode to save on-board LDOs. For
slower switching or driving smaller MOSFETs, a 1 A/2 A peak current product variant,
the EiceDRIVER™ 2EDF7175F, is available in the DSO-16 narrow body package with 4 mm
creepage distance.
Device overview
VDDI
SLDON
INA
INB
DISABLE
NC
GNDI
Dead time
control
TX
Control
logic
UVLO
SLDO
TX
Input-to-output
isolation
UVLO
RX
Logic
VDDA
OUTA
GNDA
VDDB
OUTB
GNDB
Channel-to-channel
isolation
UVLO
RX
Logic
EiceDRIVER™ 2EDF7275F and 2EDF7175F
block diagram
Product key features
Fast power switching with accurate timing
›
Available with 4 A/8 A and 1 A/2 A source/sink currents
›
Propagation delay typ. 37 ns with 3 ns
Product benefits
Power efficiency and high resolution PWM control
›
Lower switching losses in half-bridges due to fast
and accurate turn on/off
›
Perfect match for a new digitally controlled high
resolution PWM control
Cooler package at smaller form factor
›
Replaces classic bulky PT pulse transformers or
costly high speed data couplers and discrete drivers
›
Cooler gate driver package
›
Eliminates need for two costly protection diodes
Protection and safe operation
›
Protection against shoot-through (EOS)
›
Supports decoupling and limits the di/dt
switching and ringing noise
›
Reliable CT coreless transformer PWM signal chain
Flexible assignment of any driver channel
›
HS+LS, HS+HS, LS+LS or 2x Imax on 1xHS
Floating gate drive and regulatory safety
›
Functional isolation for primary or secondary
side control
System benefits
channel-to-channel mismatch
›
Max. delay variation ~14 ns
Optimized for area and low cost system BOM
›
Isolation and driver in one package
›
Less power dissipation due to low on-resistance
›
Output stages with 5 A reverse current capability
Robust against switching noise
›
Floating drivers are able to handle large inductive
voltage over- and undershoots
›
Very high common mode transient immunity
CMTI > 150 V/ns
›
Undervoltage lockout function for switch protection
Output-to-output channel isolation
›
Functional level galvanic isolation
Input-to-output channel isolation
›
Functional galvanic isolation
Enabling higher power stage efficiency and higher
power density designs
Improving long term competitive cost position,
integration and mass manufacturability
Improved end-product lifetime
by improved safe
operation of power switches
Lower EMI
by ground isolation, driver proximity to
MOSFETs or the use of 4-pin Kelvin source MOSFETs
Meeting requirements to build isolated AC-DC,
DC-DC half-bridge topologies
www.infineon.com/2EDi
Product brief
EiceDRIVER™ 2EDF7275F and 2EDF7175F
Fast, robust, dual-channel, functional isolated MOSFET gate drivers
with accurate and stable timing
Device pin assignments
DSO-16
DSO-16
INA
INA
INB
INB
VDDI
VDDI
GNDI
GNDI
DISABLE
DISABLE
N.C.
N.C.
N.C.
N.C.
SLDON
SLDON
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
Valid for:
Valid for:
Narrow body
Narrow Body
2EDF7275F
2EDF7275F
2EDF7175F
Wide body
2EDS8265H
Wide Body
2EDS8165H
2EDS8265H
2EDS8165H
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
VDDA
VDDA
OUTA
OUTA
GNDA
GNDA
N.C.
N.C.
N.C.
N.C.
VDDB
VDDB
OUTB
OUTB
GNDB
GNDB
Line V
V
Bus
I
L
PFC
Control
IC
Q1
Q2
Q3
Q4
2EDS
LLC controller
Reinforced isolated
gate driver 4 A/8 A
2EDN
EMI
Filter
Q2
Q4
Bulk cap
Q6
Q1
Q3
Application diagram example
Totem-Pole bridgeless-Boost PFC stage
LLC resonant DC-DC with sync rectifier
Q5
AC
LINE
2EDF
2EDF
Functional isolated
gate driver 4 A/8 A
Reinforced isolated
gate driver 4 A/8 A
The 2EDF7275F input-to-outputs are functional isolated, which is used today in larger power PCB designs or when seeking to isolate the
switching noise in the power loop from the microcontroller. With its >150 V/ns common mode noise immunity, the 2EDF is one of the
most robust solutions available today for high-side, low-side half-bridge topologies with simple CMOS level PWM inputs. The high-side
driver supply in the 2EDF can be implemented with a low cost bootstrap method.
The consistent performance and timing accuracy over temperature and production spread of the 2EDF family of isolated gate drivers
makes them easy to use within a power stage or across multi-phase, multi-level designs and enables further efficiency gains in high
performance power conversion applications.
Product portfolio
Part number
Product portfolio
2EDF7275F
Orderable part
number (OPN)
Package
PWM
Input type
Dual mode
(input A,
input B)
Dual mode
(input A,
input B)
Driver
source/
Sink
current
4 A/8 A
Gate
driver
UVLO
4V
Input to output isolation
Isolation class
Functional
Rating
1.5 kV
peak
Surge testing
n.a.
Safety
certification
n.a.
Dead-time
control
2EDF7275FXUMA1
NB-DSO16
10x6mm
NB-DSO16
10x6mm
no
2EDF7175F
2EDF7175FXUMA1
1 A/2 A
4V
Functional
1.5 kV
peak
n.a.
n.a.
no
For further device information, configurations and application notes, visit the 2EDi EiceDRIVER™ family under
www.Infineon.com/2EDi
