SMD Power Inductor
177CDMCC/DS
Description
•
Metal compound molding type construction.
•
Magnetically shielded.
•
Low audible core noise.
•
Suitable for large current.
•
L×W×H:17.45×17.15×7.0mm Max.
•
Product weight: 11.5 g (Ref.)
•
Moisture Sensitivity Level: 1
Environmental Data
•
Operating temperature range: -55°C~+125°C (including coils self temperature rise)
•
Storage temperature range: -55°C~+125°C
Packaging
•
Carrier tape and reel packaging
•
200pcs per reel
Applications
•
Ideally used in notebook, tablet PC, LCD display, Server application.
•
High current, POL converters.
•
Low profile, high current power supplies.
•
Battery powered devices.
•
DC/DC converters in distributed power systems.

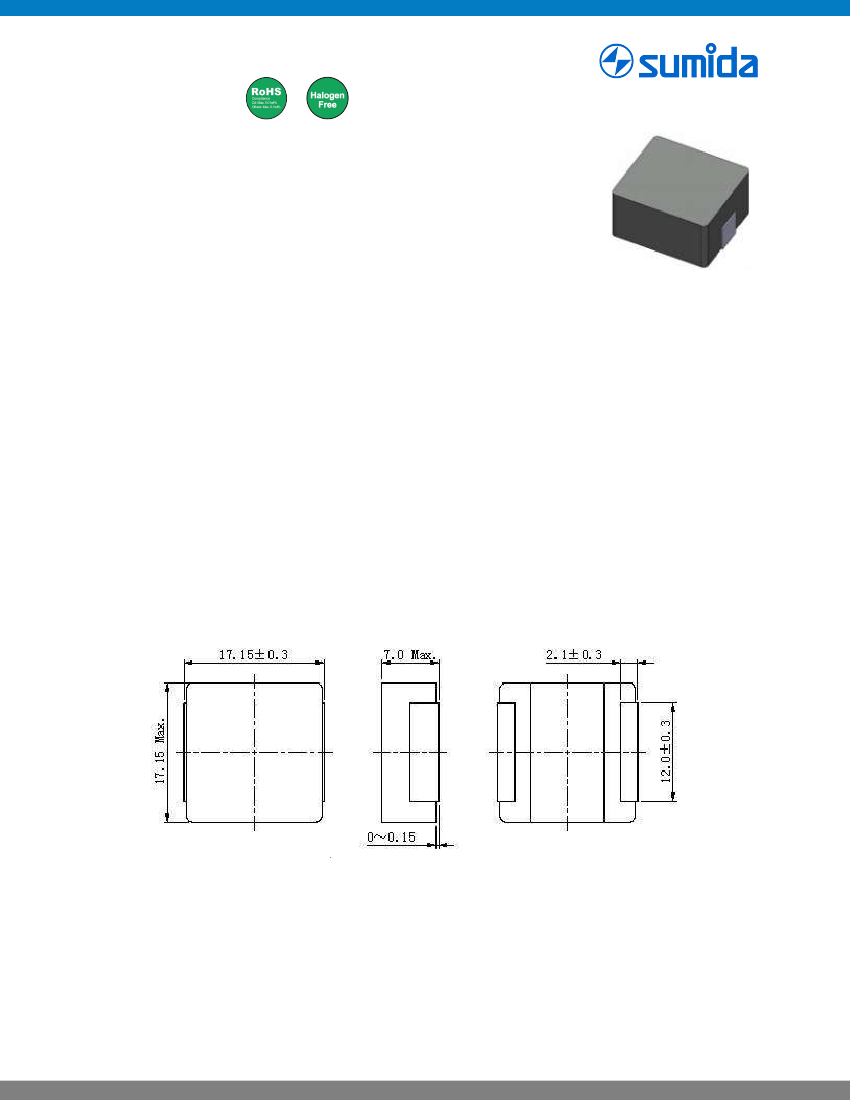

Dimension - [mm]
Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 1 of 5
Ver. 2018-05-02
WWW.SUMIDA.COM
SMD Power Inductor
177CDMCC/DS

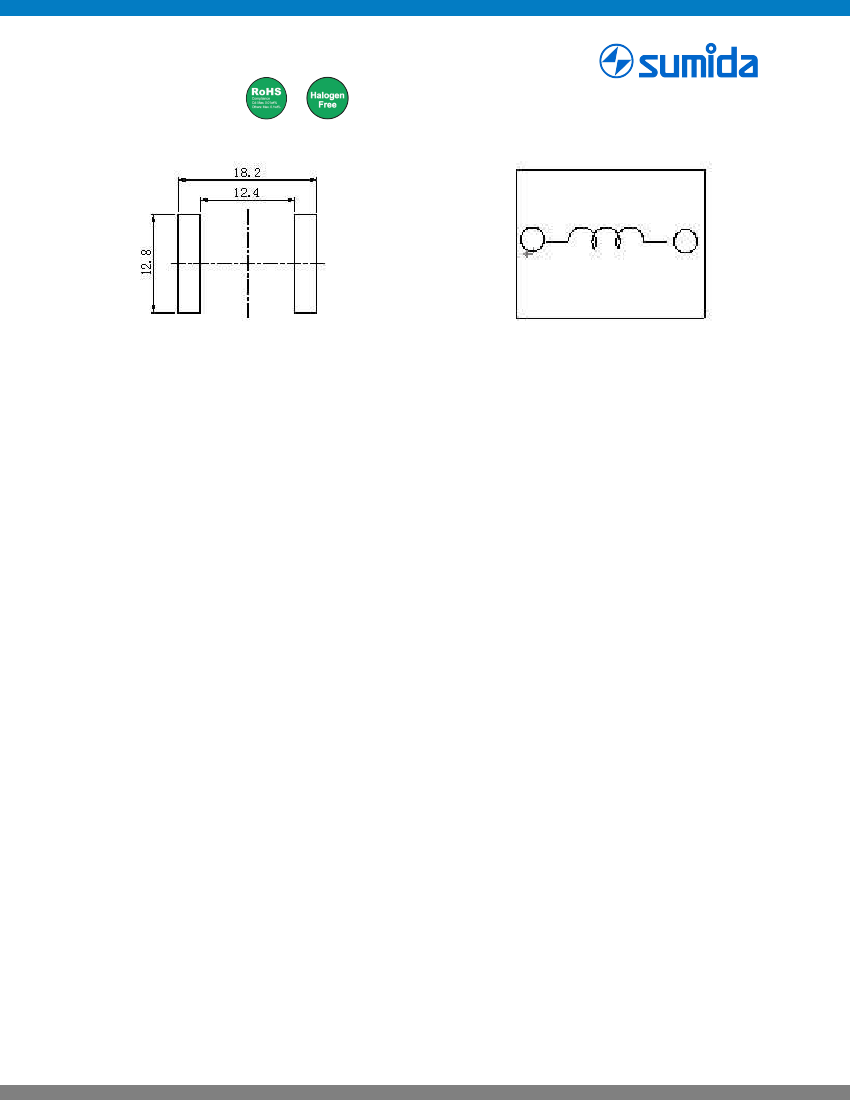

Recommended Land pattern - [mm]
Wire Connection
Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 2 of 5
Ver. 2018-05-02
WWW.SUMIDA.COM
SMD Power Inductor
177CDMCC/DS
Electrical Characteristics
Part Number
Inductance
[Within]
(μH)
※1
Temperature
D.C.R. at 20℃ Saturation Current
Rise Current
max(typ) (mΩ)
at 20℃(A)
※2
(A)
※3
177CDMCCDS-R47MC
177CDMCCDS-R68MC
177CDMCCDS-1R0MC
177CDMCCDS-2R2MC
177CDMCCDS-3R3MC
177CDMCCDS-4R7MC
177CDMCCDS-6R8MC
177CDMCCDS-8R2MC
177CDMCCDS-100MC
177CDMCCDS-150MC
177CDMCCDS-220MC
177CDMCCDS-330MC
177CDMCCDS-470MC
0.47 ± 20%
0.68 ± 20%
1.00 ± 20%
2.20 ± 20%
3.30 ± 20%
4.70 ± 20%
6.80 ± 20%
8.20 ± 20%
10.00 ± 20%
15.00 ± 20%
22.00 ± 20%
33.00 ± 20%
47.00 ± 20%
0.90 (0.78)
1.21 (1.05)
1.38 (1.20)
2.65 (2.30)
3.11 (2.70)
4.83 (4.20)
7.13 (6.20)
9.20 (8.00)
10.60 (9.20)
14.70
(12.80)
25.30
(22.00)
38.00
(33.00)
49.20
(42.80)
85.50
80.00
60.80
40.80
31.80
35.00
24.70
22.60
21.30
17.00
16.00
11.40
9.10
57.00
47.00
44.60
31.20
26.50
18.00
16.70
14.50
13.50
12.50
8.80
7.20
6.50
Measuring frequency: Inductance at 100kHz, 1V
Saturation current: The actual value of DC current when the inductance is over 70% of the initial value.
Temperature rise current: The actual value of DC current when the coil temperature rise is
△T=40℃.
(Test board condition : FR4, Copper=70μm, four-layer PWB, t=1.6mm)

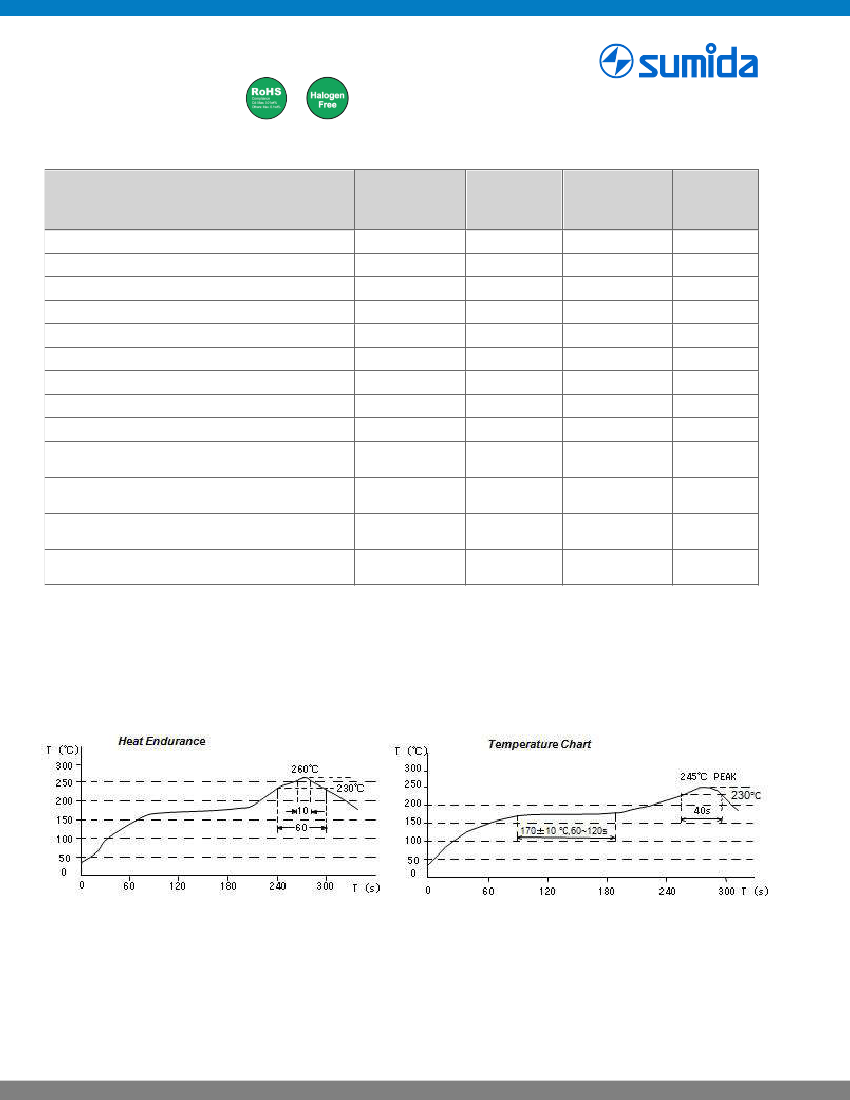

Solder Reflow Condition
Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 3 of 5
Ver. 2018-05-02
WWW.SUMIDA.COM
SMD Power Inductor
177CDMCC/DS

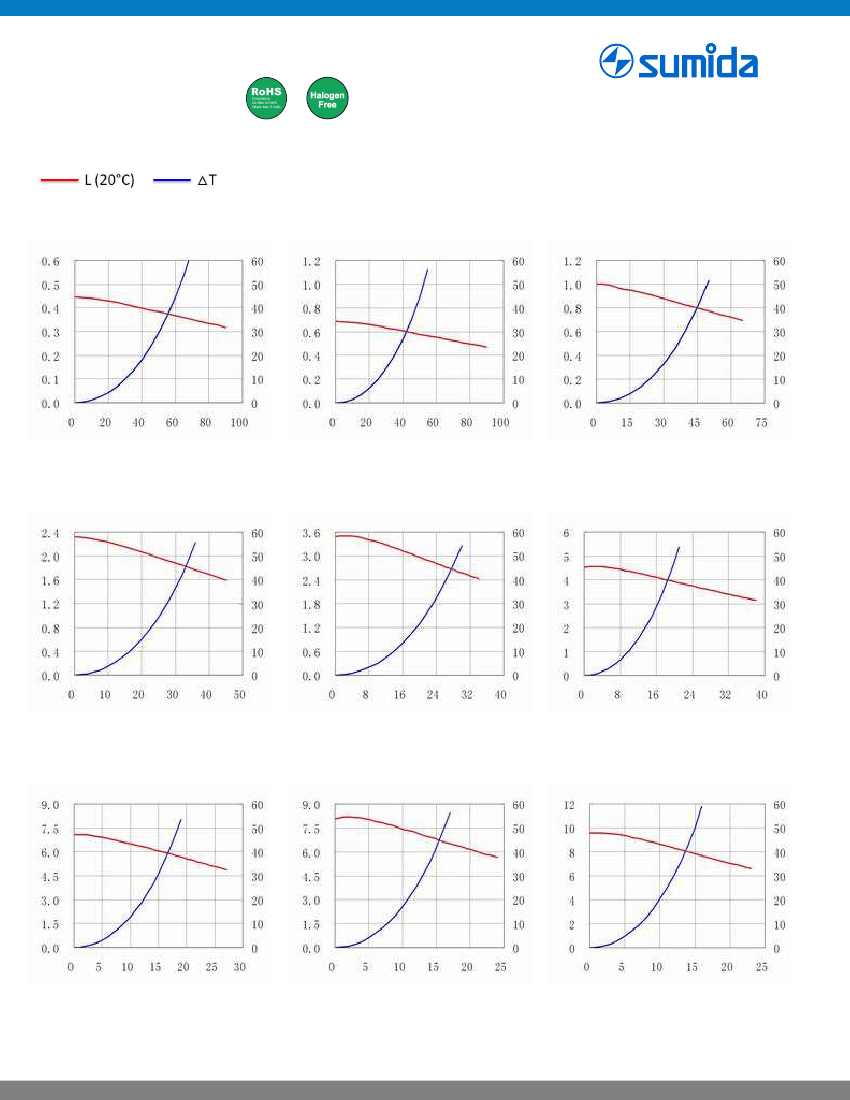

Saturation Current & Temperature Rise Graph
1. 177CDMCCDS-R47MC
L (μH)
△T(℃)
2. 177CDMCCDS-R68MC
L (μH)
△T(℃)
3. 177CDMCCDS-1R0MC
L (μH)
△T(℃)
DC(A)
DC(A)
DC(A)
4. 177CDMCCDS-2R2MC
L (μH)
△T(℃)
5. 177CDMCCDS-3R3MC
L (μH)
△T(℃)
6. 177CDMCCDS-4R7MC
L (μH)
△T(℃)
DC(A)
DC(A)
DC(A)
7. 177CDMCCDS-6R8MC
L (μH)
△T(℃)
8. 177CDMCCDS-8R2MC
L (μH)
△T(℃)
9. 177CDMCCDS-100MC
L (μH)
△T(℃)
DC(A)
DC(A)
DC(A)
Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 4 of 5
Ver. 2018-05-02
WWW.SUMIDA.COM
SMD Power Inductor
177CDMCC/DS

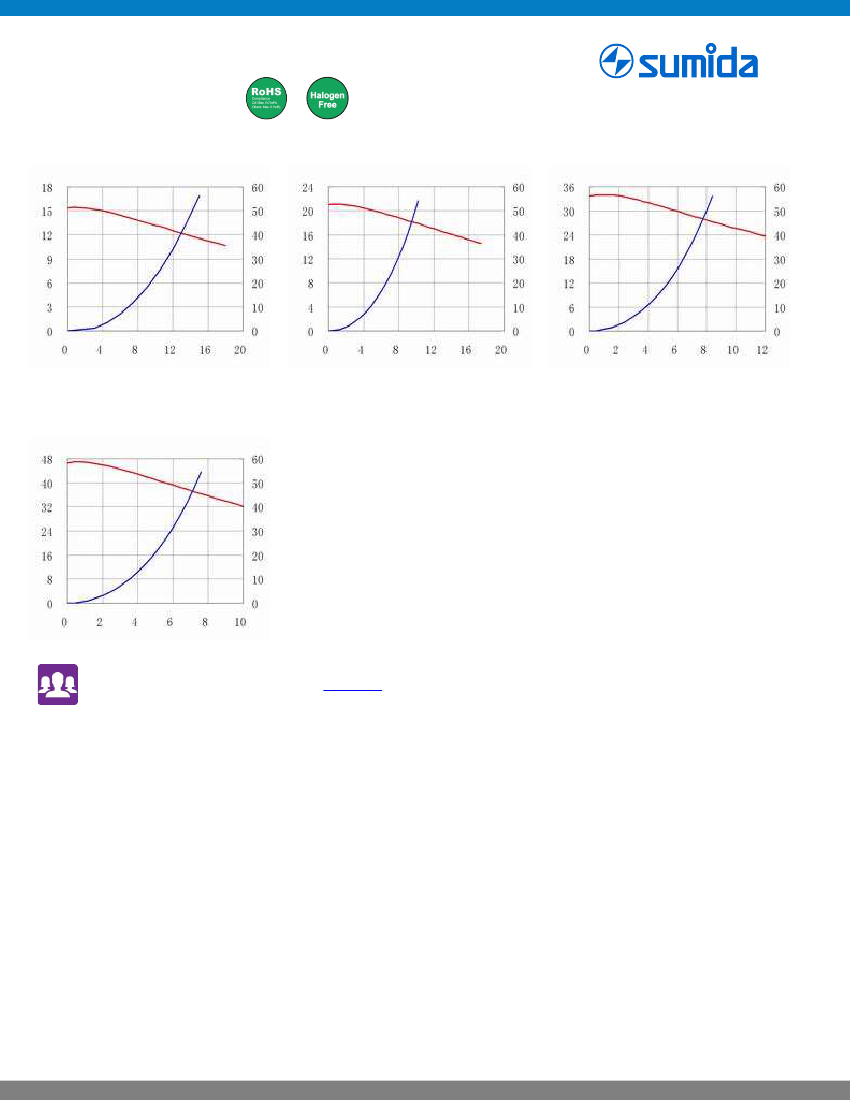

10. 177CDMCCDS-150MC
L (μH)
△T(℃)
11. 177CDMCCDS-220MC
L (μH)
△T(℃)
12. 177CDMCCDS-330MC
L (μH)
△T(℃)
DC(A)
DC(A)
DC(A)
13. 177CDMCCDS-470MC
L (μH)
△T(℃)
DC(A)
For sales office information, please
click here
to visit our website.
Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.
Page 5 of 5
Ver. 2018-05-02
WWW.SUMIDA.COM
