TX36/23/10-3E10-M

Description
FERRITE CORES ROUND
CategoryPassive components
File Size55KB,1 Pages
ManufacturerFerroxcube
Websitehttp://www.ferroxcube.com/
Download Datasheet Parametric View All

TX36/23/10-3E10-M Overview

FERRITE CORES ROUND

TX36/23/10-3E10-M Parametric

Parameter NameAttribute value
Kernel typeMagnetic ring
Tolerance±30%
gapNo notch
Effective magnetic permeability (µe)10000
Magnetic core factor (ΣI/A) mm-11.38
Effective length (e) mm89.7
Effective area (Ae) mm²64.9
Effective magnet volume (Ve) mm³5820
surfaceEpoxy
Supplier device packagingTX 36 x 23 x 10
high10.92mm
length-
width-
diameter37.15mm

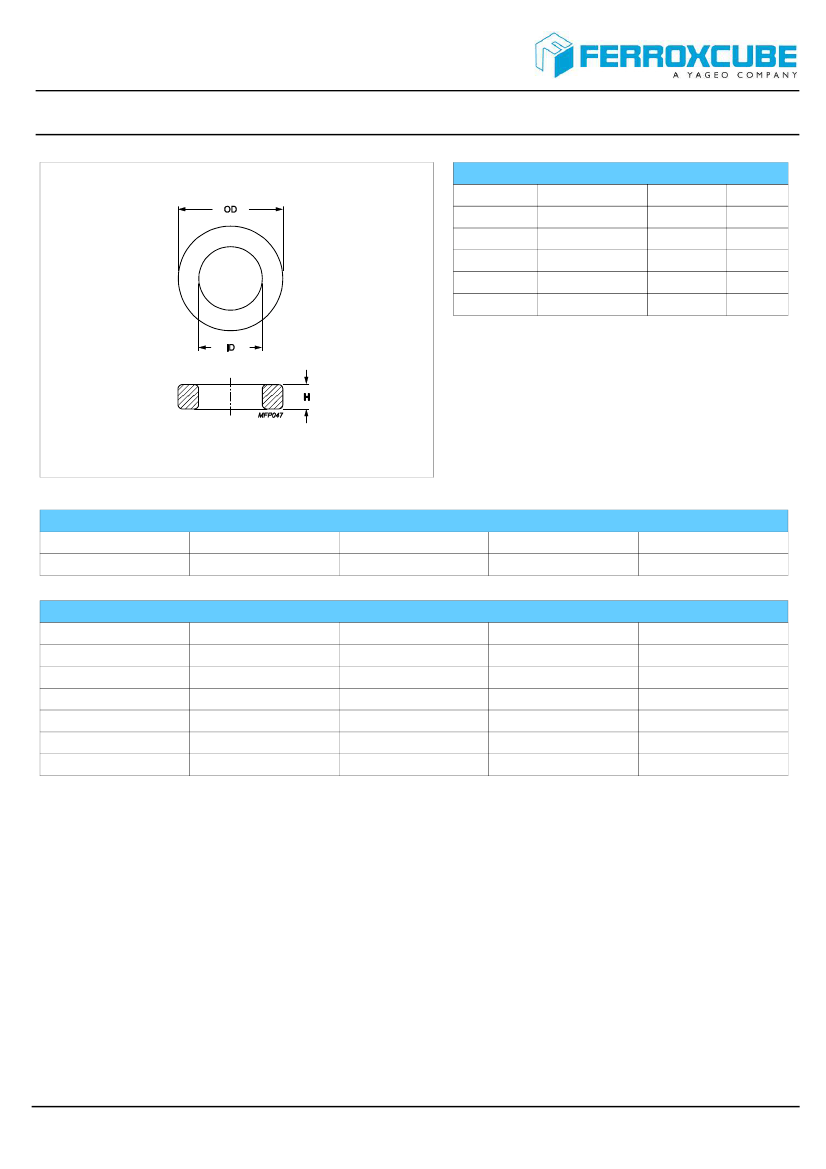

Product specifications
Core
Toroid 36/23/10
Effective parameters
Symbol
∑(I/A)
Ve
Le
Ae
m
Parameter
core factor (C1)
effective volume
effective length
effective area
mass of core
Value
1.38
5820
89.7
64.9
≈ 27
Unit
mm⁻¹
mm³
mm
mm²
g/pcs
Epoxy coating DC isolation voltage 2000.
Maximum operating temperature of the coating is 200ºC.
Dimensions (mm)
Cores
TX36/23/10
OD
37.15 max
ID
22.05 min
H
10.92 max
Epoxy Coated
Core data
Cores
TX36/23/10
TX36/23/10
TX36/23/10
TX36/23/10
TX36/23/10
TX36/23/10
Material
3C94
3E10
3E12
3E27
3E6 (3E10-M)
3E65
Al (nH/turns²)
2060
8970
10800
4930
8970
4670
Al tolerance
± 25%
± 20%
± 30%
± 25%
± 30%
± 25%
µe
≈ 2300
≈ 10000
≈ 12000
≈ 5500
≈ 10000
≈ 5200
