HM2P65PMJ3W4GC: DescriptionBoard Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P65PMJ3W4GC Overview

Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal

HM2P65PMJ3W4GC Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	169
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

P

O

S

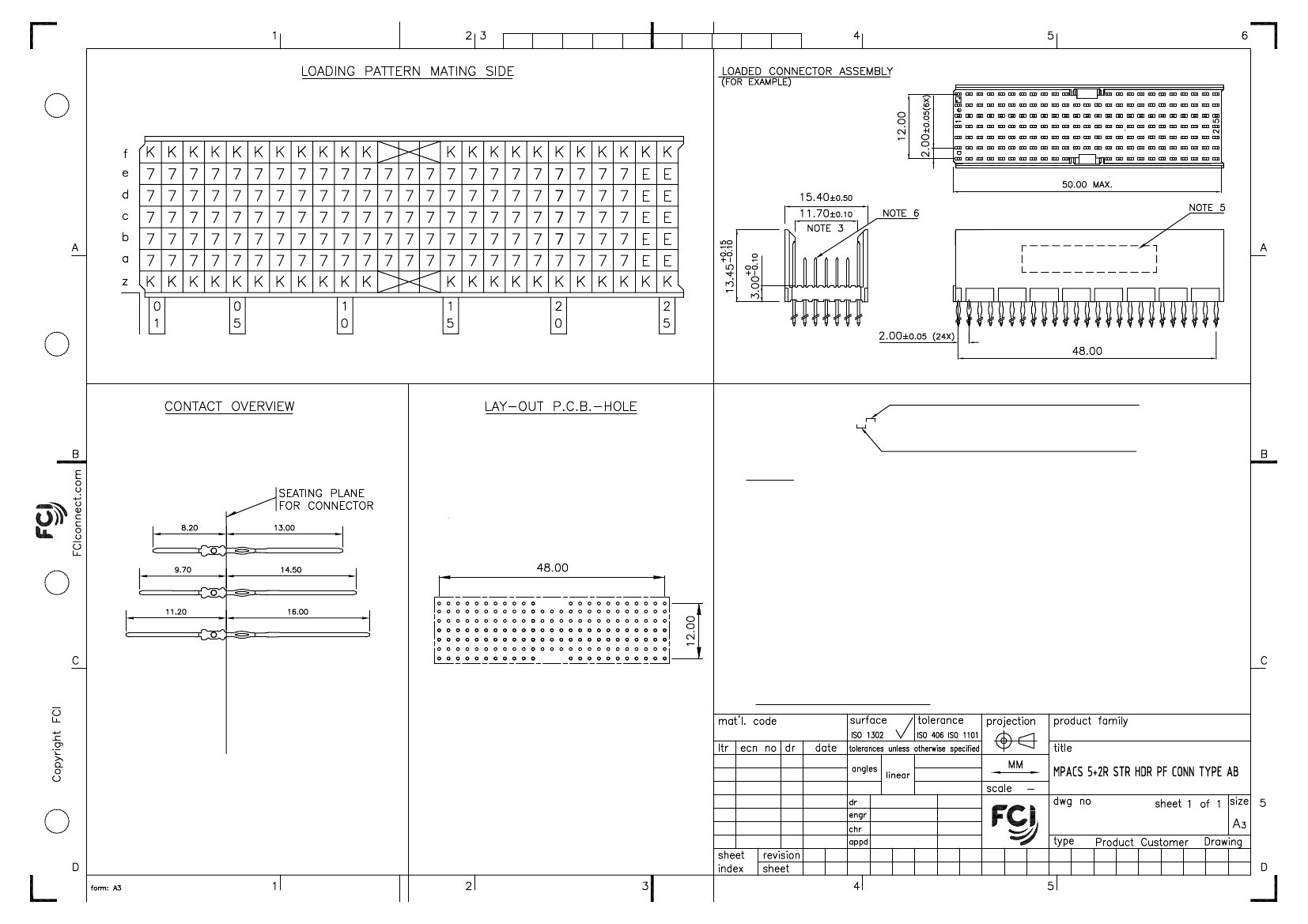

HM2P65PMJ3W4----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

7

E

K

CATALOG NO: HM2P65PMJ3W4----

SEE NOTE 4

A

I07-0041

MINI

2007-03-22

0°±1°

MINI K VANDANATH 2007-03-22

BIJU K PAUL

A

1

2007-03-22

.0±0.2

.00±0.1

MILLIPACS

BS, C ,203028, 760

6

PDM: Rev:A

STATUS:

Released

Printed: Dec 04, 2007

.

HM2P65PMJ3W4GC Related Products

	HM2P65PMJ3W4GC	HM2P65PMJ3W4GFLF	HM2P65PMJ3W4GCLF	HM2P65PMJ3W4GF	HM2P65PMJ3W4GL	HM2P65PMJ3W4GLLF
Description	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	MPAC 5R ST PF HDR	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	169	169	169	169	169	169
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	TIN LEAD	-	MATTE TIN	TIN LEAD	TIN LEAD	MATTE TIN
JESD-609 code	e0	-	e3	e0	e0	e3
Manufacturer's serial number	HM2	-	HM2	HM2	HM2	HM2
