4 Mbit (x16) Multi-Purpose Flash

Preview

Download Datasheet

View All

4 Mbit (x16) Multi-Purpose Flash

SST39WF400A

SST39WF400A1.8V 4Mb (x16) MPF memory

Data Sheet

FEATURES:

• Organized as 256K x16

• Single Voltage Read and Write Operations

– 1.65-1.95V

• Superior Reliability

– Endurance: 100,000 Cycles (typical)

– Greater than 100 years Data Retention

• Low Power Consumption (typical values at 5 MHz)

– Active Current: 5 mA (typical)

– Standby Current: 1 µA (typical)

• Sector-Erase Capability

– Uniform 2 KWord sectors

• Block-Erase Capability

– Uniform 32 KWord blocks

• Fast Read Access Time

– 90 ns

– 100 ns

• Latched Address and Data

• Fast Erase and Word-Program

– Sector-Erase Time: 36 ms (typical)

– Block-Erase Time: 36 ms (typical)

– Chip-Erase Time: 140 ms (typical)

– Word-Program Time: 28 µs (typical)

• Automatic Write Timing

– Internal V

Generation

• End-of-Write Detection

– Toggle Bit

– Data# Polling

• CMOS I/O Compatibility

• JEDEC Standard

– Flash EEPROM Pinouts and command sets

• Packages Available

– 48-ball TFBGA (6mm x 8mm)

– 48-ball WFBGA (4mm x 6mm) Micro-Package

– 48-bump XFLGA (4mm x 6mm) Micro-Package

PRODUCT DESCRIPTION

The SST39WF400A device is a 256K x16 CMOS Multi-

Purpose Flash (MPF) manufactured with SST’s proprietary,

high performance CMOS SuperFlash technology. The

split-gate cell design and thick-oxide tunneling injector

attain better reliability and manufacturability compared with

alternate approaches. The SST39WF400A writes (Pro-

gram or Erase) with a 1.65-1.95V power supply. This

device conforms to JEDEC standard pin assignments for

x16 memories.

Featuring

high-performance

Word-Program,

the

SST39WF400A device provides a typical Word-Program

time of 28 µsec. The device uses Toggle Bit or Data# Poll-

ing to detect the completion of the Program or Erase opera-

tion. To protect against inadvertent writes, it has on-chip

hardware and software data protection schemes.

Designed, manufactured, and tested for a wide spectrum of

applications, this device is offered with a guaranteed typical

endurance of 100,000 cycles. Data retention is rated at

greater than 100 years.

The SST39WF400A device is suited for applications that

require convenient and economical updating of program,

configuration, or data memory. For all system applications,

it significantly improves performance and reliability, while

lowering power consumption. It inherently uses less energy

S71220-05-000

6/04

during Erase and Program than alternative flash technolo-

gies. When programming a flash device, the total energy

consumed is a function of the applied voltage, current, and

time of application. Since for any given voltage range, the

SuperFlash technology uses less current to program and

has a shorter erase time, the total energy consumed during

any Erase or Program operation is less than alternative

flash technologies. These devices also improve flexibility

while lowering the cost for program, data, and configuration

storage applications.

The SuperFlash technology provides fixed Erase and Pro-

gram times, independent of the number of Erase/Program

cycles that have occurred. Therefore the system software

or hardware does not have to be modified or de-rated as is

necessary with alternative flash technologies, whose Erase

and Program times increase with accumulated Erase/Pro-

gram cycles.

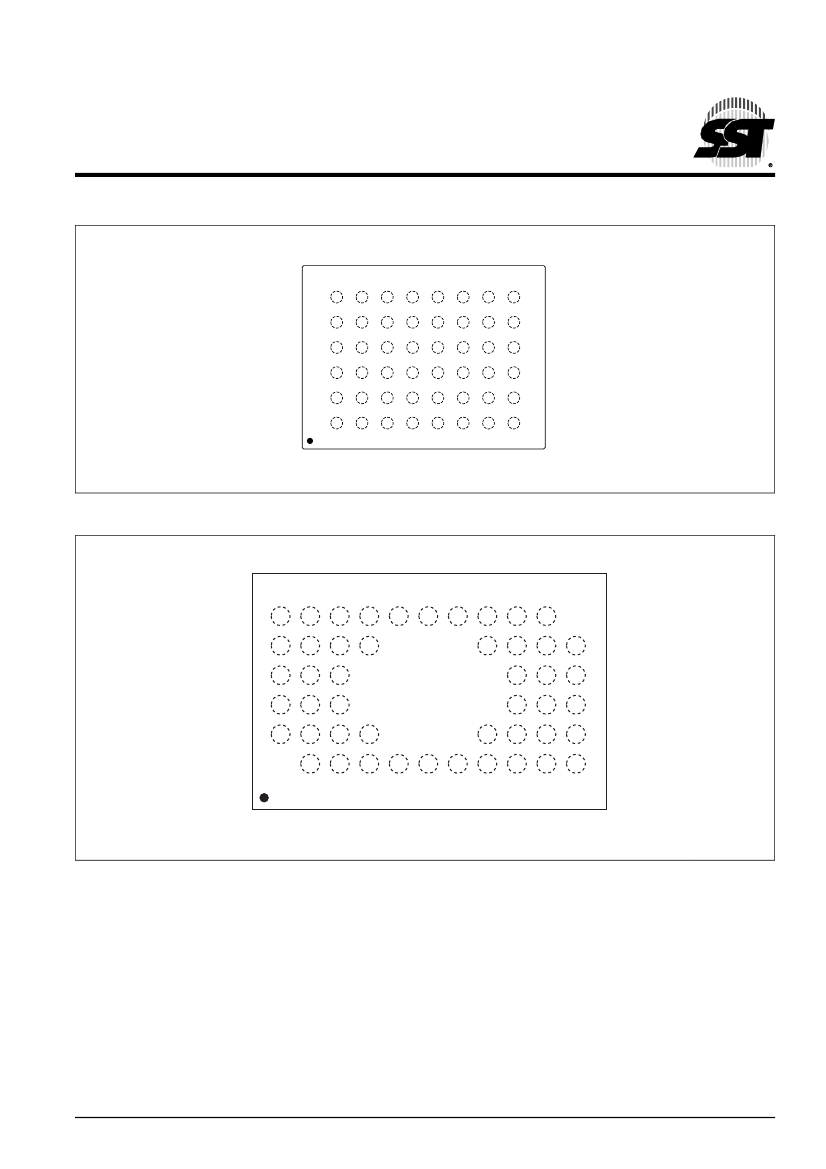

To meet surface mount requirements, the SST39WF400A

is offered in both a 48-ball TFBGA package and 48-ball

Micro-Packages. See Figures 1 and 2 for pin assignments.
