Multi-band MicroSphere Antenna
Innovative
Technology
for a
Connected
World
IFMULT
Multi-bAnd OMnidirectiOnAl in-building AntennA
The widespread use of cellular phones and wireless network applications inside buildings has increased the
need for antenna systems that can provide considerable gain over traditional dipole antennas.
Laird Technologies’ in-building wireless antennas are particularly applicable in environments where aesthetics
and wide angle coverage are necessary for successful wireless deployment. Their surprisingly small size allow
the antennas to be hidden almost anywhere, providing an invisible solution for most applications.
FeAtureS
• Surprisingly small size allows it to be hidden almost anywhere,
providing an invisible solution for many applications.
• The field pattern is toroidal, providing omni-directional
coverage in any plane around the long axis of the antenna,
and two lobes in any plane parallel to the long axis.
MArketS
• The omni-directional pattern is suited to a variety
of uses, including handheld devices, in-building
systems or other applications where mobility is
a factor.

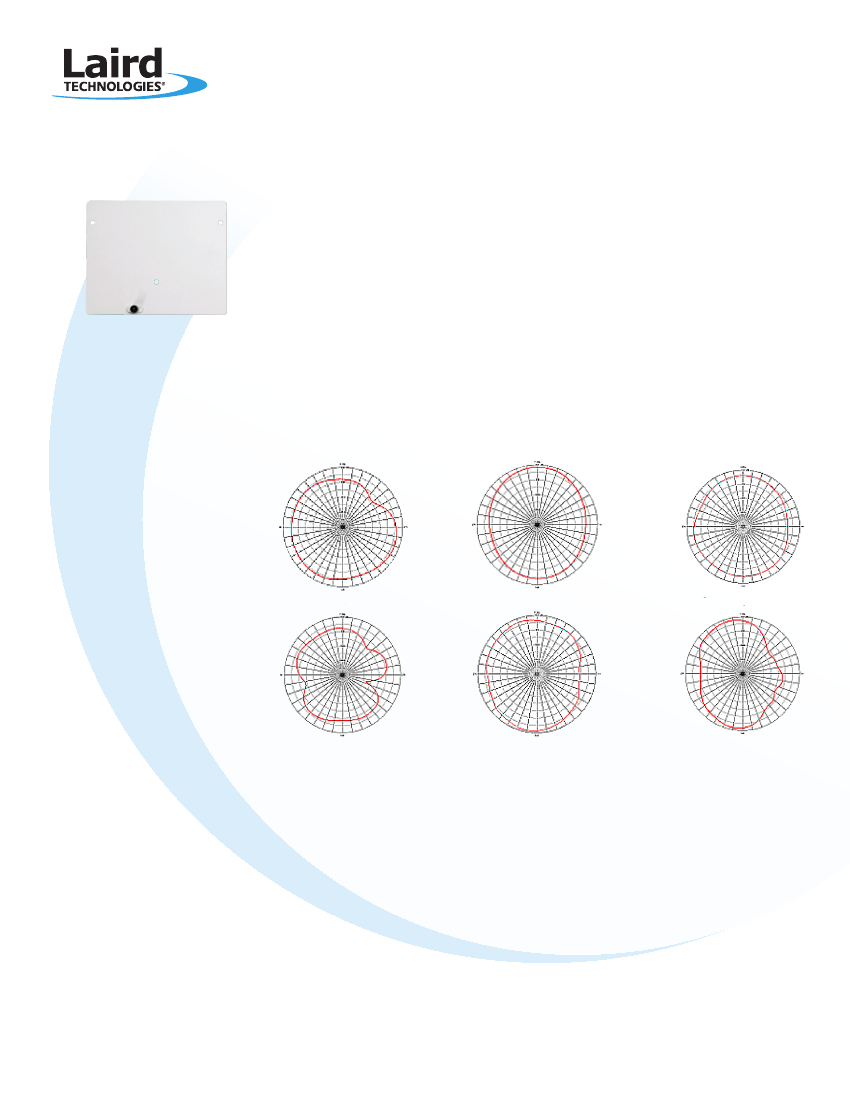

AntennA PAtternS
Azimuth
Elevation, Phi=0
Elevation, Phi=90
global
solutions:
local
support
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +1.32.80.7866.12
IAS-EUSales@lairdtech.com
Asia: +1.65.6.243.8022
IAS-AsiaSales@lairdtech.com
TM
www.lairdtech.com
Multi-band MicroSphere Antenna
Innovative
Technology
for a
Connected
World
IFMULT
SpecIfIcatIonS
element type
Microstrip
aMpS 806-896 MHz
GSM 880-960 MHz
DcS 1710-1880 MHz
pcS 1850-1990 MHz
UMtS 1920-2170 MHz
3 dBi
Linear
50 ohms
50 watts
2:1
11.2 x 13.8 x .25 cm
acrylic
-40º to +70ºc
frequency Range
peak Gain
polarization
Impedance
Maximum Input power
VSWR
Dimensions (L x W x H)
Housing
operating/Storage temperature
MoDeL #
IfMULt-nf00
IfMULt-SfRa00
IfMULt-Sf00
RefeRence #
caf94454
caf94533
caf94362
connectoR
n-female
R.a. SMa female panel
SMa female panel
MOunting OPtiOnS
• Includes nylon screws for mounting to ceiling tile or finished ceiling
ANT-DS-IFMULT 0909
Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. Responsibility for the use and application of Laird Technologies materials rests with the end
user, since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness, merchantability or suitability of any Laird Technologies
materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant to the
Laird Technologies’ Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2009 Laird Technologies, Inc. All Rights Reserved. Laird, Laird
Technologies, the Laird Technologies Logo, and other marks are trade marks or registered trade marks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the
property of third parties. Nothing herein provides a license under any Laird Technologies or any third party intellectual property rights.
