DAC8800BR/883C datasheet, PDF - EEWORLD Datasheet

DAC8800BR/883C: DescriptionIC DAC 8BIT OCTAL 20CDIP; CategoryAnalog mixed-signal IC converter; File Size308KB，16 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

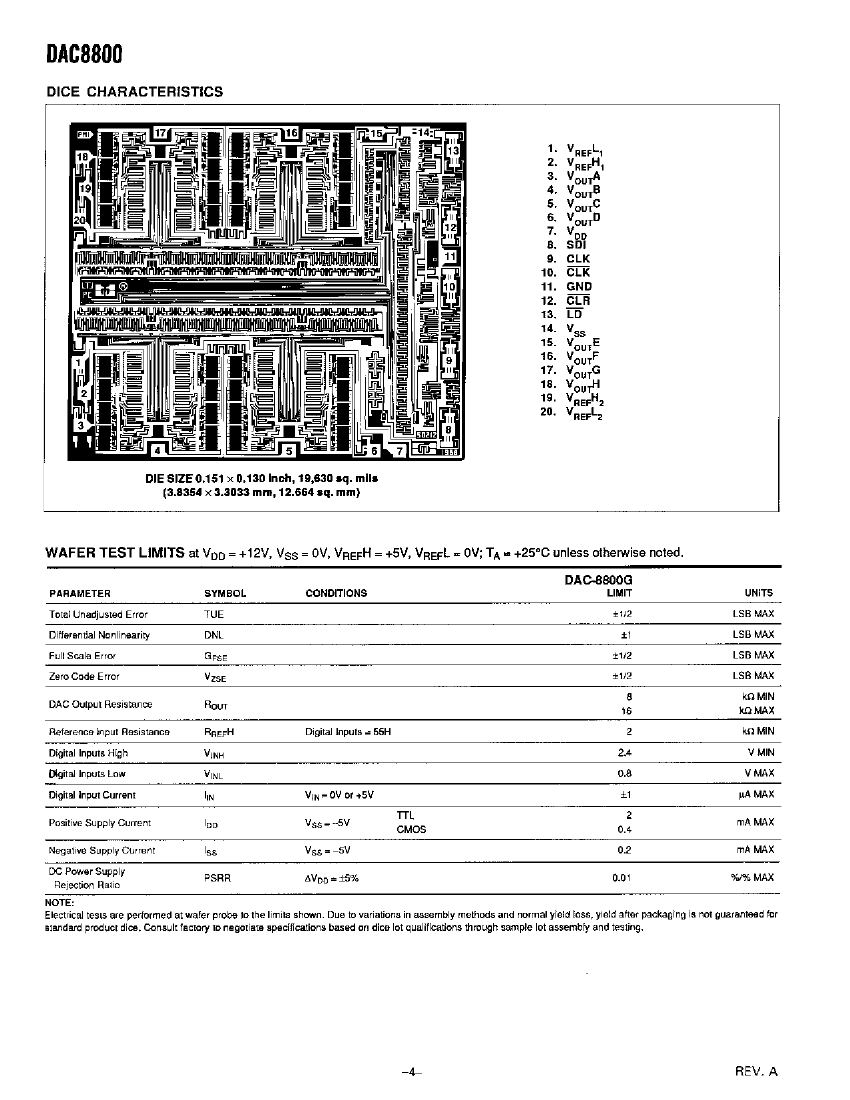

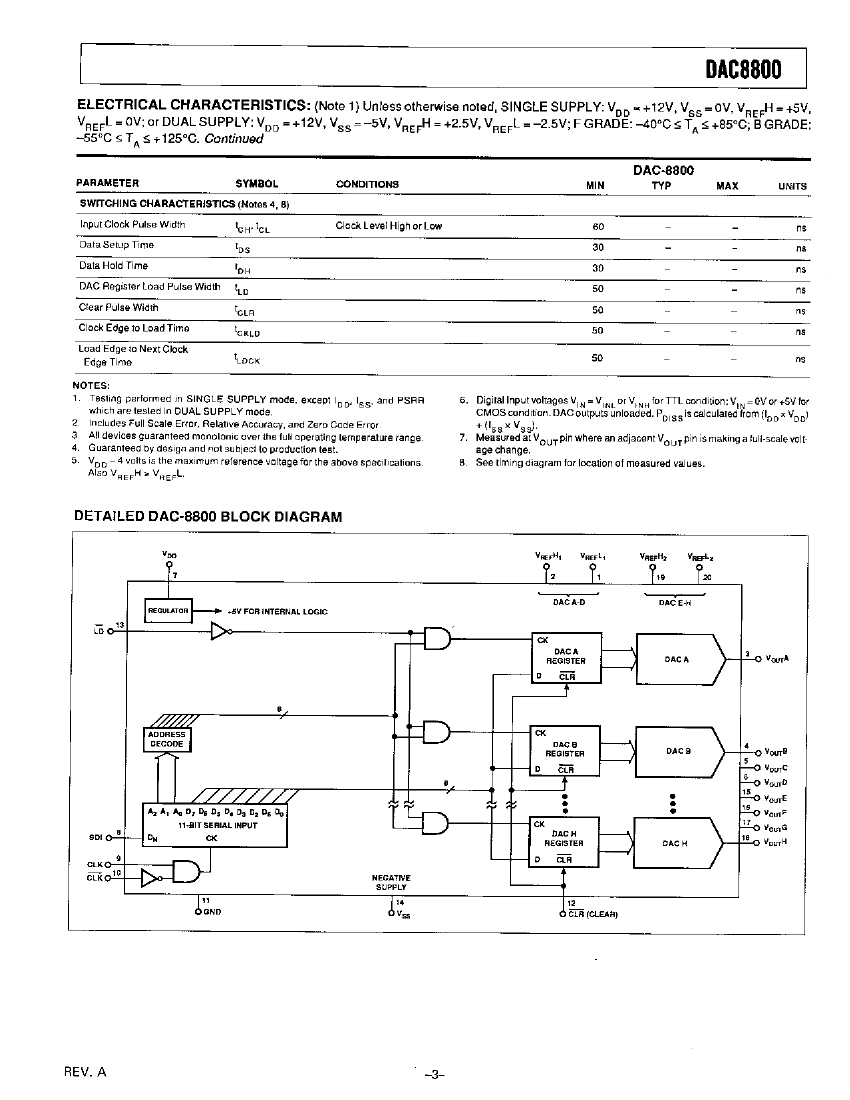

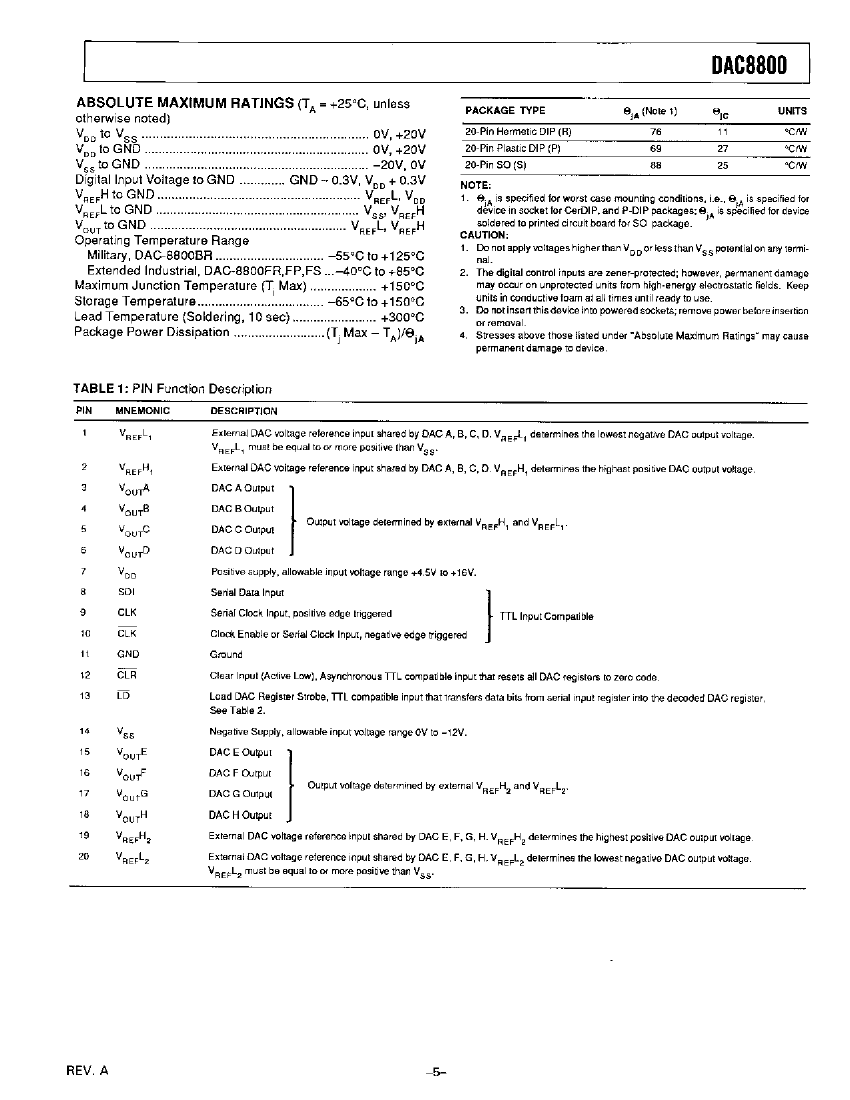

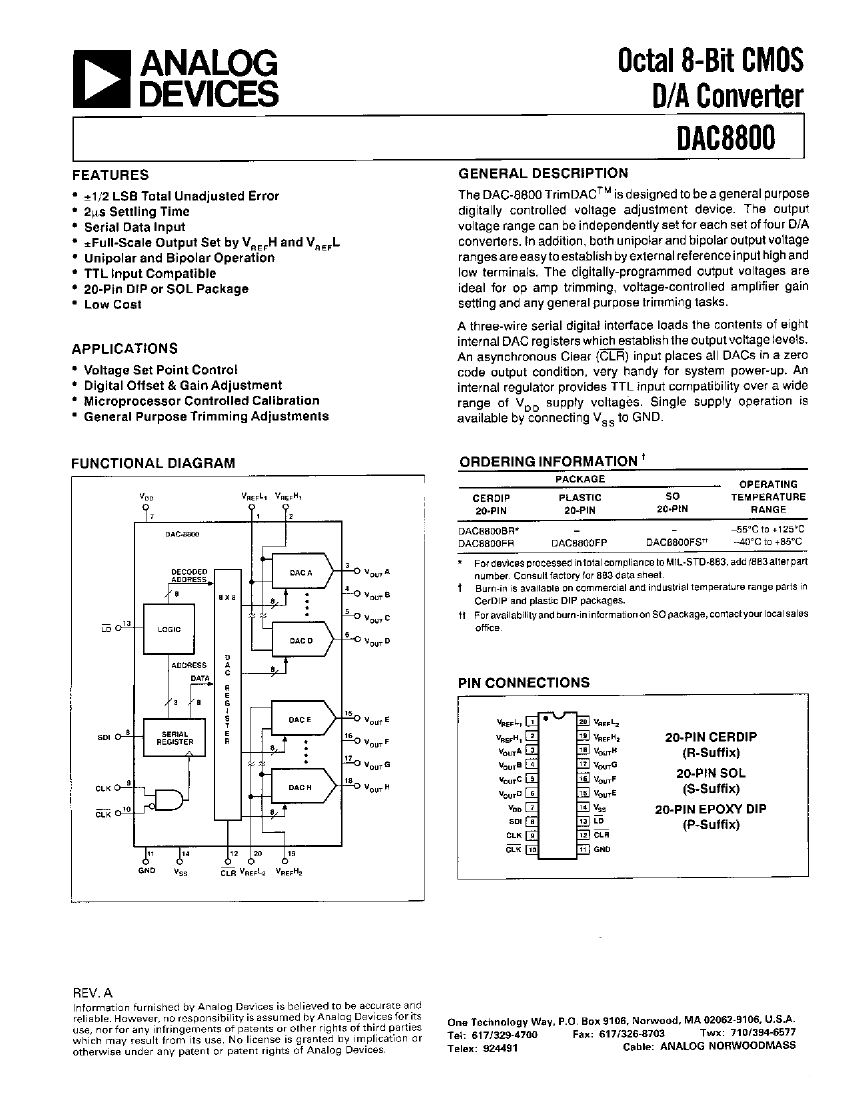

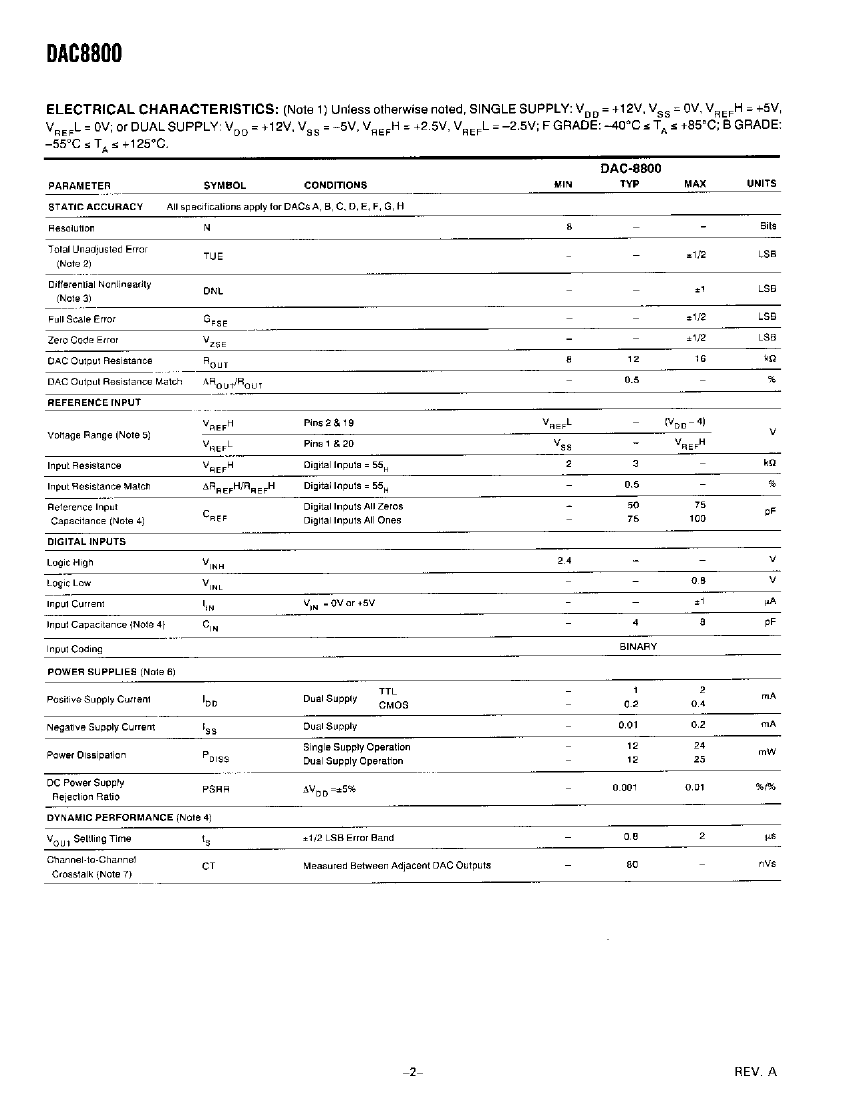

DAC8800BR/883C Overview

IC DAC 8BIT OCTAL 20CDIP

Parameter Name	Attribute value
Source Url Status Check Date	2013-05-01 14:56:53.011
Brand Name	Analog Devices Inc
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	CERDIP-20
Contacts	20
Manufacturer packaging code	Q-20
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog output voltage	2.5 V
Minimum analog output voltage	-2.5 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	SERIAL
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
Maximum linear error (EL)	0.1953%
Nominal negative supply voltage	-5 V
Number of digits	8
Number of functions	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
power supply	12,GND/-5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class C
Maximum seat height	5.08 mm
Nominal settling time (tstl)	0.8 µs
Maximum slew rate	2 mA
Nominal supply voltage	12 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE
width	7.62 mm
Base Number Matches	1

	DAC8800BR/883C	DAC8800BR
Description	IC DAC 8BIT OCTAL 20CDIP	octal 8-bit cmos D/A converter
Is it Rohs certified?	incompatible	incompatible
Maker	ADI	ADI
Parts packaging code	DIP	DIP
package instruction	CERDIP-20	CERDIP-20
Contacts	20	20
Reach Compliance Code	unknown	unknown
Maximum analog output voltage	2.5 V	2.5 V
Minimum analog output voltage	-2.5 V	-2.5 V
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	SERIAL	SERIAL
JESD-30 code	R-GDIP-T20	R-GDIP-T20
JESD-609 code	e0	e0
Maximum linear error (EL)	0.1953%	0.195%
Nominal negative supply voltage	-5 V	-5 V
Number of digits	8	8
Number of functions	8	8
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT APPLICABLE	NOT SPECIFIED
power supply	12,GND/-5 V	12,GND/-5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
Nominal settling time (tstl)	0.8 µs	0.8 µs
Maximum slew rate	2 mA	2 mA
Nominal supply voltage	12 V	12 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT APPLICABLE	NOT SPECIFIED
width	7.62 mm	7.62 mm
Base Number Matches	1	1
