L1545-125.000MG datasheet, PDF

Datasheet> All Categories > oscillator> L1545-125.000MG

L1545-125.000MG: DescriptionOscillator, 10MHz Min, 125MHz Max, 125MHz Nom; Categoryoscillator; File Size125KB，3 Pages; ManufacturerMF Electronics Corp

Download Datasheet Parametric Compare View All

L1545-125.000MG Overview

Oscillator, 10MHz Min, 125MHz Max, 125MHz Nom

L1545-125.000MG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MF Electronics Corp
package instruction	GWDIP4/14,.5
Reach Compliance Code	unknown
Is Samacsys	N
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	125 MHz
Minimum operating frequency	10 MHz
Nominal operating frequency	125 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	GWDIP4/14,.5
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	60 mA
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

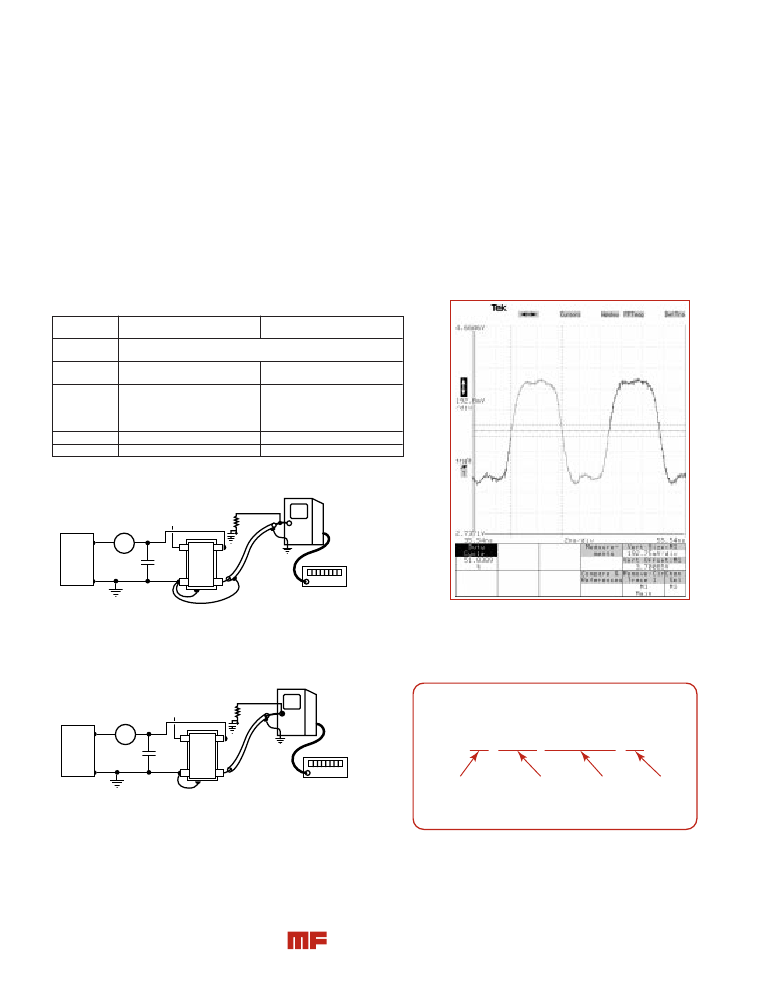

Preview

Download Datasheet

View All

FULL SIZE D.I.L

FIXED

OSCILLATORS

ECL and PECL

0° to 70°C

M1400,

M1410,

M1436,

M1444,

M1445,

M1500,

M1510,

M1536,

M1544,

M1545,

M2400

M2410

M2436

M2444

M2445

M2500

M2510

M2536

M2544

M2545

Thru-Hole / Gull Wing

10 MHz to 125 MHz

10K Logic — ECL and PECL

MF Electronics’ high speed clock oscillators

for digital and communications applications

are based on 5V ECL logic and are available

in full size (M) and half size (H) thru-hole pack-

ages. Designed in ECL 10K logic, the oscillators

develop 10 MHz to 125 MHz output. Frequency

stability choices are from ±50 ppm to ±200 ppm.

All models are available in complementary

output, and a choice of either positive (PECL)

or negative DC operating voltage. These models

are intended for designs which interface with

10K logic. For superior performance, see our

models using 10KH or ECLPS.

1400 and 2400 – 10K logic, ECL, -5.2V

1500 and 2500 – 10K logic, PECL, +5V

The MF ECL and PECL oscillators are available in a

variety of common configurations. Series M1400 and

M1500, in 10 K logic, with and without complementary

outputs are full size DIL package in frequencies from

10 MHz to 125 MHz. Frequency tolerances from

±200 ppm to ±25 ppm include all effects of voltage,

load and aging.

•

Single or dual complementary outputs

Start up time less than 5 ms.

Stability options from .02% (200 ppm) to

.0025% (25 ppm)

Guaranteed start-up with ramping DC Supply

Specified for extended temperature to 85°C,

to allow for additional heat rise in

confined space

Terminating resistor may be internal -

consult factory

ECL OSCILLATORS

10K Logic

10 MHz thru 125 MHz

-5 Volt Power on Pin 14

Single

Output

M1400

M1410

M1436*

M1444

M1445

Complementary

Output

M2400

M2410

M2436*

M2444

M2445

Frequency

Stability

±100 ppm

±200 ppm

±100 ppm

±25 ppm

±50 ppm

•

DOT

DENOTES

PIN 1

.800

.005

DOT

DENOTES

PIN 1

.800

.005

PECL OSCILLATORS

10K Logic

10 MHz thru 125 MHz

+5 Volt Power on Pin 14

Single

Output

M1500

M1510

M1536*

M1544

M1545

Complementary

Output

M2500

M2510

M2536*

M2544

M2545

Frequency

Stability

±100 ppm

±200 ppm

±100 ppm

±25 ppm

±50 ppm

Pin 1

.018

.001

.060 TYP

.300

.005

.400

.600

.005

.200 MAX

.215 MAX

.008/025 .15 MIN

.018

.001

.600

.005

Pin 1

.500

.005

Pin 14

.200 MAX

.270 MAX

.100

.005

Pin 7

.300

±.

005

.150

Pin 7

.520

.005

.300

±.

005

Pin 8

GLASS INSULATORS (4)

on .48 x .18 ctrs.

Pin 14

Pin 8

.250 MAX

*Guaranteed Superior Symmetry 45/55

GLASS INSULATORS (4)

on .48 x .18 ctrs.

“M” Package – “L” Package

is same as “M”

but seated height is 0.190

“M” Package

with Gull Wing

ELECTRONICS

10 Commerce Drive, New Rochelle, NY10801

•

914-576-6570

•

Fax: 914-576-6204

•

http://www.mfelectronics.com

•

email:mfsales@mfelec.com
