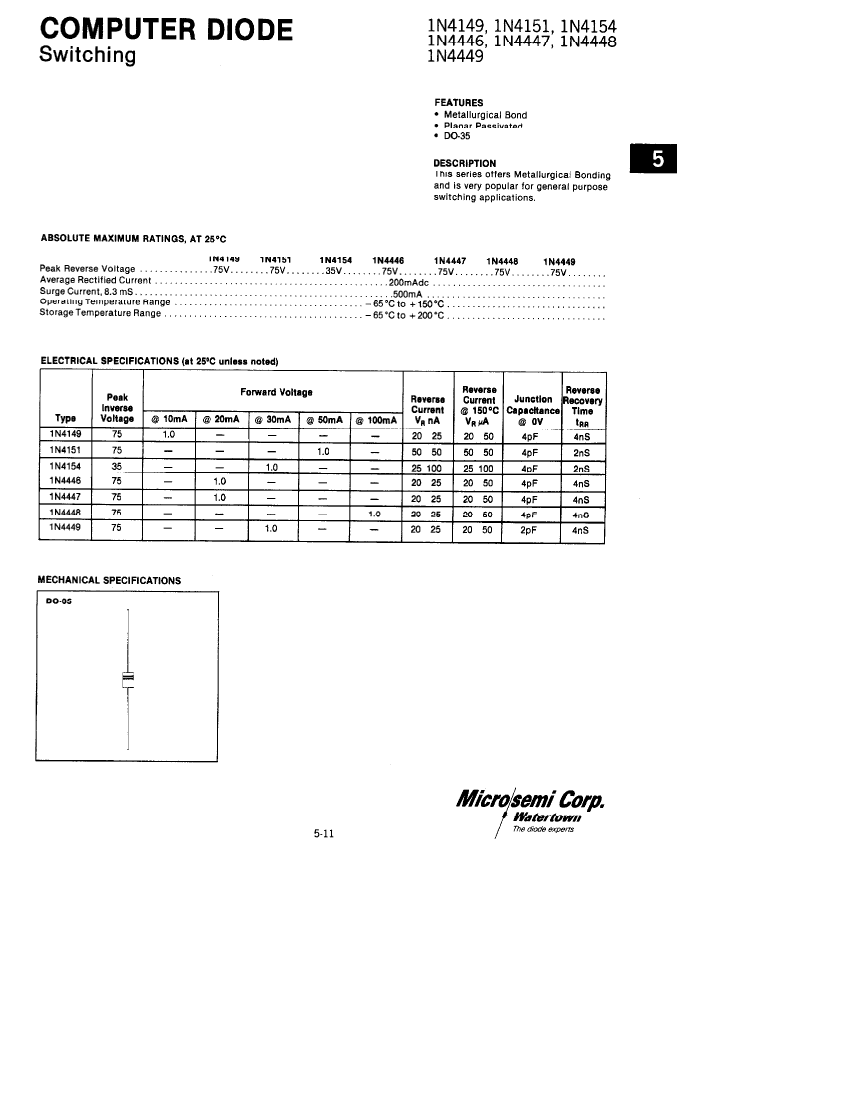

1N4149: DescriptionSILICON, SIGNAL DIODE, DO-35; CategoryDiscrete semiconductor diode; File Size32KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

1N4149 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N4149	-	-	View	Buy Now

1N4149 Overview

SILICON, SIGNAL DIODE, DO-35

1N4149 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	METALLURGICALLY BONDED
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
JESD-609 code	e0
Maximum non-repetitive peak forward current	0.5 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.2 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum reverse current	0.025 µA
Maximum reverse recovery time	0.004 µs
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

1N4149 Related Products

	1N4149	1N4151	1N4154	1N4446	1N4447	1N4448	1N4449
Description	SILICON, SIGNAL DIODE, DO-35	0.15 A, SILICON, SIGNAL DIODE, DO-35	0.2 A, SILICON, SIGNAL DIODE, DO-35	SILICON, SIGNAL DIODE, DO-35	0.2 A, 100 V, SILICON, SIGNAL DIODE, DO-35	0.15 A, SILICON, SIGNAL DIODE, DO-204AH	0.15 A, 100 V, SILICON, SIGNAL DIODE, DO-35
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	unknown	unknown	compliant	compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	LOW LEAKAGE CURRENT	METALLURGICALLY BONDED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V	1 V
JEDEC-95 code	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-PALF-W2	O-LALF-W2
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.15 A	0.2 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	PLASTIC/EPOXY	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.025 µA	0.05 µA	0.1 µA	0.025 µA	0.025 µA	0.025 µA	0.025 µA
Maximum reverse recovery time	0.004 µs	0.004 µs	0.002 µs	0.004 µs	0.002 µs	0.004 µs	0.004 µs
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	-	Microsemi
Is Samacsys	N	-	-	N	N	N	N
Base Number Matches	1	-	-	1	1	1	1
