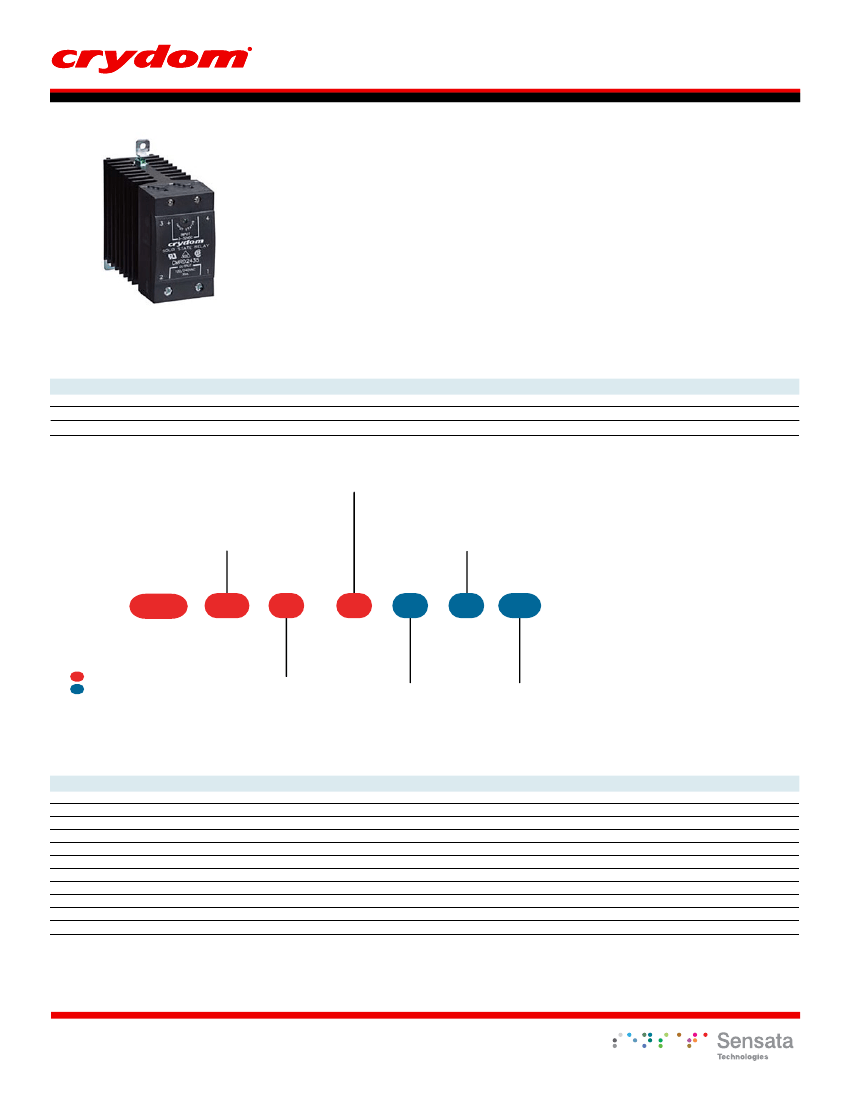

DataSheet
CMR24 Series
•
Ratings from 35 A to 65 A @ 660 VAC
•
45mm (width) package
•
SCR output for heavy industrial loads
•
LED input status indicator
•
AC or DC control
•
Zero-crossing (resistive loads) or random-fire (inductive loads) output
DIN Rail Mount
PRODUCT SELECTION
Control Voltage
3-32 VDC
90-140 VAC
18-36 VAC
35 A
CMRD2435
CMRA2435
CMRA2435E
45A
CMRD2445
CMRA2445
CMRA2445E
55A
CMRD2455
CMRA2455
CMRA2455E
65A
CMRD2465
CMRA24065
CMRA2465E
AVAILABLE OPTIONS
Operational Current
35:
35 Amps
45:
45 Amps
55:
55 Amps
65:
65 Amps
Control Voltage
D:
3-32 VDC
A:
90-140 VAC
Overvoltage Protection
Blank:
No Included
P:
Included
Series
CMR
A
24
35
E
P
-10
Switching Mode
Blank:
Zero Voltage Turn-on
-10:
Random Turn-On
Required for valid part number
For options only and not required for valid part number
Operating Voltage
24:
24-280 VAC
Input Range
Blank:
Standard Input
E:
18-36 VAC
OUTPUT SPECIFICATIONS
(1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/ sec]
(2)
Maximum Load Current [Arms]
Minimum Load Current [Arms]
Maximum Surge Current (50/60Hz, 1 Cycle) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum I² t for Fusing (50/60Hz, 1/2 cycle) [A² sec]
Minimum Power Factor (with Maximum Load)
35 A
24-280
600
10
500
35
0.15
239/250
1.6
1.02
285/259
0.5
45 A
24-280
600
10
500
45
0.15
597/625
1.6
0.63
1779/1621
0.5
55 A
24-280
600
10
500
55
0.25
954/1000
1.6
0.31
4555/4150
0.5
65 A
24-280
600
10
500
65
0.25
1145/1200
1.6
0.28
4555/4150
0.5
FDE-07-01 REV. A
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
DataSheet
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range (DC or RMS)
Minimum Turn-On Voltage
Maximum Turn-Off Voltage
Maximum Reverse Voltage
Maximum Off-State Voltage
Maximum Input Current
Typical Input Current
(4)
Maximum Turn-On Time [msec]
(3)
Maximum Turn-Off Time [msec]
DIN Rail Mount
CMRA24xx
90-140 Vrms
90 Vrms
10 Vrms
-
10 VAC
-
15 mA @ 120 Vrms
10
40
CMRD24xx
3-32 VDC
3.0 VDC
1.0 VDC
32 VDC
1.0 VDC
30 mA
17 mA @ 5 VDC
1/2 Cycle
1/2 Cycle
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Status Indicating Display
Weight (typical)
Encapsulation
Terminals
Maximum Wire Size:
Recommended Terminal Screw Torque Range:
Parameters
4000 Vrms
10 9 Ohms
8 pF
-40ºC to 80ºC
-40ºC to 125ºC
Green LED
16.8 oz. (476g)
Thermally conductive Epoxy
Cage type
Output: AWG 8 (4.8mm) Input: AWG 12(2.5mm)
Output:10-15 in lb (1.1-1.7 Nm) Input: 5-6 in lb (0.6-0.7 Nm)
1)
All parameters at 25°C unless otherwise specified.
2)
Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
3)
Turn-on time for DC control random turn-on versions is 0.02 msec
4)
Input circuitry version incorporates active current limiter.
GENERAL NOTES
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
DataSheet

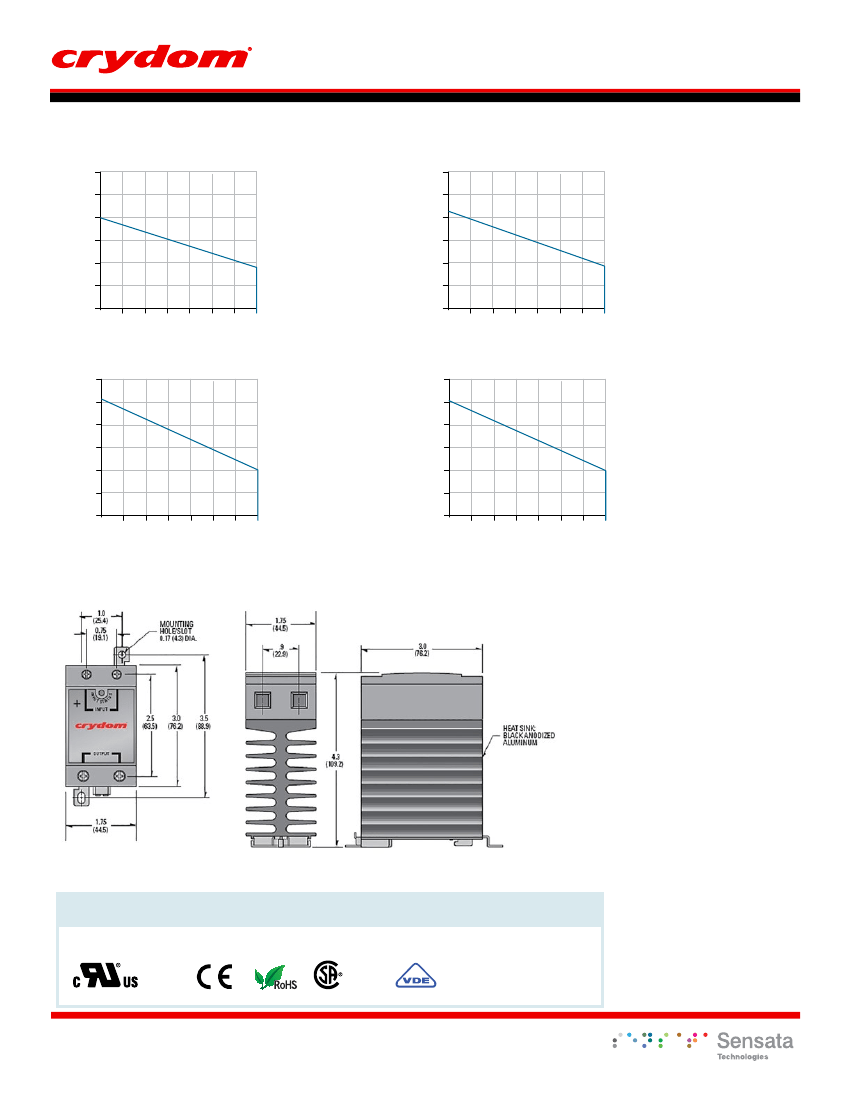

THERMAL DERATE INFORMATION
35 A
60
90
50
40
30
20
10
0
10
20
30
40
50
60
70
80
75
60
45
30
15
0
10
20
30
40
50
60
70
80
DIN Rail Mount
55 A
Output Current (Arms)
Ambient Temp. [°C]
Output Current (Arms)
Ambient Temp. [°C]
45 A
60
90
50
40
30
20
10
0
10
20
30
40
50
60
70
80
75
60
45
30
15
0
10
20
30
65 A
Output Current (Arms)
Output Current (Arms)
40
50
60
70
80
Ambient Temp. [°C]
Ambient Temp. [°C]
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
MECHANICAL SPECIFICATIONS
AGENCY APPROVALS
Agency Approvals
Designed in accordance with the requirements of IEC 62314
E116950
LR 81689
126921 UG (up to 90A models only)
Rev. 090817
ECN 20317
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
