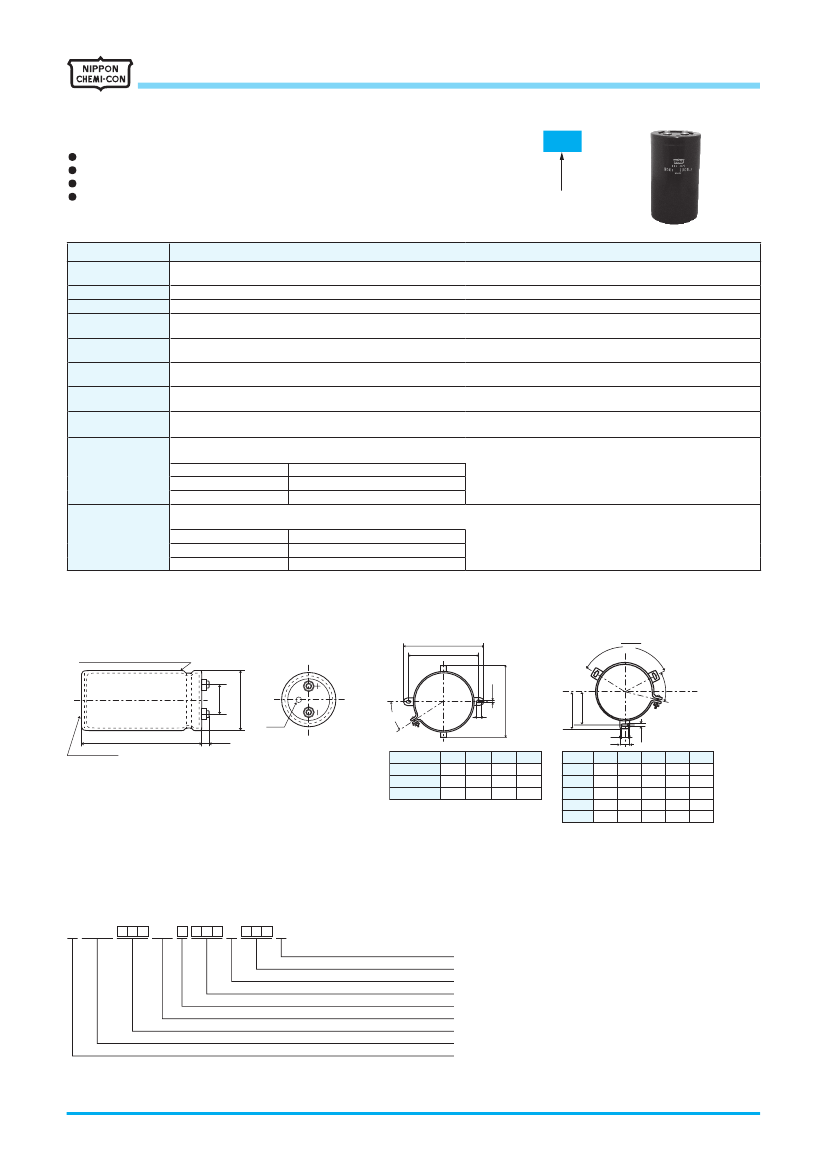

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Inverter-use screw terminal, 85℃
RHA
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
Insulation Resistance
Insulation
Withstanding Voltage
Endurance
Series
RHA
Higher voltage
RWF
・Realized
higher voltage than RWF series (500 to 650V
dc
)
・Endurance
with ripple current : 5,000 hours at 85℃
・Suitable
for high voltage inverter
・RoHS2
compliant
◆SPECIFICATIONS
Characteristics
-25 to +85℃
500 to 650V
dc
±20%
(M)
I=0.02CV or 5mA, whichever is smaller.
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
0.25 max.
Capacitance change C(-25℃)/C(+20℃)≧0.6
(at 20℃, 120Hz)
(at 20℃ after 5 minutes)
(at 20℃, 120Hz)
Shelf Life
(at 120Hz)
When measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering
the case by using an insulation resistance meter of 500V
dc
, the insulation resistance shall not be less than 100MΩ.
When a voltage of 2,000V
ac
is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp
on the insulating sleeve covering the case, there shall not be electrical damage.
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 5,000 hours at 85℃.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 500 hours at 85℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
◆DIMENSIONS
(Screw-Mount) [mm]
●
Terminal
Code : LG
●
Mounting
Clamp Code : B
●
Mounting
Clamp Code : C
Sleeve (Pb-free PVC : Black)
φD+1.8max.
A
±
1
W
±
1
360°
3
4.5
B
±
1
F
±
1
45°
±
5°
K
±
1
E
±
1
Vent
30°
±
5°
6
L+4max.
Plastic disk
G
±
1
φD
50
63.5
76.2
F
W
B
A
78.0 64.0 68.0 22.4
90.0 76.0 80.0 28.0
104.5 90.0 93.5 31.5
φD
50
63.5
76.2
89
100
8
J
E
32.5
38.1
44.5
50.8
56.5
M
φ50
&φ63.5 : G=6
φ76.2
&φ89 : G=5
φ100
: G=10
toφ89
Plus hexagon-headed screw :M5×0.8×10
Cross-recessed head (phillips) screw : M8×1.25×16
Spring washer,Washer
Maximum screw tightening torque :6.31Nm
* The screw and the mounting clamp are separately supplied and not attached to the product.
Maximum screw tightening torque :3.23Nm
φ100
<Screw specifications>
K
37.0
43.5
50.0
56.5
63.4
M
4.5
4.5
4.5
4.5
5.5
F
22.4
28.0
31.5
31.5
41.5
J
14.0
14.0
14.0
16.0
18.0
◆PART
NUMBERING SYSTEM
E RH A
AAA
LG
N AAA
M
AAA
U
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 6,800µ F:682, 12,000µ F:123)
Mounting clamp code (N, B, C)
Terminal code
Voltage code (ex. 500V:501, 650V:651)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Please refer to "Product code guide (screw-mount terminal type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
CAT. No. E1001S
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Inverter-use screw terminal, 85℃
RHA
Series
◆STANDARD
RATINGS
WV
(V
dc
)
Cap
(µF)
1,200
1,500
1,800
2,200
2,700
3,300
3,900
3,900
4,700
5,600
5,600
6,800
8,200
10,000
12,000
15,000
1,000
1,200
1,500
1,800
2,200
2,700
2,700
3,300
3,300
3,900
4,700
4,700
Rated ripple
current
Case size
tanδ
(Arms/
φD×L(mm)
85℃,120Hz)
50×95
50×115
50×130
50×150
63.5×120
63.5×140
63.5×170
76.2×130
76.2×150
76.2×170
89×130
89×150
89×190
89×210
100×210
100×250
50×95
50×110
50×130
63.5×105
63.5×120
63.5×150
76.2×105
63.5×170
76.2×130
76.2×140
76.2×170
89×130
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
5.90
7.20
8.30
9.80
11.2
13.3
15.7
15.4
18.1
20.8
17.1
20.0
24.4
28.2
32.9
39.8
5.40
6.30
7.60
8.60
10.1
12.4
11.7
14.5
14.2
15.9
19.1
15.6
Part No.
ERHA501LGC122MC95U
ERHA501LGC152MCB5U
ERHA501LGC182MCD0U
ERHA501LGC222MCF0U
ERHA501LGC272MDC0U
ERHA501LGC332MDE0U
ERHA501LGC392MDH0U
ERHA501LGC392MED0U
ERHA501LGC472MEF0U
ERHA501LGC562MEH0U
ERHA501LGC562MFD0U
ERHA501LGC682MFF0U
ERHA501LGC822MFK0U
ERHA501LGC103MFM0U
ERHA501LGC123MGM0U
ERHA501LGC153MGR0U
ERHA551LGC102MC95U
ERHA551LGC122MCB0U
ERHA551LGC152MCD0U
ERHA551LGC182MDA5U
ERHA551LGC222MDC0U
ERHA551LGC272MDF0U
ERHA551LGC272MEA5U
ERHA551LGC332MDH0U
ERHA551LGC332MED0U
ERHA551LGC392MEE0U
ERHA551LGC472MEH0U
ERHA551LGC472MFD0U
WV
(V
dc
)
Cap
(µF)
5,600
6,800
8,200
10,000
1,200
1,500
1,800
1,800
2,200
2,200
2,700
2,700
3,300
3,900
3,900
4,700
4,700
5,600
1,000
1,200
1,500
1,800
2,200
2,700
3,300
3,900
4,700
Rated ripple
current
Case size
tanδ
(Arms/
φD×L(mm)
85℃,120Hz)
89×150
89×170
100×170
100×200
63.5×95
63.5×110
63.5×125
76.2×95
63.5×145
76.2×110
63.5×170
76.2×125
76.2×145
76.2×170
89×130
76.2×190
89×150
89×170
63.5×100
63.5×110
63.5×130
63.5×150
63.5×170
76.2×150
76.2×170
89×155
89×190
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
18.2
21.1
24.8
29.4
6.70
8.00
9.30
9.10
11.0
10.8
13.1
12.6
14.9
17.3
14.2
20.0
16.6
19.1
6.30
7.20
8.60
10.1
11.7
13.6
15.8
15.3
18.4
Part No.
ERHA551LGC562MFF0U
ERHA551LGC682MFH0U
ERHA551LGC822MGH0U
ERHA551LGC103MGL0U
ERHA601LGC122MD95U
ERHA601LGC152MDB0U
ERHA601LGC182MDC5U
ERHA601LGC182ME95U
ERHA601LGC222MDE5U
ERHA601LGC222MEB0U
ERHA601LGC272MDH0U
ERHA601LGC272MEC5U
ERHA601LGC332MEE5U
ERHA601LGC392MEH0U
ERHA601LGC392MFD0U
ERHA601LGC472MEK0U
ERHA601LGC472MFF0U
ERHA601LGC562MFH0U
ERHA651LGC102MDA0U
ERHA651LGC122MDB0U
ERHA651LGC152MDD0U
ERHA651LGC182MDF0U
ERHA651LGC222MDH0U
ERHA651LGC272MEF0U
ERHA651LGC332MEH0U
ERHA651LGC392MFF5U
ERHA651LGC472MFK0U
550
500
600
550
650
◆RATED
RIPPLE CURRENT MULTIPLIERS
・Frequency
Multipliers
Note : The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every
5 to 10℃ rise. When long life performance is required in actual use, the rms ripple current has to be reduced. Also, for the RHA series
capacitors, using them at operating voltage less than their rated voltage can extend their lifetime. For details, please contact a representative
of Nippon Chemi-Con.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
CAT. No. E1001S
Screw-Mount
Frequency (Hz)
Coefficient
50
0.8
120
1.0
300
1.2
1k
1.3
3k
1.4
