88901392: DescriptionRELAY TIME DELAY 60MIN 0.2A 3V; CategoryTopical application Mechanical and electrical/engineering/automation; File Size127KB，3 Pages; ManufacturerCrouzet; Environmental Compliance

Download Datasheet Parametric Compare View All

88901392 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	88901392	-	-	View	Buy Now

88901392 Overview

RELAY TIME DELAY 60MIN 0.2A 3V

88901392 Parametric

Parameter Name	Attribute value
Installation type	Panel mounting
Relay type	solid state relay
Function	On - Delay
circuit	SPST-NO（1 Form A）
delay	3 minutes ~ 60 minutes
Contact rated current at different voltages	0.2A @ 3VDC
Voltage - Power	24VDC
Terminal type	screw terminal
Timing adjustment method	Hand dial type
Timed start method	Input voltage

Preview

Download Datasheet

View All

02/11/2015

www.crouzet.com

22 mm (Ø) MBA3F Part number 88901322

Solid state output

Panel-mounted pushbutton-type timer

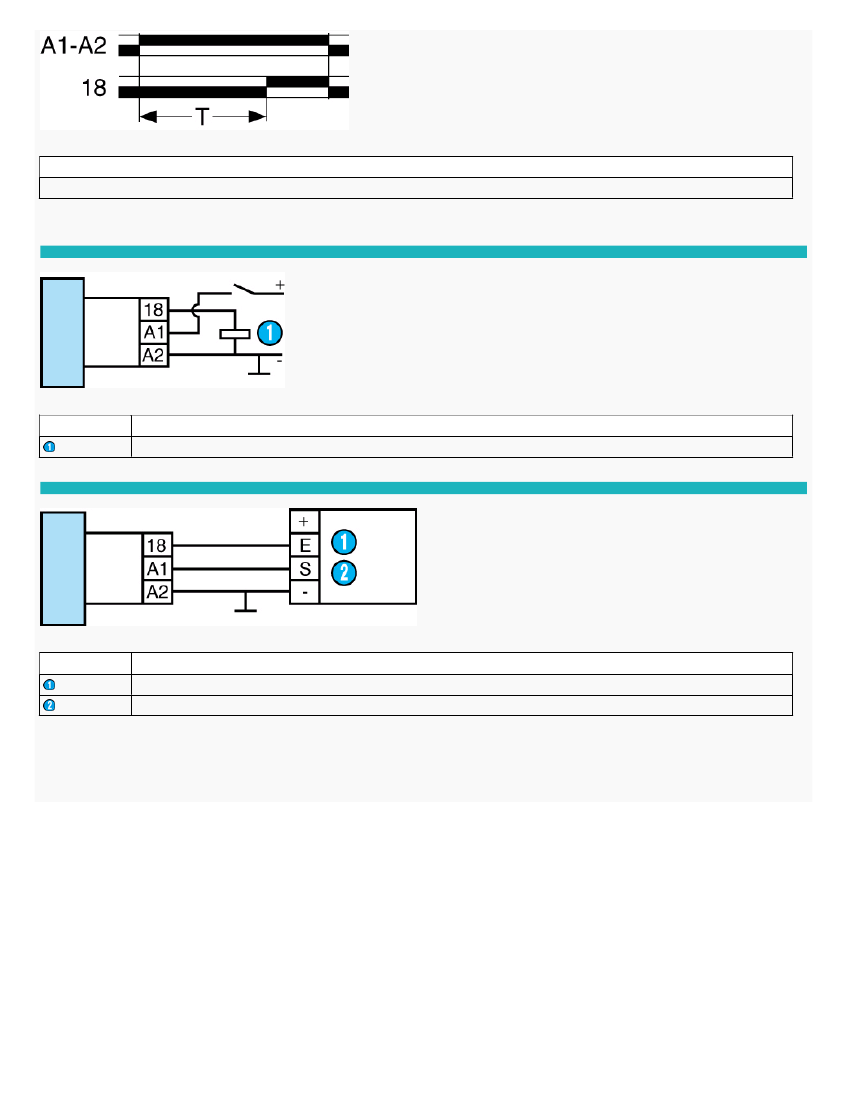

Function A delay on energisation

10 timing ranges : 0.05 s to 60 min

Supply 24 V DC and 110 →240 V DCAC 50 →60 Hz

Fast adjustment of timing period on PLCs (compatible with IEC1131)

IP 65

Part numbers

Type

88 901 322

MBA3F

Functions

Time ranges

0,5 s →10 s

Output

State

Nominal rating

200 mA

Supply voltage

24 V DC

Specifications

Repetition accuracy (with constant parameters)

Display precision

Maximum reset time by de-energisation MBA3F during

timed delay

Maximum reset time by de-energisation MBA3F after

timing

Maximum reset time by de-energisation MBA2F after

timing

Maximum reset time by de-energisation MBA2F after

timing

Solid state open collector PNP output

Voltage drop at terminals

Nominal rating

Leakage current

Electrical life (number of operations)

Protection against polarity inversions

Protection against load short circuits

Display of output state by LED : output in operation

Display of output state by LED : Power on

Dielectric strength (V rms)

Ripple

Temperature limits use (°C)

Temperature limits stored (°C)

Varistor protection against overvoltage

Drift Temperature

Drift Voltage

Conformity to standards VDE 0435 / ICE 255 / ICE 1131 /

ICE 801 4

Protection class according to NFC C 20010-IEC 529-DIN

40050 Panel-mounted

Protection class according to NFC C 20010 - IEC 529 - DIN

40050 Terminal

Housing material

Terminal capacity Single-wire

Terminal capacity Multi-wire with ferrule

Terminal screws

Tightening torque (Nm)

Weight (g)

+/-0,2 %

±5%

7 ms

5 ms

60 ms

30 ms

MBA2F : ≤ 5 V AC

MBA3F : ≤ 3 V DC

MBA2F : 400 mA at 200C (derating 5 mA/ °C)

MBA3F : 200 mA at 20 °C (derating 1.5 mA/ °C)

MBA2F : ≤ 5 mA AC

MBA3F : ≤ 0,1 mA DC

> 10

1500 V / 50 Hz / 1 min

± 10 %

-20 →+60

-20 →+80

+/- 0,05 %/ °C

+/- 0,2 %/V

IP65

IP10

Self-extinguishing

1 x 4 mm

1 x 2,5 mm

0,5 Nm

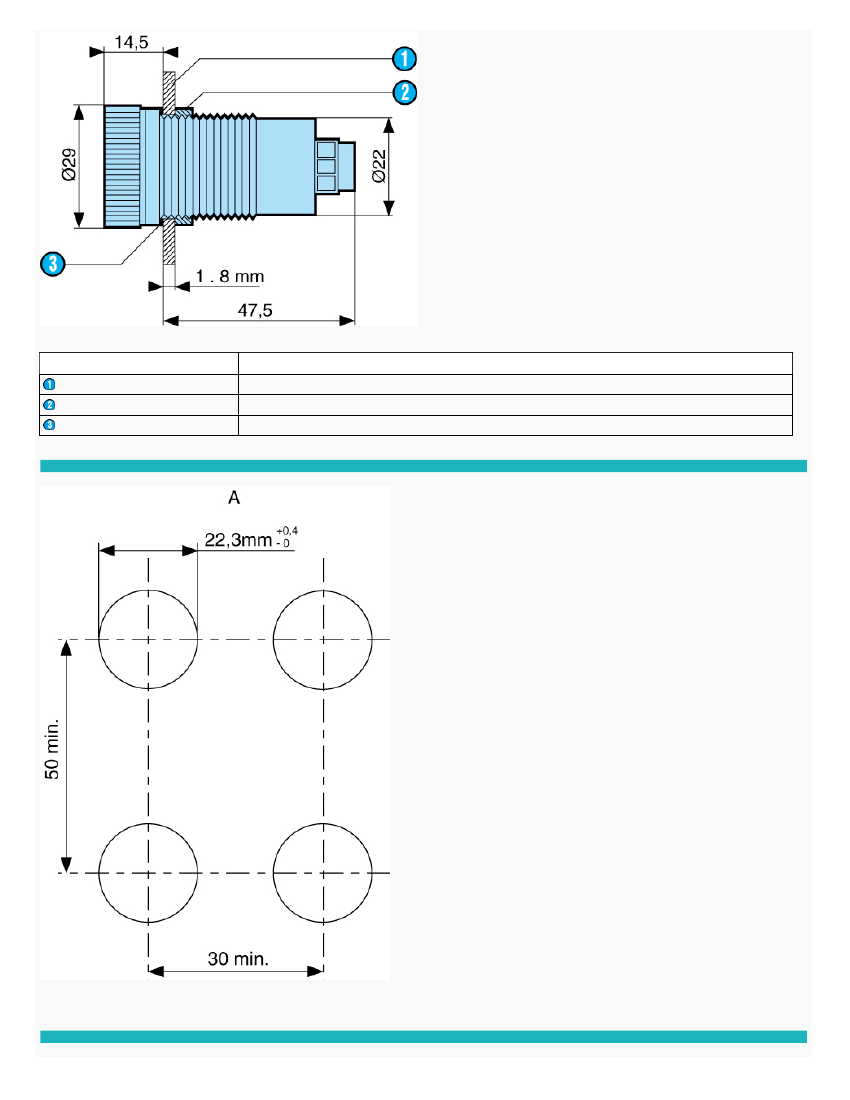

Dimensions (mm)

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
