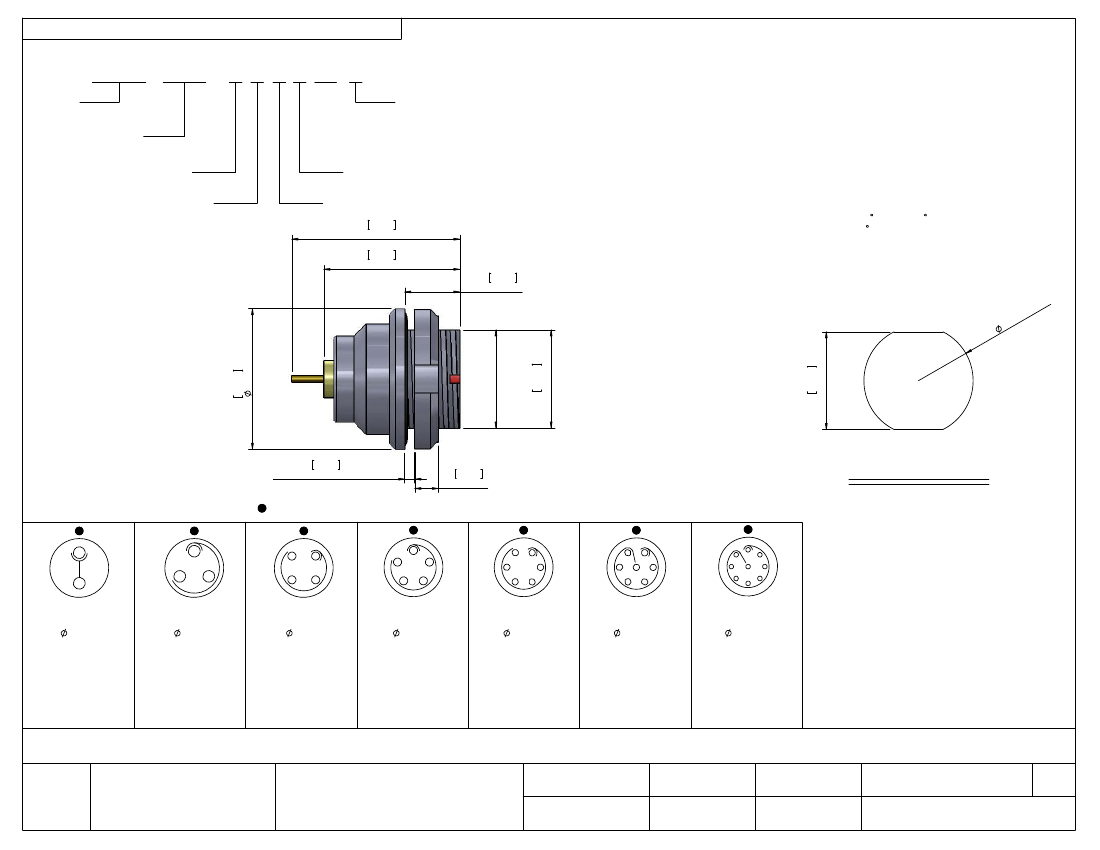

DESCRIPTION: QUIK-LOQ - FEMALE - VERTICAL - PANEL MOUNT - IP67
820K YYY - 2 1 3 R 00 1
SERIES
11.00 [0.433]
# OF POSITIONS
(Ex. 002)
**SEE CHART A**
2 = FEMALE
VERTICAL (PANEL MOUNT)
1 = GOLD FLASH
RoHS COMPLIANT
NICKEL/CHROME PLATED SHELL
0.866
22.00
0.748
19.00
0.275
6.99
UNITS = MM [INCHES]
CHARACTERISSTICS
MATERIALS
SHELL : BRASS
SHELL PLATING : NICKEL
NUT : BRASS
NUT PLATING : NICKEL
LATCH SLEEVE : BRASS
LATCH SLEEVE PLATING : NICKEL
CONTACTS : COPPER ALLOY
CONTACT PLATING : 7µ" GOLD PLATED OVER 196µ" NICKEL MIN.
INSULATOR : PPS (HIGH TEMPERATURE)
O-RING: SILICONE
MECHANICAL
DURABILITY: 5000 CYCLES
OPERATING TEMP. RANGE: -40 C ~ +200 C
PROCESS TEMPERATURE : 260 C FOR 5 SECONDS
MAX. TORQUE VALUE : 5.0 Nm [44.0 IN/lbs]
SHIELDING: 75dB @ 10MHz
40dB @ 1GHz
IP RATING: 67
.1
14
6]
55
[0.
0
0.492
12.50
(ACROSS FLATS)
0.709
18.00
M14*1.0
0.496
12.60
0.138
3.50
(MAX. PANEL THICKNESS)
0.098
2.50
PANEL CUTOUT
**VIEW FROM TERMINATION END**
TOLERANCE = +0.10, -0.0
[+0.004, -0.00]
CHART A
1
1
= KEY LOCATION
1
1
1
1
1
2 POSITION
10 AMP MAX.
= 0.90 [0.035]
PIN
3 POSITION
8 AMP MAX.
PIN
= 0.90 [0.035]
4 POSITION
7 AMP MAX.
PIN
= 0.70 [0.028]
5 POSITION
6.5 AMP MAX.
PIN
= 0.70 [0.028]
6 POSITION
2.5 AMP MAX.
PIN
= 0.50 [0.020]
7 POSITION
2.5 AMP MAX.
PIN
= 0.50 [0.020]
9 POSITION
2 AMP MAX.
PIN
= 0.50 [0.020]
**NOTE**
SEE PAGE 2 FOR
BOARD LAYOUTS
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1300V
WORKING VOLTAGE
= 430V
CONTACT
RESISTANCE
= 6 mΩ
TEST VOLTAGE
= 1200V
WORKING VOLTAGE
= 400V
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
CONTACT
RESISTANCE
= 7.5 m
Ω
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
CONTACT
RESISTANCE
= 10 m
Ω
TEST VOLTAGE
= 850V
WORKING VOLTAGE
= 280V
CONTACT
RESISTANCE
= 10 m
Ω
TEST VOLTAGE
= 800V
WORKING VOLTAGE
= 260V
CONTACT
RESISTANCE
= 10 m
Ω
TEST VOLTAGE
= 600V
WORKING VOLTAGE
= 200V
N
C
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
DATE:
SCALE:
SHEET
OF
REV:
M. SIGMON
CHECKED:
DATE:
02-25-16
N.T.S.
1
DWG NO.
2
1
820KYYY-213R001
DESCRIPTION: QUIK-LOQ - FEMALE - VERTICAL - PANEL MOUNT - IP67
UNITS = MM [INCHES]

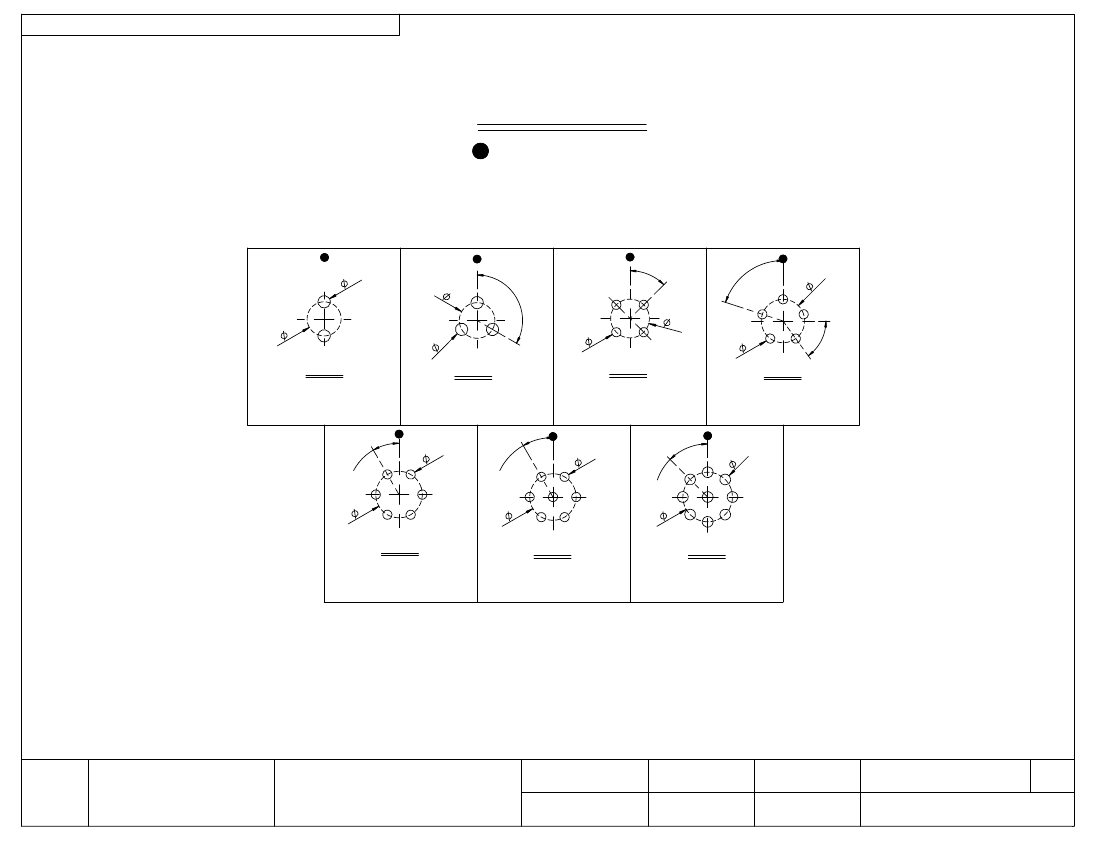

BOARD LAYOUTS
= KEY LOCATION
A
B
45
TY °
P.
°
72 P.
TY
A
A
A
2 POS
A = 0.80 [0.031]
B = 2.20 [0.087]
3 POS
A = 0.80 [0.031]
B = 2.30 [0.091]
4 POS
A = 0.60 [0.024]
B = 2.50 [0.098]
5 POS
A = 0.60 [0.024]
B = 2.80 [0.110]
3
TY 0°
P.
3
TY 0°
P.
B
B
6 POS
A = 0.60 [0.024]
B = 3.00 [0.118]
7 POS
A = 0.60 [0.024]
B = 3.00 [0.118]
4
T Y 5°
P.
B
9 POS
A = 0.70 [0.028]
B = 3.20 [0.126]
RoHS COMPLIANT
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF NorComp AND
SHALL NOT BE REPRODUCED, COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
NorComp
DRAWN:
DATE:
A
A
A
SCALE:
54
TY °
P.
B
B
B
0°
1 2 P.
TY
SHEET
OF
REV:
M. SIGMON
CHECKED:
DATE:
02-25-16
N.T.S.
2
DWG NO.
2
1
820KYYY-213R001
