Sensor/Actuator cable - SAC-3P- 15,0-542/ FR SH SCO BK - 1417958
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

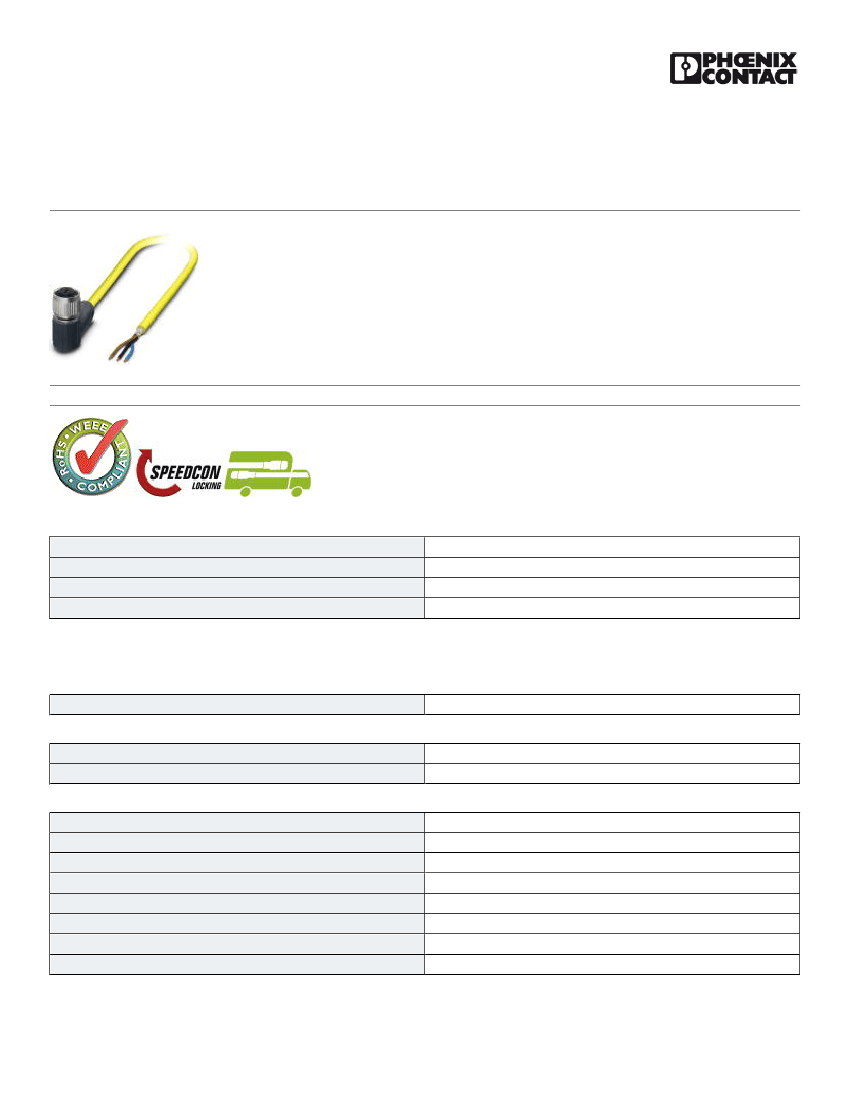

Sensor/Actuator cable, 3-position, PVC, yellow RAL 1021, shielded, free cable end, on Socket angled M12
SPEEDCON, A-coded, Cable length: 15 m
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
100.0 g
85444290
United States
Technical data
Dimensions
Length of cable
15 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
4A
250 V
3
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
Unwired
08/16/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/1417958
Sensor/Actuator cable - SAC-3P- 15,0-542/ FR SH SCO BK - 1417958
Technical data
General
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
Torque
II
3
≥ 100
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
HB
Cable
Cable type
Cable type (abbreviation)
UL AWM style
AWG signal line
Core diameter including insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Minimum bending radius, flexible installation
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
PVC yellow 105 °C
542
2517 (105°C/300 V)
22
1.27 mm ±0.03 mm
brown, blue, black
3 wires, twisted
Tinned copper braided shield
85 %
yellow
5.2 mm ±0.2 mm
12 x D
40 kg/km
PVC
PVC
Tin-plated Cu litz wires
≥ (550 M Ohms/m @ 500V)
max. 50.5 Ω/km (20° C)
300 V
08/16/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1417958
Sensor/Actuator cable - SAC-3P- 15,0-542/ FR SH SCO BK - 1417958
Technical data
Cable
Special properties
Other resistance
Ambient temperature (operation)
UL standards PLTC and ITC
UV resistant
-30 °C ... 105 °C (cable, fixed installation)

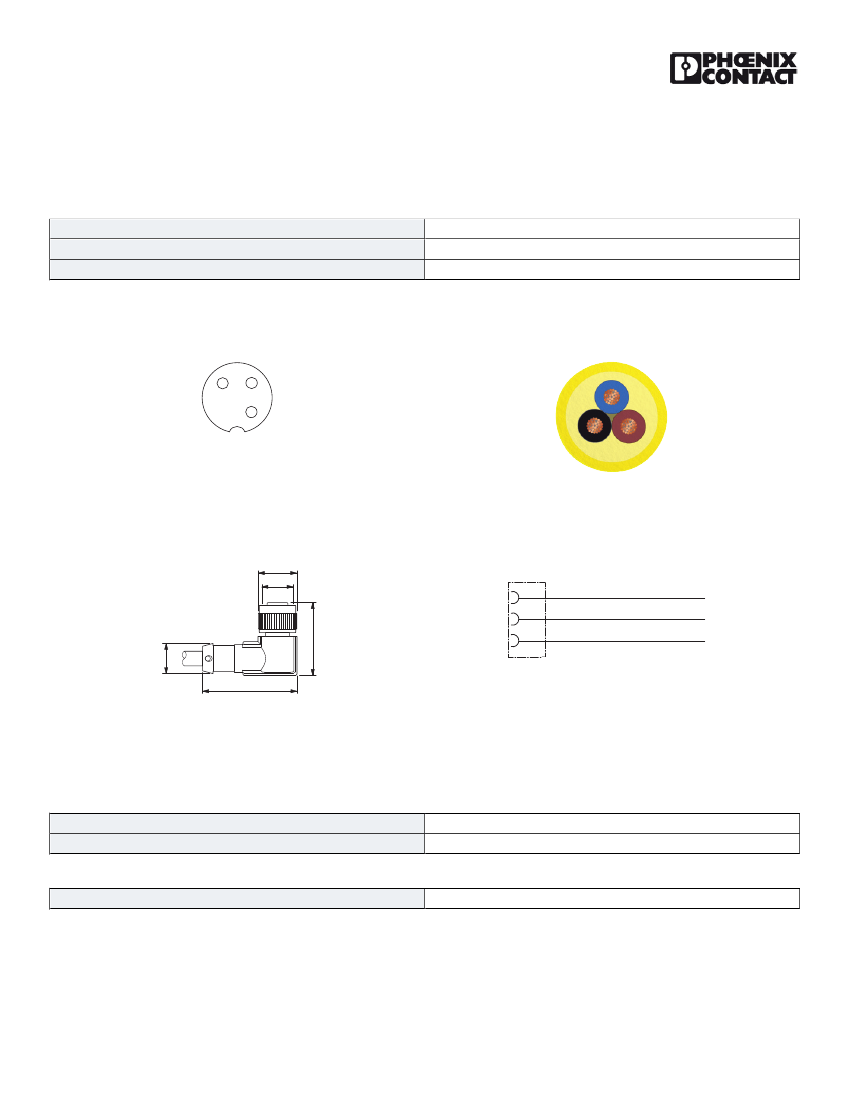

Drawings
Schematic diagram
3
4
Cable cross section
1
Pin assignment M12 socket, 3-pos., A-coded, view female side
PVC yellow 105 °C [542]
Dimensional drawing
Ø14,8
M12
1
4
Circuit diagram
BN
BK
BU
28
3
Ø12
36,3
Contact assignment of the M12 socket
M12 x 1 socket, angled, shielded
Classifications
eCl@ss
eCl@ss 8.0
eCl@ss 9.0
27279218
27060311
ETIM
ETIM 5.0
EC001855
Accessories
Accessories
08/16/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1417958
Sensor/Actuator cable - SAC-3P- 15,0-542/ FR SH SCO BK - 1417958

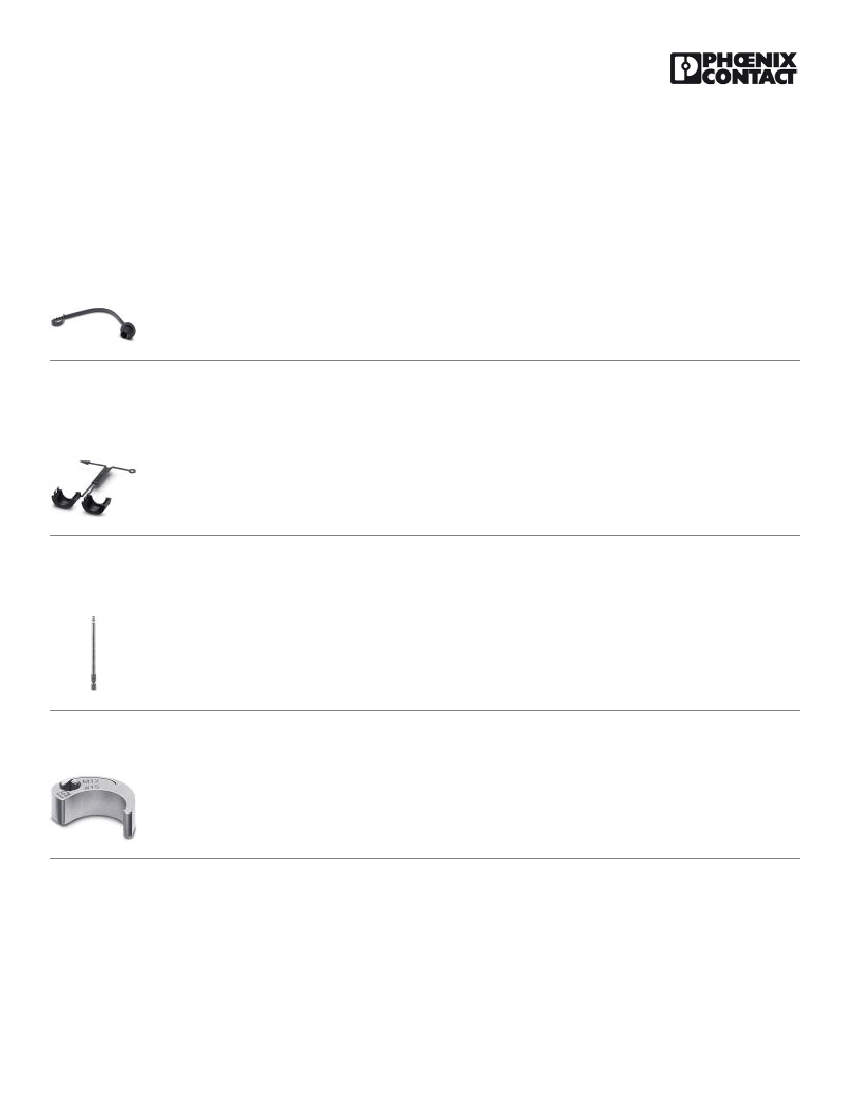

Accessories
Protective cap
Screw plug - PROT-M12 MS-PA-CHAIN - 1430899
M12 sealing cap with fixing band, for sensor cables, for free M12 sockets
Safety locking
Locking clip - SAC-M12-EXCLIP-F - 1558991
Locking clip for the socket side of sensor/actuator cables with M12 connector and M12 connectors for assembly, for knurl
diameter: 15 mm or for Allen key with a wrench size of 14 mm, prevents the disconnection of plug-in connections without
tools
Screwdriver tools
Adapter insert - TSD-M SAC-BIT ADAPTER - 1212600
Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
Tool - SAC BIT M12-D15 - 1208432
Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a knurl diameter
of 15 mm, for 4 mm hexagonal drive
Torque tool
08/16/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/1417958
Sensor/Actuator cable - SAC-3P- 15,0-542/ FR SH SCO BK - 1417958
Accessories
Torque screwdriver - TSD 04 SAC - 1208429
Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
Torque screwdriver - TSD-M 1,2NM - 1212224
Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
Phoenix Contact 2016 © - all rights reserved
