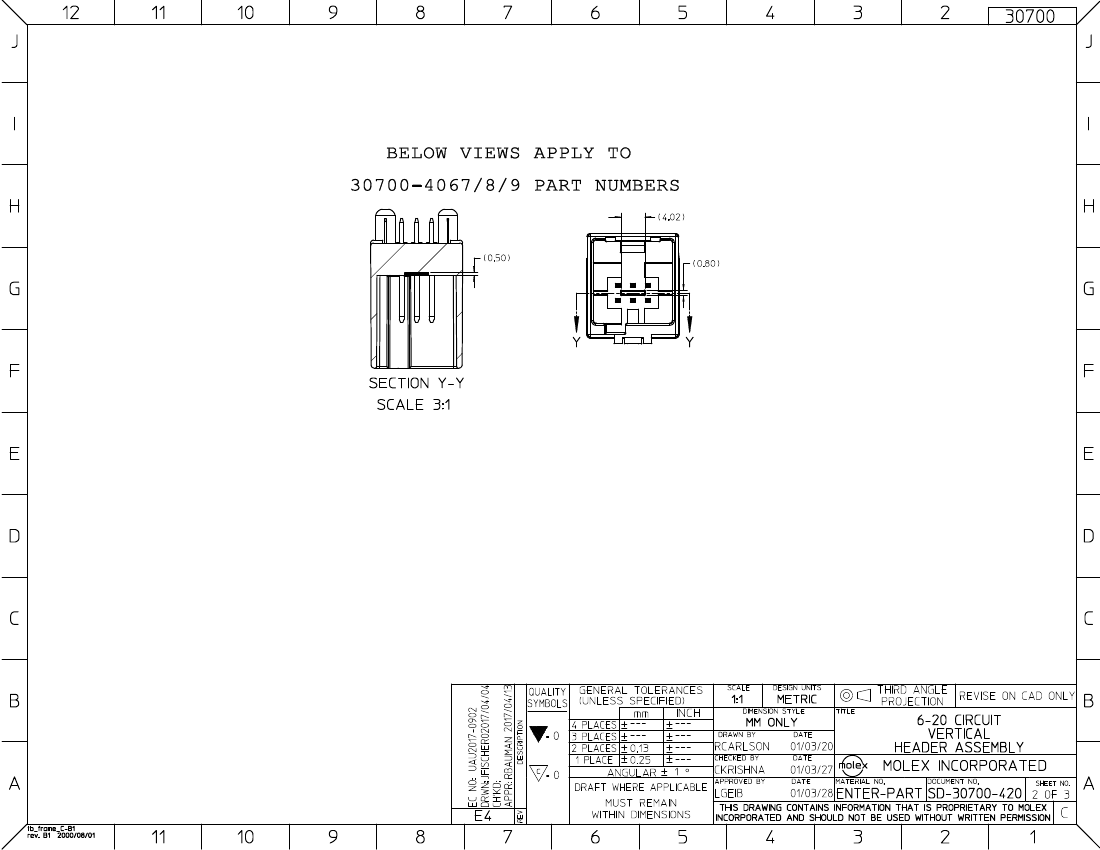

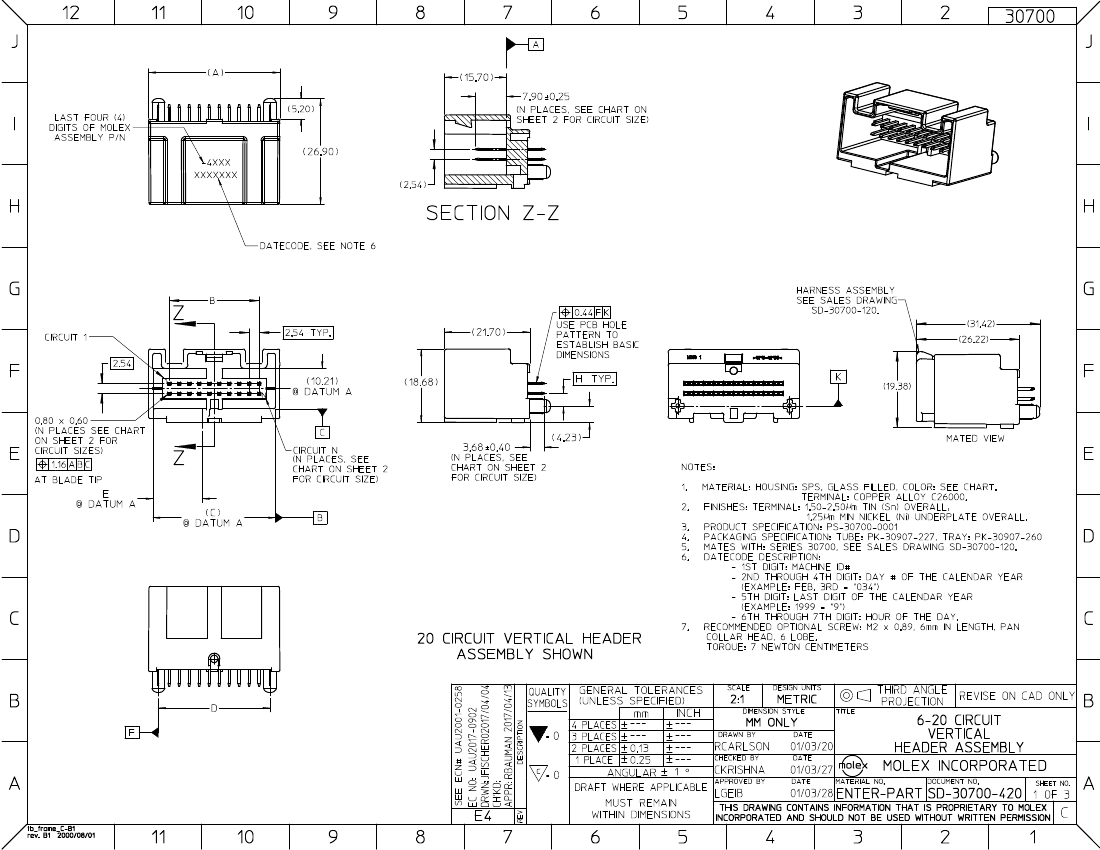

CONN HEADER VERT 20POS DL BLACK

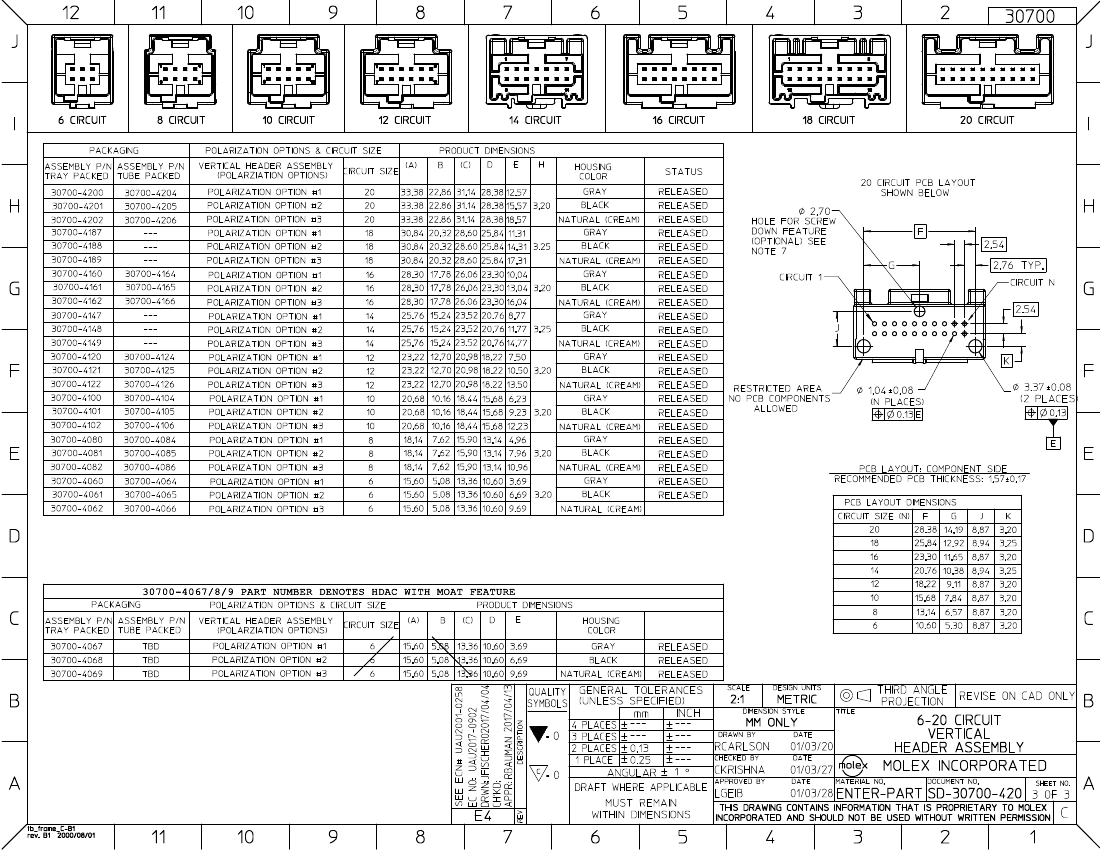

| Parameter Name | Attribute value |
| Connector type | Connector |
| Contact type | Male pin |
| Spacing - Mating | 0.100"（2.54mm） |
| Number of pins | 20 |
| Number of rows | 2 |
| Line spacing - patching | 0.100"（2.54mm） |
| Number of pins loaded | all |
| style | Board to cable/wire |
| shield | Covered - 4 walls |
| Installation type | Through hole |
| Termination | welding |
| Fastening type | latch holder |
| Contact Length - Mating | 0.311"（7.90mm） |
| Contact length - terminal | 0.145"（3.68mm） |
| Overall contact length | 0.692"（17.58mm） |
| Insulation height | 0.854"（21.69mm） |
| Contact shape | Square |
| Contact surface treatment - mating | tin |
| Contact Surface Treatment Thickness - Mating | - |
| Contact Surface Preparation - Column | tin |
| Contact material | copper alloy |
| Insulation Materials | Syndiotactic polystyrene (SPS), glass filled |
| characteristic | board guide |
| Operating temperature | - |
| Intrusion protection | - |
| Material flammability rating | - |
| Insulation color | black |
| Rated current | - |
| Rated voltage | - |
| Joint stack height | 26.22mm |
| Contact Surface Treatment Thickness - Column | - |
| application | Automotive grade |
| 0307004201 | 0307004166 | 0307004160 | 0307004161 | 0307004162 | 0307004202 | |
|---|---|---|---|---|---|---|
| Description | CONN HEADER VERT 20POS DL BLACK | HDR TUBE 16 CKT NATRL POL 3 | CONN HEADER VERT 16POS DL GRAY | CONN HEADER VERT 16POS DL BLACK | CONN HEADER VERT 16POS DL NATL | CONN HEADER VERT 20POS DL NATL |
| Connector type | Connector | Connector | Connector | Connector | Connector | Connector |
| Contact type | Male pin | Male pin | Male pin | Male pin | Male pin | Male pin |
| Spacing - Mating | 0.100"（2.54mm） | 0.100"（2.54mm） | 0.100"（2.54mm） | 0.100"（2.54mm） | 0.100"（2.54mm） | 0.100"（2.54mm） |
| Number of pins | 20 | 16 | 16 | 16 | 16 | 20 |
| Number of rows | 2 | 2 | 2 | 2 | 2 | 2 |
| Line spacing - patching | 0.100"（2.54mm） | 0.100"（2.54mm） | 0.100"（2.54mm） | 0.100"（2.54mm） | 0.100"（2.54mm） | 0.100"（2.54mm） |
| Number of pins loaded | all | all | all | all | all | all |
| style | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire |
| shield | Covered - 4 walls | Covered - 4 walls | Covered - 4 walls | Covered - 4 walls | Covered - 4 walls | Covered - 4 walls |
| Installation type | Through hole | Through hole | Through hole | Through hole | Through hole | Through hole |
| Termination | welding | welding | welding | welding | welding | welding |
| Fastening type | latch holder | latch holder | latch holder | latch holder | latch holder | latch holder |
| Contact Length - Mating | 0.311"（7.90mm） | 0.311"（7.90mm） | 0.311"（7.90mm） | 0.311"（7.90mm） | 0.311"（7.90mm） | 0.311"（7.90mm） |
| Contact length - terminal | 0.145"（3.68mm） | 0.145"（3.68mm） | 0.145"（3.68mm） | 0.145"（3.68mm） | 0.145"（3.68mm） | 0.145"（3.68mm） |
| Overall contact length | 0.692"（17.58mm） | 0.692"（17.58mm） | 0.692"（17.58mm） | 0.692"（17.58mm） | 0.692"（17.58mm） | 0.692"（17.58mm） |
| Insulation height | 0.854"（21.69mm） | 0.854"（21.69mm） | 0.854"（21.69mm） | 0.854"（21.69mm） | 0.854"（21.69mm） | 0.854"（21.69mm） |
| Contact shape | Square | Square | Square | Square | Square | Square |
| Contact surface treatment - mating | tin | tin | tin | tin | tin | tin |
| Contact Surface Preparation - Column | tin | tin | tin | tin | tin | tin |
| Contact material | copper alloy | copper alloy | copper alloy | copper alloy | copper alloy | copper alloy |
| Insulation Materials | Syndiotactic polystyrene (SPS), glass filled | Syndiotactic polystyrene (SPS), glass filled | Syndiotactic polystyrene (SPS), glass filled | Syndiotactic polystyrene (SPS), glass filled | Syndiotactic polystyrene (SPS), glass filled | Syndiotactic polystyrene (SPS), glass filled |
| characteristic | board guide | board guide | board guide | board guide | board guide | board guide |
| Insulation color | black | natural | grey | black | natural | natural |
| Joint stack height | 26.22mm | 26.22mm | 26.22mm | 26.22mm | 26.22mm | 26.22mm |
| application | Automotive grade | Automotive grade | Automotive grade | Automotive grade | Automotive grade | Automotive grade |
