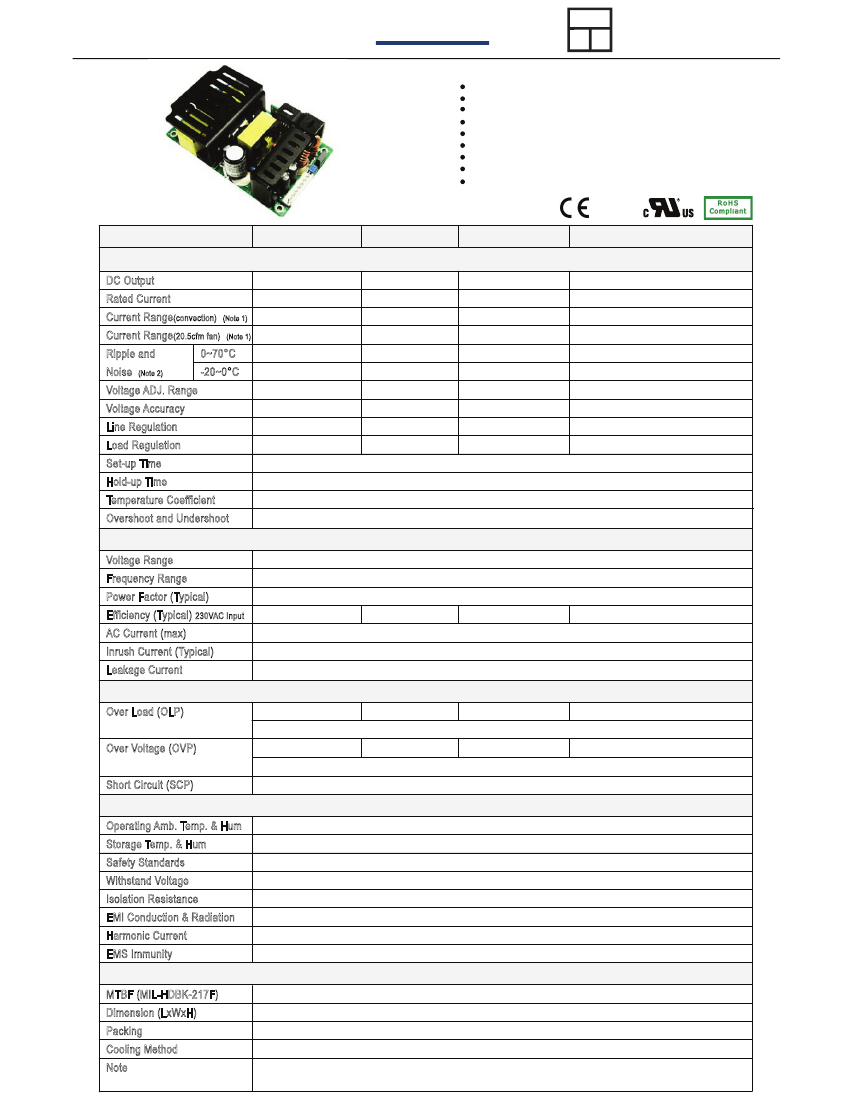

200Watts Single Output
Q
ualtek
P
P C
Electronics Corporation
QPSF-200 Series
Features:
Universal AC input/ Full range
Built-in active PFC function, PF>0.95
Withstand 300VAC Surge Input for 5 Sec
High Efficiency, up to 90%
Output Protections: OLP/OVP/OTP/SCP
Wide operating ambient temperature (-20°C~70°C)
Free air convection (150W), 20.5CFM forced air (200W)
All using 105°C long life electrolytic capacitors.
100% full load burn-in test
CB
Model
DC Output
Rated Current
Current Range
(convection)
Current Range
(20.5cfm fan)
Ripple and
Noise
(Note 2)
(Note 1)
(Note 1)
QPSF-200-12
QPSF-200-24
QPSF-200-27
QPSF-200-48
Output Characteristics
12V
16.7A
0~12.5A
0~16.7A
≤120mVp-p
≤200mVp-p
10V~14V
±2.0%
±0.5%
±2.0%
24V
8.4A
0~6.25A
0~8.4A
≤200mVp-p
≤200mVp-p
21V~27V
±1.0%
±0.5%
±1.0%
27V
7.4A
0~5.5A
0~7.4A
≤100mVp-p
≤150mVp-p
24.3V~29.7V
±1.0%
±0.5%
±1.0%
≤2s (230VAC input, full load)
48V
4.2A
0~3.2A
0~4.2A
≤120mVp-p
≤240mVp-p
42V~52.8V
±1.0%
±0.5%
±1.0%
0~70°C
-20~0°C
Voltage ADJ. Range
Voltage Accuracy
Line Regulation
Load Regulation
Set-up Time
Hold-up Time
Temperature Coefficient
Overshoot and Undershoot
≤4s (115VAC input, full load)
±0.03%/°C
<5.0%
≥16ms/150W ≥10ms/200W (115/230VAC input, full load)
Input Characteristics
Voltage Range
Frequency Range
Power Factor (Typical)
Efficiency (Typical)
230VAC Input
AC Current (max)
Inrush Current (Typical)
Leakage Current
90VAC~264VAC, 120VDC~370VDC
47Hz-63Hz
PF>0.98/115VAC PF>0.95/230VAC
88.5%
<3.0A
<30A@115VAC Cold start <50A@230VAC Cold start
Input-Output: <0.25mA Input-PG: <3.5mA
89%
89%
89%
Protection
Over Load (OLP)
Over Voltage (OVP)
Short Circuit (SCP)
18A~30A
15V~20V
9A~12A
30V~36V
7.77A~11.1A
31V~40.5V
4.5A~6.3A
55V~70V
Protection Type: Hiccup mode, auto recovery
Protection Type: Hiccup mode, auto recovery
Long-term mode, auto recovery
Environmental Characteristics
Operating Amb. Temp. & Hum
Storage Temp. & Hum
Safety Standards
Withstand Voltage
Isolation Resistance
EMI Conduction & Radiation
Harmonic Current
EMS Immunity
-20°C~70°C; 20%~90% RH Non-Condensing
-40°C~85°C: 10%-95% RH Non-Condensing
GB4943; EN60950-1: 2006
Primary-Secondary: 3.0KVAC;≤10mA. Primary-PG: 1.5KVAC;≤10mA. Secondary-PG: 0.5KVDC;≤10mA
≥100M ohms
Compliance to EN55022, EN55024(CISPR22) Class B
Compliance to EN61000-3-2, Class D
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV55024, light industry level, criteria A
General Characteristics
MTBF (MIL-HDBK-217F)
Dimension (LxWxH)
Packing
Cooling Method
Note
More than 100,000Hrs (25°C, Full load)
128x76.5x34.6mm
21PCS/CTN. G.W: 9.4kgs
Cooling by free air convection (150W Output) / Cooling by forced air (Output 200W)
1. All parameters NOT specially mentioned are measured at rated input, rated load, and 25°C of ambient temperature
2. Measured at 20MHz of bandwith by using a 12” Twisted pair wire terminated with a 0.1uF & 47uF parallel capacitor
3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.
Page 1 of 2
200Watts Single Output
Q
ualtek
P
P C
Electronics Corporation
QPSF-200 Series
128
115.6
4-Ø3.6 (USE M3 SCREWS)

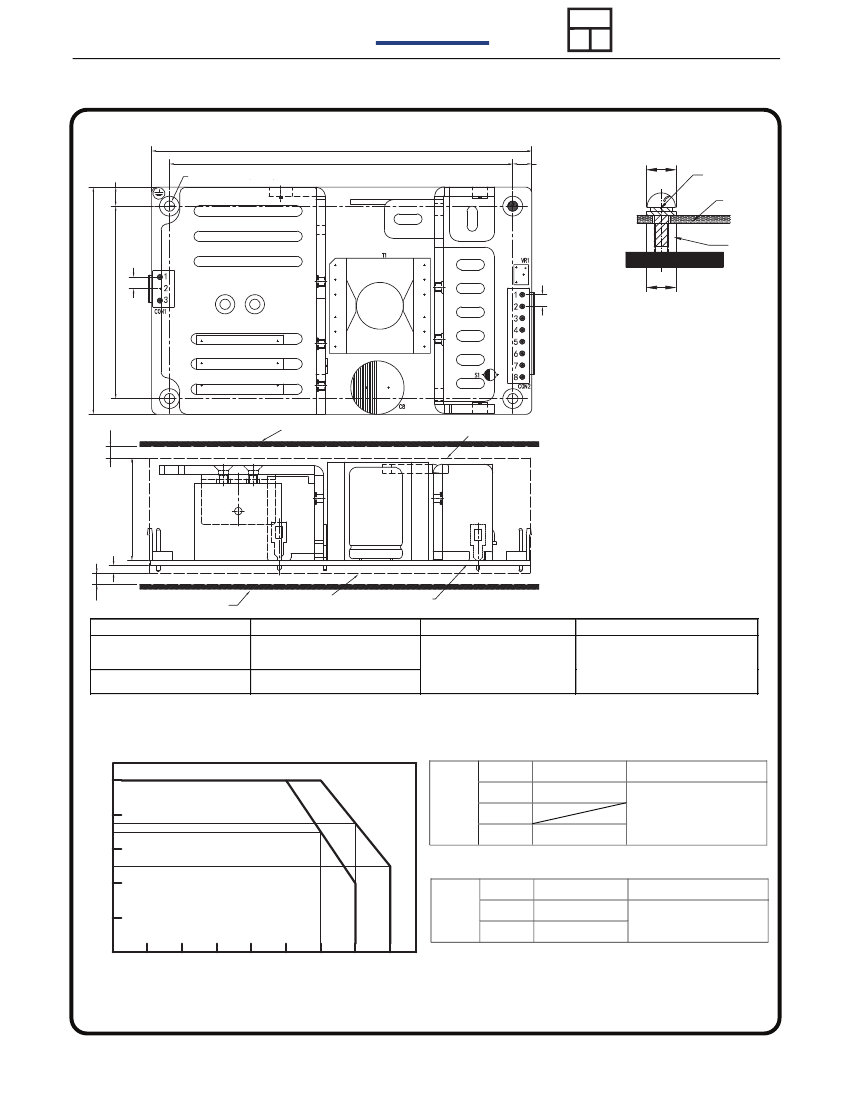

MECHANICAL SPECIFICATIONS
6.4
d
SCREW
PCB
6.4
BSO
L
CUSTOMER SYSTEM
MODULE TOP
THE DISTANCE BETWEEN CUSTOMER PLATE
AND TOP OF THE POWER SUPPLY
L
≥4mm;
IF L
≤4mm,
ISOLATION FILM OR MYLAR
WILL BE NEEDED
INSTALLATION SCREW TORQUE:
≤
6.0Kg.cm
L
2.5MAX
34.6MAX
CUSTOMER SYSTEM
ITEM
MODULE BOTTOM
PCB t=1.6
TERMINAL
LANDWIN 3963T011R OR
JST SVH-21T-P1.1
OR MOLEX 50539
AC IN (CON1)
DC OUT (CON2)
CONNECTOR
MATING HOUSING
LANDWIN 3961P0300T
LANDWIN 3960S OR
(CENTER PIN REMOVED) JST VHR
LANDWIN 3961P0800T
OR MOLEX 51144
DERATING CURVE
100
80
75
70
60
40
20
Without FAN
With FAN
AC CONNECTION
Pin No.
CON1
1
2
3
DC CONNECTION
3.96
D
PLEASE USE M3 SCREWS
WASHER d
≤7mm
AND D
≤7mm
76.5
64.8
3.96
Assignment
AC-L
AC-N
Specs
PITCH 3.96/3 TERMINALS PIN,
FLAT BASE, REMOVED MIDDLE
LOAD(%)
Pin No.
CON2
1,2,3,4
5,6,7,8
Assignment
DC output -V
DC output +V
Specs
PITCH 3.96/8 TERMINALS PIN,
FLAT BASE
-20 0
10
20 30 40
50
60
AMBIENT TEMPERATURE( )
70
UNIT: mm
ISO-9001 Company
www.qualtekusa.com
Page 2 of 2
