223-33-308-41-101000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 223-33-308-41-101000

223-33-308-41-101000: DescriptionSKT IC CLOSED; CategoryThe connector socket; File Size333KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

223-33-308-41-101000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	223-33-308-41-101000	-	-	View	Buy Now

223-33-308-41-101000 Overview

SKT IC CLOSED

223-33-308-41-101000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP8
Shell material	PLASTIC
JESD-609 code	e4
Number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

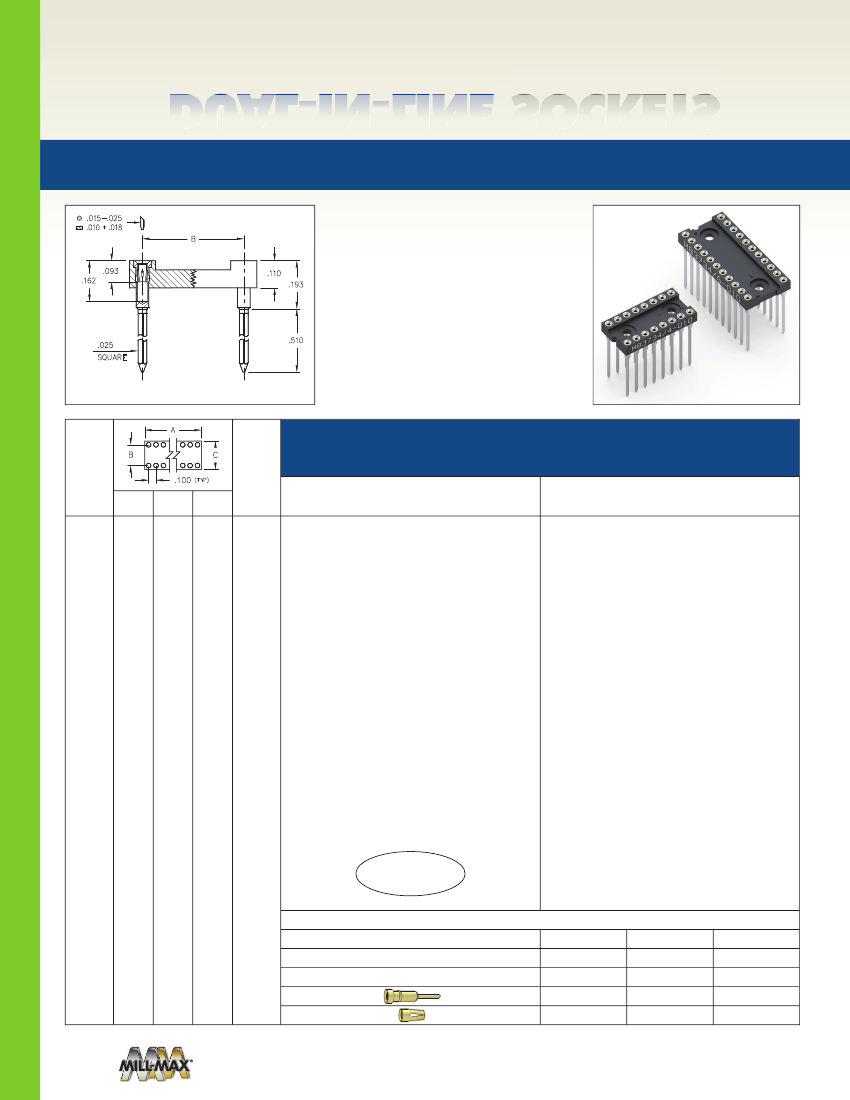

DUAL-IN-LINE

SOCKETS

SERIES 223...101 • MIL

DTL

83734 APPROVED, 3 LEVEL WRAPOST • CLOSED FRAME

.015-.025

.010 .018

•

Sockets are XY stackable

•

Socket pins feature closed end construction

eliminating any solder wicking problems

3 amps. See page 253 for details

See page 198 for details

.110

.193

.093

.162

•

Hi-Rel, 4- nger BeCu #30 contact is rated at

•

Series 223 uses MM #0038-3 or #0088-3 pins.

.025

SQUARE

.510

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

Data, see page 264 for details

See page 131 for Insulator Details

•

For Electrical, Mechanical and Environmental

Total number

of pins

.100

Quantity

per tube

ORDERING INFORMATION

Mill-Max Part Number

223-XX-306-41-101000

223-XX-308-41-101000

223-XX-314-41-101000

223-XX-316-41-101000

223-XX-318-41-101000

223-XX-320-41-101000

223-XX-422-41-101000

223-XX-624-41-101000

223-XX-628-41-101000

223-XX-632-41-101000

223-XX-636-41-101000

223-XX-640-41-101000

223-XX-964-41-101000

0.3

0.4

0.7

0.8

0.9

1.0

1.1

1.2

1.4

1.6

1.8

2.0

3.2

0.3

0.4

0.6

0.9

0.4

0.5

0.7

1.0

Military Part Number

M83734/1-YYY

M83734/2-YYY

M83734/3-YYY

M83734/4-YYY

M83734/5-YYY

M83734/13-YYY

M83734/6-YYY

M83734/8-YYY

M83734/7-YYY

M83734/17-YYY

M83734/9-YYY

M83734/10-YYY

M83734/15-YYY

PAGE 102 | IC SOCKETS / TO SOCKETS

XX=Plating Code

See Below

SEE PAGE 103 FOR COMPLETE MIL DTL 83734 QPL

SPECIFY MILL MAX PLATING CODE XX =

32 PIN ONLY YYY =

Sleeve (Pin)

Contact (Clip)

010

007

µ”

min. Au

µ”

min. Au

011

008

300

µ”

Sn/Pb

µ”

min. Au

012

009

300

µ”

Sn/Pb

100

µ”

Sn/Pb

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
