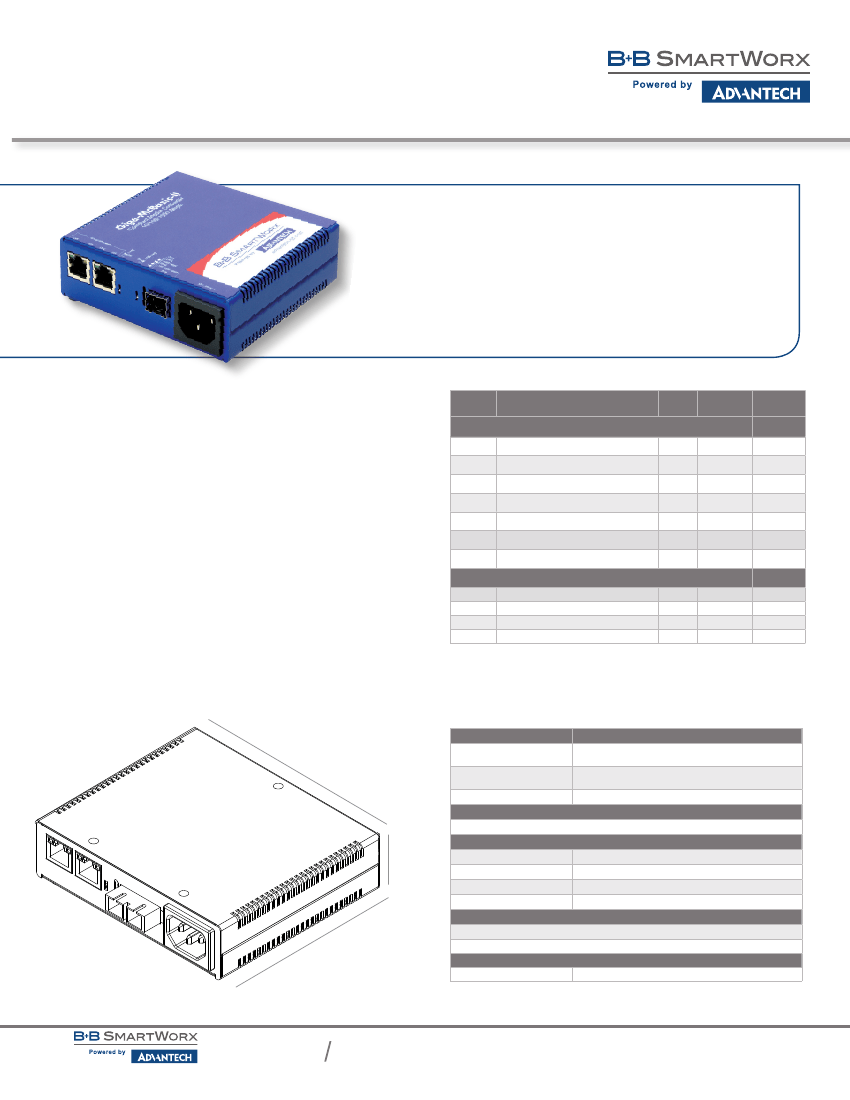

1000 Mbps, Compact,
3-port Media Converter
Giga-McBasic-II
www.advantech-bb.com
PRODUCT FEATURES
• Two 10/100/1000 Mbps copper ports
• One SFP port or fixed fiber port (available in SM or MM)
• Compact, rugged device with internal AC power supply
• Easy to install, unmanaged device
• Supports Link Fault Pass-Through
• Auto-negotiation, Auto-cross
• DIN Rail or Wall Mount (with optional bracket)
The Giga-McBasic-II is a low-cost, compact, multi-port media converter that
supports gigabit speed. Utilizing flexibility and compact size, interior private network
applications can further benefit from the ever-expanding versatility of the McBasic
product line.
This versatile converter features two 10/100/1000Mbps copper UTP ports and one
fiber port, which is available in an SFP form factor, as well as for fixed fiber in single
mode, multi mode and single strand fiber.
All models support gigabit speed; the SFP port allows 100 Mbps or Gigabit SFPs. A
compact stand-alone device with internal AC power supply, it is completely a PNP
device; no management is available.
A troubleshooting feature, Link Fault Pass-Through (LFPT) allows network operators
to determine a fault condition on the interfaces. LFPT can be enabled via a dip switch
on the front of the unit.
MODEL
NUMBER FIBER TYPE
Giga-McBasic-II
856-30600
856-30601
856-30602
856-30603
856-30604
856-30605
856-30606
856-30620
856-30621
856-30625
856-30626
ORDERING INFORMATION
FIBER
PORTS RANGE
1
1
1
1
1
1
1
1
1
1
1
ETHERNET
PORT
TX/SFP (requires one IE-SFP/1250 Module)
TX/SX-MM850-SC
TX/LX-MM1300-SC
TX/LX-SM1310-SC
TX/LX-SM1310/PLUS-SC
TX/LX-SM1550/LONG-SC
TX/LX-SM1550/XLONG-SC
TX/SSLX-SM1310-SC (1310xmt/1550rcv)
TX/SSLX-SM1550-SC (1550xmt/1310rcv)
TX/SSFX-SM1550-SC (1550xmt/1310rcv)
TX/SSFX-SM1310/PLUS-SC (1310xmt/1550rcv)
Variable (SFP) (2) RJ-45
220/550 m
2 km
10 km
40 km
80 km
100 km
15 km
15 km
40 km
30 km
(2) RJ-45
(2) RJ-45
(2) RJ-45
(2) RJ-45
(2) RJ-45
(2) RJ-45
(2) RJ-45
(2) RJ-45
(2) RJ-45
(2) RJ-45
Single-Strand Fiber
MECHANICAL DIAGRAM
- dimensions in inches (cm)
SPECIFICATIONS
MECHANICAL
4.0 in
(10.16 cm)
Connectors
Dimensions
RJ-45, SFP or fixed fiber
0.80H x 4.0W x 4.0D inches
(2.032H x 10.16W x 10.16D cm)
0.7 lbs (0.3 kg)
.8 in
(2.032 cm)
4.0 in
(10.16 cm)
Shipping Weight
POWER RATING
100-240V AC, 50-60 Hz, 7W maximum working power
ENVIRONMENTAL
Operating Temperature
+14° to +122°F (-10° to +50° C)
Storage Temperature
-31° to +167°F (-35° to +75° C)
Operating Humidity
5 to 95% (non-condensing)
Altitude
0 to 10,000 ft.
REGULATORY APPROVALS
FCC Class A
UL/cUL, CSA, CE
MEANTIME BEFORE FAILURE (MTBF)
MTBF
1.8 million hours
All product specifications are subject to change without notice.
Giga-McBasic-II_2917ds
