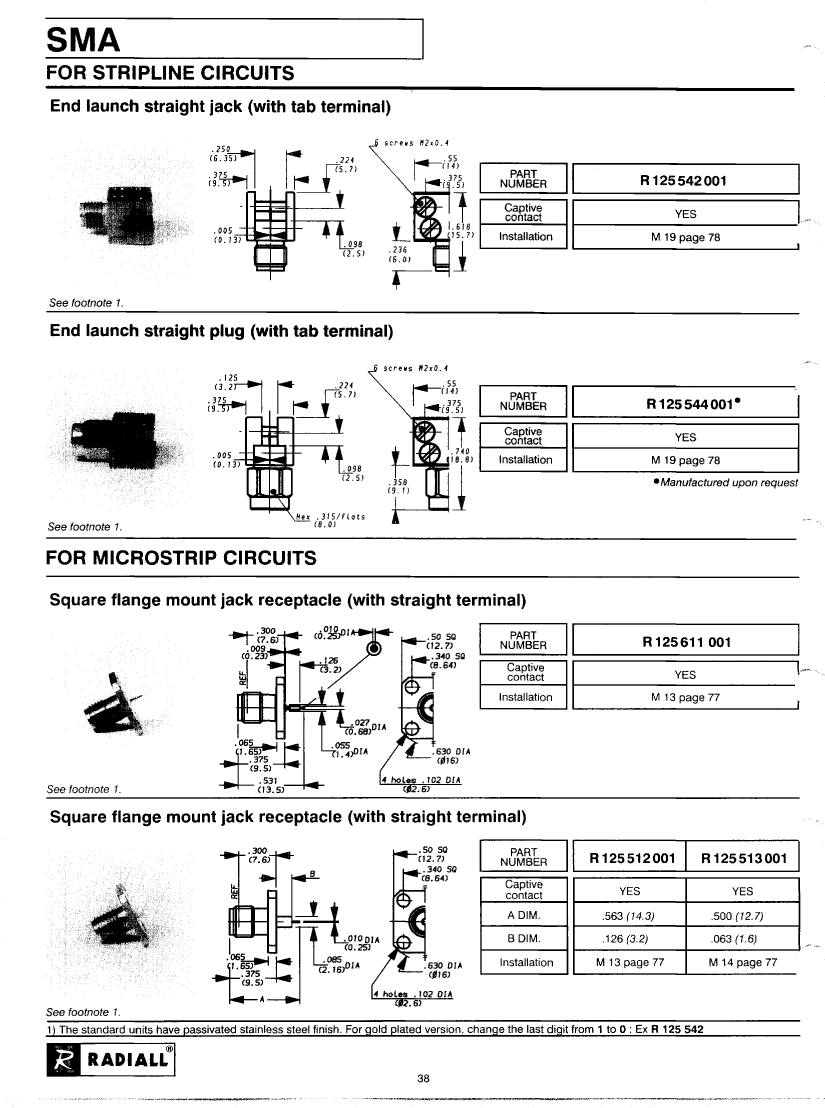

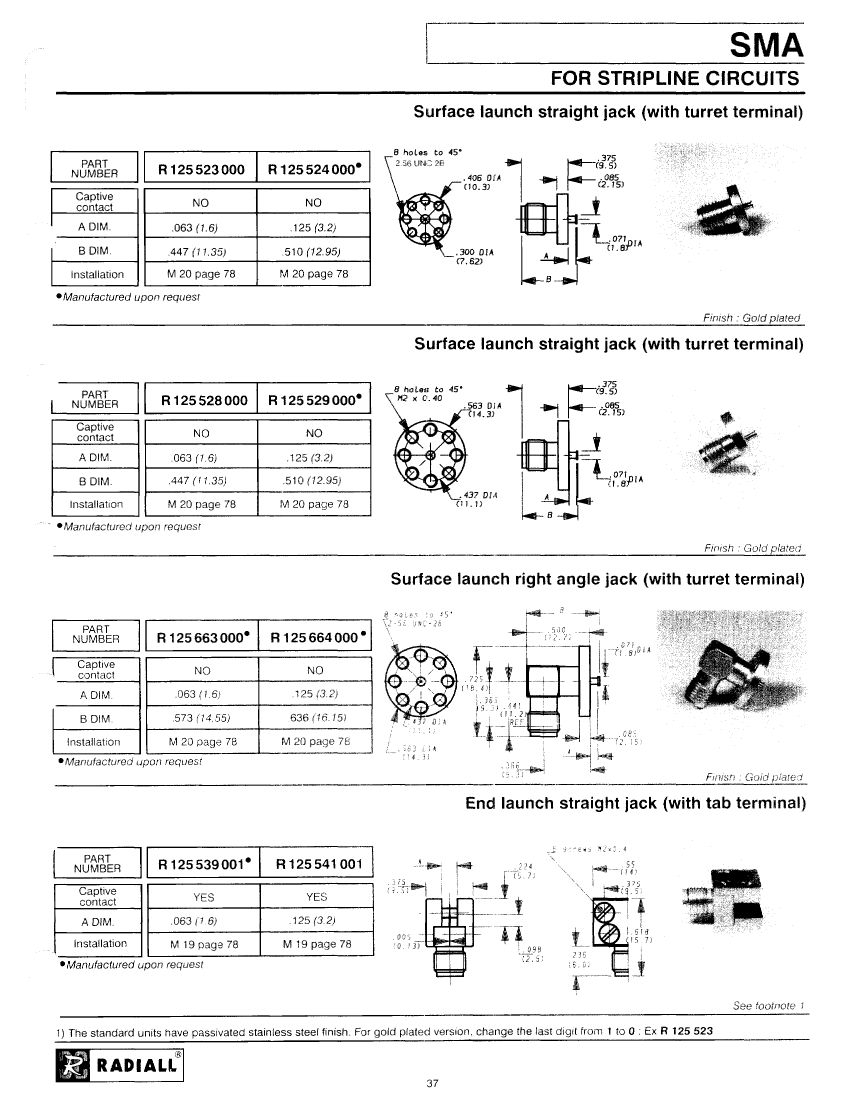

RF SMA Connector, Female, Stripline Mount, Jack
| Parameter Name | Attribute value |
| Reach Compliance Code | unknow |
| Other features | STANDARDS: MIL-C-39012; IEC 169-1 |
| Body/casing type | JACK |
| Characteristic impedance | 50 Ω |
| Connector type | RF SMA CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Coupling type | THREADED |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | YES |
| insulator material | POLYTETRAFLUORO ETHYLENE |
| MIL compliance | YES |
| Manufacturer's serial number | SMA |
| Plug information | NO |
| Installation method | STRAIGHT |
| Installation type | STRIPLINE |
| Maximum operating frequency | 18 GHz |
| Options | HERMETIC |
| Panel mounting | NO |
| Base Number Matches | 1 |
| R125524000 | R125528000 | R125542000 | R125544000 | R125523000 | R125539000 | R125664000 | R125542001 | R125529000 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | RF SMA Connector, Female, Stripline Mount, Jack | RF SMA Connector, Female, Stripline Mount, Jack | RF SMA Connector, Female, Stripline Mount, TAB Terminal, Jack | RF SMA Connector, Male, Stripline Mount, TAB Terminal, Plug | RF SMA Connector, Female, Stripline Mount, Jack | RF SMA Connector, Female, Stripline Mount, TAB Terminal, Jack | RF SMA Connector, Female, Stripline Mount, Jack | RF SMA Connector, Female, Stripline Mount, TAB Terminal, Jack | RF SMA Connector, Female, Stripline Mount, Jack |
| Reach Compliance Code | unknow | unknow | unknown | unknown | unknown | unknown | unknown | compliant | unknow |
| Other features | STANDARDS: MIL-C-39012; IEC 169-1 | STANDARDS: MIL-C-39012; IEC 169-1 | STANDARDS: MIL-C-39012; IEC 169-1, CAPTIVE CENTER CONTACT | STANDARDS: MIL-C-39012; IEC 169-1, CAPTIVE CENTER CONTACT | STANDARDS: MIL-C-39012; IEC 169-1 | STANDARDS: MIL-C-39012; IEC 169-1, CAPTIVE CENTER CONTACT | STANDARDS: MIL-C-39012; IEC 169-1 | STANDARDS: MIL-C-39012; IEC 169-1, CAPTIVE CENTER CONTACT | STANDARDS: MIL-C-39012; IEC 169-1 |
| Body/casing type | JACK | JACK | JACK | PLUG | JACK | JACK | JACK | JACK | JACK |
| Characteristic impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
| Connector type | RF SMA CONNECTOR | RF SMA CONNECTOR | RF SMA CONNECTOR | RF SMA CONNECTOR | RF SMA CONNECTOR | RF SMA CONNECTOR | RF SMA CONNECTOR | RF SMA CONNECTOR | RF SMA CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | GOLD (51) OVER NICKEL (79) | GOLD | GOLD | GOLD (51) OVER NICKEL (79) | GOLD (51) OVER NICKEL (79) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE | FEMALE | MALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Coupling type | THREADED | THREADED | THREADED | THREADED | THREADED | THREADED | THREADED | THREADED | THREADED |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| insulator material | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE |
| MIL compliance | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Plug information | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | RIGHT ANGLE | STRAIGHT | STRAIGHT |
| Installation type | STRIPLINE | STRIPLINE | STRIPLINE | STRIPLINE | STRIPLINE | STRIPLINE | STRIPLINE | STRIPLINE | STRIPLINE |
| Maximum operating frequency | 18 GHz | 18 GHz | 18 GHz | 18 GHz | 18 GHz | 18 GHz | 18 GHz | 18 GHz | 18 GHz |
| Options | HERMETIC | HERMETIC | HERMETIC | HERMETIC | HERMETIC | HERMETIC | HERMETIC | HERMETIC | HERMETIC |
| Panel mounting | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | SMA | SMA | SMA | SMA | SMA | SMA | SMA | - | SMA |
| Is it lead-free? | - | Lead free | Lead free | Lead free | Lead free | Lead free | - | Lead free | - |
| Is it Rohs certified? | - | conform to | conform to | conform to | conform to | conform to | - | conform to | - |
| Contact completed and terminated | - | GOLD (51) OVER NICKEL (79) | GOLD | GOLD | GOLD (51) OVER NICKEL (79) | GOLD (51) OVER NICKEL (79) | - | - | - |
| Contact material | - | BERYLLIUM COPPER | NOT SPECIFIED | NOT SPECIFIED | BERYLLIUM COPPER | BERYLLIUM COPPER | - | NOT SPECIFIED | - |
| JESD-609 code | - | e4 | e4 | e4 | e4 | e4 | - | - | - |
| Maker | - | - | Radiall | Radiall | Radiall | Radiall | Radiall | Radiall | Radiall |
