VIDEO CABLE
The visual image is the core of any home theater or video system. Modern high-resolution and High Definition
video formats now demand an even greater degree of quality and bandwidth from the cable interconnect sys-
tem. To bring a higher level of performance to residential video applications, Sheer Wire video cables are made
using the same techniques and materials used in professional, studio-grade video coax. Every Sheer Wire video
cable is built to exacting electrical and mechanical specifications then comprehensively tested and verified. As
a result, the video image is transmitted with minimal loss or errors delivering exceptionally true and clear
images. Through precision, Sheer Wire video cables deliver your clearest vision.
BROADBAND COAX
BROADBAND COAX: PLENUM
HIGH DEFINITION COAX
HIGH DEFINITION COAX: PLENUM
HIGH DEFINITION COAX: FLEXIBLE
HIGH DEFINITION COAX: MINIATURE
CCTV COAX
CCTV COAX: PLENUM
CCTV COAX W/ POWER: JACKETED
CCTV COAX W/ POWER: ZIP
COMPONENT VIDEO: MINIATURE
COMPONENT VIDEO: MINIATURE PLENUM
COMPONENT VIDEO: EXTRA-FLEX MINIATURE
COMPONENT VIDEO: LOW-LOSS RG6
COMPONENT VIDEO W/ 2 AUDIO PAIRS
COMPONENT VIDEO W/ 2 AUDIO PAIRS: PLENUM
COMPONENT VIDEO W/ 4 AUDIO & 4 POWER
COMPONENT VIDEO W/ 4 AUDIO & 4 POWER: PLENUM
COMPONENT VIDEO W/ CATEGORY 5E
COMPONENT VIDEO W/ CATEGORY 5E: PLENUM
SVHS DUAL MINIATURE COAX
TOTAL HOME HYBRID
HDMI CABLE ASSEMBLIES
DVI CABLE ASSEMBLIES
HDMI TO DVI CABLE ASSEMBLIES
HDMI AND DVI ADAPTERS
High Definition Bandwidth
All Sheer Wire video cables are certified to 3, 2.4, or 1GHz to ensure clear and accurate
transmission of High Definition digital or high-resolution analog video signals.
Low-loss, Gas-injected Dielectric
Sheer Wire proprietary nitrogen-injected dielectric lowers the attenuation, provides preci-
sion mechanical specifications, and is exceptionally crush resistant.
Precision Characteristic Impedance
Every Sheer Wire coaxial cable is produced to an exacting impedance to virtually elimi-
nate cable-induced reflections, jitter, and bit-errors in the video signal.
Certified Specifications and 100% Swept Test
Each reel is comprehensively tested to verify all critical electrical and mechanical specifi-
cations and ensure consistent performance.
Time Saving Features
Features such as easy-to-strip jackets, footage markers, and flexible packaging allow for
quick and simplified installation.

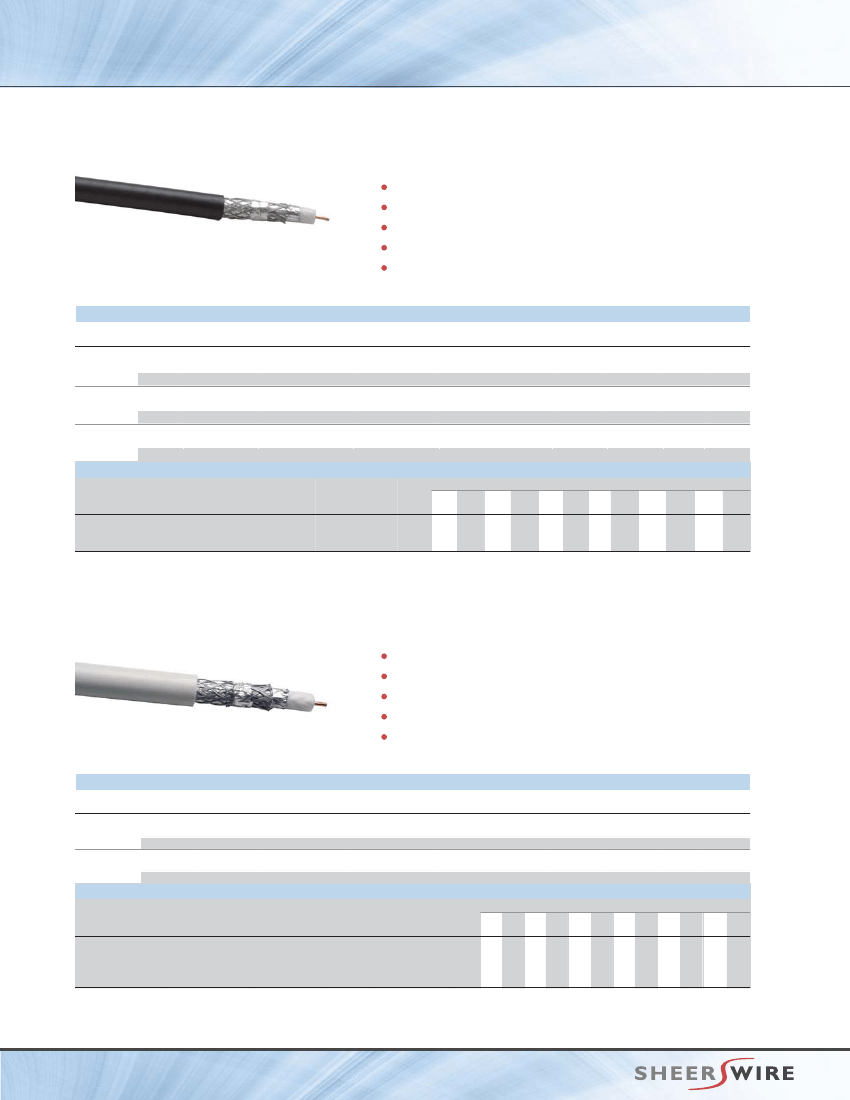

VIDEO
Broadband Coax
Pre c i s i o n 7 5 Co a x fo r
Broadband, MATV, and CATV
2.4GHz Bandwidth
Precision 75
Impedance
Copper-clad Steel Conductor
Dual- or Quad-shield Versions
UL Rated for Permanent Installation
Mechanical Specifications
Part #
181CV6
# of
Cond.
1
Nominal
OD
.272”
Conductor
18 AWG
Copper-clad Steel
18 AWG
Copper-clad Steel
18 AWG
Copper-clad Steel
Insulation
(Type, OD)
Gas-injected
Foam PE, .180”
Gas-injected
Foam PE, .180”
Gas-injected
Foam PE, .180”
Shield
60% AL Braid, 100% Foil
Jacket
Type
PVC
Jacket
Colors
Black
UL
Type
CM
Approx.
Weight
26 lbs/Mft

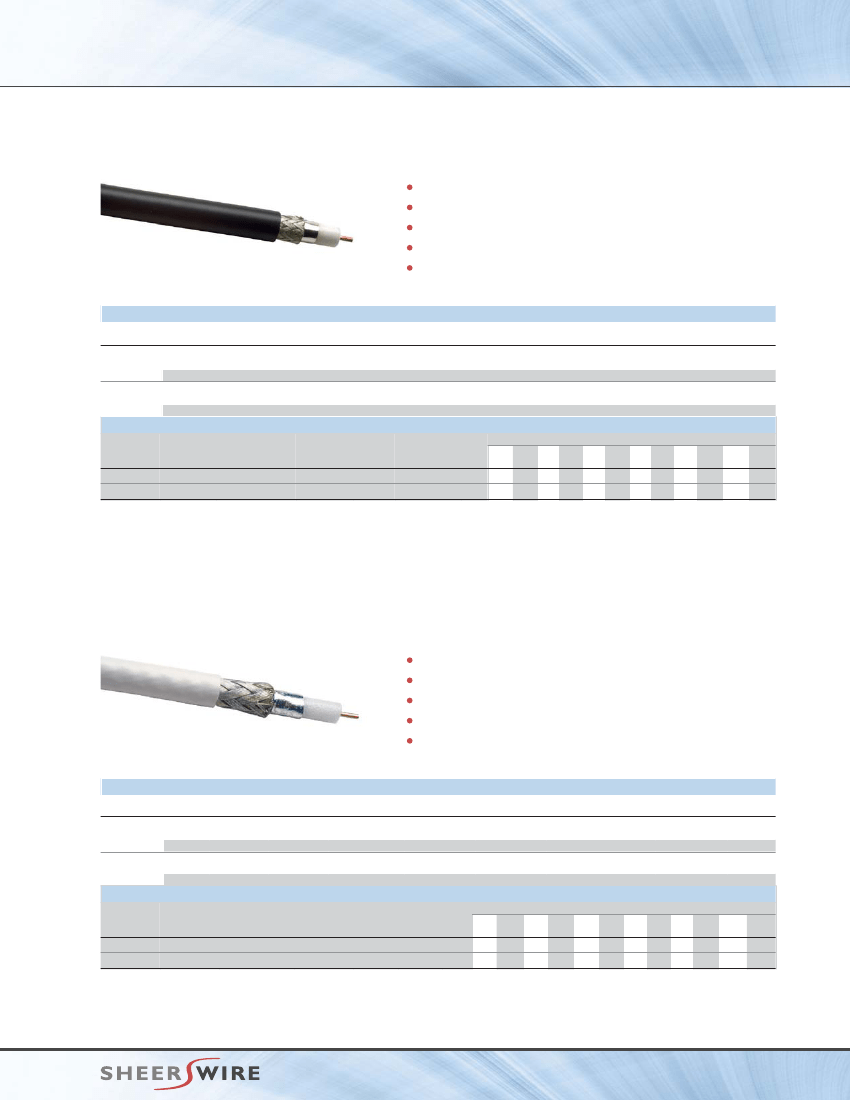

RG6 Broadband Coax
182CV6
2
.272” x .550”
60% AL Braid, 100% Foil
PVC
Black
CM
52 lbs/Mft

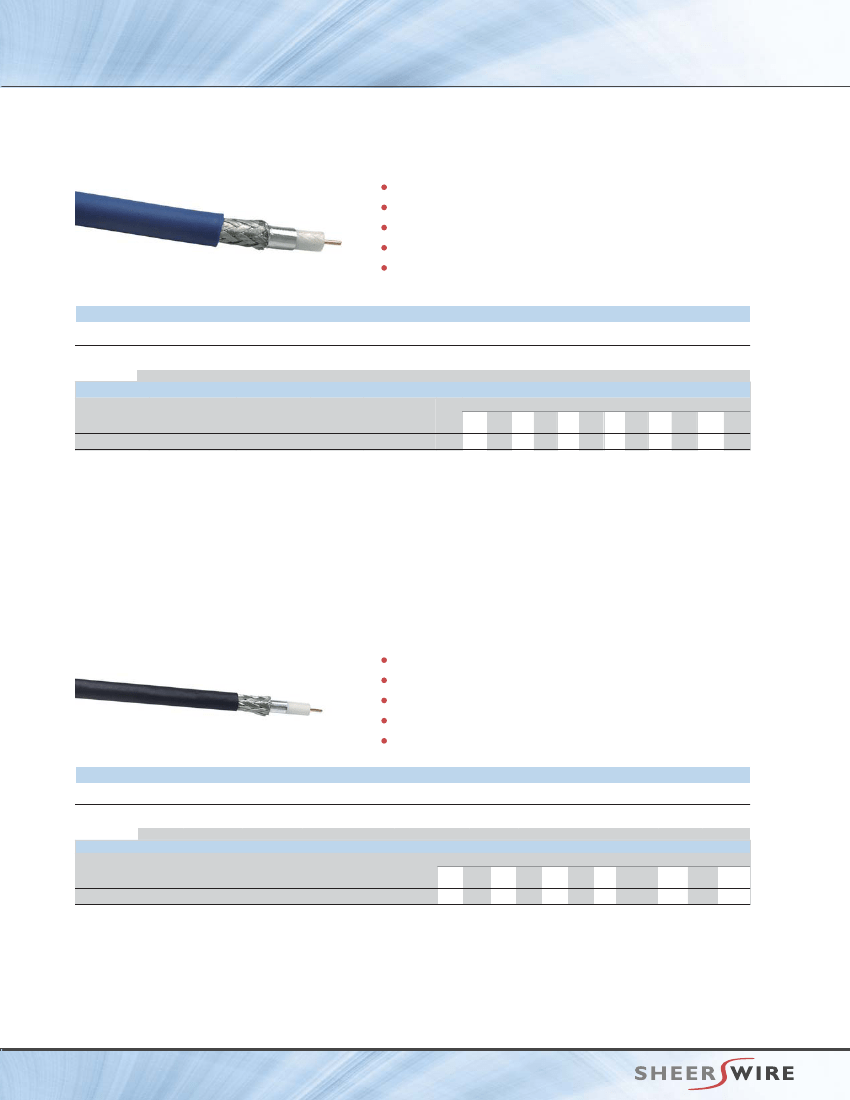

RG6 Broadband: Dual Zip
181CVQ6
1
.298”
40% AL Braid, 100% Foil
60% AL Braid, 100% Foil
PVC
Black
CM
30 lbs/Mft
RG6 Broadband Coax: Quad Shield
Electrical Specifications
Return Loss
(100kHz-1GHz),
(1GHz-3GHz)
>20dB, >17dB
Cond. DCR
per Mft/Shield
DCR per Mft
31.9
9.0
5.3
Vel.
of
Prop.
Attenuation (dB per 100 ft)
1
10
50
100 200 400 700 900
MHz MHz MHz MHz MHz MHz MHz MHz
0.24
0.65
1.39
1.92
2.65 3.78 3.98 5.83
1
GHz
6.15
1.2
GHz
6.81
1.45
GHz
7.56
2.4
GHz
9.90
Impedance
75
(+/-3)
Capacitance
16.2 pF/ft
/
(60% Shield) 83%
(Quad Shield)

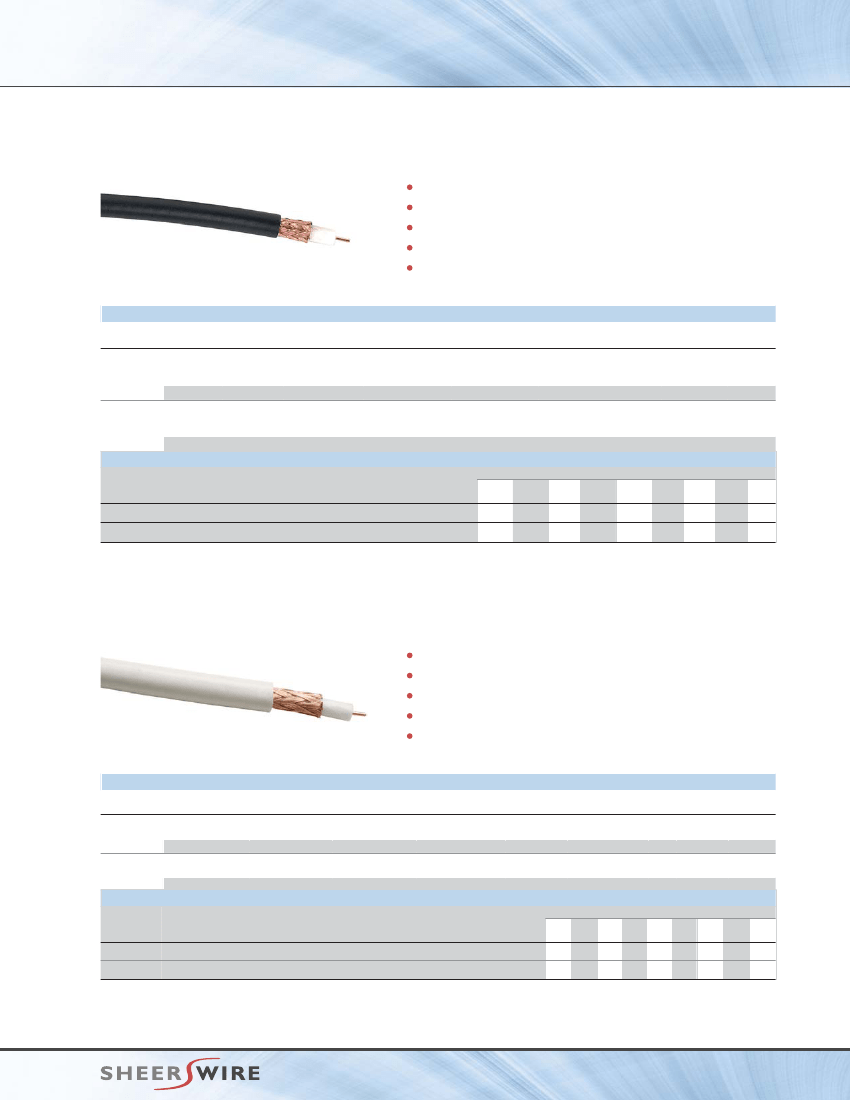

Broadband Coax: Plenum
Pre c i s i o n 7 5 Co a x fo r
Broadband, MATV, and CATV
2.4GHz Bandwidth
Precision 75
Impedance
Copper-clad Steel Conductor
Dual- or Quad-shield Versions
UL Plenum Rated for Permanent Installation
Mechanical Specifications
Part #
IP181CV9
# of
Cond.
1
Nominal
OD
.237”
RG6 Broadband Coax: Plenum
IP181CVQ6
1
18 AWG
Copper-clad Steel
RG6 Broadband Coax: Plenum Quad Shield
.257”
Foam FEP,
.170”
40% AL Braid,100% Foil
60% AL Braid,100% Foil
Plenum
PVC
White
CMP
30 lbs/Mft
Conductor
18 AWG
Copper-clad Steel
Insulation
(Type, OD)
Foam FEP,
.170”
Shield
90% AL Braid,
100% Foil
Jacket
Type
Plenum
PVC
Jacket
Colors
White
UL
Type
CMP
Approx.
Weight
24 lbs/Mft
Electrical Specifications
Max Return Loss
(1-455MHz),
(455MHz-2.4GHz)
Cond.
DCR
per Mft
Shield DCR
per Mft
7.2
5.5
Attenuation (dB per 100 ft)
Vel.
1
10 50 100 200 400 700 900 1
1.2 1.45 2.4
of
Prop. MHz MHz MHz MHz MHz MHz MHz MHz GHz GHz GHz GHz
Impedance
Capacitance
75
(+/-3)
>21dB, >15dB
16.0 pF/Ft
31.9
(90% Shield)
84%
(Quad Shield)
0.30 0.70 1.50 2.10 3.10 4.50 6.00 6.90 7.30 8.08 8.97 12.0
15
