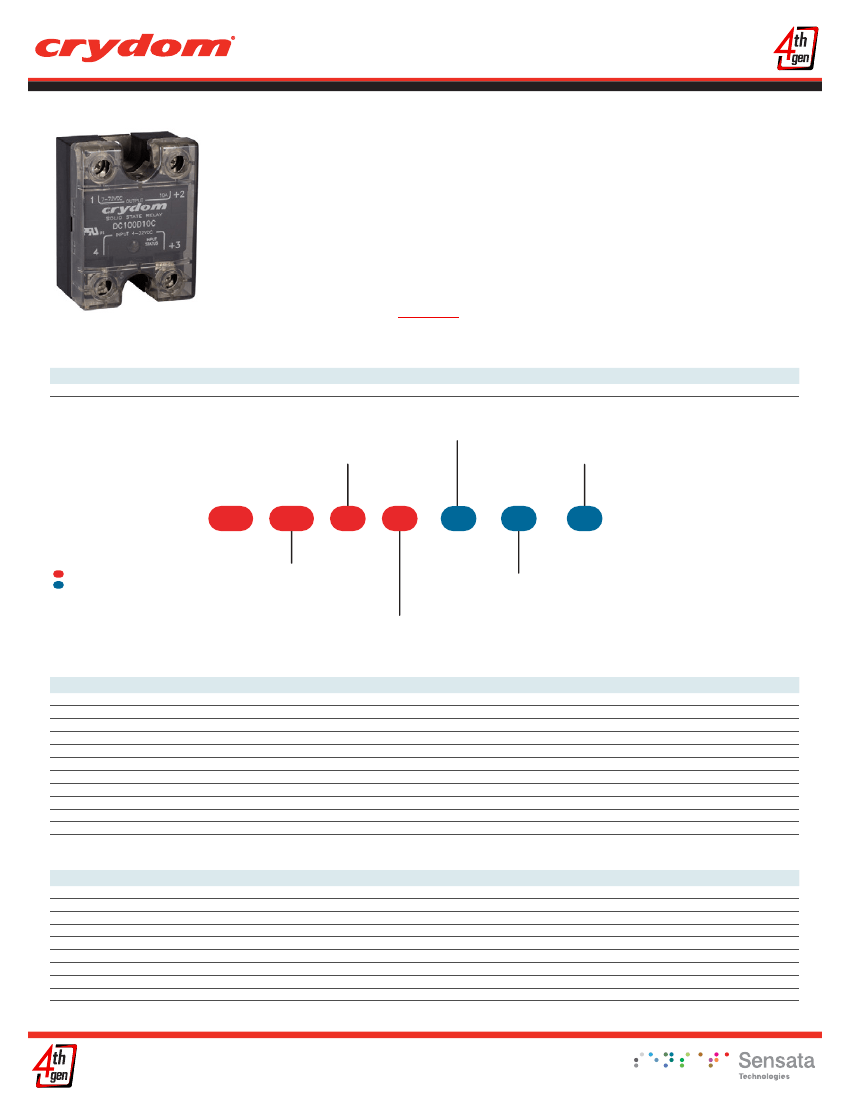

Datasheet
Power Plus DC Series
•
Ratings from 10 A to 100 A @ 60 VDC
•
LED Status Indicator
•
Relays are easily paralleled for higher-current
applications
•
UL Approved, CE Compliant to EN60950-1
•
Improved SEMS screw and washer
•
Redesigned housing with anti-rotation barriers
For
Generation 3
datasheet
click here
•
Mosfet Output
•
DC control
•
EMC Compliant to Level 3
•
Epoxy Free Design
•
Optional IP20 Cover
•
PWM to 1K Hz
Panel Mount
PRODUCT SELECTION
Control Voltage
4-32 VDC
10 A
DC60D10
20 A
DC60D20
40 A
DC60D40
60 A
DC60D60
80 A
DC60D80
100 A
DC60D100
AVAILABLE OPTIONS
Control Voltage
D:
4-32 VDC
Termination
Blank:
Screws & clamps
K:
Installed standoffs with
(1)
screws for PC Board
mounting (IP00 only)
Thermal Pad
Blank:
Not Included
H:
Included
Series
DC
Required for valid part number
For options only and not required for valid part number
Not all part number combinations are available.
Contact Crydom Technical Support for information on
the availability of a specific part number.
60
D
40
K
C
H
Operating Voltage
60:
1-60 VDC
*
Rated Load Current
10:
10 Amps
20:
20 Amps
40:
40 Amps
60:
60 Amps
80:
80 Amps
100:
100 Amps
Cover
Blank:
Not Included (IP00)
C:
Included (IP20)
OUTPUT SPECIFICATIONS
(2)
Description
Recommended Operating Voltage [Vdc]
Absolute Maximing Rating [Vdc]
Maximum Off-State Leakage Current @ Rated Voltage [mA]
Maximum Load Current [Adc]
(1)(3)
Minimum Load Current [mA]
(4)
Maximum Surge Current (10msec) [Adc]
Maximum On-State Voltage Drop @ Rated Current [Vdc]
Maximum On-State Resistance [RDS-ON] [m ]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Minimum Heat Sink for Rated Current @ 40°C [°C/W]
Maximum Pulse Width Modulation Frequency [Hz]
(5)
10 A
1-48
60
0.1
10
2.5
78
0.17
17
1.6
5
1000
20 A
1-48
60
0.1
20
2.5
108
0.30
15
1.6
5
1000
40 A
1-48
60
0.1
40
2.5
163
0.36
9
0.74
2
900
60 A
1-48
60
0.1
60
2.5
200
0.51
8.5
0.74
1
900
80 A
1-48
60
0.1
80
2.5
258
0.46
5.8
0.51
0.5
700
100 A
1-48
60
0.1
100
2.5
326
0.56
5.6
0.51
0.5
700
INPUT SPECIFICATIONS
(2)
Description
Control Voltage Range
Maximum Reverse Voltage
Minimum Turn-On Voltage
(6)
Must Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current
Nominal Input Impedance
Maximum Turn-On Time [µsec]
Maximum Turn-Off Time [µsec]
DC Control
4-32 VDC
-32 VDC
4 VDC
1 VDC
11 mA
14 mA
Current Regulated
75
150
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
GENERAL SPECIFICATIONS
(2)
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
(7)
Ambient Storage Temperature Range
Weight (typical)
Housing Material
Hardware Finish
Baseplate Material
Input Terminal Screw Torque Range (in-lb/Nm)
Load Terminal Screw Torque Range (in-lb/Nm)
SSR Mounting Screw Torque Range (in-lb/Nm)
Input/Load Terminal Screw Torque Range (in-lb/Nm)
(1)
Input/Output Terminal Screw Thread Size
Humidity per IEC60068-2-78
LED Input Status Indicator
MTBF (Mean Time Between Failures) at 40°C ambient temperature
(8)
MTBF (Mean Time Between Failures) at 60°C ambient temperature
(8)
Panel Mount
Parameters
3750 Vrms
10
9
Ohms
8 pF
-40 to 100 °C
-40 to 125 °C
2.53 oz (72 g)
UL94 V-0
Nickel Plating
Aluminum
13-15 /1.5-1.7
18-20 / 2-2.2
18-20 / 2-2.2
w/”K” option 8-10 / 0.9-1.13
#6-32 UNC / #8-32 UNC
93% non-condensing
Green
21,395,130 hours (2,441 years)
11,545,504 hours (1,317 years)

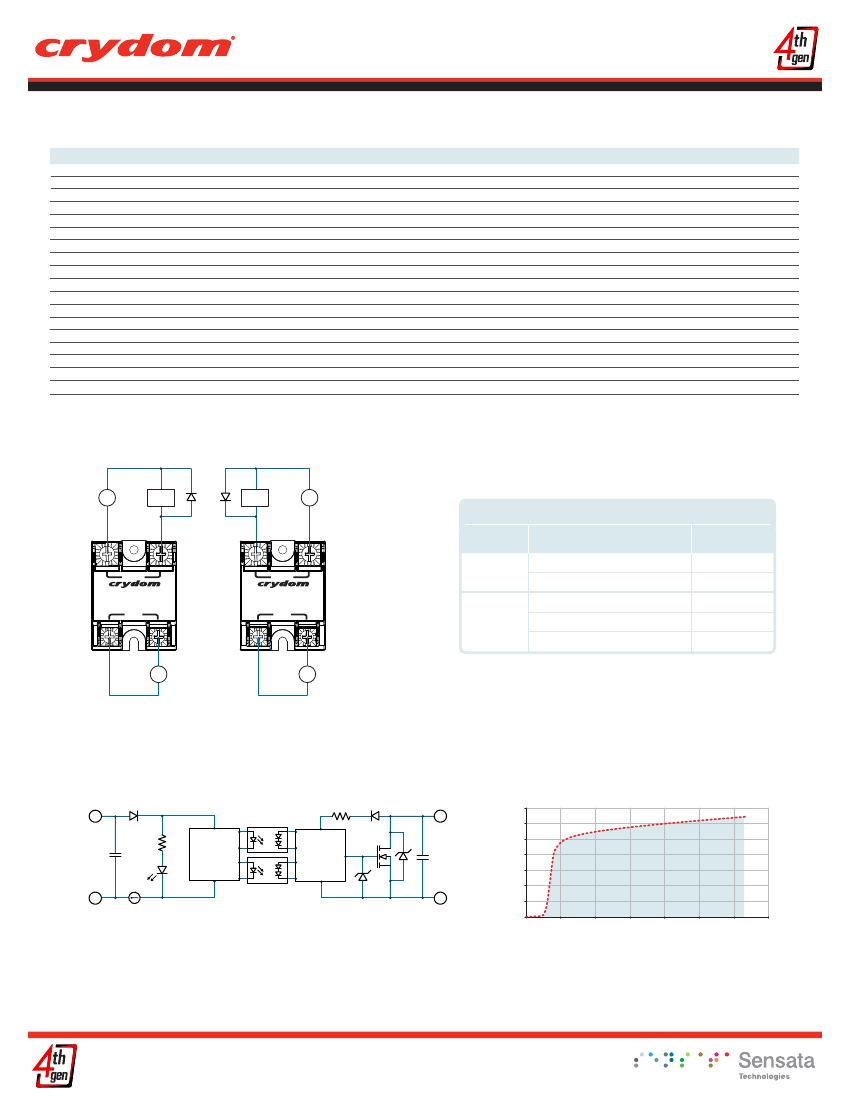

WIRING DIAGRAM
+
V
-
+
*
Inductive loads must be diode suppresed.
-
V
+
Load
*
*
Load
+
Recommended Wire Sizes
Terminals
Wire Size
(Solid / Stranded)
24 AWG (0.2 mm
2
) / 0.2 [minimum]
2 x 12 AWG (3.3 mm
2
) / 3.3 [maximum]
20 AWG (0.5 mm
2
) / 0.518 [minimum]
Wire Pull-Out
Strength (lb)[N]
10 [44.5]
90 [400]
30 [133]
110 [490]
90 [400]
1
OUTPUT
+2
1
OUTPUT
+2
Input
S O L I D S TAT E R E L AY
S O L I D S TAT E R E L AY
4
INPUT
+3
4
INPUT
+3
Output
2 x 10 AWG (5.3 mm
2
)
/ 5.3
2 x 8 AWG (8.4 mm
2
) / 8.4 [maximum]
+
V
-
+
V
-
EQUIVALENT CIRCUIT BLOCK DIAGRAMS
Input Current vs Input Voltage
Standard Regulated DC Input
+DC
3
2
+DC
14
Input Current (mA)
12
10
8
6
4
2
0
0
5
10
15
20
25
30
35
-DC
INPUT
Control
Circuit
Trigger
Circuit
4
Current
Limiter
1
OUTPUT
-DC
DC Input Voltage
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
Panel Mount

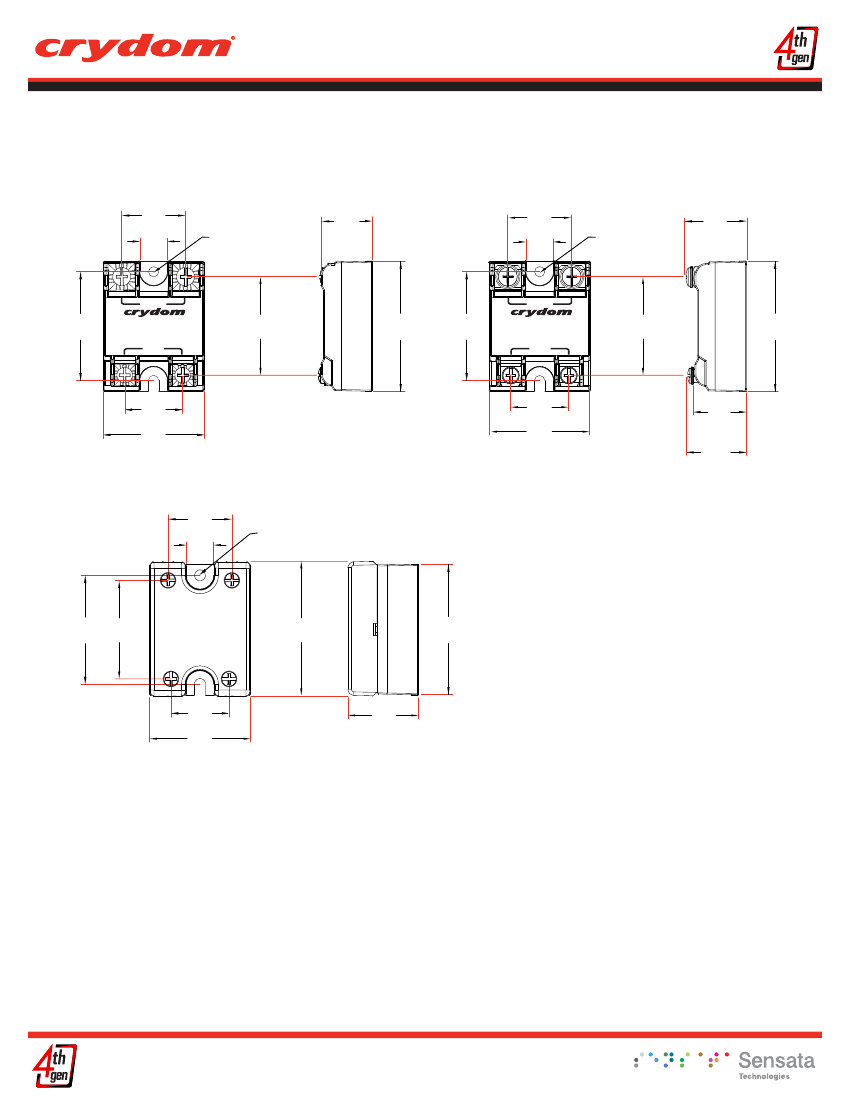

MECHANICAL SPECIFICATIONS
(2)
Screw Termination
1.1
[27.9]
0.49
[12.4]
0.89
[22.6]
Hex Standoff Termination (“K”
Option)
(1)
1.1
[27.9]
0.49
[12.4]
Mounting
Hole/Slot
0.19 [4.9]
DIA.
Mounting
Hole/Slot
0.19 [4.9]
DIA.
1.04
[26.4]
(2 places)
1
OUTPUT
+
2
1
OUTPUT
+
2
1.88
[47.6]
S O L I D S TAT E R E L AY
1.7
[43.2]
2.25
[57.3]
1.88
[47.6]
S O L I D S TAT E R E L AY
1.7
[43.2]
2.25
[57.3]
4
INPUT
+
3
4
INPUT
+
3
1.0
[25.4]
1.75
[44.5]
1.0
[25.4]
1.75
[44.5]
0.93
[23.6]
(4 places)
1.0
[25.4]
(2 places)
Screw Termination, IP20
1.1
[27.9]
0.49
[12.4]
Mounting
Hole/Slot
0.19 [4.9]
DIA.
1.88
[47.6]
1.7
[43.2]
2.32
[58.8]
2.25
[57.3]
1.0
[25.4]
1.75
[44.5]
1.22
[30.9]
GENERAL NOTES
(1)
Option “K” is designed and tested for use with printed circuit boards or ring/fork terminals having a thickness between 0.031 and 0.093 inches (0.79 to 2.36 mm), and loads rated up to 50 Amps.
For higher load currents, the “K” standoff temperature must not exceed 105°C. For additional application assistance please contact Crydom Technical Support.
(2)
All parameters at Tc=25°C unless otherwise specified.
(3)
Heat sinking required, see derating curves.
(4)
Low current loads and high ambient temperature can affect turn-on time.
(5)
8VDC minimum control voltage. Resistive loads only. Consider switching losses; at maximum frequency reduce to 75% output current.
(6)
Increase minimum voltage by 1V for operations from -20 to -40°C.
(7)
Decrease maximum control voltage 1.35V/°C above 80°C ambient temperature.
(8)
All parameters at 50% power rating and 100% duty cycle (contact Crydom tech support for detailed report).
For additional information or specific questions, contact Crydom Technical Support.
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet

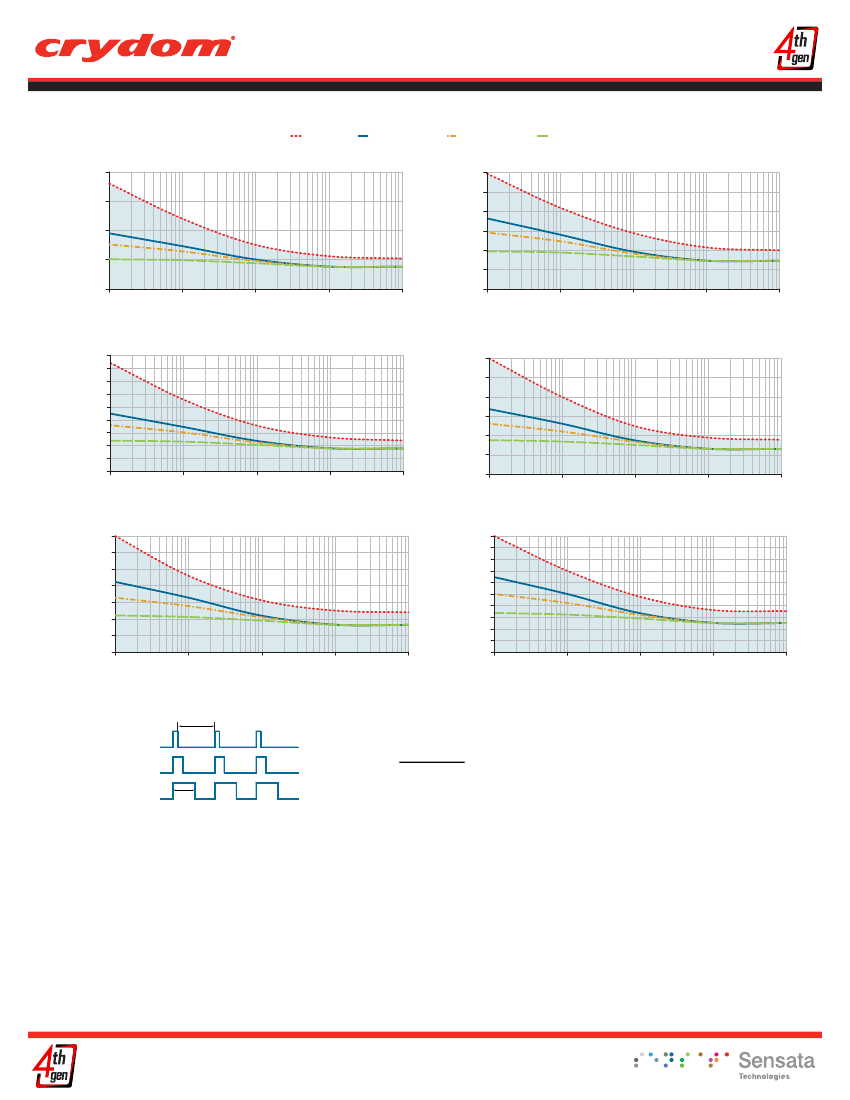

SURGE CURRENT INFORMATION
DC60D10
100
150
Single Pulse
(i)
Duty Factor (10%)
(ii)
Duty Factor (20%)
(ii)
Duty Factor (50%)
(ii)
Panel Mount
DC60D20
Surge Current (Amp)
125
100
75
50
25
0
0.1
1
10
100
1000
Surge Current (Amp)
75
50
25
0
0.1
1
10
100
1000
Surge Duration (msec)
Surge Duration (msec)
DC60D40
225
200
300
DC60D60
Surge Current (Amp)
250
200
150
100
50
0
0.1
1
10
100
1000
Surge Current (Amp)
175
150
125
100
75
50
25
0
0.1
1
10
100
1000
Surge Duration (msec)
Surge Duration (msec)
DC60D80
350
DC60D100
500
450
400
350
300
250
200
150
100
50
0
Surge Current (Amp)
250
200
150
100
50
0
0.1
1
10
100
1000
Surge Current (Amp)
300
Surge Duration (msec)
0.1
1
10
100
1000
Surge Duration (msec)
Period
Duty Factor 10%
Duty Factor 20%
Duty Factor 50%
Pulse
Width
For Pulse Width Modulation applications select
the curve according duty factor and pulse duration as following.
Pulse Width
Period
x100 (%)
Duty Factor
=
(i) for Single Surge Pulse Tc=40°C ;Tj 175°C
(ii) for Repetitive Surge Pulse Tc=40°C ;Tj 130°C
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet

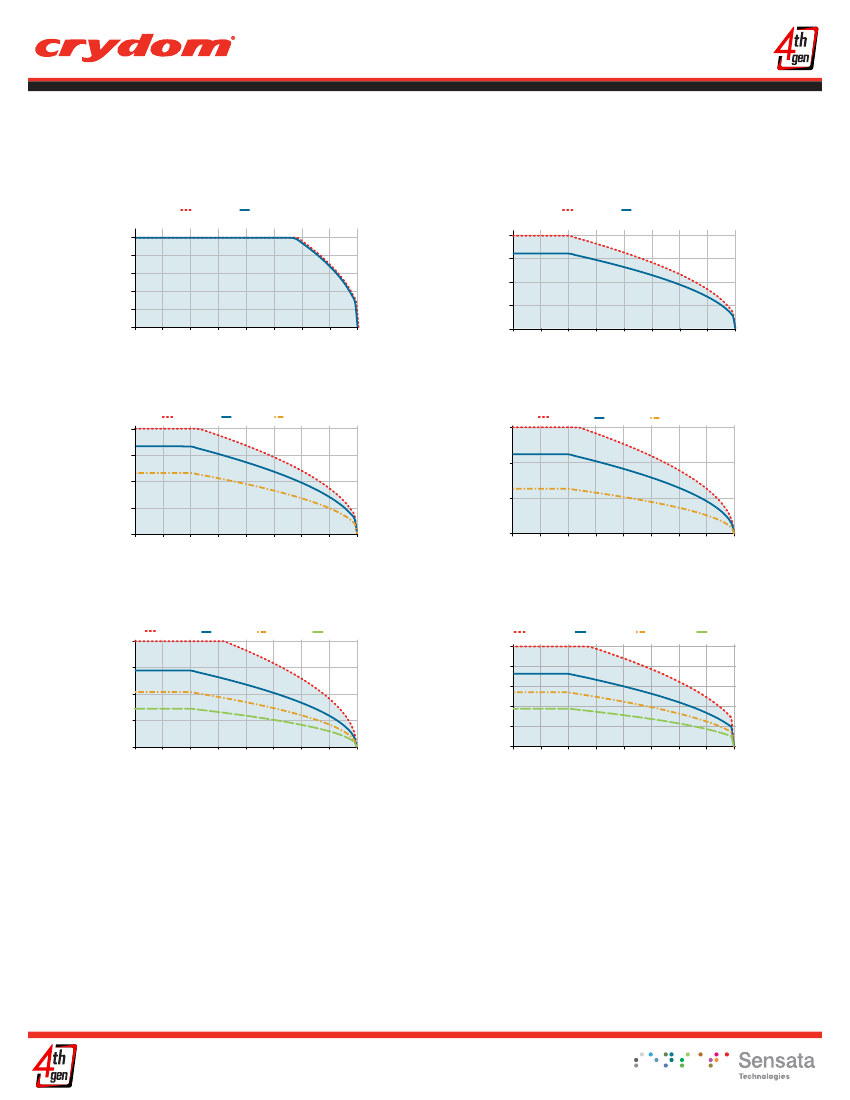

THERMAL DERATE INFORMATION
(iii)
SSR metal base plate acting as heat sink, it must be exposed to free ambient air.
Panel Mount
DC60D10
5°C/W
10
No Heat Sink
(iii)
20
5°C/W
DC60D20
No Heat Sink
(iii)
Load Current (Amps)
8
6
4
2
0
20
30
40
50
60
70
80
90
100
Load Current (Amps)
15
10
5
0
20
30
40
50
60
70
80
90
100
Ambient Temperature °C
Ambient Temperature °C
DC60D40
2°C/W
40
3°C/W
5°C/W
60
1°C/W
DC60D60
2°C/W
5°C/W
Load Current (Amps)
30
20
10
0
Load Current (Amps)
20
30
40
50
60
70
80
90
100
40
20
0
20
30
40
50
60
70
80
90
100
Ambient Temperature °C
Ambient Temperature °C
DC60D80
0.5°C/W
80
1.5°C/W
3°C/W
5°C/W
DC60D100
0.5°C/W
100
1.5°C/W
3°C/W
5°C/W
Load Current (Amps)
Load Current (Amps)
60
40
20
0
20
30
40
50
60
70
80
90
100
80
60
40
20
0
20
30
40
50
60
70
80
90
100
Ambient Temperature °C
Ambient Temperature (ºC)
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
