BeagleBone Breadboard
From BEAGLE BOARD TOYS WIKI
Contents
■
1 Descriptions
■
2 Specifications
■
2.1 Components
■
2.2 Prototyping Area
■
2.3 Mechanical Specifications
■
3 Pin Usage
■
4 Product Images
■
5 Documentations
Descriptions

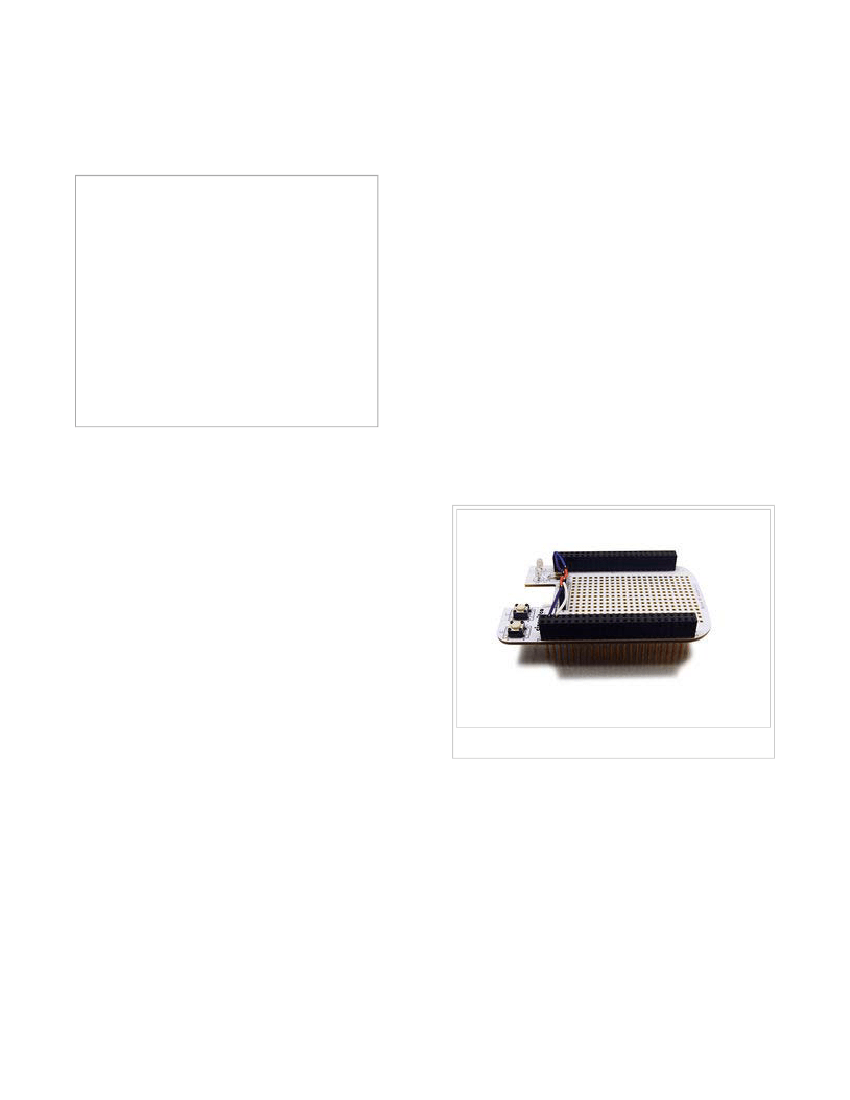

The BeagleBone Breadboard is designed to provide
a simple but productive prototyping space. This
prototyping cape is equipped with a patterned
prototyping area, two general LED’s, two tactile
switches, one 8-pin female header and two stackable
46-pin connectors. LED’s and switches are wired to
an 8-pin header for convenient access. There are
cutbacks for the Ethernet connector as well as
LED’s and reset button on the BeagleBone board.
The 46-pin headers are stackable so users won’t
have to worry about losing this feature. With each
purchase including an adhesive solderless
BeagleBone Breadboard
breadboard and jumper wire kit (140 pieces in 14
different lengths), the BeagleBone Breadboard
offers users a powerful prototyping tool without the needs of soldering.
http://beagleboardtoys.com/wiki/index.php?title=BeagleBone_Breadboard
12/22/2011
BeagleBone Breadboard - BEAGLE BOARD TOYS WIKI
Page 2 of 4
Specifications
Followings are some specifications of the BeagleBone Breadboard:
Components
2x
1x
Resistors 2x
LED's
2x
Switches 2x
Headers
46-pin stackable
8-pin female
470 Ohm 1/4W 5%
Green 3mm 20mA 2.12V
Tactile .05A 24V
Included with each purchase:
Prototyping Area Pattern
Breadboard
1x Solderless 170 tie point 1.8" x 1.37"
Jumper Wire Kit 140x 14 lengths .1" .2" .3" .4" .5" .6" .7" .8" .9" 1" 2" 3" 4" 5"
Prototyping Area

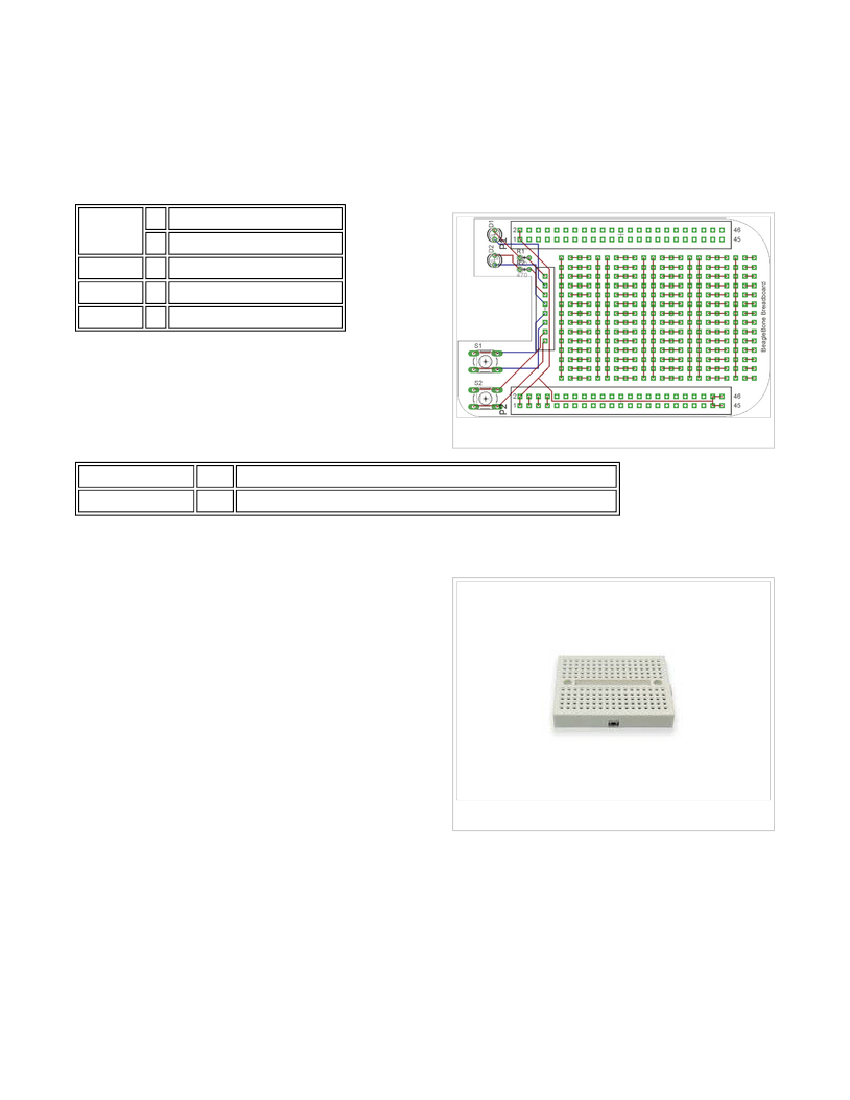

The solder prototyping area on the BeagleBone
Breadboard is patterned into rows and columns of
connections. At the center of the cape are multiple 3-
connection rows separated by 14-connection
columns. The far right end of the cape features a
series of 2-connection rows. Users can utilized these
rows for extra connectors.
The adhesive solderless breadboard features 34 five-
connection rows split equally into two sides. The
Solderless Breadboard
bottom of this breadboard can be peeled and
attached onto the solder prototyping area of the
BeagleBone Breadboard. In addition to two 46-pin connectors and an 8-pin header, the solderless
breadboard provides a complete solderless solution for prototyping BeagleBone.
Mechanical Specifications
■
Size: 2.15" x 3.40"
■
Layers: 2
http://beagleboardtoys.com/wiki/index.php?title=BeagleBone_Breadboard
12/22/2011
BeagleBone Breadboard - BEAGLE BOARD TOYS WIKI
Page 3 of 4
■
PCB thickness: .062”
■
RoHS Compliant: Yes
Pin Usage
No signals is reserved by this cape.

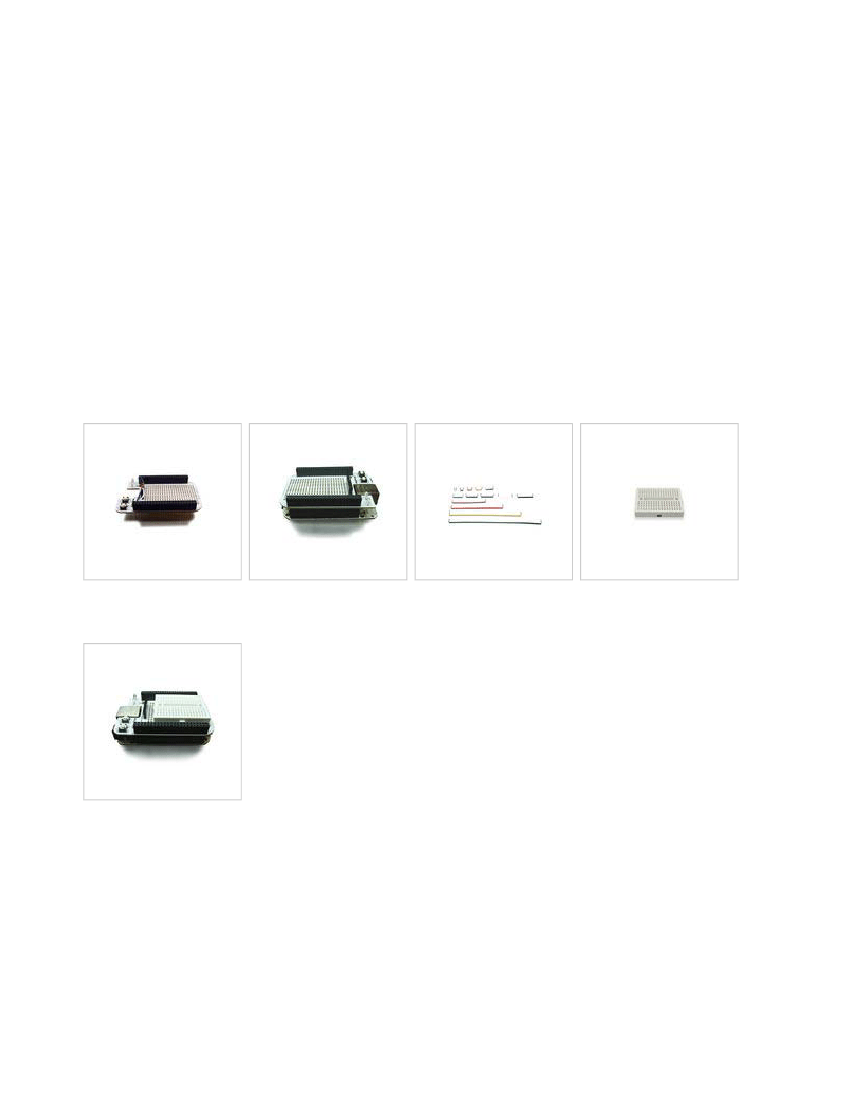

Product Images
With Jumper Wires
BeagleBone Stacked
Jumper Wire Kit
Solderless Breadboard
With Solderless
Breadboard
http://beagleboardtoys.com/wiki/index.php?title=BeagleBone_Breadboard
12/22/2011
BeagleBone Breadboard - BEAGLE BOARD TOYS WIKI
Page 4 of 4
Documentations
Bill of Materials (https://github.com/CircuitCo/BeagleBone-Breadboard/blob/master/BeagleBone-
Breadboard-bom.xlsx?raw=true)
Gerber files (https://github.com/CircuitCo/BeagleBone-Breadboard/blob/master/BeagleBone-
Breadboard-gerber.zip?raw=true)
EAGLE layout (https://github.com/CircuitCo/BeagleBone-Breadboard/blob/master/BeagleBone-
Breadboard-layout-eagle.brd?raw=true) and schematic (https://github.com/CircuitCo/BeagleBone-
Breadboard/blob/master/BeagleBone-Breadboard-schematic-eagle.sch?raw=true)
Cadence layout (https://github.com/CircuitCo/BeagleBone-Breadboard/blob/master/BeagleBone-
Breadboard-layout-cadence.brd?raw=true) and schematic (https://github.com/CircuitCo/BeagleBone-
Breadboard/blob/master/BeagleBone-Breadboard-schematic-cadence.DSN?raw=true)
For other files or downloading all files at once, please visit here
(https://github.com/CircuitCo/BeagleBone-Breadboard)
Retrieved from "http://beagleboardtoys.com/wiki/index.php?title=BeagleBone_Breadboard"
■
This page was last modified on 8 December 2011, at 23:54.
■
This page has been accessed 308 times.
■
Content is available under GNU Free Documentation License 1.3 or later.
http://beagleboardtoys.com/wiki/index.php?title=BeagleBone_Breadboard
12/22/2011
