Note: “(S)” Denotes that there is an ON/OFF Switch option available for the SPU65 family of products. To order an SPU65 product with the optional ON/OFF
Switch, simply add an “S” to the end of the standard Part Number. For example SPU65-101S.
Order On-Line!
WWW.ASTRODYNE.COM
astrodyne.com
300 Myles Standish Blvd., Taunton, MA 02780
Ph: 1-800-823-8082
Fax: 508-823-8181
6 5 W D e s k t op S witch ing Po wer Su pplies
Universal 85-265VAC Input
SPu65
IEC-320-C14 Input Receptacle
series
Single, Dual and Triple Outputs from 3.3 to 48VDC
3000V Isolation
Splash Proof Case
6.6” x 3.0” x 1.75”
Model Number
DuAL OuTPuT
SPU65-200(S)
SPU65-201(S)
SPU65-202(S)
SPU65-203(S)
SPU65-204(S)
SPU65-215(S)
TRIPLE OuTPuT
SPU65-300(S)
SPU65-301(S)
SPU65-302(S)
SPU65-303(S)
SPU65-304(S)
SPU65-305(S)
SPU65-306(S)
Output VDC
Output Amps
Min. Load
Regulation
Output Power Max. Output Connector
3.3/12
5/12
5/15
5/24
3.3/5
5/-24
3.3/12/-12
5/12/-5
5/12/-12
5/15/-15
5/24/-24
5/24/-12
3.3/12/-5
7/2.75
7/3
7/3
7/2
7/3
7/2
7/3/0.8
6/3/0.8
6/3/0.8
6/3/0.8
7/2/0.8
6/2/0.8
7/3/0.8.
0.7/0.55A
0.7/0.4A
1.4/0.6A
1.4/0.3A
1.4/0.6A
1.4/0.4A
1.4/0.6/0.8A
0.6/0.3/0.8A
0.6/0.3/0.8A
0.6/0.3/0.8A
0.7/0.2/0.8
0.6/0.2/0.8
0.7/0.6/0.8a
7/5%
5/5%
5/7%
5/5%
7/5%
5/5%
7/5/5%
5/5/5%
5/5/5%
5/5/5%
5/5/5%
5/5/5%
7/5/5%
56.1W
65W
65W
65W
38.1W
65W
65W
65W
65W
65W
65W
65W
63.1W
8 Pin DIN
5 Pin DIN
5 Pin DIN
5 Pin DIN
5 Pin DIN
5 Pin DIN
8 Pin DIN
5 Pin DIN
5 Pin DIN
5 Pin DIN
5 Pin DIN
5 Pin DIN
5 Pin DIN
Note: “(S)” Denotes that there is an ON/OFF Switch option available for the SPU65 family of products. To order an SPU65 product with the optional ON/OFF
Switch, simply add an “S” to the end of the standard Part Number. For example SPU65-201S.
Order On-Line!
WWW.ASTRODYNE.COM
astrodyne.com
300 Myles Standish Blvd., Taunton, MA 02780
Ph: 1-800-823-8082
Fax: 508-823-8181
6 5 W D e s k t op S witch ing Po wer Su pplies
INPuT SPECIFICATIONS
Input Voltage Range
Frequency Range
Input Current
Inrush Current, typ (Cold Start)
Leakage Current
90-264 VAC (Universal)
47-63 Hz
Low Line (115VAC)
High Line (230VAC)
Low Line (115VAC)
High Line (230VAC)
0.75mA MAX.
@ 240 VAC, FL
SPu65

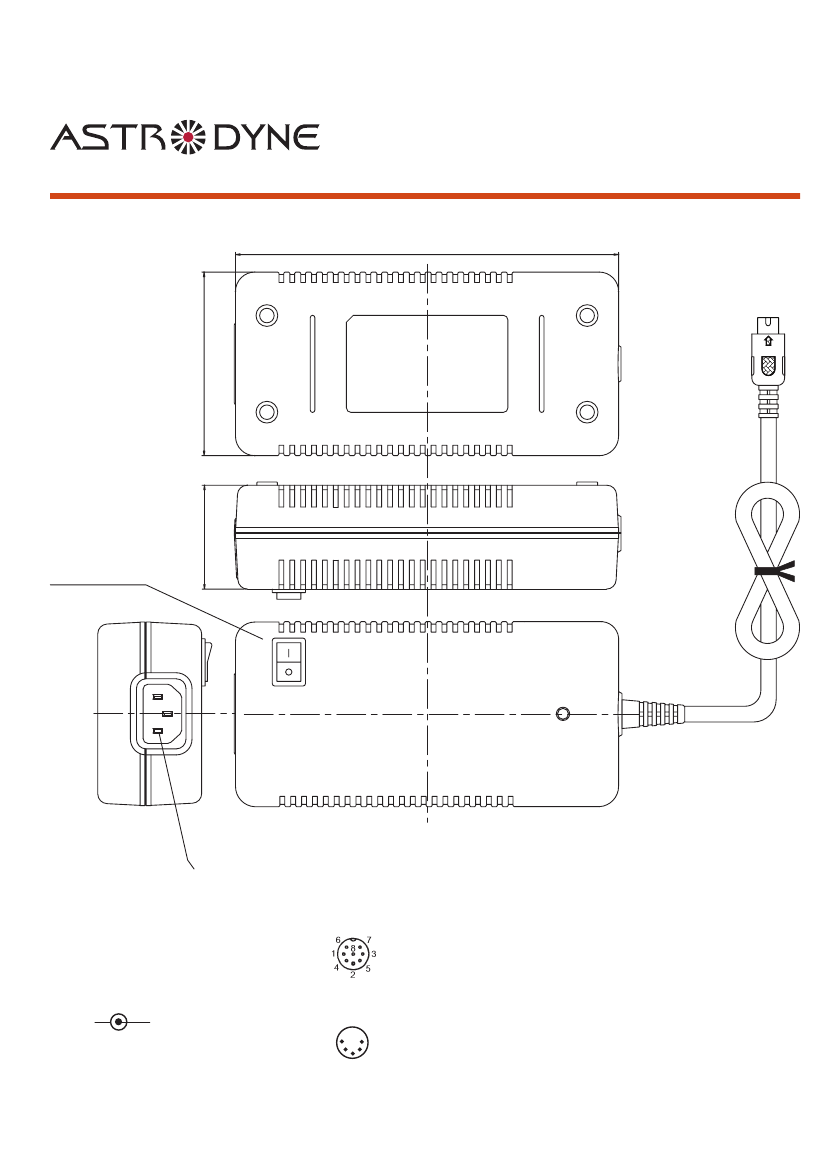

PHYSICAL SPECIFICATIONS
Size
Construction
Weight
6.6” x 3.0” x 1.75”
Desktop Style
26.4oz (750g)
series
1.9A
1.5A
15A max.
30A max.
ENVIRONMENTAL SPECIFICATIONS
Oper. Temperature
0 to +40°C (FL)
*
50% Load @ 70°C
(See Derate Curve)
-40 to +85°C
*
5% to 95%, non-cond
*
110Vin:
FCC Part 15 Class B
220Vin:
CISPR-22 Class B
100,000 Hrs
OuTPuT SPECIFICATIONS
Voltage and Current
Output Power Range
Load Regulation (230Vin)
Line Regulation
Transient Response
Temperature Coefficient
Ripple/Noise
Over Voltage Protection
Over Current Protection
Start Up / Hold Up Time
See Selection Charts
0 to FL Rating
+/- 7%, max.
+/- 1%, max.
100Vin, FL to 1/2L
4mS
+/-0.04%/°C, typ
FL, 90Vin
2% Pk-Pk, max.
112-132%
*
110-150%
*
100Vin, FL
2S max. / 16mS min.
Storage Temperature
Relative Humidity
EMC
MTBF
DERATE CuRVE
GENERAL SPECIFICATIONS
Input-Out Isolation
Input-Ground Isolation
Isolation Resistance
Efficiency (FL, 230Vin)
Switching Frequency
Safety
3000 VAC
1500VAC
50 Mohm min.
83%, typ
58 KHz
(c)UL1950, TUV, CB
NOTE: Low cost 3 Wire IEC320/C13 (Part Number ACCRD-C13) Input Power
Cords are available for these products. Inquire to the Astrodyne Sales Depart.
All specifications are typical at nominal input, full load, and 25DegC unless
otherwise noted
*
These are stress ratings. Exposure of the devices to any of these conditions
may adversely affect long term reliability. Proper operation under conditions
other than the standard operating conditions is neither warranteed nor implied.
Astrodyne products are not authorized or warranteed for use
as critical components in life support systems, equipment used
in hazardous environments, nuclear controls systems, or other
