3128-5-00-80-00-00-08-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 3128-5-00-80-00-00-08-0

Preview

3128-5-00-80-00-00-08-0: DescriptionCONN PC PIN CIRC; CategoryThe connector terminals; File Size497KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3128-5-00-80-00-00-08-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3128-5-00-80-00-00-08-0	-	-	View	Buy Now

3128-5-00-80-00-00-08-0 Overview

CONN PC PIN CIRC

3128-5-00-80-00-00-08-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	3128
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

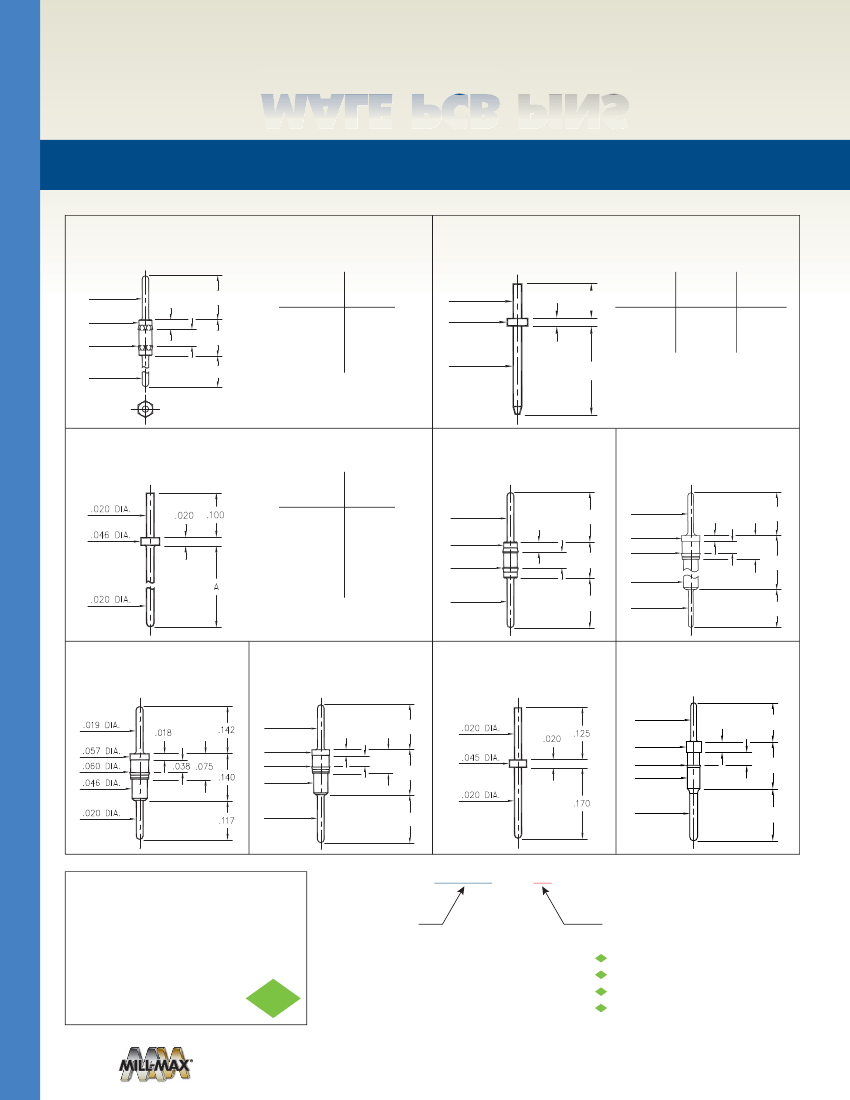

MALE PCB

PINS

PRINTED CIRCUIT PINS

4006

4006-X-00-XX-00-00-03-0

Hex press-fit in .034 mounting hole

.016

DIA.

.032 DIA.

.035 DIA.

.118

.024

.035

.083

3121

Basic Part

Number

Length

V

3121-X-00-XX-00-00-08-0

Solder mount in .023 mounting hole

Material is annealed.

.019

DIA.

.040 DIA.

V

Basic Part

Number

Substrate

Thickness

Length

V

4006-0

4006-1

4006-2

.118

.188

.288

3121-1

3121-2

.016

.157

.025

.040

.061

.075

.017

DIA.

.016

DIA.

V

3128

3128-X-00-XX-00-00-08-0

Solder mount in .024 min. mounting hole

3006

3006-0-00-XX-00-00-03-0

Press-fit in .034 mounting hole

8885

8885-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

.018 DIA.

Basic Part

Number

Length

A

.016 DIA.

3128-1

3128-2

3128-3

3128-4

3128-5

.250

.425

.525

.550

.930

.118

.057 DIA.

.018

.140

.032 DIA.

.036 DIA.

.024

.035

.083

.060 DIA.

.038 .075

.450

.046 DIA.

.016 DIA.

.118

.015 DIA.

.125

6218

6218-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

5012

5012-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

.019 DIA.

.018

.057

DIA.

.060

DIA.

.046

DIA.

.038 .075

.157

9081

9081-0-00-XX-00-00-08-0

Solder mount in .024 mounting hole

3039

3039-0-00-15-00-00-03-0

Press-fit in .025 mounting hole

.011 DIA.

.075

.029 DIA.

.026 DIA.

.024 DIA.

.020

.025

.090

.154

.023

DIA.

.015 DIA.

.164

.100

PAGE 208 | MALE PCB PINS

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Except where noted )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

RoHS - 2

2011/65/EU

ORDER CODE: XXXX - X - 00 -

XX

- 00 - 00 - XX - 0

BASIC PART #

SPECIFY PIN FINISH:

01

200

”

TIN/LEAD OVER NICKEL

80

200

”

TIN OVER NICKEL (RoHS)

15

10

”

GOLD OVER NICKEL (RoHS)

21

20

”

GOLD OVER NICKEL (RoHS)

34

50

”

GOLD OVER NICKEL (RoHS)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

3128-5-00-80-00-00-08-0 Related Products

	3128-5-00-80-00-00-08-0	3039-0-00-15-00-00-03-0	3039-0-00-15-00-00-03-4	3128-2-00-80-00-00-08-0	6218-0-00-01-00-00-03-4	6218-0-00-15-00-00-03-4	6218-0-00-80-00-00-03-4
Description	CONN PC PIN CIRC	CONN PC PIN CIRC	CONN PC PIN CIRC	CONN PC PIN CIRC	CONN PC PIN CIRC	CONN PC PIN CIRC	CONN PC PIN CIRC
Terminal type	-	PC pin	PC pin	-	PC pin	PC pin	PC pin
Terminal form	-	single ended	single ended	-	Double ended	Double ended	Double ended
Pin Dimensions - Above Flange	-	0.015" (0.38mm) diameter	0.015" (0.38mm) diameter	-	0.040" (1.02mm) diameter	0.040" (1.02mm) diameter	0.040" (1.02mm) diameter
Pin Dimensions - Below Flange	-	0.011" (0.28mm) diameter	0.011" (0.28mm) diameter	-	0.067" (1.70mm) hexagonal	0.067" (1.70mm) hexagonal	0.067" (1.70mm) hexagonal
Length - above flange	-	0.170" (4.32mm)	0.170" (4.32mm)	-	0.188" (4.78mm)	0.188" (4.78mm)	0.188" (4.78mm)
Length - under flange	-	0.075"（1.91mm）	0.075"（1.91mm）	-	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
Length - total	-	0.265"（6.73mm）	0.265"（6.73mm）	-	0.419"（10.64mm）	0.419"（10.64mm）	0.419"（10.64mm）
Flange diameter	-	0.029"（0.74mm）	0.029"（0.74mm）	-	0.093"（2.36mm）	0.093"（2.36mm）	0.093"（2.36mm）
Mounting hole diameter	-	0.025"（0.64mm）	0.025"（0.64mm）	-	0.068"（1.73mm）	0.068"（1.73mm）	0.068"（1.73mm）
Installation type	-	Through hole	Through hole	-	Through hole	Through hole	Through hole
Termination	-	Press fit	Press fit	-	Press fit	Press fit	Press fit
insulation	-	non-insulated	non-insulated	-	non-insulated	non-insulated	non-insulated
Contact material	-	copper alloy	copper alloy	-	copper alloy	copper alloy	copper alloy
Contact plating	-	gold	gold	-	tin	gold	tin
