3900-0-00-15-00-00-03-0

Description
CONN PIN RCPT
CategoryThe connector
File Size622KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric Compare View All

3900-0-00-15-00-00-03-0 Online Shopping

Suppliers Part Number Price MOQ In stock
3900-0-00-15-00-00-03-0 - - View Buy Now

3900-0-00-15-00-00-03-0 Overview

CONN PIN RCPT

3900-0-00-15-00-00-03-0 Parametric

Parameter NameAttribute value
MakerMill-Max
Reach Compliance Codecompliant
ECCN codeEAR99
Manufacturer's serial number3900
Terminal and terminal strip typesPCB TERMINAL
MALE PCB
PINS
PRINTED CIRCUIT PINS
3409
3409-X-00-XX-00-00-03-0
Press-fit in .057 mounting hole
0315
Basic Part
Number
Pin
Length
A
0315-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
Pin material is Phosphor Bronze 544 (B2)
Basic Part
Number
Head
Height
K
Standoff
Height
S
3409-1
3409-2
.210
.420
0315-0
0315-1
.030
.040
.190
.430
5503/5509
550X-X-00-XX-00-00-03-0
Press-fit in .057 mounting hole
5504/5505
Basic Part
Number
Pin
Diameter
H
550X-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
Basic Part
Number
Standoff
Height
S
5503-0
5509-0
.025
.018
5504-0
5505-0
.331
.606
3406
3406-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
5011
5011-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
5113
5113-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
3900
.020 DIA.
3900-0-00-15-00-00-03-0
Press-fit in .057 mounting hole
.193
.072 DIA.
.030
.350
.059 DIA.
.053 DIA.
.028
.250
(.636)
.020 DIA.
.193

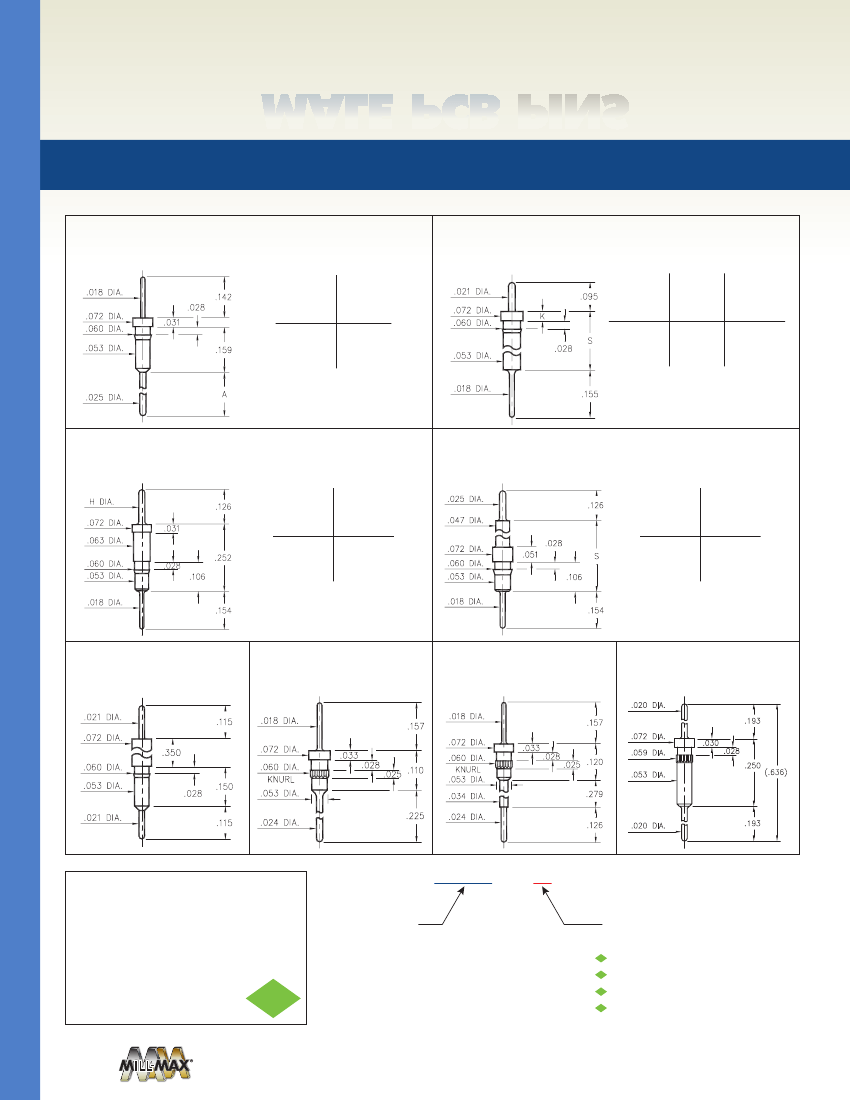

PAGE 214 | MALE PCB PINS
SPECIFICATIONS:
Pin Material:
Brass Alloy 360, 1/2 Hard
( Except where noted )
Dimensions: Inches
Tolerances On:
Lengths: ± .005
Diameters: ± .002
Angles:
±2°
ORDER CODE: XXXX - X - 00 -
XX
- 00 - 00 - 03 - 0
BASIC PART #
SPECIFY PIN FINISH:
01
200
μ”
TIN/LEAD OVER NICKEL
80
200
μ”
TIN OVER NICKEL (RoHS)
15
10
μ”
GOLD OVER NICKEL (RoHS)
21
20
μ”
GOLD OVER NICKEL (RoHS)
34
50
μ”
GOLD OVER NICKEL (RoHS)
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

3900-0-00-15-00-00-03-0 Related Products

3900-0-00-15-00-00-03-0 5011-0-00-15-00-00-03-4 3900-0-00-80-00-00-03-0
Description CONN PIN RCPT CONN PC PIN CIRC CONN PIN RCPT
Terminal type - PC pin PC pin
Terminal form - Double ended single ended
Pin Dimensions - Above Flange - 0.018" (0.46mm) diameter 0.020" (0.51mm) diameter
Pin Dimensions - Below Flange - 0.024" (0.61mm) diameter 0.020" (0.51mm) diameter
Length - above flange - 0.157" (3.99mm) 0.193"(4.90mm)
Length - under flange - 0.302"(7.67mm) 0.413"(10.49mm)
Length - total - 0.492"(12.50mm) 0.636"(16.15mm)
Flange diameter - 0.072"(1.83mm) 0.072"(1.83mm)
Mounting hole diameter - 0.057"(1.45mm) 0.057"(1.45mm)
Installation type - Through hole Through hole
Termination - Press fit, knurling Press fit
insulation - non-insulated non-insulated
Contact material - copper alloy copper alloy
Contact plating - gold tin
Contact plating thickness - 10.0µin(0.25µm) 200.0µin(5.08µm)
